#include <uwphysical.h>

Inheritance diagram for UnderwaterPhysical:

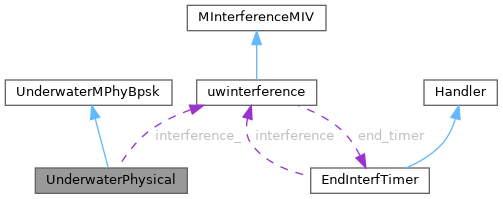

Collaboration diagram for UnderwaterPhysical:

Public Member Functions
	UnderwaterPhysical ()

virtual	~UnderwaterPhysical ()

virtual int	command (int, const char const ) override

virtual void	recv (Packet *) override

int	recvSyncClMsg (ClMessage *m) override

Protected Member Functions
virtual void	updateInstantaneousStats ()

virtual void	endTx (Packet *p) override

virtual void	endRx (Packet *p) override

virtual void	startRx (Packet *p) override

virtual double	consumedEnergyTx (const double &_duration) const

virtual double	consumedEnergyRx (const double &_duration) const

virtual double	getPER (double snr, int nbits, Packet *_p)

bool	isZero (const double &value) const

double	Get_Tx_Time () const

double	Get_Rx_Time () const

double	Get_Energy_Tx () const

double	Get_Energy_Rx () const

double	Get_Transmitted_bytes () const

void	incrTot_pkts_lost ()

void	incrTotCrtl_pkts_lost ()

void	incrErrorCtrlPktsInterf ()

void	incrCollisionDATAvsCTRL ()

void	incrCollisionCTRL ()

void	incrCollisionDATA ()

int	getTot_pkts_lost () const

int	getTot_CtrlPkts_lost () const

int	getError_CtrlPktsInterf () const

int	getCollisionsDATAvsCTRL () const

int	getCollisionsCTRL () const

int	getCollisionsDATA () const

double	log2 (const double &_input) const

double	get_prob_error_symbol_mpsk (const double &_snr, const uint32_t _M) const

Protected Attributes
std::string	modulation_name_

double	time_ready_to_end_rx_

double	Tx_Time_

double	Rx_Time_

double	Energy_Tx_

double	Energy_Rx_

double	Transmitted_bytes_

double	tx_power_

double	rx_power_

int	tot_pkts_lost

int	tot_ctrl_pkts_lost

int	errorCtrlPktsInterf

int	collisionDataCTRL

int	collisionCTRL

int	collisionDATA

std::string	Interference_Model

uwinterference *	interference_

Constructor & Destructor Documentation

◆ UnderwaterPhysical()

UnderwaterPhysical::UnderwaterPhysical ( )

Constructor of UnderwaterPhysical class.

References rx_power_, and tx_power_.

◆ ~UnderwaterPhysical()

UnderwaterPhysical::~UnderwaterPhysical ( )

virtual

Destructor of UnderwaterPhysical class.

Member Function Documentation

◆ command()

int UnderwaterPhysical::command	(	int	argc,
		const char const	argv
	)

overridevirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented in UnderwaterPhysicalNoise, UwAhoiPhy, UnderwaterGainFromDb, UwHermesPhy, UnderwaterHMMPhysical, UwOFDMPhy, UnderwaterPhysicaldb, and UnderwaterPhysicalfromdb.

References Get_Energy_Rx(), Get_Energy_Tx(), Get_Rx_Time(), Get_Transmitted_bytes(), Get_Tx_Time(), getCollisionsCTRL(), getCollisionsDATA(), getCollisionsDATAvsCTRL(), getError_CtrlPktsInterf(), getTot_CtrlPkts_lost(), getTot_pkts_lost(), interference_, Interference_Model, and modulation_name_.

Referenced by UnderwaterPhysicalNoise::command(), UwAhoiPhy::command(), UnderwaterGainFromDb::command(), UwHermesPhy::command(), UnderwaterHMMPhysical::command(), UwOFDMPhy::command(), and UnderwaterPhysicaldb::command().

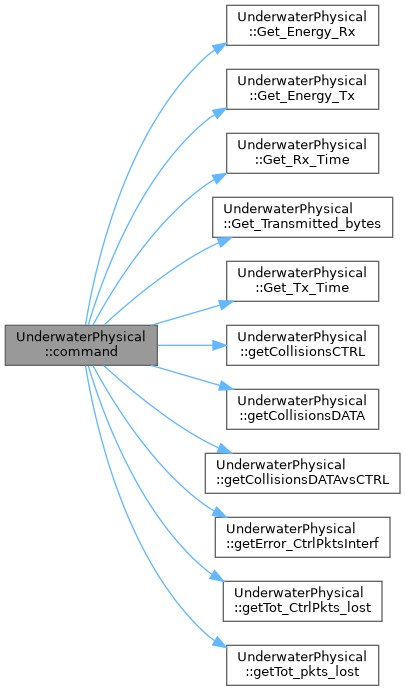

Here is the call graph for this function:

◆ consumedEnergyRx()

virtual double UnderwaterPhysical::consumedEnergyRx ( const double & _duration ) const

inlineprotectedvirtual

Compute the energy (in Joule) spent by the modem in reception

Parameters

const double& time spent by the modem in reception phase

Returns: double& the value of energy in Joule

References rx_power_.

Referenced by UwAhoiPhy::endRx(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterPhysicaldb::endRx(), UnderwaterHMMPhysical::endRx(), and endRx().

◆ consumedEnergyTx()

virtual double UnderwaterPhysical::consumedEnergyTx ( const double & _duration ) const

inlineprotectedvirtual

Compute the energy (in Joule) spent by the modem in transmission

Parameters

const double& time spent by the modem in transmission phase

Returns: double& the value of energy in Joule

References tx_power_.

Referenced by UwOFDMPhy::endTx(), and endTx().

◆ endRx()

void UnderwaterPhysical::endRx ( Packet * p )

overrideprotectedvirtual

Handles the end of a packet reception

Parameters

Packet* p Pointer to the packet received

Reimplemented in UwAhoiPhy, UwHermesPhy, UwOFDMPhy, UnderwaterPhysicaldb, and UnderwaterHMMPhysical.

References consumedEnergyRx(), Energy_Rx_, uwinterference::getCounters(), uwinterference::getInterferencePower(), getPER(), incrCollisionCTRL(), incrCollisionDATA(), incrCollisionDATAvsCTRL(), incrErrorCtrlPktsInterf(), incrTot_pkts_lost(), incrTotCrtl_pkts_lost(), interference_, Interference_Model, Rx_Time_, time_ready_to_end_rx_, and UwPhysicalStats::updateStats().

Referenced by UnderwaterHMMPhysical::endRx().

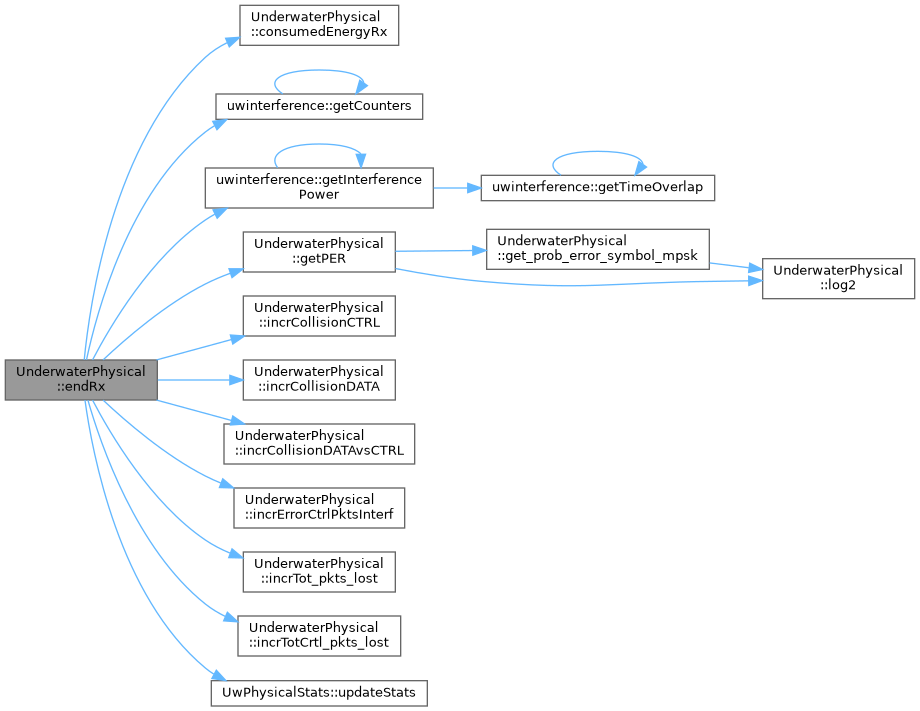

Here is the call graph for this function:

◆ endTx()

void UnderwaterPhysical::endTx ( Packet * p )

overrideprotectedvirtual

Handles the end of a packet transmission

Parameters

Packet* p Pointer to the packet transmitted

Reimplemented in UwOFDMPhy.

References consumedEnergyTx(), Energy_Tx_, Transmitted_bytes_, and Tx_Time_.

Here is the call graph for this function:

◆ Get_Energy_Rx()

double UnderwaterPhysical::Get_Energy_Rx ( ) const

inlineprotected

Returns the energy (in Joule) spent by the node in reception.

Returns: energy (in Joule) spent by the node in reception.

References Energy_Rx_.

Referenced by command().

◆ Get_Energy_Tx()

double UnderwaterPhysical::Get_Energy_Tx ( ) const

inlineprotected

Returns the energy (in Joule) spent by the node in transmission.

Returns: energy (in Joule) spent by the node in transmission.

References Energy_Tx_.

Referenced by command().

◆ get_prob_error_symbol_mpsk()

double UnderwaterPhysical::get_prob_error_symbol_mpsk	(	const double &	_snr,
		const uint32_t	_M
	)		const

inlineprotected

Parameters

_snr	Signal to Noise Ratio
_M	Number of simbol of the the MPSK

Returns: Probability error for the symbol

References log2().

Referenced by UwOFDMPhy::getOFDMPER(), and getPER().

Here is the call graph for this function:

◆ Get_Rx_Time()

double UnderwaterPhysical::Get_Rx_Time ( ) const

inlineprotected

Returns the time (in seconds) spent by the node in reception.

Returns: time (in seconds) spent by the node in reception.

References Rx_Time_.

Referenced by command().

◆ Get_Transmitted_bytes()

double UnderwaterPhysical::Get_Transmitted_bytes ( ) const

inlineprotected

Returns the number of bytes transmitted.

Returns: the number of bytes transmitted.

References Transmitted_bytes_.

Referenced by command().

◆ Get_Tx_Time()

double UnderwaterPhysical::Get_Tx_Time ( ) const

inlineprotected

Returns the time (in seconds) spent by the node in transmission.

Returns: time (in seconds) spent by the node in transmission.

References Tx_Time_.

Referenced by command().

◆ getCollisionsCTRL()

int UnderwaterPhysical::getCollisionsCTRL ( ) const

inlineprotected

Returns: the number of collisions with a CTRL packet

References collisionCTRL.

Referenced by command().

◆ getCollisionsDATA()

int UnderwaterPhysical::getCollisionsDATA ( ) const

inlineprotected

Returns: the number of collisions with a DATA packet

References collisionDATA.

Referenced by command().

◆ getCollisionsDATAvsCTRL()

int UnderwaterPhysical::getCollisionsDATAvsCTRL ( ) const

inlineprotected

Returns: the total number of collision between DATA and CTRL

References collisionDataCTRL.

Referenced by command().

◆ getError_CtrlPktsInterf()

int UnderwaterPhysical::getError_CtrlPktsInterf ( ) const

inlineprotected

Returns: the total number of CTRL pkts lost due to interference

References errorCtrlPktsInterf.

Referenced by command().

◆ getPER()

double UnderwaterPhysical::getPER	(	double	snr,
		int	nbits,
		Packet *	_p
	)

protectedvirtual

Returns the packet error rate by using the length of a packet and the information contained in the packet (position of the source and the destiantion.

Parameters

snr	Calculated by nsmiracle with the Urick model (unused).
nbits	length in bit of the packet.
p	Packet by witch the module gets information about source and destination.

Returns: PER of the packet passed as parameter.

Reimplemented in UnderwaterPhysicalfromdb, UwHermesPhy, and UnderwaterGainFromDb.

References get_prob_error_symbol_mpsk(), log2(), and modulation_name_.

Referenced by UwOFDMPhy::endRx(), UnderwaterHMMPhysical::endRx(), endRx(), UnderwaterPhysicalfromdb::getPER(), and UnderwaterGainFromDb::getPER().

Here is the call graph for this function:

◆ getTot_CtrlPkts_lost()

int UnderwaterPhysical::getTot_CtrlPkts_lost ( ) const

inlineprotected

Returns: the total number of CTRL packets lost

References tot_ctrl_pkts_lost.

Referenced by command(), and recvSyncClMsg().

◆ getTot_pkts_lost()

int UnderwaterPhysical::getTot_pkts_lost ( ) const

inlineprotected

Returns: the total number of packets lost

References tot_pkts_lost.

Referenced by command(), and recvSyncClMsg().

◆ incrCollisionCTRL()

void UnderwaterPhysical::incrCollisionCTRL ( )

inlineprotected

Increment the number of CTRL pkts discarded due to a collision

References collisionCTRL.

Referenced by UwAhoiPhy::endRx(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterHMMPhysical::endRx(), and endRx().

◆ incrCollisionDATA()

void UnderwaterPhysical::incrCollisionDATA ( )

inlineprotected

Increment the number of DATA pkts discarded due to a collision

References collisionDATA.

Referenced by UwAhoiPhy::endRx(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterHMMPhysical::endRx(), and endRx().

◆ incrCollisionDATAvsCTRL()

void UnderwaterPhysical::incrCollisionDATAvsCTRL ( )

inlineprotected

Increment the number of collisions DATA/CTRL

References collisionDataCTRL.

Referenced by UwAhoiPhy::endRx(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterHMMPhysical::endRx(), and endRx().

◆ incrErrorCtrlPktsInterf()

void UnderwaterPhysical::incrErrorCtrlPktsInterf ( )

inlineprotected

Increment the number of CTRL packets discarded due to interference

References errorCtrlPktsInterf.

Referenced by UwAhoiPhy::endRx(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterHMMPhysical::endRx(), and endRx().

◆ incrTot_pkts_lost()

void UnderwaterPhysical::incrTot_pkts_lost ( )

inlineprotected

Increment the number of packets discarded

References tot_pkts_lost.

Referenced by UwAhoiPhy::endRx(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterHMMPhysical::endRx(), endRx(), UwOFDMPhy::startRx(), and startRx().

◆ incrTotCrtl_pkts_lost()

void UnderwaterPhysical::incrTotCrtl_pkts_lost ( )

inlineprotected

Increment the number of CTRL packets discarded

References tot_ctrl_pkts_lost.

Referenced by UwAhoiPhy::endRx(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterHMMPhysical::endRx(), endRx(), UwOFDMPhy::startRx(), and startRx().

◆ isZero()

bool UnderwaterPhysical::isZero ( const double & value ) const

inlineprotected

Evaluates is the number passed as input is equal to zero. When C++ works with double and float number you can't compare them with 0. If the absolute value of the number is smaller than eplison that means that the number is equal to zero.

Parameters

double& Number to evaluate.

Returns: true if the number passed in input is equal to zero, false otherwise.

See also: std::numeric_limits<double>::epsilon()

◆ log2()

double UnderwaterPhysical::log2 ( const double & _input ) const

inlineprotected

Parameters

_input Input value.

Returns: the log base 2 of the input.

Referenced by get_prob_error_symbol_mpsk(), UwOFDMPhy::getOFDMPER(), and getPER().

◆ recv()

void UnderwaterPhysical::recv ( Packet * p )

overridevirtual

recv method. It is called when a packet is received from the channel

Parameters

Packet* Pointer to the packet that are going to be received

Reimplemented in UwOFDMPhy, and UnderwaterPhysicaldb.

References uwinterference::addToInterference(), interference_, and startRx().

Here is the call graph for this function:

◆ recvSyncClMsg()

int UnderwaterPhysical::recvSyncClMsg ( ClMessage * m )

override

recv syncronous cross layer messages to require an operation from another module

Parameters

m	Pointer cross layer message

References CLMSG_UWPHY_LOSTPKT, getTot_CtrlPkts_lost(), getTot_pkts_lost(), and updateInstantaneousStats().

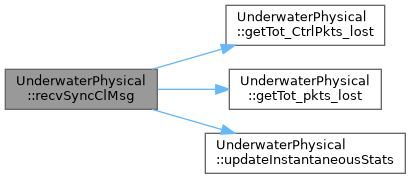

Here is the call graph for this function:

◆ startRx()

void UnderwaterPhysical::startRx ( Packet * p )

overrideprotectedvirtual

Handles the start of a reception. This method is called from the recv method

Parameters

Packet* p Pointer to the packet that the PHY are receiving.

Reimplemented in UwOFDMPhy.

References incrTot_pkts_lost(), and incrTotCrtl_pkts_lost().

Referenced by UnderwaterPhysicaldb::recv(), and recv().

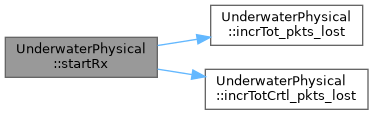

Here is the call graph for this function:

◆ updateInstantaneousStats()

void UnderwaterPhysical::updateInstantaneousStats ( )

protectedvirtual

Update the stats before sending them through crosslayer message

Referenced by recvSyncClMsg().

Member Data Documentation

◆ collisionCTRL

int UnderwaterPhysical::collisionCTRL

protected

Total number of CTRL pkts lost due to collision

Referenced by getCollisionsCTRL(), and incrCollisionCTRL().

◆ collisionDATA

int UnderwaterPhysical::collisionDATA

protected

Total number of DATA pkts lost due to collision

Referenced by getCollisionsDATA(), and incrCollisionDATA().

◆ collisionDataCTRL

int UnderwaterPhysical::collisionDataCTRL

protected

Total number of collisions between DATA pkts and CTRL pkts

Referenced by getCollisionsDATAvsCTRL(), and incrCollisionDATAvsCTRL().

◆ Energy_Rx_

double UnderwaterPhysical::Energy_Rx_

protected

Energy (in Joule) spent by the node in transmission.

Referenced by UwAhoiPhy::endRx(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterPhysicaldb::endRx(), UnderwaterHMMPhysical::endRx(), endRx(), and Get_Energy_Rx().

◆ Energy_Tx_

double UnderwaterPhysical::Energy_Tx_

protected

Energy (in Joule) spent by the node in transmission.

Referenced by UwOFDMPhy::endTx(), endTx(), and Get_Energy_Tx().

◆ errorCtrlPktsInterf

int UnderwaterPhysical::errorCtrlPktsInterf

protected

Total number of CTRL pkts lost due to interference

Referenced by getError_CtrlPktsInterf(), and incrErrorCtrlPktsInterf().

◆ interference_

uwinterference* UnderwaterPhysical::interference_

protected

Pointer to the interference module.

Referenced by command(), UwAhoiPhy::endRx(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterHMMPhysical::endRx(), endRx(), UwOFDMPhy::recv(), and recv().

◆ Interference_Model

std::string UnderwaterPhysical::Interference_Model

protected

Interference calcuation mode chosen: CHUNK model or MEANPOWER model

Referenced by command(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterHMMPhysical::endRx(), endRx(), UwAhoiPhy::UwAhoiPhy(), UwHermesPhy::UwHermesPhy(), and UwOFDMPhy::UwOFDMPhy().

◆ modulation_name_

std::string UnderwaterPhysical::modulation_name_

protected

Modulation scheme name.

Referenced by command(), and getPER().

◆ rx_power_

double UnderwaterPhysical::rx_power_

protected

Power required in reception.

Referenced by consumedEnergyRx(), and UnderwaterPhysical().

◆ Rx_Time_

double UnderwaterPhysical::Rx_Time_

protected

Time (in seconds) spent by the node in reception.

Referenced by UwAhoiPhy::endRx(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterPhysicaldb::endRx(), UnderwaterHMMPhysical::endRx(), endRx(), and Get_Rx_Time().

◆ time_ready_to_end_rx_

double UnderwaterPhysical::time_ready_to_end_rx_

protected

Used to keep track of the rx time.

Referenced by UwAhoiPhy::endRx(), UwHermesPhy::endRx(), UwOFDMPhy::endRx(), UnderwaterPhysicaldb::endRx(), UnderwaterHMMPhysical::endRx(), and endRx().

◆ tot_ctrl_pkts_lost

int UnderwaterPhysical::tot_ctrl_pkts_lost

protected

Total number of CTRL pkts lost

Referenced by getTot_CtrlPkts_lost(), and incrTotCrtl_pkts_lost().

◆ tot_pkts_lost

int UnderwaterPhysical::tot_pkts_lost

protected

Total number of packets lost

Referenced by getTot_pkts_lost(), and incrTot_pkts_lost().

◆ Transmitted_bytes_

double UnderwaterPhysical::Transmitted_bytes_

protected

Number of bytes transmitted.

Referenced by UwOFDMPhy::endTx(), endTx(), and Get_Transmitted_bytes().

◆ tx_power_

double UnderwaterPhysical::tx_power_

protected

Power required in transmission.

Referenced by consumedEnergyTx(), and UnderwaterPhysical().

◆ Tx_Time_

double UnderwaterPhysical::Tx_Time_

protected

Time (in seconds) spent by the node in transmission.

Referenced by UwOFDMPhy::endTx(), endTx(), and Get_Tx_Time().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/physical/uwphysical/uwphysical.h
DESERT_Framework/DESERT/physical/uwphysical/uwphysical.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Constructor & Destructor Documentation

◆ UnderwaterPhysical()

◆ ~UnderwaterPhysical()

Member Function Documentation

◆ command()

◆ consumedEnergyRx()

◆ consumedEnergyTx()

◆ endRx()

◆ endTx()

◆ Get_Energy_Rx()

◆ Get_Energy_Tx()

◆ get_prob_error_symbol_mpsk()

◆ Get_Rx_Time()

◆ Get_Transmitted_bytes()

◆ Get_Tx_Time()

◆ getCollisionsCTRL()

◆ getCollisionsDATA()

◆ getCollisionsDATAvsCTRL()

◆ getError_CtrlPktsInterf()

◆ getPER()

◆ getTot_CtrlPkts_lost()

◆ getTot_pkts_lost()

◆ incrCollisionCTRL()

◆ incrCollisionDATA()

◆ incrCollisionDATAvsCTRL()

◆ incrErrorCtrlPktsInterf()

◆ incrTot_pkts_lost()

◆ incrTotCrtl_pkts_lost()

◆ isZero()

◆ log2()

◆ recv()

◆ recvSyncClMsg()

◆ startRx()

◆ updateInstantaneousStats()

Member Data Documentation

◆ collisionCTRL

◆ collisionDATA

◆ collisionDataCTRL

◆ Energy_Rx_

◆ Energy_Tx_

◆ errorCtrlPktsInterf

◆ interference_

◆ Interference_Model

◆ modulation_name_

◆ rx_power_

◆ Rx_Time_

◆ time_ready_to_end_rx_

◆ tot_ctrl_pkts_lost

◆ tot_pkts_lost

◆ Transmitted_bytes_

◆ tx_power_

◆ Tx_Time_
