UnderwaterHMMPhysical Class Reference

UnderwaterHMMPhysical models an hidden Markov Model phy channel. More...

#include <uwhmmphysical.h>

Inheritance diagram for UnderwaterHMMPhysical:
Inheritance graph

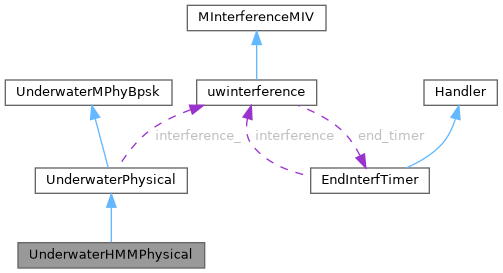

Collaboration diagram for UnderwaterHMMPhysical:
Collaboration graph

Public Member Functions

 UnderwaterHMMPhysical ()

virtual ~UnderwaterHMMPhysical ()

virtual int command (int, const char *const *)

void setMCLink (int mac, MCLink *link)

int getPktsTotBad () const

int getPktsTotMedium () const

int getPktsTotGood () const

void incrTotPkts (MCLink::ChState ch_state)

- Public Member Functions inherited from UnderwaterPhysical
 UnderwaterPhysical ()

virtual ~UnderwaterPhysical ()

virtual void recv (Packet *) override

int recvSyncClMsg (ClMessage *m) override


Protected Member Functions

virtual void endRx (Packet *p) override

virtual double ber2per (double ber, Packet *p)

- Protected Member Functions inherited from UnderwaterPhysical
virtual void updateInstantaneousStats ()

virtual void endTx (Packet *p) override

virtual void startRx (Packet *p) override

virtual double consumedEnergyTx (const double &_duration) const

virtual double consumedEnergyRx (const double &_duration) const

virtual double getPER (double snr, int nbits, Packet *_p)

bool isZero (const double &value) const

double Get_Tx_Time () const

double Get_Rx_Time () const

double Get_Energy_Tx () const

double Get_Energy_Rx () const

double Get_Transmitted_bytes () const

void incrTot_pkts_lost ()

void incrTotCrtl_pkts_lost ()

void incrErrorCtrlPktsInterf ()

void incrCollisionDATAvsCTRL ()

void incrCollisionCTRL ()

void incrCollisionDATA ()

int getTot_pkts_lost () const

int getTot_CtrlPkts_lost () const

int getError_CtrlPktsInterf () const

int getCollisionsDATAvsCTRL () const

int getCollisionsCTRL () const

int getCollisionsDATA () const

double log2 (const double &_input) const

double get_prob_error_symbol_mpsk (const double &_snr, const uint32_t _M) const


Protected Attributes

std::map< int, MCLink * > link_map

int pkts_tot_good

int pkts_tot_medium

int pkts_tot_bad

- Protected Attributes inherited from UnderwaterPhysical
std::string modulation_name_

double time_ready_to_end_rx_

double Tx_Time_

double Rx_Time_

double Energy_Tx_

double Energy_Rx_

double Transmitted_bytes_

double tx_power_

double rx_power_

int tot_pkts_lost

int tot_ctrl_pkts_lost

int errorCtrlPktsInterf

int collisionDataCTRL

int collisionCTRL

int collisionDATA

std::string Interference_Model

uwinterference * interference_


Detailed Description

UnderwaterHMMPhysical models an hidden Markov Model phy channel.

Constructor & Destructor Documentation

◆ UnderwaterHMMPhysical()

UnderwaterHMMPhysical::UnderwaterHMMPhysical ( )

Constructor of UnderwaterHMMPhysical class.

◆ ~UnderwaterHMMPhysical()

UnderwaterHMMPhysical::~UnderwaterHMMPhysical ( )
virtual

Destructor of UnderwaterHMMPhysical class.

Member Function Documentation

◆ ber2per()

double UnderwaterHMMPhysical::ber2per ( double  ber,
Packet *  p
)
protectedvirtual

Returns the packet error rate by using the BER from HMM and the size of a packet

Parameters
beraccording to HMM state
pPacket
Returns
PER of the packet.

Referenced by endRx().

◆ command()

int UnderwaterHMMPhysical::command ( int  argc,
const char *const *  argv
)
virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters
argcNumber of arguments in argv.
argvArray of strings which are the command parameters (Note that argv[0] is the name of the object).
Returns
TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UnderwaterPhysical.

References UnderwaterPhysical::command(), getPktsTotBad(), getPktsTotGood(), getPktsTotMedium(), and setMCLink().

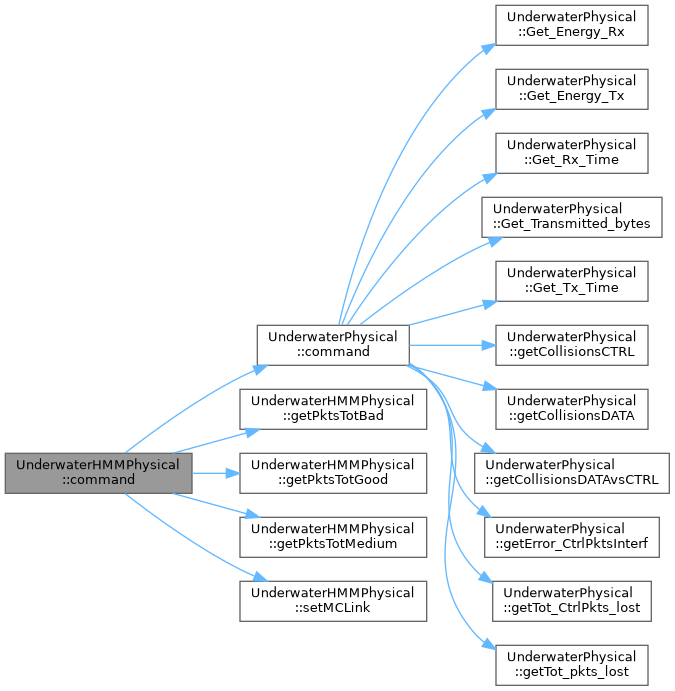

Here is the call graph for this function:

◆ endRx()

void UnderwaterHMMPhysical::endRx ( Packet *  p)
overrideprotectedvirtual

Handles the end of a packet reception

Parameters
Packet*p Pointer to the packet received

Reimplemented from UnderwaterPhysical.

References ber2per(), UnderwaterPhysical::consumedEnergyRx(), UnderwaterPhysical::endRx(), UnderwaterPhysical::Energy_Rx_, uwinterference::getCounters(), uwinterference::getInterferencePower(), UnderwaterPhysical::getPER(), UnderwaterPhysical::incrCollisionCTRL(), UnderwaterPhysical::incrCollisionDATA(), UnderwaterPhysical::incrCollisionDATAvsCTRL(), UnderwaterPhysical::incrErrorCtrlPktsInterf(), UnderwaterPhysical::incrTot_pkts_lost(), UnderwaterPhysical::incrTotCrtl_pkts_lost(), incrTotPkts(), UnderwaterPhysical::interference_, UnderwaterPhysical::Interference_Model, link_map, UnderwaterPhysical::Rx_Time_, UnderwaterPhysical::time_ready_to_end_rx_, and UwHMMPhysicalStats::updateStats().

Here is the call graph for this function:

◆ getPktsTotBad()

int UnderwaterHMMPhysical::getPktsTotBad ( ) const
inline
Returns
the number of packets sent with bad channel

References pkts_tot_bad.

Referenced by command().

◆ getPktsTotGood()

int UnderwaterHMMPhysical::getPktsTotGood ( ) const
inline
Returns
the number of packets sent with good channel

References pkts_tot_good.

Referenced by command().

◆ getPktsTotMedium()

int UnderwaterHMMPhysical::getPktsTotMedium ( ) const
inline
Returns
the number of packets sent with medium channel

References pkts_tot_medium.

Referenced by command().

◆ incrTotPkts()

void UnderwaterHMMPhysical::incrTotPkts ( MCLink::ChState  ch_state)
inline

increase the counter of packets sent taking into account the channel state

References MCLink::BAD, MCLink::GOOD, MCLink::MEDIUM, pkts_tot_bad, pkts_tot_good, and pkts_tot_medium.

Referenced by endRx().

◆ setMCLink()

void UnderwaterHMMPhysical::setMCLink ( int  mac,
MCLink *  link
)

Adds the Markov Chain transition matrix for each source MAC

Parameters
macMAC of the transmitting node
linkPointer to associated MCLink

References link_map.

Referenced by command().

Member Data Documentation

◆ link_map

std::map<int, MCLink *> UnderwaterHMMPhysical::link_map
protected

maps source mac to associated MCLink

Referenced by endRx(), and setMCLink().

◆ pkts_tot_bad

int UnderwaterHMMPhysical::pkts_tot_bad
protected

Total number of packets arrived with bad channel

Referenced by getPktsTotBad(), and incrTotPkts().

◆ pkts_tot_good

int UnderwaterHMMPhysical::pkts_tot_good
protected

Total number of packets arrived with good channel

Referenced by getPktsTotGood(), and incrTotPkts().

◆ pkts_tot_medium

int UnderwaterHMMPhysical::pkts_tot_medium
protected

Total number of packets arrived with medium channel

Referenced by getPktsTotMedium(), and incrTotPkts().

The documentation for this class was generated from the following files:
