#include <uwgainfromdb.h>

Inheritance diagram for UnderwaterGainFromDb:

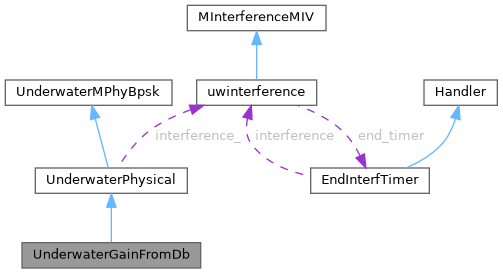

Collaboration diagram for UnderwaterGainFromDb:

Public Member Functions
	UnderwaterGainFromDb ()

virtual	~UnderwaterGainFromDb ()

virtual int	command (int, const char const )

Public Member Functions inherited from UnderwaterPhysical
	UnderwaterPhysical ()

virtual	~UnderwaterPhysical ()

virtual void	recv (Packet *) override

int	recvSyncClMsg (ClMessage *m) override

Protected Member Functions
virtual double	getPER (double snr, int nbits, Packet *p)

virtual void	setTimeRoughness (const int &)

virtual void	setDepthRoughness (const int &)

virtual void	setDistanceRoughness (const int &)

virtual void	setTotalTime (const int &)

virtual void	setFrequencyCorrectionFactor (const double &)

const int &	getTimeRoughness () const

const int &	getDepthRoughness () const

const int &	getDistanceRoughness () const

const int &	getTotalTime () const

const double &	getFrequencyCorrectionFactor () const

virtual double	getGain (const double &, const double &, const double &, const double &)

virtual double	retriveGainFromFile (const string &, const int &, const int &) const

virtual string	createNameFile (const int &, const int &)

const bool	isZero (const double &value) const

Protected Member Functions inherited from UnderwaterPhysical
virtual void	updateInstantaneousStats ()

virtual void	endTx (Packet *p) override

virtual void	endRx (Packet *p) override

virtual void	startRx (Packet *p) override

virtual double	consumedEnergyTx (const double &_duration) const

virtual double	consumedEnergyRx (const double &_duration) const

bool	isZero (const double &value) const

double	Get_Tx_Time () const

double	Get_Rx_Time () const

double	Get_Energy_Tx () const

double	Get_Energy_Rx () const

double	Get_Transmitted_bytes () const

void	incrTot_pkts_lost ()

void	incrTotCrtl_pkts_lost ()

void	incrErrorCtrlPktsInterf ()

void	incrCollisionDATAvsCTRL ()

void	incrCollisionCTRL ()

void	incrCollisionDATA ()

int	getTot_pkts_lost () const

int	getTot_CtrlPkts_lost () const

int	getError_CtrlPktsInterf () const

int	getCollisionsDATAvsCTRL () const

int	getCollisionsCTRL () const

int	getCollisionsDATA () const

double	log2 (const double &_input) const

double	get_prob_error_symbol_mpsk (const double &_snr, const uint32_t _M) const

Protected Attributes
char *	path_

char	token_separator_

ostringstream	osstream_

Protected Attributes inherited from UnderwaterPhysical
std::string	modulation_name_

double	time_ready_to_end_rx_

double	Tx_Time_

double	Rx_Time_

double	Energy_Tx_

double	Energy_Rx_

double	Transmitted_bytes_

double	tx_power_

double	rx_power_

int	tot_pkts_lost

int	tot_ctrl_pkts_lost

int	errorCtrlPktsInterf

int	collisionDataCTRL

int	collisionCTRL

int	collisionDATA

std::string	Interference_Model

uwinterference *	interference_

Private Attributes
int	time_roughness_

int	depth_roughness_

int	distance_roughness_

int	total_time_

double	frequency_correction_factor_

Constructor & Destructor Documentation

◆ UnderwaterGainFromDb()

UnderwaterGainFromDb::UnderwaterGainFromDb ( )

Constructor of UnderwaterMPhyBpskDb class.

References depth_roughness_, distance_roughness_, frequency_correction_factor_, path_, time_roughness_, token_separator_, and total_time_.

◆ ~UnderwaterGainFromDb()

virtual UnderwaterGainFromDb::~UnderwaterGainFromDb ( )

inlinevirtual

Destructor of UnderwaterMPhyBpskDb class.

Member Function Documentation

◆ command()

int UnderwaterGainFromDb::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UnderwaterPhysical.

Reimplemented in UnderwaterPhysicalfromdb.

References UnderwaterPhysical::command(), and path_.

Referenced by UnderwaterPhysicalfromdb::command().

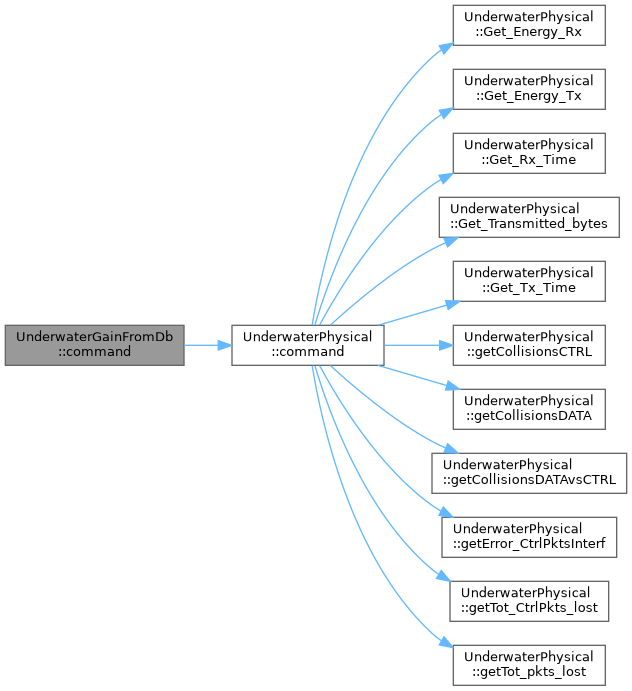

Here is the call graph for this function:

◆ createNameFile()

string UnderwaterGainFromDb::createNameFile	(	const int &	_time,
		const int &	_source_depth
	)

protectedvirtual

Creates the name of the file to load.

Parameters

time
depth

Returns: The name of the file to load.

References osstream_, and path_.

Referenced by getGain().

◆ getDepthRoughness()

const int & UnderwaterGainFromDb::getDepthRoughness ( ) const

inlineprotected

Returns the depth_roughness_ parameter.

Returns: depth_roughness_

References depth_roughness_.

Referenced by UnderwaterPhysicalfromdb::getGain(), and UnderwaterPhysicalfromdb::getSelfInterference().

◆ getDistanceRoughness()

const int & UnderwaterGainFromDb::getDistanceRoughness ( ) const

inlineprotected

Returns the distance_roughness_ parameter.

Returns: distance_roughness_

References distance_roughness_.

Referenced by UnderwaterPhysicalfromdb::getGain(), and UnderwaterPhysicalfromdb::getSelfInterference().

◆ getFrequencyCorrectionFactor()

const double & UnderwaterGainFromDb::getFrequencyCorrectionFactor ( ) const

inlineprotected

Returns the frequency_correction_factor_ parameter.

Returns: frequency_correction_factor_

References frequency_correction_factor_.

◆ getGain()

double UnderwaterGainFromDb::getGain	(	const double &	_time,
		const double &	_source_depth,
		const double &	_destination_depth,
		const double &	_destination_distance
	)

protectedvirtual

Parameters

param

Parameters

param

Returns

Reimplemented in UnderwaterPhysicalfromdb.

References createNameFile(), depth_roughness_, distance_roughness_, retriveGainFromFile(), time_roughness_, and total_time_.

Referenced by getPER().

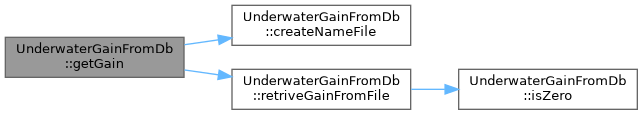

Here is the call graph for this function:

◆ getPER()

double UnderwaterGainFromDb::getPER	(	double	snr,
		int	nbits,
		Packet *	p
	)

protectedvirtual

Returns the packet error rate by using the length of a packet and the information contained in the packet (position of the source and the destiantion.

Parameters

snr	Calculated by nsmiracle with the Urick model (unused).
nbits	length in bit of the packet.
p	Packet by witch the module gets information about source and destination.

Returns: PER of the packet passed as parameter.

Reimplemented from UnderwaterPhysical.

Reimplemented in UnderwaterPhysicalfromdb.

References frequency_correction_factor_, getGain(), and UnderwaterPhysical::getPER().

Here is the call graph for this function:

◆ getTimeRoughness()

const int & UnderwaterGainFromDb::getTimeRoughness ( ) const

inlineprotected

Returns the time_roughness_ parameter.

Returns: time_roughness_

References time_roughness_.

Referenced by UnderwaterPhysicalfromdb::getGain(), and UnderwaterPhysicalfromdb::getSelfInterference().

◆ getTotalTime()

const int & UnderwaterGainFromDb::getTotalTime ( ) const

inlineprotected

Returns the total_time_ parameter.

Returns: total_time_

References total_time_.

Referenced by UnderwaterPhysicalfromdb::getGain(), and UnderwaterPhysicalfromdb::getSelfInterference().

◆ isZero()

const bool UnderwaterGainFromDb::isZero ( const double & value ) const

inlineprotected

Evaluates is the number passed as input is equal to zero. When C++ works with double and float number you can't compare them with 0. If the absolute value of the number is smaller than eplison that means that the number is equal to zero.

Parameters

double& Number to evaluate.

Returns: true if the number passed in input is equal to zero, false otherwise.

See also: std::numeric_limits<double>::epsilon()

Referenced by UnderwaterPhysicalfromdb::retrieveFromFile(), and retriveGainFromFile().

◆ retriveGainFromFile()

double UnderwaterGainFromDb::retriveGainFromFile	(	const string &	_file_name,
		const int &	_row_index,
		const int &	_column_index
	)		const

protectedvirtual

Parameters

param

Parameters

return

References isZero(), and token_separator_.

Referenced by getGain().

Here is the call graph for this function:

◆ setDepthRoughness()

void UnderwaterGainFromDb::setDepthRoughness ( const int & _depth )

protectedvirtual

Sets the depth_roughness_ parameter.

Parameters

Roughness of the depth samples.

References depth_roughness_.

◆ setDistanceRoughness()

void UnderwaterGainFromDb::setDistanceRoughness ( const int & _distance )

protectedvirtual

Sets the distance_roughness_ parameter.

Parameters

Roughness of the distance samples.

References distance_roughness_.

◆ setFrequencyCorrectionFactor()

void UnderwaterGainFromDb::setFrequencyCorrectionFactor ( const double & _frequency_correction_factor )

protectedvirtual

Sets the frequency_correction_factor_ parameter.

Parameters

Frequency correction factor.

References frequency_correction_factor_.

◆ setTimeRoughness()

void UnderwaterGainFromDb::setTimeRoughness ( const int & _time )

protectedvirtual

Sets the time_roughness_ parameter.

Parameters

Roughness of the temporal samples.

References time_roughness_.

◆ setTotalTime()

void UnderwaterGainFromDb::setTotalTime ( const int & _total_time )

protectedvirtual

Sets the total_time_ parameter.

Parameters

Maximum value of the temporal samples.

References total_time_.

Member Data Documentation

◆ depth_roughness_

int UnderwaterGainFromDb::depth_roughness_

private

Roughness of the depth samples.

Referenced by getDepthRoughness(), getGain(), setDepthRoughness(), and UnderwaterGainFromDb().

◆ distance_roughness_

int UnderwaterGainFromDb::distance_roughness_

private

Roughness of the distance samples.

Referenced by getDistanceRoughness(), getGain(), setDistanceRoughness(), and UnderwaterGainFromDb().

◆ frequency_correction_factor_

double UnderwaterGainFromDb::frequency_correction_factor_

private

used to shift from a frequency value to another one.

Referenced by getFrequencyCorrectionFactor(), getPER(), setFrequencyCorrectionFactor(), and UnderwaterGainFromDb().

◆ osstream_

ostringstream UnderwaterGainFromDb::osstream_

protected

Used to create strings.

Referenced by UnderwaterPhysicalfromdb::createNameFile(), and createNameFile().

◆ path_

char* UnderwaterGainFromDb::path_

protected

Name of the trace file writter for the current node.

Referenced by command(), UnderwaterPhysicalfromdb::command(), createNameFile(), and UnderwaterGainFromDb().

◆ time_roughness_

int UnderwaterGainFromDb::time_roughness_

private

Roughness of the temporal samples.

Referenced by getGain(), getTimeRoughness(), setTimeRoughness(), and UnderwaterGainFromDb().

◆ token_separator_

char UnderwaterGainFromDb::token_separator_

protected

Token used to parse the elements in a line of the database.

Referenced by UnderwaterPhysicalfromdb::retrieveFromFile(), retriveGainFromFile(), and UnderwaterGainFromDb().

◆ total_time_

int UnderwaterGainFromDb::total_time_

private

Maximum value of the temporal samples, after this limit the smilulation time will be reset to zero.

Referenced by getGain(), getTotalTime(), setTotalTime(), and UnderwaterGainFromDb().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/physical/uwgainfromdb/uwgainfromdb.h
DESERT_Framework/DESERT/physical/uwgainfromdb/uwgainfromdb.cpp
