UwHermesPhy Class Reference

#include <uwhermesphy.h>

Inheritance diagram for UwHermesPhy:
Inheritance graph

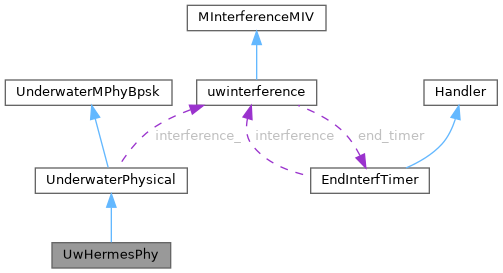

Collaboration diagram for UwHermesPhy:
Collaboration graph

Public Member Functions

 UwHermesPhy ()

virtual ~UwHermesPhy ()

virtual int command (int, const char *const *)

- Public Member Functions inherited from UnderwaterPhysical
 UnderwaterPhysical ()

virtual ~UnderwaterPhysical ()

virtual void recv (Packet *) override

int recvSyncClMsg (ClMessage *m) override


Protected Member Functions

virtual void endRx (Packet *p)

virtual double getPER (double snr, int nbits, Packet *)

virtual void initializeLUT ()

- Protected Member Functions inherited from UnderwaterPhysical
virtual void updateInstantaneousStats ()

virtual void endTx (Packet *p) override

virtual void startRx (Packet *p) override

virtual double consumedEnergyTx (const double &_duration) const

virtual double consumedEnergyRx (const double &_duration) const

bool isZero (const double &value) const

double Get_Tx_Time () const

double Get_Rx_Time () const

double Get_Energy_Tx () const

double Get_Energy_Rx () const

double Get_Transmitted_bytes () const

void incrTot_pkts_lost ()

void incrTotCrtl_pkts_lost ()

void incrErrorCtrlPktsInterf ()

void incrCollisionDATAvsCTRL ()

void incrCollisionCTRL ()

void incrCollisionDATA ()

int getTot_pkts_lost () const

int getTot_CtrlPkts_lost () const

int getError_CtrlPktsInterf () const

int getCollisionsDATAvsCTRL () const

int getCollisionsCTRL () const

int getCollisionsDATA () const

double log2 (const double &_input) const

double get_prob_error_symbol_mpsk (const double &_snr, const uint32_t _M) const


Private Member Functions

virtual double getDistance (Packet *)

virtual double matchPS (double distance, int size)

virtual double linearInterpolator (double x, double x1, double y1, double x2, double y2)

virtual double chunckInterpolator (double p, int size)


Private Attributes

string pdr_file_name_

char pdr_token_separator_

PdrLut range2pdr_

bool initLUT_

int BCH_N

int BCH_K

int BCH_T

int FRAME_BIT


Additional Inherited Members

- Protected Attributes inherited from UnderwaterPhysical
std::string modulation_name_

double time_ready_to_end_rx_

double Tx_Time_

double Rx_Time_

double Energy_Tx_

double Energy_Rx_

double Transmitted_bytes_

double tx_power_

double rx_power_

int tot_pkts_lost

int tot_ctrl_pkts_lost

int errorCtrlPktsInterf

int collisionDataCTRL

int collisionCTRL

int collisionDATA

std::string Interference_Model

uwinterference * interference_


Constructor & Destructor Documentation

◆ UwHermesPhy()

UwHermesPhy::UwHermesPhy ( )

Constructor of UwHermesPhy class.

References BCH_K, BCH_N, BCH_T, FRAME_BIT, and UnderwaterPhysical::Interference_Model.

◆ ~UwHermesPhy()

UwHermesPhy::~UwHermesPhy ( )
virtual

Destructor of UwHermesPhy class.

Member Function Documentation

◆ chunckInterpolator()

double UwHermesPhy::chunckInterpolator ( double  p,
int  size
)
privatevirtual

References FRAME_BIT.

Referenced by matchPS().

◆ command()

int UwHermesPhy::command ( int  argc,
const char *const *  argv
)
virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters
argcNumber of arguments in argv.
argvArray of strings which are the command parameters (Note that argv[0] is the name of the object).
Returns
TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UnderwaterPhysical.

References UnderwaterPhysical::command(), initializeLUT(), pdr_file_name_, and pdr_token_separator_.

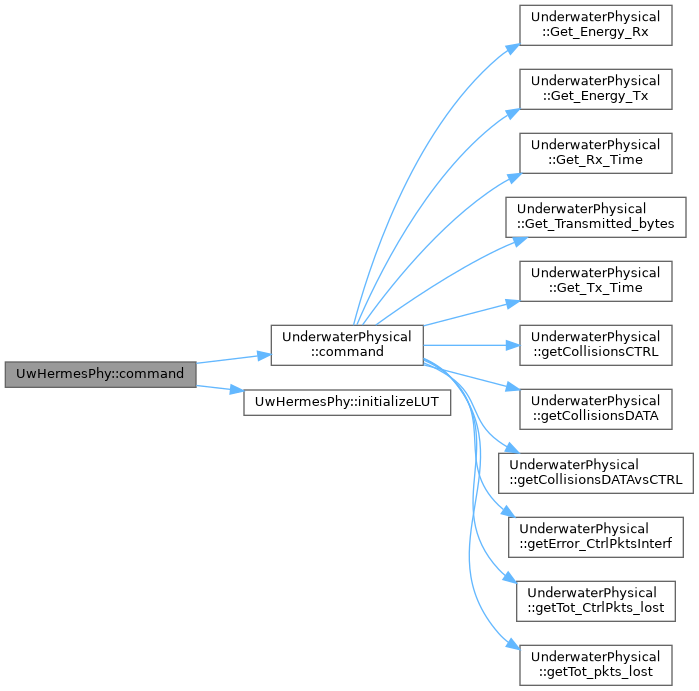

Here is the call graph for this function:

◆ endRx()

void UwHermesPhy::endRx ( Packet *  p)
protectedvirtual

Handles the end of a packet reception

Parameters
Packet*p Pointer to the packet received

Reimplemented from UnderwaterPhysical.

References UnderwaterPhysical::consumedEnergyRx(), UnderwaterPhysical::Energy_Rx_, uwinterference::getCounters(), uwinterference::getInterferencePower(), getPER(), UnderwaterPhysical::incrCollisionCTRL(), UnderwaterPhysical::incrCollisionDATA(), UnderwaterPhysical::incrCollisionDATAvsCTRL(), UnderwaterPhysical::incrErrorCtrlPktsInterf(), UnderwaterPhysical::incrTot_pkts_lost(), UnderwaterPhysical::incrTotCrtl_pkts_lost(), initLUT_, UnderwaterPhysical::interference_, UnderwaterPhysical::Interference_Model, UnderwaterPhysical::Rx_Time_, and UnderwaterPhysical::time_ready_to_end_rx_.

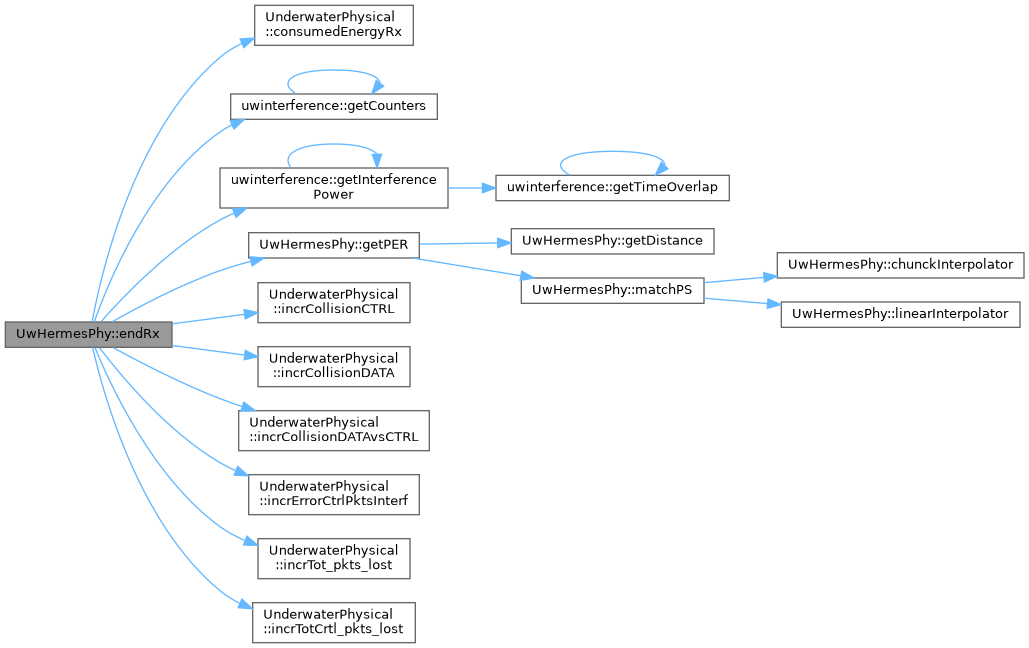

Here is the call graph for this function:

◆ getDistance()

double UwHermesPhy::getDistance ( Packet *  _p)
privatevirtual

Return the distance between source and destination.

Parameters
pPacket by witch the module gets information about source and destination.

Referenced by getPER().

◆ getPER()

double UwHermesPhy::getPER ( double  snr,
int  nbits,
Packet *  _p
)
protectedvirtual

Returns the packet error rate by using the length of a packet and the information contained in the packet (position of the source and the destiantion.

Parameters
snrCalculated by nsmiracle with the Urick model (unused).
nbitslength in bit of the packet.
pPacket by witch the module gets information about source and destination.
Returns
PER of the packet passed as parameter.

Reimplemented from UnderwaterPhysical.

References getDistance(), and matchPS().

Referenced by endRx().

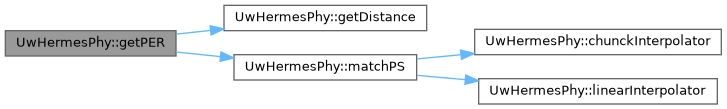

Here is the call graph for this function:

◆ initializeLUT()

void UwHermesPhy::initializeLUT ( )
protectedvirtual

References initLUT_, pdr_file_name_, and range2pdr_.

Referenced by command().

◆ linearInterpolator()

double UwHermesPhy::linearInterpolator ( double  x,
double  x1,
double  y1,
double  x2,
double  y2
)
privatevirtual

Return y via linear interpolation given two points.

Parameters
xinput.
x1,y1coordinates of the first point.
x2,y2coordinates of the second point.

References q.

Referenced by matchPS().

◆ matchPS()

double UwHermesPhy::matchPS ( double  distance,
int  size
)
privatevirtual

Return the PER via linear interpolation.

Parameters
distancedistance between source and destination.
sizePacket size in bit.

References chunckInterpolator(), linearInterpolator(), and range2pdr_.

Referenced by getPER().

Here is the call graph for this function:

Member Data Documentation

◆ BCH_K

int UwHermesPhy::BCH_K
private

Referenced by UwHermesPhy().

◆ BCH_N

int UwHermesPhy::BCH_N
private

BCH(n,k,t) : correction of t errors via BCH code new frame length= FRAME_BIT/k*n, example: 9152/11*15 by default BCH(15,11,1)

Referenced by UwHermesPhy().

◆ BCH_T

int UwHermesPhy::BCH_T
private

Referenced by UwHermesPhy().

◆ FRAME_BIT

int UwHermesPhy::FRAME_BIT
private

Referenced by chunckInterpolator(), and UwHermesPhy().

◆ initLUT_

bool UwHermesPhy::initLUT_
private

Referenced by endRx(), and initializeLUT().

◆ pdr_file_name_

string UwHermesPhy::pdr_file_name_
private

Referenced by command(), and initializeLUT().

◆ pdr_token_separator_

char UwHermesPhy::pdr_token_separator_
private

Referenced by command().

◆ range2pdr_

PdrLut UwHermesPhy::range2pdr_
private

Referenced by initializeLUT(), and matchPS().

The documentation for this class was generated from the following files:
