#include <uwofdmphy.h>

Inheritance diagram for UwOFDMPhy:

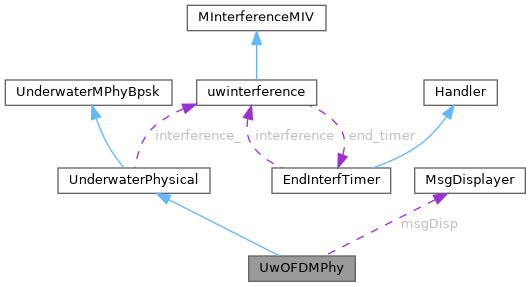

Collaboration diagram for UwOFDMPhy:

Public Member Functions
	UwOFDMPhy ()

virtual	~UwOFDMPhy ()

virtual int	command (int, const char const )

void	init_ofdm_node (int nn, int cf, int scn, int ID)

void	setBufferSize (int)

int	getNodeNum () const

int	getSentUpPkts ()

void	setNodeNum (int)

int	getSubCarNum () const

int	getLowSnrPktLost () const

int	getNoiseErrPktLost () const

int	getCollErrPktLost () const

int	getTxPenPktLost () const

int	getTxPenCtrlLost () const

int	getFreqCollPktLost () const

int	getCtrlCErrPktLost () const

int	getCtrlFCollPktLost () const

int	getModErrPktLost () const

int	getPhyPktSent () const

void	setSubCarNum (int)

void	setNodeID (int)

void	showSubCar ()

void	setSubCar (int, int)

void	setBrokenCar (int, int)

int	getNodeID () const

double	getTransmissionTime () const

bool	freqOverlap (Packet *, bool)

Public Member Functions inherited from UnderwaterPhysical
	UnderwaterPhysical ()

virtual	~UnderwaterPhysical ()

int	recvSyncClMsg (ClMessage *m) override

Public Attributes
bool	txongoing_

Protected Member Functions
virtual void	recv (Packet *)

virtual void	endRx (Packet *p)

virtual void	startRx (Packet *p)

virtual void	endTx (Packet *p)

virtual double	getOFDMPER (double _snr, int _nbits, Packet *)

virtual double	getOFDMNoisePower (Packet *p)

double	getTxDuration (Packet *p)

void	createOFDMhdr (Packet *p)

void	interruptReceptions ()

int	recvSyncClMsg (ClMessage *m)

void	plotPktQueue ()

Protected Member Functions inherited from UnderwaterPhysical
virtual void	updateInstantaneousStats ()

virtual double	consumedEnergyTx (const double &_duration) const

virtual double	consumedEnergyRx (const double &_duration) const

virtual double	getPER (double snr, int nbits, Packet *_p)

bool	isZero (const double &value) const

double	Get_Tx_Time () const

double	Get_Rx_Time () const

double	Get_Energy_Tx () const

double	Get_Energy_Rx () const

double	Get_Transmitted_bytes () const

void	incrTot_pkts_lost ()

void	incrTotCrtl_pkts_lost ()

void	incrErrorCtrlPktsInterf ()

void	incrCollisionDATAvsCTRL ()

void	incrCollisionCTRL ()

void	incrCollisionDATA ()

int	getTot_pkts_lost () const

int	getTot_CtrlPkts_lost () const

int	getError_CtrlPktsInterf () const

int	getCollisionsDATAvsCTRL () const

int	getCollisionsCTRL () const

int	getCollisionsDATA () const

double	log2 (const double &_input) const

double	get_prob_error_symbol_mpsk (const double &_snr, const uint32_t _M) const

Private Member Functions
virtual double	getDistance (Packet *)

virtual double	getPropagationDelay (Packet *)

virtual int	getTotalDelay ()

string	itos (int i)

string	dtos (double d)

Private Attributes
int	buffered_pkt_num

int	current_rcvs

int	nodeNum_

int	centerFreq_

int	subCarrier_

int	nodeID_

double	total_delay_

int	powerScaling

int	FRAME_BIT

int	bufferSize_

std::vector< Packet >	pktqueue_

std::vector< Packet * >	txqueue_

std::vector< double >	timesqueue_

std::vector< double >	brokenCarriers_

int	sentUpPkts

int	lostPackets [8]

double	totTransTime

int	phySentPkt_

int	tx_busy_

MsgDisplayer	msgDisp

Additional Inherited Members
Protected Attributes inherited from UnderwaterPhysical
std::string	modulation_name_

double	time_ready_to_end_rx_

double	Tx_Time_

double	Rx_Time_

double	Energy_Tx_

double	Energy_Rx_

double	Transmitted_bytes_

double	tx_power_

double	rx_power_

int	tot_pkts_lost

int	tot_ctrl_pkts_lost

int	errorCtrlPktsInterf

int	collisionDataCTRL

int	collisionCTRL

int	collisionDATA

std::string	Interference_Model

uwinterference *	interference_

Constructor & Destructor Documentation

◆ UwOFDMPhy()

UwOFDMPhy::UwOFDMPhy ( )

Constructor of UwOFDMPhy class.

References FRAME_BIT, UnderwaterPhysical::Interference_Model, and powerScaling.

◆ ~UwOFDMPhy()

UwOFDMPhy::~UwOFDMPhy ( )

virtual

Destructor of UwOFDMPhy class.

Member Function Documentation

◆ command()

int UwOFDMPhy::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UnderwaterPhysical.

References UnderwaterPhysical::command(), getCollErrPktLost(), getCtrlCErrPktLost(), getCtrlFCollPktLost(), getFreqCollPktLost(), getLowSnrPktLost(), getModErrPktLost(), getNodeID(), getNodeNum(), getNoiseErrPktLost(), getPhyPktSent(), getSentUpPkts(), getSubCarNum(), getTotalDelay(), getTransmissionTime(), getTxPenCtrlLost(), getTxPenPktLost(), init_ofdm_node(), setBrokenCar(), setBufferSize(), setNodeID(), setNodeNum(), setSubCarNum(), and showSubCar().

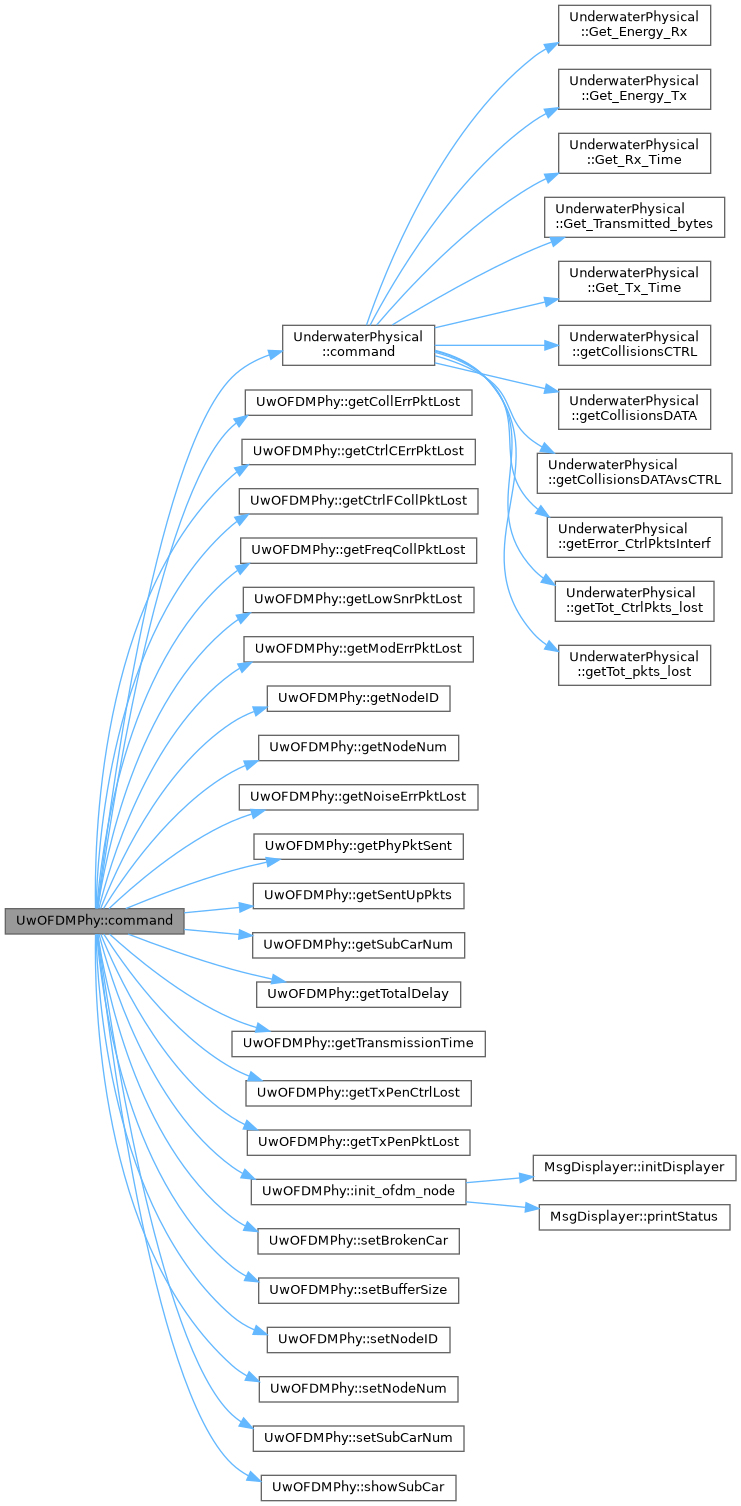

Here is the call graph for this function:

◆ createOFDMhdr()

void UwOFDMPhy::createOFDMhdr ( Packet * p )

protected

Creates an OFDM header for non-OFDM packets

Parameters

Packet* p Pointer to the packet transmitted

References hdr_OFDM::carrierNum, hdr_OFDM::carriers, and subCarrier_.

Referenced by recv().

◆ dtos()

string UwOFDMPhy::dtos ( double d )

inlineprivate

Parameters

d a double

Returns: d converted to string

Referenced by getTxDuration(), and recv().

◆ endRx()

void UwOFDMPhy::endRx ( Packet * p )

protectedvirtual

Handles the end of a packet reception

Parameters

Packet* p Pointer to the packet received

Reimplemented from UnderwaterPhysical.

Here is the call graph for this function:

◆ endTx()

void UwOFDMPhy::endTx ( Packet * p )

protectedvirtual

Handles the end of a transmission, redefined to scale the power into the carriers

Parameters

Packet* p Pointer to the packet transmitted

Reimplemented from UnderwaterPhysical.

References hdr_OFDM::carriers, UnderwaterPhysical::consumedEnergyTx(), UnderwaterPhysical::Energy_Tx_, powerScaling, subCarrier_, UnderwaterPhysical::Transmitted_bytes_, and UnderwaterPhysical::Tx_Time_.

Here is the call graph for this function:

◆ freqOverlap()

bool UwOFDMPhy::freqOverlap	(	Packet *	p2,
		bool	isOFDM
	)

References hdr_OFDM::carrierNum, hdr_OFDM::carriers, and pktqueue_.

Referenced by startRx().

◆ getCollErrPktLost()

int UwOFDMPhy::getCollErrPktLost ( ) const

References COLLERR, and lostPackets.

Referenced by command().

◆ getCtrlCErrPktLost()

int UwOFDMPhy::getCtrlCErrPktLost ( ) const

References CTRLCERR, and lostPackets.

Referenced by command().

◆ getCtrlFCollPktLost()

int UwOFDMPhy::getCtrlFCollPktLost ( ) const

References CTRLFERR, and lostPackets.

Referenced by command().

◆ getDistance()

double UwOFDMPhy::getDistance ( Packet * _p )

privatevirtual

Return the distance between source and destination.

Parameters

p	Packet by witch the module gets information about source and destination.

Referenced by getPropagationDelay().

◆ getFreqCollPktLost()

int UwOFDMPhy::getFreqCollPktLost ( ) const

References FREQCOLL, and lostPackets.

Referenced by command().

◆ getLowSnrPktLost()

int UwOFDMPhy::getLowSnrPktLost ( ) const

References lostPackets, and LOWSNR.

Referenced by command().

◆ getModErrPktLost()

int UwOFDMPhy::getModErrPktLost ( ) const

References lostPackets, and MODERR.

Referenced by command().

◆ getNodeID()

int UwOFDMPhy::getNodeID ( ) const

References nodeID_.

Referenced by command().

◆ getNodeNum()

int UwOFDMPhy::getNodeNum ( ) const

References nodeNum_.

Referenced by command().

◆ getNoiseErrPktLost()

int UwOFDMPhy::getNoiseErrPktLost ( ) const

References lostPackets, and NOISEERR.

Referenced by command().

◆ getOFDMNoisePower()

double UwOFDMPhy::getOFDMNoisePower ( Packet * p )

protectedvirtual

Handles the end of a transmission, redefined to scale the power into the carriers

Parameters

Packet* p Pointer to the packet transmitted

Returns: Noise power on used carriers

References hdr_OFDM::carrierNum, hdr_OFDM::carriers, and hdr_OFDM::carrierSize.

Referenced by recv().

◆ getOFDMPER()

double UwOFDMPhy::getOFDMPER	(	double	_snr,
		int	_nbits,
		Packet *	p
	)

protectedvirtual

Returns the packet error rate by using the length of a packet and the information contained in the packet (position of the source and the destination). The error rate is computed only on the carriers used by the packet.

Parameters

snr	Calculated by nsmiracle with the Urick model (unused).
nbits	length in bit of the packet.
p	Packet by witch the module gets information about source and destination.

Returns: PER of the packet passed as parameter.

References hdr_OFDM::carMod, hdr_OFDM::carrierNum, hdr_OFDM::carriers, hdr_OFDM::carrierSize, UnderwaterPhysical::get_prob_error_symbol_mpsk(), UnderwaterPhysical::log2(), and nodeID_.

Referenced by endRx().

Here is the call graph for this function:

◆ getPhyPktSent()

int UwOFDMPhy::getPhyPktSent ( ) const

References phySentPkt_.

Referenced by command().

◆ getPropagationDelay()

double UwOFDMPhy::getPropagationDelay ( Packet * _p )

privatevirtual

Return the propagation delay for the packet. The delay is calculated based on the distance between the source and the sink.

Parameters

p	Packet by witch the module gets information about source and destination.

References getDistance().

Referenced by endRx().

Here is the call graph for this function:

◆ getSentUpPkts()

int UwOFDMPhy::getSentUpPkts ( )

References sentUpPkts.

Referenced by command().

◆ getSubCarNum()

int UwOFDMPhy::getSubCarNum ( ) const

References subCarrier_.

Referenced by command().

◆ getTotalDelay()

virtual int UwOFDMPhy::getTotalDelay ( )

inlineprivatevirtual

returns total delay

References total_delay_.

Referenced by command().

◆ getTransmissionTime()

double UwOFDMPhy::getTransmissionTime ( ) const

References totTransTime.

Referenced by command().

◆ getTxDuration()

double UwOFDMPhy::getTxDuration ( Packet * p )

protected

Computes the transmission time duration depending on the used carriers

Parameters

Packet* p Pointer to the packet transmitted

Returns: Transmission duration

References hdr_OFDM::carMod, hdr_OFDM::carrierNum, hdr_OFDM::carriers, dtos(), itos(), msgDisp, nodeID_, and MsgDisplayer::printStatus().

Referenced by recv().

Here is the call graph for this function:

◆ getTxPenCtrlLost()

int UwOFDMPhy::getTxPenCtrlLost ( ) const

References lostPackets, and TXPENCTRL.

Referenced by command().

◆ getTxPenPktLost()

int UwOFDMPhy::getTxPenPktLost ( ) const

References lostPackets, and TXPEN.

Referenced by command().

◆ init_ofdm_node()

void UwOFDMPhy::init_ofdm_node	(	int	nn,
		int	cf,
		int	scn,
		int	ID
	)

References centerFreq_, MsgDisplayer::initDisplayer(), msgDisp, nodeID_, nodeNum_, MsgDisplayer::printStatus(), and subCarrier_.

Referenced by command().

Here is the call graph for this function:

◆ interruptReceptions()

void UwOFDMPhy::interruptReceptions ( )

protected

Interrupts reception if MAC has other priorities Theoretically should never be called

References buffered_pkt_num, current_rcvs, nodeID_, and pktqueue_.

Referenced by recv().

◆ itos()

string UwOFDMPhy::itos ( int i )

inlineprivate

Parameters

i	an integer

Returns: i converted to string

Referenced by endRx(), getTxDuration(), and recv().

◆ plotPktQueue()

void UwOFDMPhy::plotPktQueue ( )

protected

Plots pktqueue elements

References hdr_OFDM::nativeOFDM, nodeID_, and pktqueue_.

Referenced by endRx(), and startRx().

◆ recv()

void UwOFDMPhy::recv ( Packet * p )

protectedvirtual

recv method. It is called when a packet is received from the channel

Parameters

Packet* Pointer to the packet that are going to be received

Reimplemented from UnderwaterPhysical.

References uwinterference::addToInterference(), buffered_pkt_num, bufferSize_, hdr_OFDM::carriers, createOFDMhdr(), current_rcvs, dtos(), getOFDMNoisePower(), getTxDuration(), UnderwaterPhysical::interference_, interruptReceptions(), itos(), msgDisp, hdr_OFDM::nativeOFDM, nodeID_, phySentPkt_, powerScaling, MsgDisplayer::printStatus(), hdr_OFDM::srcID, startRx(), subCarrier_, and totTransTime.

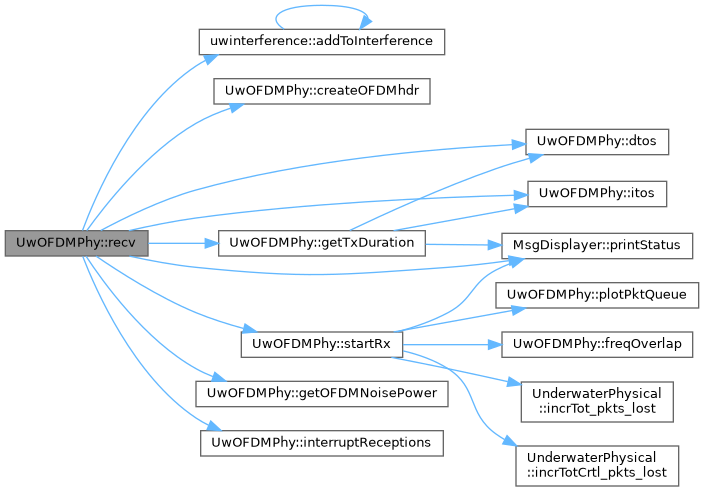

Here is the call graph for this function:

◆ recvSyncClMsg()

int UwOFDMPhy::recvSyncClMsg ( ClMessage * m )

protected

Handles receiving messages from the MAC layer

References CLMSG_UWPHY_TX_BUSY, nodeID_, and tx_busy_.

◆ setBrokenCar()

void UwOFDMPhy::setBrokenCar	(	int	bottom,
		int	top
	)

References brokenCarriers_.

Referenced by command().

◆ setBufferSize()

void UwOFDMPhy::setBufferSize ( int s )

References bufferSize_.

Referenced by command().

◆ setNodeID()

void UwOFDMPhy::setNodeID ( int n )

References nodeID_.

Referenced by command().

◆ setNodeNum()

void UwOFDMPhy::setNodeNum ( int n )

References nodeNum_.

Referenced by command().

◆ setSubCar()

void UwOFDMPhy::setSubCar	(	int	index,
		int	value
	)

◆ setSubCarNum()

void UwOFDMPhy::setSubCarNum ( int n )

References subCarrier_.

Referenced by command().

◆ showSubCar()

void UwOFDMPhy::showSubCar ( )

Referenced by command().

◆ startRx()

void UwOFDMPhy::startRx ( Packet * p )

protectedvirtual

Handles the start of a packet reception

Parameters

Packet* p Pointer to the packet received

Reimplemented from UnderwaterPhysical.

References CTRLFERR, current_rcvs, FREQCOLL, freqOverlap(), UnderwaterPhysical::incrTot_pkts_lost(), UnderwaterPhysical::incrTotCrtl_pkts_lost(), lostPackets, LOWSNR, MODERR, msgDisp, hdr_OFDM::nativeOFDM, nodeID_, pktqueue_, plotPktQueue(), MsgDisplayer::printStatus(), tx_busy_, TXPEN, and TXPENCTRL.

Referenced by recv().

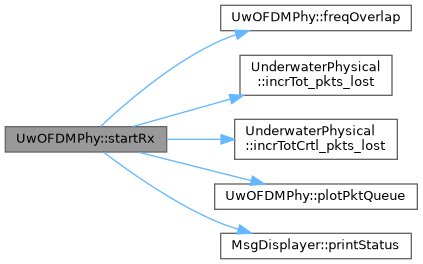

Here is the call graph for this function:

Member Data Documentation

◆ brokenCarriers_

std::vector<double> UwOFDMPhy::brokenCarriers_

private

Referenced by setBrokenCar().

◆ buffered_pkt_num

int UwOFDMPhy::buffered_pkt_num

private

Referenced by endRx(), interruptReceptions(), and recv().

◆ bufferSize_

int UwOFDMPhy::bufferSize_

private

Referenced by recv(), and setBufferSize().

◆ centerFreq_

int UwOFDMPhy::centerFreq_

private

Referenced by init_ofdm_node().

◆ current_rcvs

int UwOFDMPhy::current_rcvs

private

Referenced by endRx(), interruptReceptions(), recv(), and startRx().

◆ FRAME_BIT

int UwOFDMPhy::FRAME_BIT

private

Referenced by UwOFDMPhy().

◆ lostPackets

int UwOFDMPhy::lostPackets[8]

private

Initial value:

=

{0, 0, 0, 0, 0, 0, 0, 0}

Referenced by endRx(), getCollErrPktLost(), getCtrlCErrPktLost(), getCtrlFCollPktLost(), getFreqCollPktLost(), getLowSnrPktLost(), getModErrPktLost(), getNoiseErrPktLost(), getTxPenCtrlLost(), getTxPenPktLost(), and startRx().

◆ msgDisp

MsgDisplayer UwOFDMPhy::msgDisp

private

Referenced by endRx(), getTxDuration(), init_ofdm_node(), recv(), and startRx().

◆ nodeID_

int UwOFDMPhy::nodeID_

private

Referenced by endRx(), getNodeID(), getOFDMPER(), getTxDuration(), init_ofdm_node(), interruptReceptions(), plotPktQueue(), recv(), recvSyncClMsg(), setNodeID(), and startRx().

◆ nodeNum_

int UwOFDMPhy::nodeNum_

private

Referenced by getNodeNum(), init_ofdm_node(), and setNodeNum().

◆ phySentPkt_

int UwOFDMPhy::phySentPkt_

private

Referenced by getPhyPktSent(), and recv().

◆ pktqueue_

std::vector<Packet> UwOFDMPhy::pktqueue_

private

Referenced by endRx(), freqOverlap(), interruptReceptions(), plotPktQueue(), and startRx().

◆ powerScaling

int UwOFDMPhy::powerScaling

private

Referenced by endTx(), recv(), and UwOFDMPhy().

◆ sentUpPkts

int UwOFDMPhy::sentUpPkts

private

Referenced by endRx(), and getSentUpPkts().

◆ subCarrier_

int UwOFDMPhy::subCarrier_

private

Referenced by createOFDMhdr(), endTx(), getSubCarNum(), init_ofdm_node(), recv(), and setSubCarNum().

◆ timesqueue_

std::vector<double> UwOFDMPhy::timesqueue_

private

◆ total_delay_

double UwOFDMPhy::total_delay_

private

Referenced by endRx(), and getTotalDelay().

◆ totTransTime

double UwOFDMPhy::totTransTime

private

Referenced by getTransmissionTime(), and recv().

◆ tx_busy_

int UwOFDMPhy::tx_busy_

private

transmission power might be carried out just by re-setting this value. More complex strategies (e.g., packet-specific transmission power) can be implemented by overriding the getTxPower() method.

Referenced by recvSyncClMsg(), and startRx().

◆ txongoing_

bool UwOFDMPhy::txongoing_

◆ txqueue_

std::vector<Packet *> UwOFDMPhy::txqueue_

private

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/physical/uwofdmphy/uwofdmphy.h
DESERT_Framework/DESERT/physical/uwofdmphy/uwofdmphy.cpp

Public Member Functions

Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ UwOFDMPhy()

◆ ~UwOFDMPhy()

Member Function Documentation

◆ command()

◆ createOFDMhdr()

◆ dtos()

◆ endRx()

◆ endTx()

◆ freqOverlap()

◆ getCollErrPktLost()

◆ getCtrlCErrPktLost()

◆ getCtrlFCollPktLost()

◆ getDistance()

◆ getFreqCollPktLost()

◆ getLowSnrPktLost()

◆ getModErrPktLost()

◆ getNodeID()

◆ getNodeNum()

◆ getNoiseErrPktLost()

◆ getOFDMNoisePower()

◆ getOFDMPER()

◆ getPhyPktSent()

◆ getPropagationDelay()

◆ getSentUpPkts()

◆ getSubCarNum()

◆ getTotalDelay()

◆ getTransmissionTime()

◆ getTxDuration()

◆ getTxPenCtrlLost()

◆ getTxPenPktLost()

◆ init_ofdm_node()

◆ interruptReceptions()

◆ itos()

◆ plotPktQueue()

◆ recv()

◆ recvSyncClMsg()

◆ setBrokenCar()

◆ setBufferSize()

◆ setNodeID()

◆ setNodeNum()

◆ setSubCar()

◆ setSubCarNum()

◆ showSubCar()

◆ startRx()

Member Data Documentation

◆ brokenCarriers_

◆ buffered_pkt_num

◆ bufferSize_

◆ centerFreq_

◆ current_rcvs

◆ FRAME_BIT

◆ lostPackets

◆ msgDisp

◆ nodeID_

◆ nodeNum_

◆ phySentPkt_

◆ pktqueue_

◆ powerScaling

◆ sentUpPkts

◆ subCarrier_

◆ timesqueue_

◆ total_delay_

◆ totTransTime

◆ tx_busy_

◆ txongoing_

◆ txqueue_
