#include <uwphysicaldb.h>

Inheritance diagram for UnderwaterPhysicaldb:

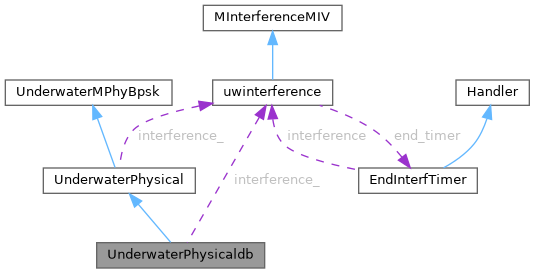

Collaboration diagram for UnderwaterPhysicaldb:

Public Member Functions
	UnderwaterPhysicaldb ()

virtual	~UnderwaterPhysicaldb ()

virtual int	command (int, const char const )

virtual void	recv (Packet *)

Public Member Functions inherited from UnderwaterPhysical
	UnderwaterPhysical ()

virtual	~UnderwaterPhysical ()

int	recvSyncClMsg (ClMessage *m) override

Protected Member Functions
virtual void	endRx (Packet *p)

virtual double	getPERfromSNR (const double &, const int &, const Packet *)

virtual double	getPERfromSIR (const double &, const double &)

virtual double	getNearestNeighbor (const std::set< double > &, const double &)

virtual const double	retrievePerFromFile (const std::string &, const double &) const

const bool	isZero (const double &_value) const

const double	fromKmToMiles (const double &_km) const

Protected Member Functions inherited from UnderwaterPhysical
virtual void	updateInstantaneousStats ()

virtual void	endTx (Packet *p) override

virtual void	startRx (Packet *p) override

virtual double	consumedEnergyTx (const double &_duration) const

virtual double	consumedEnergyRx (const double &_duration) const

virtual double	getPER (double snr, int nbits, Packet *_p)

bool	isZero (const double &value) const

double	Get_Tx_Time () const

double	Get_Rx_Time () const

double	Get_Energy_Tx () const

double	Get_Energy_Rx () const

double	Get_Transmitted_bytes () const

void	incrTot_pkts_lost ()

void	incrTotCrtl_pkts_lost ()

void	incrErrorCtrlPktsInterf ()

void	incrCollisionDATAvsCTRL ()

void	incrCollisionCTRL ()

void	incrCollisionDATA ()

int	getTot_pkts_lost () const

int	getTot_CtrlPkts_lost () const

int	getError_CtrlPktsInterf () const

int	getCollisionsDATAvsCTRL () const

int	getCollisionsCTRL () const

int	getCollisionsDATA () const

double	log2 (const double &_input) const

double	get_prob_error_symbol_mpsk (const double &_snr, const uint32_t _M) const

Protected Attributes
char *	path_

uwinterference *	interference_

std::set< double >	snr

std::set< double >	overlap

std::set< double >	sir

std::map< uint8_t, std::set< double > >	range

std::map< uint8_t, string >	type_of_node

std::map< string, uint8_t >	range_nums

string	country

string	modulation

uint8_t	ipAddr_

std::pair< double, double >	interf_val

char	token_separator

Protected Attributes inherited from UnderwaterPhysical
std::string	modulation_name_

double	time_ready_to_end_rx_

double	Tx_Time_

double	Rx_Time_

double	Energy_Tx_

double	Energy_Rx_

double	Transmitted_bytes_

double	tx_power_

double	rx_power_

int	tot_pkts_lost

int	tot_ctrl_pkts_lost

int	errorCtrlPktsInterf

int	collisionDataCTRL

int	collisionCTRL

int	collisionDATA

std::string	Interference_Model

uwinterference *	interference_

Private Attributes
ostringstream	osstream

Constructor & Destructor Documentation

◆ UnderwaterPhysicaldb()

UnderwaterPhysicaldb::UnderwaterPhysicaldb ( )

Constructor of UnderwaterMPhyBpskDb class.

◆ ~UnderwaterPhysicaldb()

virtual UnderwaterPhysicaldb::~UnderwaterPhysicaldb ( )

inlinevirtual

Destructor of UnderwaterMPhyBpskDb class.

Member Function Documentation

◆ command()

int UnderwaterPhysicaldb::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UnderwaterPhysical.

References UnderwaterPhysical::command(), country, interference_, ipAddr_, modulation, overlap, path_, range, range_nums, sir, snr, and type_of_node.

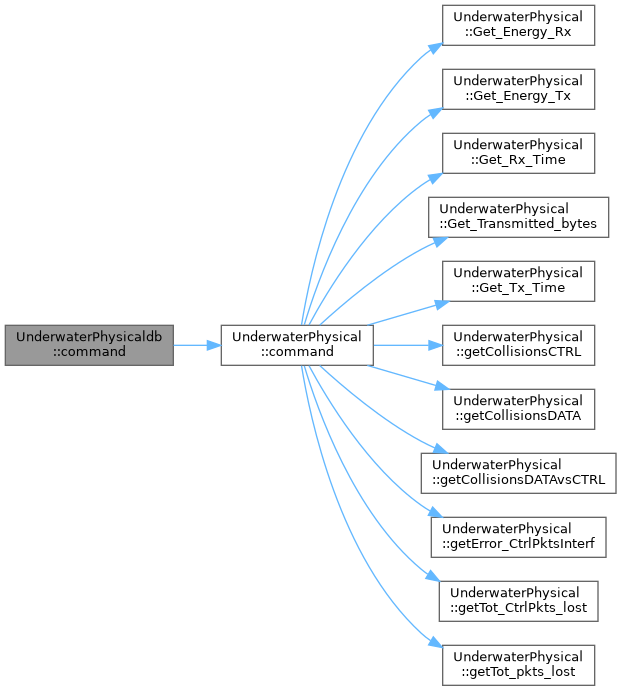

Here is the call graph for this function:

◆ endRx()

void UnderwaterPhysicaldb::endRx ( Packet * p )

protectedvirtual

Handles the end of a packet reception

Parameters

Packet* p Pointer to the packet received

Reimplemented from UnderwaterPhysical.

References UnderwaterPhysical::consumedEnergyRx(), UnderwaterPhysical::Energy_Rx_, uwinterference::getInitialInterferenceTime(), uwinterference::getInterferencePower(), getPERfromSIR(), getPERfromSNR(), interf_val, interference_, UnderwaterPhysical::Rx_Time_, and UnderwaterPhysical::time_ready_to_end_rx_.

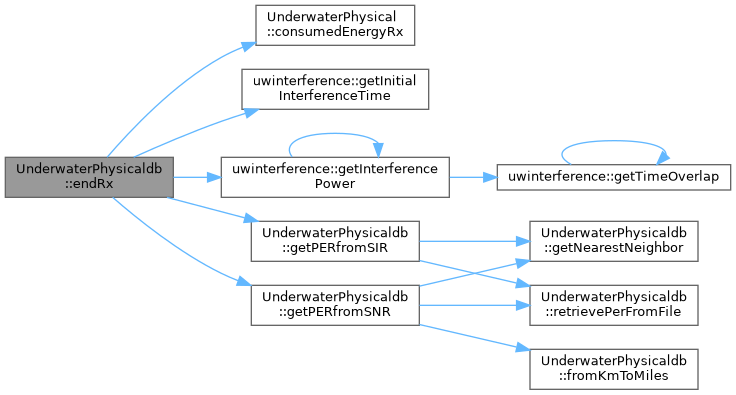

Here is the call graph for this function:

◆ fromKmToMiles()

const double UnderwaterPhysicaldb::fromKmToMiles ( const double & _km ) const

inlineprotected

Converts from kilometers to miles.

Parameters

_km	The value to be converted in miles.

Returns: The value converted in miles.

Referenced by getPERfromSNR().

◆ getNearestNeighbor()

double UnderwaterPhysicaldb::getNearestNeighbor	(	const std::set< double > &	_set,
		const double &	_value
	)

protectedvirtual

Nearest neighbor of a value contained in a set.

Parameters

Set	that contains the values in which to search.
value	to search for.

Returns: Nearest neighbor.

Referenced by getPERfromSIR(), and getPERfromSNR().

◆ getPERfromSIR()

double UnderwaterPhysicaldb::getPERfromSIR	(	const double &	_sir,
		const double &	_overlap
	)

protectedvirtual

Packet error rate based on Overlap and SIR.

Parameters

Overlap.
SIR.

Returns: PER of the packet retrieved from file.

References getNearestNeighbor(), modulation, osstream, overlap, path_, retrievePerFromFile(), and sir.

Referenced by endRx().

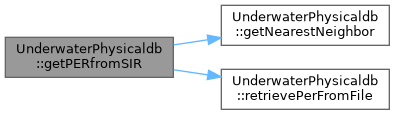

Here is the call graph for this function:

◆ getPERfromSNR()

double UnderwaterPhysicaldb::getPERfromSNR	(	const double &	_snr,
		const int &	_nbits,
		const Packet *	p
	)

protectedvirtual

Packet error rate based on SNR.

Parameters

SNR.
nbits	length in bit of the packet.
p	Packet.

Returns: PER of the packet retrieved from file.

References country, fromKmToMiles(), getNearestNeighbor(), ipAddr_, modulation, osstream, path_, range, range_nums, retrievePerFromFile(), snr, and type_of_node.

Referenced by endRx().

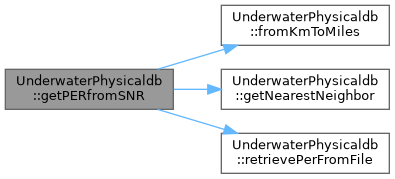

Here is the call graph for this function:

◆ isZero()

const bool UnderwaterPhysicaldb::isZero ( const double & _value ) const

inlineprotected

Evaluates is the number passed as input is equal to zero. When C++ works with double and float number you can't compare them with 0. If the absolute value of the number is smaller than eplison that means that the number is equal to zero.

Parameters

double& Number to evaluate.

Returns: true if the number passed in input is equal to zero, false otherwise.

See also: std::numeric_limits<double>::epsilon()

◆ recv()

void UnderwaterPhysicaldb::recv ( Packet * p )

virtual

recv method. It is called when a packet is received from the channel

Parameters

Packet* Pointer to the packet that are going to be received

Reimplemented from UnderwaterPhysical.

References uwinterference::addToInterference(), interference_, ipAddr_, and UnderwaterPhysical::startRx().

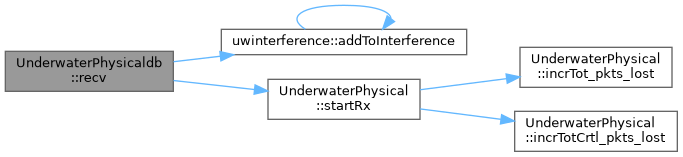

Here is the call graph for this function:

◆ retrievePerFromFile()

const double UnderwaterPhysicaldb::retrievePerFromFile	(	const std::string &	_file_name,
		const double &	_snr
	)		const

protectedvirtual

References token_separator.

Referenced by getPERfromSIR(), and getPERfromSNR().

Member Data Documentation

◆ country

string UnderwaterPhysicaldb::country

protected

Name of the Country.

Referenced by command(), and getPERfromSNR().

◆ interf_val

std::pair<double, double> UnderwaterPhysicaldb::interf_val

protected

(SIR, Overlap)

Referenced by endRx().

◆ interference_

uwinterference* UnderwaterPhysicaldb::interference_

protected

Interference Model.

Referenced by command(), endRx(), and recv().

◆ ipAddr_

uint8_t UnderwaterPhysicaldb::ipAddr_

protected

IP of the node.

Referenced by command(), getPERfromSNR(), and recv().

◆ modulation

string UnderwaterPhysicaldb::modulation

protected

Name of the Modulation.

Referenced by command(), getPERfromSIR(), and getPERfromSNR().

◆ osstream

ostringstream UnderwaterPhysicaldb::osstream

private

Referenced by getPERfromSIR(), and getPERfromSNR().

◆ overlap

std::set<double> UnderwaterPhysicaldb::overlap

protected

Set of the available Overlaps.

Referenced by command(), and getPERfromSIR().

◆ path_

char* UnderwaterPhysicaldb::path_

protected

Name of the trace file writter for the current node.

Referenced by command(), getPERfromSIR(), and getPERfromSNR().

◆ range

std::map<uint8_t, std::set<double> > UnderwaterPhysicaldb::range

protected

Set of the available Ranges.

Referenced by command(), and getPERfromSNR().

◆ range_nums

std::map<string, uint8_t> UnderwaterPhysicaldb::range_nums

protected

Set of the number of ranges for a given pathtype, e.g "AA".

Referenced by command(), and getPERfromSNR().

◆ sir

std::set<double> UnderwaterPhysicaldb::sir

protected

Set of the available SIRs.

Referenced by command(), and getPERfromSIR().

◆ snr

std::set<double> UnderwaterPhysicaldb::snr

protected

Set of the available SNRs.

Referenced by command(), and getPERfromSNR().

◆ token_separator

char UnderwaterPhysicaldb::token_separator

protected

Token used to parse the elements in a line of the database.

Referenced by retrievePerFromFile().

◆ type_of_node

std::map<uint8_t, string> UnderwaterPhysicaldb::type_of_node

protected

Set of the available type of nodes.

Referenced by command(), and getPERfromSNR().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/physical/uwphysicaldb/uwphysicaldb.h
DESERT_Framework/DESERT/physical/uwphysicaldb/uwphysicaldb.cpp
