UwAhoiPhy Class Reference

#include <uwahoi-phy.h>

Inheritance diagram for UwAhoiPhy:

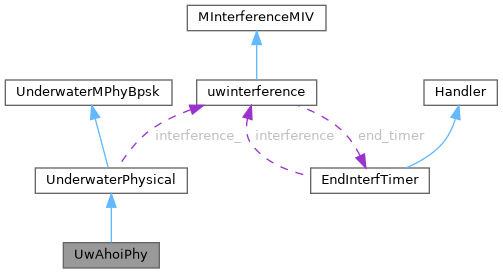

Collaboration diagram for UwAhoiPhy:

Public Member Functions
	UwAhoiPhy ()
virtual	~UwAhoiPhy ()
virtual int	command (int, const char *const *)
Public Member Functions inherited from UnderwaterPhysical
	UnderwaterPhysical ()
virtual	~UnderwaterPhysical ()
virtual void	recv (Packet *)
int	recvSyncClMsg (ClMessage *m)

Protected Member Functions
virtual void	endRx (Packet *p)
virtual double	getPER (double snr, Packet *)
virtual void	initializeLUT ()
Protected Member Functions inherited from UnderwaterPhysical
virtual void	updateInstantaneousStats ()
virtual void	endTx (Packet *p)
virtual void	startRx (Packet *p)
virtual double	consumedEnergyTx (const double &_duration)
virtual double	consumedEnergyRx (const double &_duration)
virtual double	getPER (double snr, int nbits, Packet *)
const bool	isZero (const double &value) const
double	Get_Tx_Time ()
double	Get_Rx_Time ()
double	Get_Energy_Tx ()
double	Get_Energy_Rx ()
double	Get_Transmitted_bytes ()
void	incrTot_pkts_lost ()
void	incrTotCrtl_pkts_lost ()
void	incrErrorCtrlPktsInterf ()
void	incrCollisionDATAvsCTRL ()
void	incrCollisionCTRL ()
void	incrCollisionDATA ()
int	getTot_pkts_lost ()
int	getTot_CtrlPkts_lost ()
int	getError_CtrlPktsInterf ()
int	getCollisionsDATAvsCTRL ()
int	getCollisionsCTRL ()
int	getCollisionsDATA ()
const double	log2 (const double &_input) const
const double	get_prob_error_symbol_mpsk (const double &_snr, const uint32_t _M) const

Private Member Functions
virtual double	getDistance (Packet *)
virtual double	matchDistancePDR (double distance)
virtual double	matchSIR_PDR (double sir)
virtual double	linearInterpolator (double x, double x1, double y1, double x2, double y2)

Private Attributes
string	pdr_file_name_
string	sir_file_name_
char	pdr_token_separator_
PdrLut	range2pdr_
PdrLut	sir2pdr_
bool	initLUT_

Additional Inherited Members
Protected Attributes inherited from UnderwaterPhysical
std::string	modulation_name_
double	time_ready_to_end_rx_
double	Tx_Time_
double	Rx_Time_
double	Energy_Tx_
double	Energy_Rx_
double	Transmitted_bytes_
double	tx_power_
double	rx_power_
int	tot_pkts_lost
int	tot_ctrl_pkts_lost
int	errorCtrlPktsInterf
int	collisionDataCTRL
int	collisionCTRL
int	collisionDATA
std::string	Interference_Model
uwinterference *	interference_

Detailed Description

Definition at line 52 of file uwahoi-phy.h.

Constructor & Destructor Documentation

UwAhoiPhy()

UwAhoiPhy::UwAhoiPhy

(

)

Constructor of UwAhoiPhy class.

Definition at line 63 of file uwahoi-phy.cpp.

~UwAhoiPhy()

UwAhoiPhy::~UwAhoiPhy ( )

virtual

Destructor of UwAhoiPhy class.

Definition at line 75 of file uwahoi-phy.cpp.

Member Function Documentation

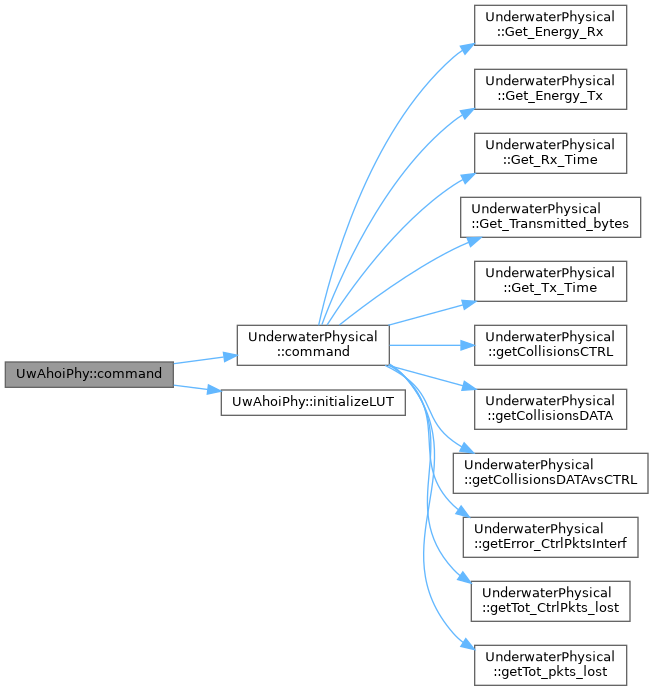

command()

int UwAhoiPhy::command ( int  argc, const char *const *  argv  )

virtual

TCL command interpreter.

It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns

TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UnderwaterPhysical.

Definition at line 80 of file uwahoi-phy.cpp.

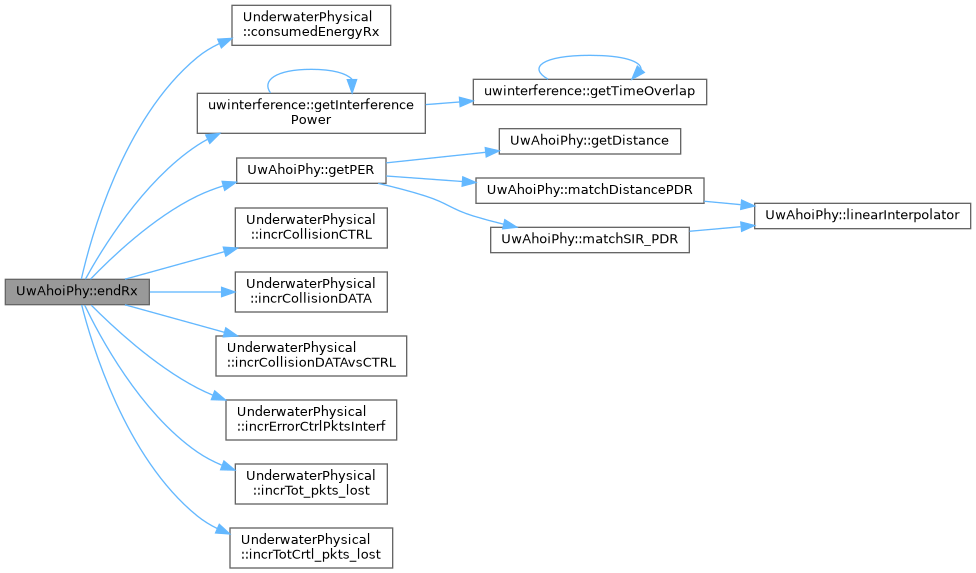

endRx()

void UwAhoiPhy::endRx ( Packet *  p )

protectedvirtual

Handles the end of a packet reception.

Parameters

Packet*

p Pointer to the packet received

Reimplemented from UnderwaterPhysical.

Definition at line 173 of file uwahoi-phy.cpp.

getDistance()

double UwAhoiPhy::getDistance ( Packet *  _p )

privatevirtual

Return the distance between source and destination.

Parameters

p	Packet by witch the module gets information about source and destination.

Definition at line 272 of file uwahoi-phy.cpp.

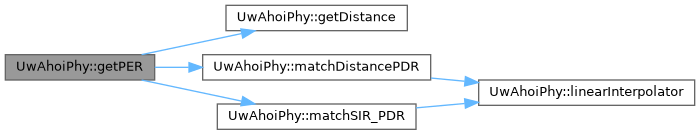

getPER()

double UwAhoiPhy::getPER ( double  snr, Packet *  _p  )

protectedvirtual

Returns the packet error rate by using the length of a packet and the information contained in the packet (position of the source and the destiantion.

Parameters

snr	Calculated by nsmiracle with the Urick model (unused).
p	Packet by witch the module gets information about source and destination.

Returns

PER of the packet passed as parameter.

Definition at line 261 of file uwahoi-phy.cpp.

initializeLUT()

void UwAhoiPhy::initializeLUT ( )

protectedvirtual

Definition at line 118 of file uwahoi-phy.cpp.

linearInterpolator()

double UwAhoiPhy::linearInterpolator ( double  x, double  x1, double  y1, double  x2, double  y2  )

privatevirtual

Return y via linear interpolation given two points.

Parameters

x	input.
x1,y1	coordinates of the first point.
x2,y2	coordinates of the second point.

Definition at line 337 of file uwahoi-phy.cpp.

matchDistancePDR()

double UwAhoiPhy::matchDistancePDR ( double  distance )

privatevirtual

Return the PER via linear interpolation.

Parameters

distance

distance between source and destination.

Definition at line 286 of file uwahoi-phy.cpp.

matchSIR_PDR()

double UwAhoiPhy::matchSIR_PDR ( double  sir )

privatevirtual

Return the PER via linear interpolation.

Parameters

distance

distance between source and destination.

Definition at line 311 of file uwahoi-phy.cpp.

Member Data Documentation

initLUT_

bool UwAhoiPhy::initLUT_

private

Definition at line 139 of file uwahoi-phy.h.

pdr_file_name_

string UwAhoiPhy::pdr_file_name_

private

Definition at line 134 of file uwahoi-phy.h.

pdr_token_separator_

char UwAhoiPhy::pdr_token_separator_

private

Definition at line 136 of file uwahoi-phy.h.

range2pdr_

PdrLut UwAhoiPhy::range2pdr_

private

Definition at line 137 of file uwahoi-phy.h.

sir2pdr_

PdrLut UwAhoiPhy::sir2pdr_

private

Definition at line 138 of file uwahoi-phy.h.

sir_file_name_

string UwAhoiPhy::sir_file_name_

private

Definition at line 135 of file uwahoi-phy.h.

---

The documentation for this class was generated from the following files:

• uwahoi-phy.h
• uwahoi-phy.cpp
