#include <uwsc-tracker-module.h>

Inheritance diagram for UwSCTrackerModule:

[legend]

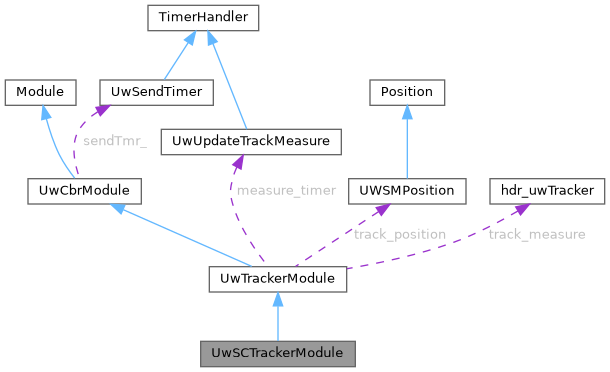

Collaboration diagram for UwSCTrackerModule:

[legend]

Public Member Functions
	UwSCTrackerModule ()

virtual	~UwSCTrackerModule ()=default

virtual int	command (int argc, const char const argv) override

virtual void	recv (Packet *) override

Public Member Functions inherited from UwTrackerModule
	UwTrackerModule ()

	UwTrackerModule (UWSMPosition *p)

virtual	~UwTrackerModule ()

virtual void	initPkt (Packet *p)

Public Member Functions inherited from UwCbrModule
	UwCbrModule ()

virtual	~UwCbrModule ()

virtual void	recv (Packet p, Handler h)

virtual int	crLayCommand (ClMessage *m)

virtual double	GetRTT () const

virtual double	GetFTT () const

virtual double	GetTxTime () const

virtual double	GetPER () const

virtual double	GetTHR () const

virtual double	GetRTTstd () const

virtual double	GetFTTstd () const

virtual void	resetStats ()

void	printIdsPkts () const

Protected Attributes
int	leader_id

std::list< Position >	tracked_mines

Protected Attributes inherited from UwTrackerModule
UWSMPosition *	track_position

hdr_uwTracker	track_measure

double	max_tracking_distance

int	send_only_active_trace

int	track_my_position

double	tracking_period

UwUpdateTrackMeasure	measure_timer

Protected Attributes inherited from UwCbrModule
uint16_t	dstPort_

std::string	log_suffix

nsaddr_t	dstAddr_

char	priority_

std::ofstream	tracefile

std::string	tracefilename

bool *	sn_check

int	PoissonTraffic_

int	debug_

int	drop_out_of_order_

uint	traffic_type_

UwSendTimer	sendTmr_

int	txsn

int	hrsn

int	pkts_recv

int	pkts_ooseq

int	pkts_lost

int	pkts_invalid

int	pkts_last_reset

int	cnt

double	rftt

double	srtt

double	sftt

double	lrtime

double	sthr

double	period_

int	pktSize_

double	sumrtt

double	sumrtt2

int	rttsamples

double	sumftt

double	sumftt2

int	fttsamples

double	sumtxtimes = 0

double	sumbytes

double	sumdt

uint32_t	esn

int	tracefile_enabler_

Additional Inherited Members
Protected Member Functions inherited from UwTrackerModule
virtual void	printReceivedPacket (Packet *p)

void	sendPkt ()

void	updateTrackMeasure ()

virtual void	start ()

virtual void	stop ()

Protected Member Functions inherited from UwCbrModule
virtual void	sendPktLowPriority ()

virtual void	sendPktHighPriority ()

virtual void	transmit ()

virtual void	updateRTT (const double &)

virtual void	updateFTT (const double &)

virtual void	updateThroughput (const int &, const double &)

virtual void	incrPktLost (const int &)

virtual void	incrPktRecv ()

virtual void	incrPktOoseq ()

virtual void	incrPktInvalid ()

virtual double	getTimeBeforeNextPkt ()

Static Protected Member Functions inherited from UwCbrModule
static int	getCbrHeaderSize ()

Static Protected Attributes inherited from UwCbrModule
static int	uidcnt_ = 0

Detailed Description

UwSCTrackerModule class adds to the UwTrackerModule class the possibility to send cross layer messages.

Definition at line 47 of file uwsc-tracker-module.h.

Constructor & Destructor Documentation

◆ UwSCTrackerModule()

UwSCTrackerModule::UwSCTrackerModule ( )

Default Constructor of UwSCTrackerModule class.

Definition at line 70 of file uwsc-tracker-module.cc.

◆ ~UwSCTrackerModule()

virtual UwSCTrackerModule::~UwSCTrackerModule ( )

virtualdefault

Destructor of UwSCTrackerModule class.

Member Function Documentation

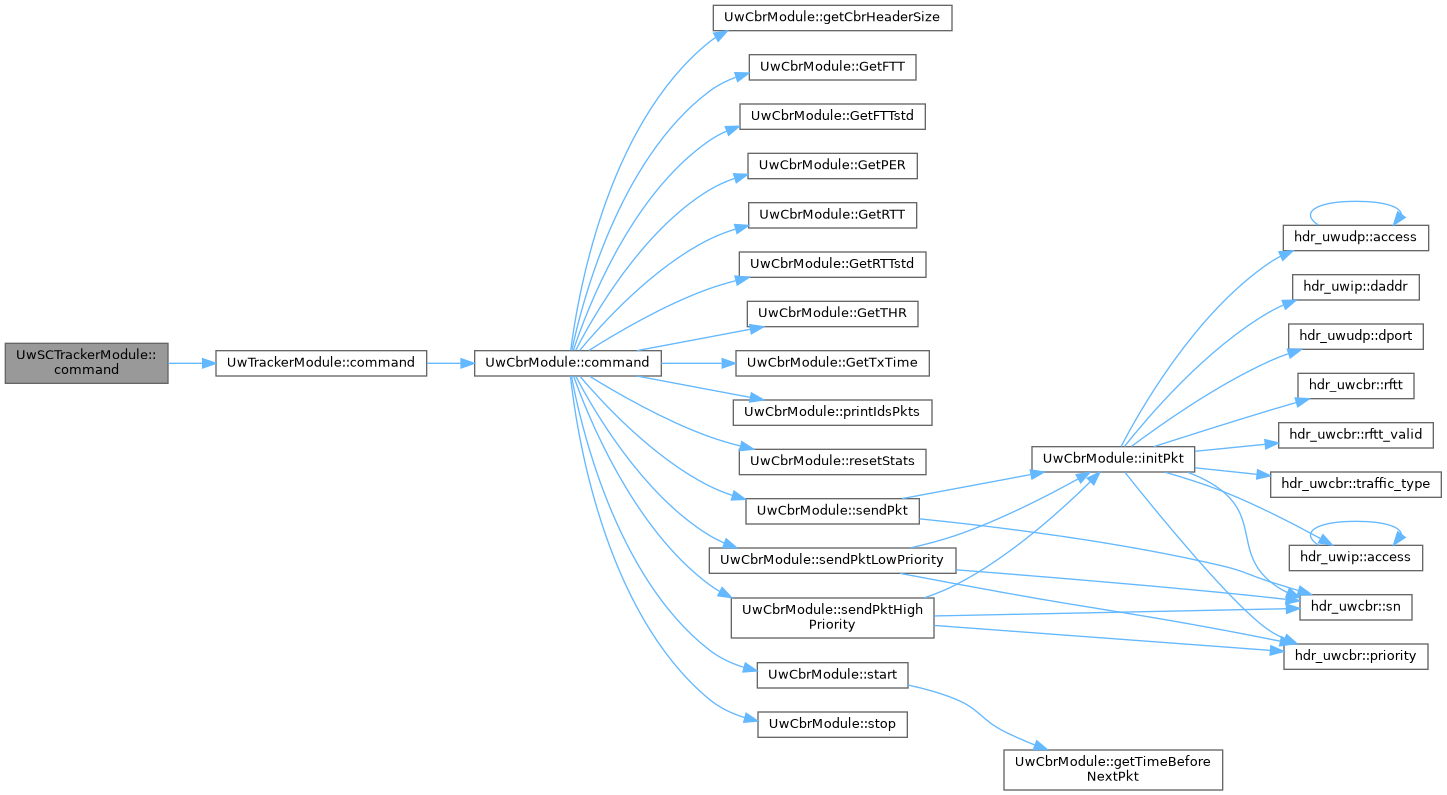

◆ command()

int UwSCTrackerModule::command	(	int	argc,
		const char const	argv
	)

overridevirtual

TCL command interpreter.

It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UwTrackerModule.

Definition at line 78 of file uwsc-tracker-module.cc.

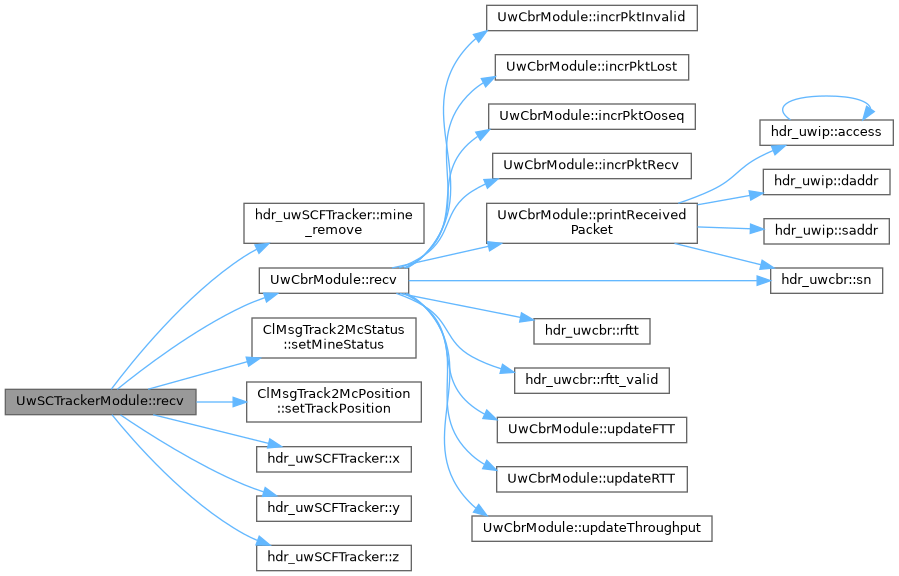

◆ recv()

void UwSCTrackerModule::recv ( Packet * p )

overridevirtual

Performs the reception of packets from upper and lower layers.

Parameters

Packet* Pointer to the packet will be received.

Reimplemented from UwCbrModule.

Definition at line 95 of file uwsc-tracker-module.cc.

Member Data Documentation

◆ leader_id

int UwSCTrackerModule::leader_id

protected

ID of the Tracker leader.

Definition at line 80 of file uwsc-tracker-module.h.

◆ tracked_mines

std::list<Position> UwSCTrackerModule::tracked_mines

protected

Positions of the mines tracked by the follower.

Definition at line 81 of file uwsc-tracker-module.h.

The documentation for this class was generated from the following files:
