#include <uwcbr-module.h>

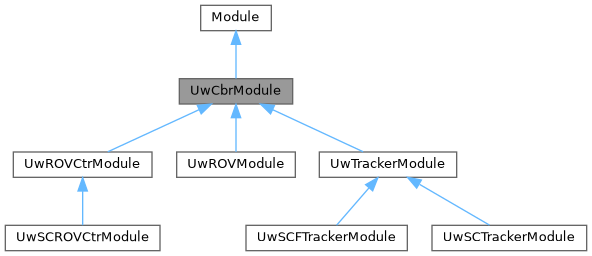

Inheritance diagram for UwCbrModule:

Collaboration diagram for UwCbrModule:

Public Member Functions
	UwCbrModule ()

virtual	~UwCbrModule ()=default

virtual void	recv (Packet *) override

virtual void	recv (Packet p, Handler h) override

virtual int	command (int argc, const char const argv) override

virtual double	GetRTT () const

virtual double	GetFTT () const

virtual double	GetTxTime () const

virtual double	GetPER () const

virtual double	GetTHR () const

virtual double	GetRTTstd () const

virtual double	GetFTTstd () const

virtual void	resetStats ()

void	printIdsPkts () const

Protected Member Functions
virtual void	initPkt (Packet *p)

virtual void	sendPkt ()

virtual void	sendPktLowPriority ()

virtual void	sendPktHighPriority ()

virtual void	transmit ()

virtual void	start ()

virtual void	stop ()

virtual void	updateRTT (const double &)

virtual void	updateFTT (const double &)

virtual void	updateThroughput (const int &, const double &)

virtual void	incrPktLost (const int &)

virtual void	incrPktRecv ()

virtual void	incrPktOoseq ()

virtual void	incrPktInvalid ()

virtual double	getTimeBeforeNextPkt ()

virtual void	printReceivedPacket (Packet *p)

Static Protected Member Functions
static int	getCbrHeaderSize ()

Protected Attributes
uint16_t	dstPort_

std::string	log_suffix

nsaddr_t	dstAddr_

char	priority_

std::ofstream	tracefile

std::string	tracefilename

bool *	sn_check

int	PoissonTraffic_

int	debug_

int	drop_out_of_order_

uint	traffic_type_

UwSendTimer	sendTmr_

int	txsn

int	hrsn

int	pkts_recv

int	pkts_ooseq

int	pkts_lost

int	pkts_invalid

int	pkts_last_reset

int	cnt

double	rftt

double	srtt

double	sftt

double	lrtime

double	sthr

double	period_

int	pktSize_

double	sumrtt

double	sumrtt2

int	rttsamples

double	sumftt

double	sumftt2

int	fttsamples

double	sumtxtimes = 0

double	sumbytes

double	sumdt

uint32_t	esn

int	tracefile_enabler_

Static Protected Attributes
static int	uidcnt_ = 0

Friends
class	UwSendTimer

Detailed Description

UwCbrModule class is used to manage UWCBR packets and to collect statistics about them.

Constructor & Destructor Documentation

◆ UwCbrModule()

UwCbrModule::UwCbrModule ( )

Constructor of UwCbrModule class.

References debug_, drop_out_of_order_, dstAddr_, dstPort_, period_, pktSize_, PoissonTraffic_, sn_check, tracefile_enabler_, and traffic_type_.

◆ ~UwCbrModule()

virtual UwCbrModule::~UwCbrModule ( )

virtualdefault

Destructor of UwCbrModule class.

Member Function Documentation

◆ command()

int UwCbrModule::command	(	int	argc,
		const char const	argv
	)

overridevirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented in CoolAddon, UwTrackerModule, UwROVModule, UwROVCtrModule, UwSCROVCtrModule, UwSCFTrackerModule, and UwSCTrackerModule.

References getCbrHeaderSize(), GetFTT(), GetFTTstd(), GetPER(), GetRTT(), GetRTTstd(), GetTHR(), GetTxTime(), hrsn, log_suffix, pkts_last_reset, pkts_recv, printIdsPkts(), priority_, resetStats(), sendPkt(), sendPktHighPriority(), sendPktLowPriority(), start(), stop(), tracefile, tracefile_enabler_, tracefilename, and txsn.

Referenced by CoolAddon::command(), UwTrackerModule::command(), UwROVModule::command(), and UwROVCtrModule::command().

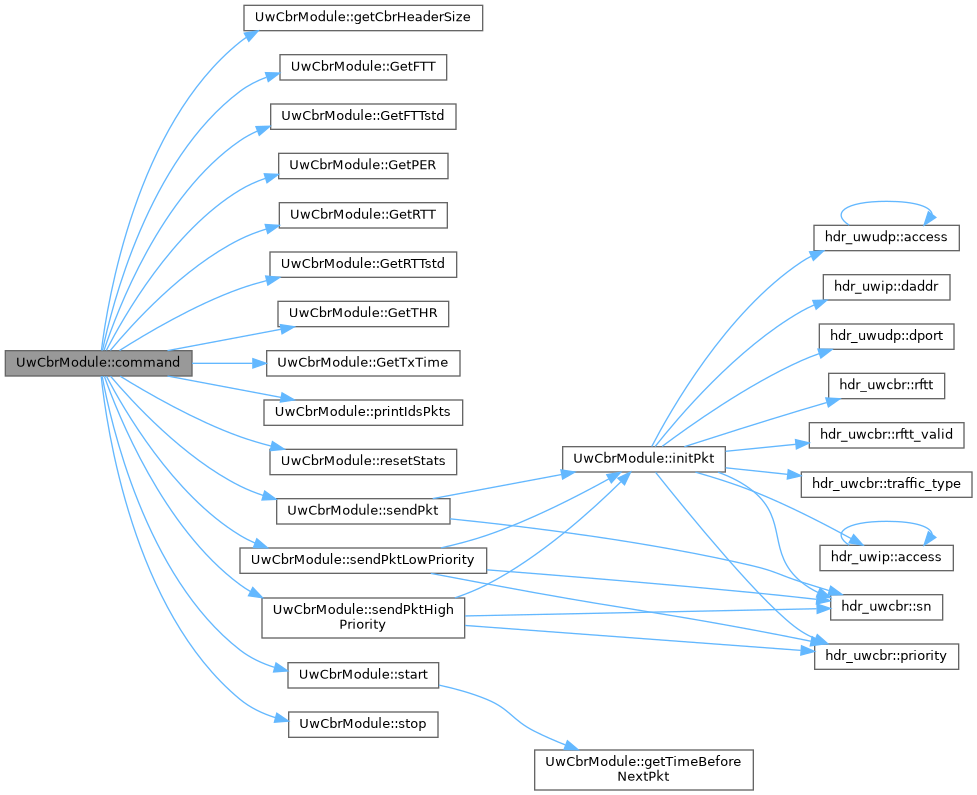

Here is the call graph for this function:

◆ getCbrHeaderSize()

static int UwCbrModule::getCbrHeaderSize ( )

inlinestaticprotected

Returns the size in byte of a hdr_uwcbr packet header.

Returns: The size of a hdr_uwcbr packet header.

Referenced by command().

◆ GetFTT()

double UwCbrModule::GetFTT ( ) const

virtual

Returns the mean Forward Trip Time.

Returns: Forward Trip Time.

References fttsamples, and sumftt.

Referenced by command().

◆ GetFTTstd()

double UwCbrModule::GetFTTstd ( ) const

virtual

Returns the mean Forward Trip Time Standard Deviation.

Returns: Forward Trip Time Standard Deviation.

References fttsamples, sumftt, and sumftt2.

Referenced by command().

◆ GetPER()

double UwCbrModule::GetPER ( ) const

virtual

Returns the mean Packet Error Rate.

Returns: Packet Error Rate.

References drop_out_of_order_, esn, pkts_lost, and pkts_recv.

Referenced by command().

◆ GetRTT()

double UwCbrModule::GetRTT ( ) const

virtual

Returns the mean Round Trip Time.

Returns: Round Trip Time.

References rttsamples, and sumrtt.

Referenced by command().

◆ GetRTTstd()

double UwCbrModule::GetRTTstd ( ) const

virtual

Returns the Round Trip Time Standard Deviation.

Returns: Round Trip Time Standard Deviation.

References rttsamples, sumrtt, and sumrtt2.

Referenced by command().

◆ GetTHR()

double UwCbrModule::GetTHR ( ) const

virtual

Returns the mean Throughput.

Returns: Throughput.

References sumbytes, and sumdt.

Referenced by command().

◆ getTimeBeforeNextPkt()

double UwCbrModule::getTimeBeforeNextPkt ( )

protectedvirtual

Returns the amount of time to wait before the next transmission. It depends on the PoissonTraffic_ flag.

Returns: double Value to use as delay for the next transmission.

See also: PoissonTraffic_

References period_, and PoissonTraffic_.

Referenced by start(), and transmit().

◆ GetTxTime()

double UwCbrModule::GetTxTime ( ) const

virtual

Returns the mean transmission time.

Returns: transmission time.

References fttsamples, and sumtxtimes.

Referenced by command().

◆ incrPktInvalid()

void UwCbrModule::incrPktInvalid ( )

protectedvirtual

Increases by one the number of invalid packets.

References pkts_invalid.

Referenced by recv().

◆ incrPktLost()

void UwCbrModule::incrPktLost ( const int & npkts )

protectedvirtual

Increases the number of packets lost.

Parameters

int&	Number of packets lost.

References pkts_lost.

Referenced by recv().

◆ incrPktOoseq()

void UwCbrModule::incrPktOoseq ( )

protectedvirtual

Increases by one the number of out of sequence packets received.

References pkts_ooseq.

Referenced by recv().

◆ incrPktRecv()

void UwCbrModule::incrPktRecv ( )

protectedvirtual

Increases by one the number of received packets.

References pkts_recv.

Referenced by recv().

◆ initPkt()

void UwCbrModule::initPkt ( Packet * p )

protectedvirtual

Initializes a data packet passed as argument with the default values.

Parameters

Packet* Pointer to a packet already allocated to fill with the right values.

Reimplemented in UwTrackerModule, UwROVModule, UwROVCtrModule, and UwSCFTrackerModule.

References hdr_uwip::access(), hdr_uwudp::access(), hdr_uwip::daddr(), hdr_uwudp::dport(), dstAddr_, dstPort_, pktSize_, hdr_uwcbr::priority(), priority_, PT_UWCBR, hdr_uwcbr::rftt(), rftt, hdr_uwcbr::rftt_valid(), hdr_uwcbr::sn(), hdr_uwcbr::traffic_type(), traffic_type_, txsn, and uidcnt_.

Referenced by UwTrackerModule::initPkt(), UwROVModule::initPkt(), UwROVCtrModule::initPkt(), sendPkt(), sendPktHighPriority(), sendPktLowPriority(), and CoolAddon::sendTHRWarning().

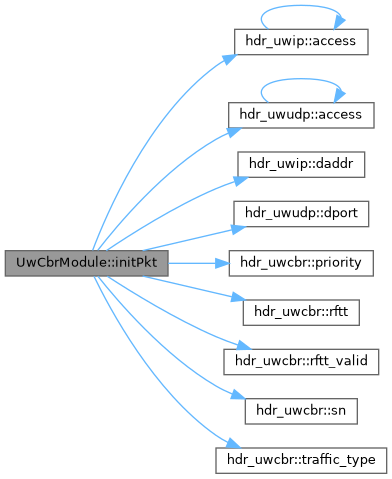

Here is the call graph for this function:

◆ printIdsPkts()

void UwCbrModule::printIdsPkts ( ) const

inline

Prints the IDs of the packet's headers defined by UWCBR.

References PT_UWCBR.

Referenced by command().

◆ printReceivedPacket()

void UwCbrModule::printReceivedPacket ( Packet * p )

protectedvirtual

Print to tracefile details about a received packet

Parameters

Packet* Pointer to the received packet

Reimplemented in UwTrackerModule.

References hdr_uwip::access(), hdr_uwip::daddr(), hdr_uwip::saddr(), hdr_uwcbr::sn(), tracefile, and tracefile_enabler_.

Referenced by recv().

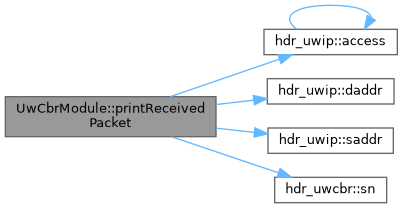

Here is the call graph for this function:

◆ recv() [1/2]

void UwCbrModule::recv ( Packet * p )

overridevirtual

Performs the reception of packets from upper and lower layers.

Parameters

Packet* Pointer to the packet will be received.

Reimplemented in UwROVModule, UwROVCtrModule, UwSCROVCtrModule, UwSCTrackerModule, and CoolAddon.

References drop_out_of_order_, esn, hrsn, incrPktInvalid(), incrPktLost(), incrPktOoseq(), incrPktRecv(), lrtime, pkts_last_reset, pkts_lost, pkts_recv, printReceivedPacket(), PT_UWCBR, hdr_uwcbr::rftt(), rftt, hdr_uwcbr::rftt_valid(), hdr_uwcbr::sn(), sn_check, tracefile_enabler_, updateFTT(), updateRTT(), and updateThroughput().

Referenced by UwROVModule::recv(), UwROVCtrModule::recv(), UwSCTrackerModule::recv(), CoolAddon::recv(), and recv().

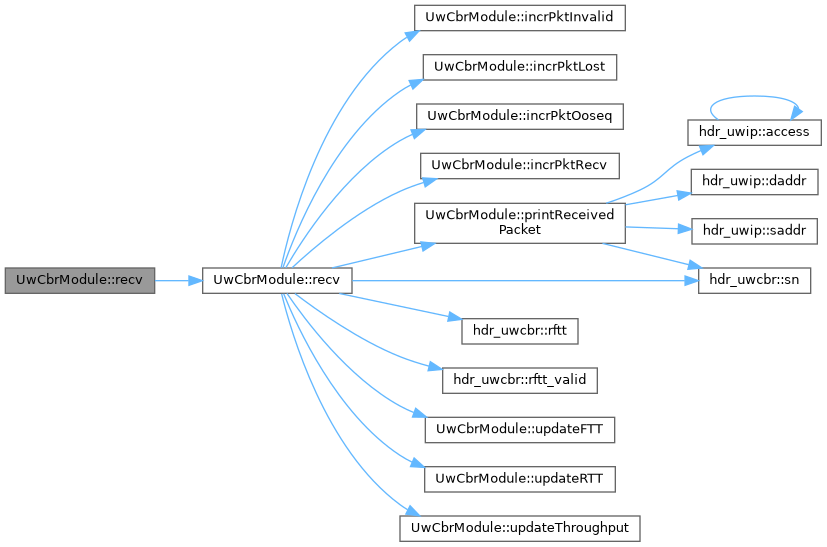

Here is the call graph for this function:

◆ recv() [2/2]

void UwCbrModule::recv	(	Packet *	p,
		Handler *	h
	)

overridevirtual

Performs the reception of packets from upper and lower layers.

Parameters

Packet*	Pointer to the packet will be received.
Handler*	Handler.

Reimplemented in UwROVModule, and UwROVCtrModule.

References recv().

Here is the call graph for this function:

◆ resetStats()

void UwCbrModule::resetStats ( )

virtual

Resets all the statistics of the UWCBR module.

References fttsamples, pkts_last_reset, pkts_lost, pkts_ooseq, pkts_recv, rftt, rttsamples, sftt, srtt, sthr, sumbytes, sumdt, sumftt, sumftt2, sumrtt, and sumrtt2.

Referenced by command().

◆ sendPkt()

void UwCbrModule::sendPkt ( )

protectedvirtual

Allocates, initialize and sends a packet with the default priority flag set from tcl.

See also: UwCbrModule::initPkt()

Reimplemented in UwSCFTrackerModule, and UwTrackerModule.

References initPkt(), and hdr_uwcbr::sn().

Referenced by command(), UwROVModule::recv(), UwROVModule::sendAck(), UwTrackerModule::sendPkt(), transmit(), and UwROVCtrModule::transmit().

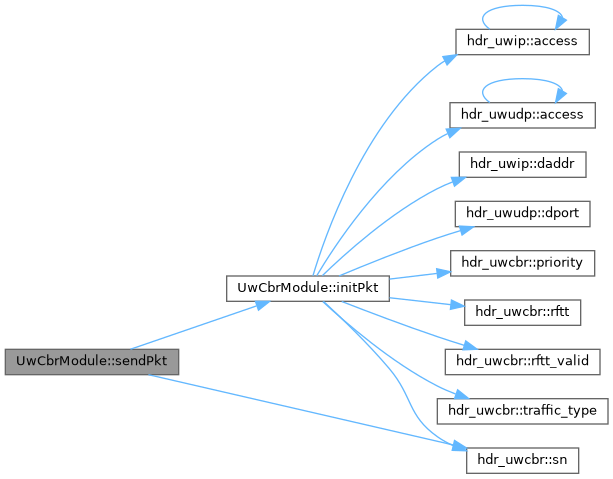

Here is the call graph for this function:

◆ sendPktHighPriority()

void UwCbrModule::sendPktHighPriority ( )

protectedvirtual

Allocates, initialize and sends a packet with the default priority flag set from tcl.

See also: UwCbrModule::initPkt()

References initPkt(), hdr_uwcbr::priority(), and hdr_uwcbr::sn().

Referenced by command(), UwROVModule::recv(), and UwROVModule::sendAck().

Here is the call graph for this function:

◆ sendPktLowPriority()

void UwCbrModule::sendPktLowPriority ( )

protectedvirtual

Allocates, initialize and sends a packet with the default priority flag set from tcl.

See also: UwCbrModule::initPkt()

References initPkt(), hdr_uwcbr::priority(), and hdr_uwcbr::sn().

Referenced by command().

Here is the call graph for this function:

◆ start()

void UwCbrModule::start ( )

protectedvirtual

Start to send packets.

Reimplemented in CoolAddon, UwTrackerModule, UwROVCtrModule, and UwSCFTrackerModule.

References getTimeBeforeNextPkt(), and sendTmr_.

Referenced by command(), CoolAddon::start(), and UwTrackerModule::start().

Here is the call graph for this function:

◆ stop()

void UwCbrModule::stop ( )

protectedvirtual

Stop to send packets.

Reimplemented in CoolAddon, UwTrackerModule, and UwSCFTrackerModule.

References sendTmr_.

Referenced by command(), CoolAddon::stop(), and UwTrackerModule::stop().

◆ transmit()

void UwCbrModule::transmit ( )

protectedvirtual

Creates and transmits a packet and schedules a new transmission.

See also: UwCbrModule::sendPkt()

Reimplemented in UwROVCtrModule.

References getTimeBeforeNextPkt(), sendPkt(), and sendTmr_.

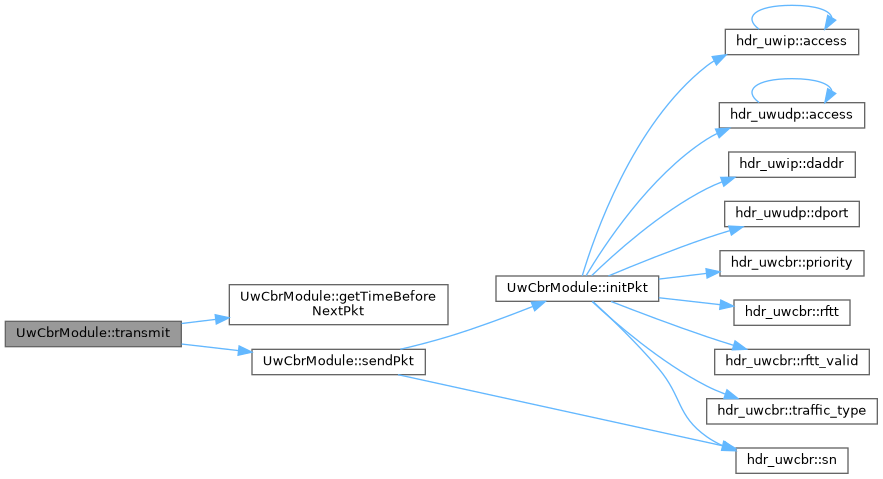

Here is the call graph for this function:

◆ updateFTT()

void UwCbrModule::updateFTT ( const double & ftt )

protectedvirtual

Updates the Forward Trip Time.

Parameters

double& New Forward Trip Time entry.

References fttsamples, sumftt, and sumftt2.

Referenced by recv().

◆ updateRTT()

void UwCbrModule::updateRTT ( const double & rtt )

protectedvirtual

Updates the Round Trip Time.

Parameters

double& New Round Trip Time entry.

References rttsamples, sumrtt, and sumrtt2.

Referenced by recv().

◆ updateThroughput()

void UwCbrModule::updateThroughput	(	const int &	bytes,
		const double &	dt
	)

protectedvirtual

Updates the Throughput.

Parameters

int&	Bytes of the payload of the last packet received.
double&	Delay Time between the last two receipts.

References sumbytes, and sumdt.

Referenced by recv().

Friends And Related Symbol Documentation

◆ UwSendTimer

friend class UwSendTimer

friend

Member Data Documentation

◆ cnt

int UwCbrModule::cnt

protected

Used for check if is the first time that tracefile<ip of sink> is opened.

◆ debug_

int UwCbrModule::debug_

protected

Flag to enable several levels of debug.

Referenced by UwTrackerModule::initPkt(), UwROVModule::initPkt(), UwROVCtrModule::initPkt(), UwROVModule::recv(), UwROVCtrModule::recv(), UwSCROVCtrModule::recv(), UwSCTrackerModule::recv(), UwSCROVCtrModule::recvSyncClMsg(), UwROVModule::sendAck(), UwROVCtrModule::transmit(), UwSCFTrackerModule::updateMineRemove(), UwSCFTrackerModule::updateTrackPosition(), and UwCbrModule().

◆ drop_out_of_order_

int UwCbrModule::drop_out_of_order_

protected

Flag to enable or disable the check for out of order packets.

Referenced by GetPER(), recv(), and UwCbrModule().

◆ dstAddr_

nsaddr_t UwCbrModule::dstAddr_

protected

IP of the destination.

Referenced by initPkt(), and UwCbrModule().

◆ dstPort_

uint16_t UwCbrModule::dstPort_

protected

Destination port.

Referenced by initPkt(), and UwCbrModule().

◆ esn

uint32_t UwCbrModule::esn

protected

Expected serial number.

Referenced by GetPER(), and recv().

◆ fttsamples

int UwCbrModule::fttsamples

protected

Number of FTT samples.

Referenced by GetFTT(), GetFTTstd(), GetTxTime(), resetStats(), and updateFTT().

◆ hrsn

int UwCbrModule::hrsn

protected

Highest received sequence number.

Referenced by command(), and recv().

◆ log_suffix

std::string UwCbrModule::log_suffix

protected

Possibility to insert a log suffix

Referenced by command().

◆ lrtime

double UwCbrModule::lrtime

protected

Time of last packet reception.

Referenced by recv().

◆ period_

double UwCbrModule::period_

protected

Period between two consecutive packet transmissions.

Referenced by getTimeBeforeNextPkt(), UwROVCtrModule::transmit(), and UwCbrModule().

◆ pkts_invalid

int UwCbrModule::pkts_invalid

protected

Total number of invalid packets received.

Referenced by incrPktInvalid().

◆ pkts_last_reset

int UwCbrModule::pkts_last_reset

protected

Used for error checking after stats are reset. Set to pkts_lost+pkts_recv each time resetStats is called.

Referenced by command(), recv(), and resetStats().

◆ pkts_lost

int UwCbrModule::pkts_lost

protected

Total number of lost packets, including packets received out of sequence.

Referenced by GetPER(), incrPktLost(), recv(), and resetStats().

◆ pkts_ooseq

int UwCbrModule::pkts_ooseq

protected

Total number of packets received out of sequence.

Referenced by incrPktOoseq(), and resetStats().

◆ pkts_recv

int UwCbrModule::pkts_recv

protected

Total number of received packets. Packet out of sequence are not counted here.

Referenced by command(), GetPER(), incrPktRecv(), recv(), and resetStats().

◆ pktSize_

int UwCbrModule::pktSize_

protected

UWCBR packets payload size.

Referenced by initPkt(), and UwCbrModule().

◆ PoissonTraffic_

int UwCbrModule::PoissonTraffic_

protected

1 if the traffic is generated according to a poissonian distribution, 0 otherwise.

Referenced by getTimeBeforeNextPkt(), and UwCbrModule().

◆ priority_

char UwCbrModule::priority_

protected

Priority of the data packets.

Referenced by command(), initPkt(), UwROVModule::initPkt(), and UwROVModule::recv().

◆ rftt

double UwCbrModule::rftt

protected

Forward Trip Time seen for last received packet.

Referenced by initPkt(), recv(), and resetStats().

◆ rttsamples

int UwCbrModule::rttsamples

protected

Number of RTT samples.

Referenced by GetRTT(), GetRTTstd(), UwROVCtrModule::initPkt(), resetStats(), UwROVCtrModule::transmit(), and updateRTT().

◆ sendTmr_

UwSendTimer UwCbrModule::sendTmr_

protected

Timer which schedules packet transmissions.

Referenced by UwROVCtrModule::recv(), UwROVCtrModule::reset_retx(), start(), stop(), transmit(), UwROVCtrModule::transmit(), and UwSCFTrackerModule::updateMineRemove().

◆ sftt

double UwCbrModule::sftt

protected

Smoothed Forward Trip Time, calculated as srtt.

Referenced by resetStats().

◆ sn_check

bool* UwCbrModule::sn_check

protected

Used to keep track of the packets already received.

Referenced by recv(), and UwCbrModule().

◆ srtt

double UwCbrModule::srtt

protected

Smoothed Round Trip Time, calculated as for TCP.

Referenced by resetStats().

◆ sthr

double UwCbrModule::sthr

protected

Smoothed throughput calculation.

Referenced by resetStats().

◆ sumbytes

double UwCbrModule::sumbytes

protected

Sum of bytes received.

Referenced by GetTHR(), resetStats(), and updateThroughput().

◆ sumdt

double UwCbrModule::sumdt

protected

Sum of the delays.

Referenced by GetTHR(), resetStats(), and updateThroughput().

◆ sumftt

double UwCbrModule::sumftt

protected

Sum of FTT samples.

Referenced by GetFTT(), GetFTTstd(), resetStats(), and updateFTT().

◆ sumftt2

double UwCbrModule::sumftt2

protected

Sum of (FTT^2).

Referenced by GetFTTstd(), resetStats(), and updateFTT().

◆ sumrtt

double UwCbrModule::sumrtt

protected

Sum of RTT samples.

Referenced by GetRTT(), GetRTTstd(), UwROVCtrModule::initPkt(), resetStats(), UwROVCtrModule::transmit(), and updateRTT().

◆ sumrtt2

double UwCbrModule::sumrtt2

protected

Sum of (RTT^2).

Referenced by GetRTTstd(), resetStats(), and updateRTT().

◆ sumtxtimes

double UwCbrModule::sumtxtimes = 0

protected

Sum of transmission times

Referenced by GetTxTime().

◆ tracefile

std::ofstream UwCbrModule::tracefile

protected

Referenced by command(), UwTrackerModule::printReceivedPacket(), and printReceivedPacket().

◆ tracefile_enabler_

int UwCbrModule::tracefile_enabler_

protected

True if enable tracefile of received packets, default disabled.

Referenced by command(), UwTrackerModule::printReceivedPacket(), printReceivedPacket(), recv(), and UwCbrModule().

◆ tracefilename

std::string UwCbrModule::tracefilename

protected

Referenced by command().

◆ traffic_type_

uint UwCbrModule::traffic_type_

protected

Traffic type of the packets.

Referenced by initPkt(), and UwCbrModule().

◆ txsn

int UwCbrModule::txsn

protected

Sequence number of the next packet to be transmitted.

Referenced by command(), and initPkt().

◆ uidcnt_

int UwCbrModule::uidcnt_ = 0

staticprotected

Unique id of the packet generated.

Referenced by initPkt().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/application/uwcbr/uwcbr-module.h
DESERT_Framework/DESERT/application/uwcbr/uwcbr-module.cpp

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ UwCbrModule()

◆ ~UwCbrModule()

Member Function Documentation

◆ command()

◆ getCbrHeaderSize()

◆ GetFTT()

◆ GetFTTstd()

◆ GetPER()

◆ GetRTT()

◆ GetRTTstd()

◆ GetTHR()

◆ getTimeBeforeNextPkt()

◆ GetTxTime()

◆ incrPktInvalid()

◆ incrPktLost()

◆ incrPktOoseq()

◆ incrPktRecv()

◆ initPkt()

◆ printIdsPkts()

◆ printReceivedPacket()

◆ recv() [1/2]

◆ recv() [2/2]

◆ resetStats()

◆ sendPkt()

◆ sendPktHighPriority()

◆ sendPktLowPriority()

◆ start()

◆ stop()

◆ transmit()

◆ updateFTT()

◆ updateRTT()

◆ updateThroughput()

Friends And Related Symbol Documentation

◆ UwSendTimer

Member Data Documentation

◆ cnt

◆ debug_

◆ drop_out_of_order_

◆ dstAddr_

◆ dstPort_

◆ esn

◆ fttsamples

◆ hrsn

◆ log_suffix

◆ lrtime

◆ period_

◆ pkts_invalid

◆ pkts_last_reset

◆ pkts_lost

◆ pkts_ooseq

◆ pkts_recv

◆ pktSize_

◆ PoissonTraffic_

◆ priority_

◆ rftt

◆ rttsamples

◆ sendTmr_

◆ sftt

◆ sn_check

◆ srtt

◆ sthr

◆ sumbytes

◆ sumdt

◆ sumftt

◆ sumftt2

◆ sumrtt

◆ sumrtt2

◆ sumtxtimes

◆ tracefile

◆ tracefile_enabler_

◆ tracefilename

◆ traffic_type_
