#include <uwrov-module.h>

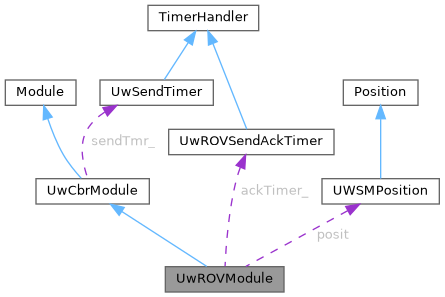

Inheritance diagram for UwROVModule:

Collaboration diagram for UwROVModule:

Public Member Functions
	UwROVModule ()

virtual	~UwROVModule ()=default

virtual int	command (int argc, const char const argv) override

virtual void	initPkt (Packet *p) override

virtual void	recv (Packet *) override

virtual void	recv (Packet p, Handler h) override

virtual void	sendAck ()

Public Member Functions inherited from UwCbrModule
	UwCbrModule ()

virtual	~UwCbrModule ()=default

virtual double	GetRTT () const

virtual double	GetFTT () const

virtual double	GetTxTime () const

virtual double	GetPER () const

virtual double	GetTHR () const

virtual double	GetRTTstd () const

virtual double	GetFTTstd () const

virtual void	resetStats ()

void	printIdsPkts () const

Static Public Member Functions
static int	getROVMonHeaderSize ()

static int	getROVCTRHeaderSize ()

Protected Types
enum	UWROV_ACK_POLICY { ACK_PIGGYBACK , ACK_IMMEDIATELY , ACK_PGBK_OR_TO }

Protected Attributes
int	last_sn_confirmed

int	ack

int	ackPriority

int	ackNotPgbk

int	drop_old_waypoints

int	ackTimeout

UWSMPosition *	posit

UwROVSendAckTimer	ackTimer_

UWROV_ACK_POLICY	ackPolicy

int	log_flag

std::ofstream	out_file_stats

Protected Attributes inherited from UwCbrModule
uint16_t	dstPort_

std::string	log_suffix

nsaddr_t	dstAddr_

char	priority_

std::ofstream	tracefile

std::string	tracefilename

bool *	sn_check

int	PoissonTraffic_

int	debug_

int	drop_out_of_order_

uint	traffic_type_

UwSendTimer	sendTmr_

int	txsn

int	hrsn

int	pkts_recv

int	pkts_ooseq

int	pkts_lost

int	pkts_invalid

int	pkts_last_reset

int	cnt

double	rftt

double	srtt

double	sftt

double	lrtime

double	sthr

double	period_

int	pktSize_

double	sumrtt

double	sumrtt2

int	rttsamples

double	sumftt

double	sumftt2

int	fttsamples

double	sumtxtimes = 0

double	sumbytes

double	sumdt

uint32_t	esn

int	tracefile_enabler_

Friends
class	UwROVSendAckTimer

Additional Inherited Members
Protected Member Functions inherited from UwCbrModule
virtual void	sendPkt ()

virtual void	sendPktLowPriority ()

virtual void	sendPktHighPriority ()

virtual void	transmit ()

virtual void	start ()

virtual void	stop ()

virtual void	updateRTT (const double &)

virtual void	updateFTT (const double &)

virtual void	updateThroughput (const int &, const double &)

virtual void	incrPktLost (const int &)

virtual void	incrPktRecv ()

virtual void	incrPktOoseq ()

virtual void	incrPktInvalid ()

virtual double	getTimeBeforeNextPkt ()

virtual void	printReceivedPacket (Packet *p)

Static Protected Member Functions inherited from UwCbrModule
static int	getCbrHeaderSize ()

Static Protected Attributes inherited from UwCbrModule
static int	uidcnt_ = 0

Detailed Description

UwROVModule class is used to manage UWROV packets and to collect statistics about them.

Member Enumeration Documentation

◆ UWROV_ACK_POLICY

enum UwROVModule::UWROV_ACK_POLICY

protected

Enumerator
ACK_PIGGYBACK
ACK_IMMEDIATELY
ACK_PGBK_OR_TO

Constructor & Destructor Documentation

◆ UwROVModule()

UwROVModule::UwROVModule ( )

Default Constructor of UwROVModule class.

References ackPriority, ackTimeout, drop_old_waypoints, and log_flag.

◆ ~UwROVModule()

virtual UwROVModule::~UwROVModule ( )

virtualdefault

Destructor of UwROVModule class.

Member Function Documentation

◆ command()

int UwROVModule::command	(	int	argc,
		const char const	argv
	)

overridevirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UwCbrModule.

References ACK_IMMEDIATELY, ACK_PGBK_OR_TO, ACK_PIGGYBACK, ackNotPgbk, ackPolicy, ackPriority, ackTimeout, UwCbrModule::command(), getROVCTRHeaderSize(), getROVMonHeaderSize(), UWSMPosition::getX(), UWSMPosition::getY(), UWSMPosition::getZ(), posit, and UWSMPosition::setdest().

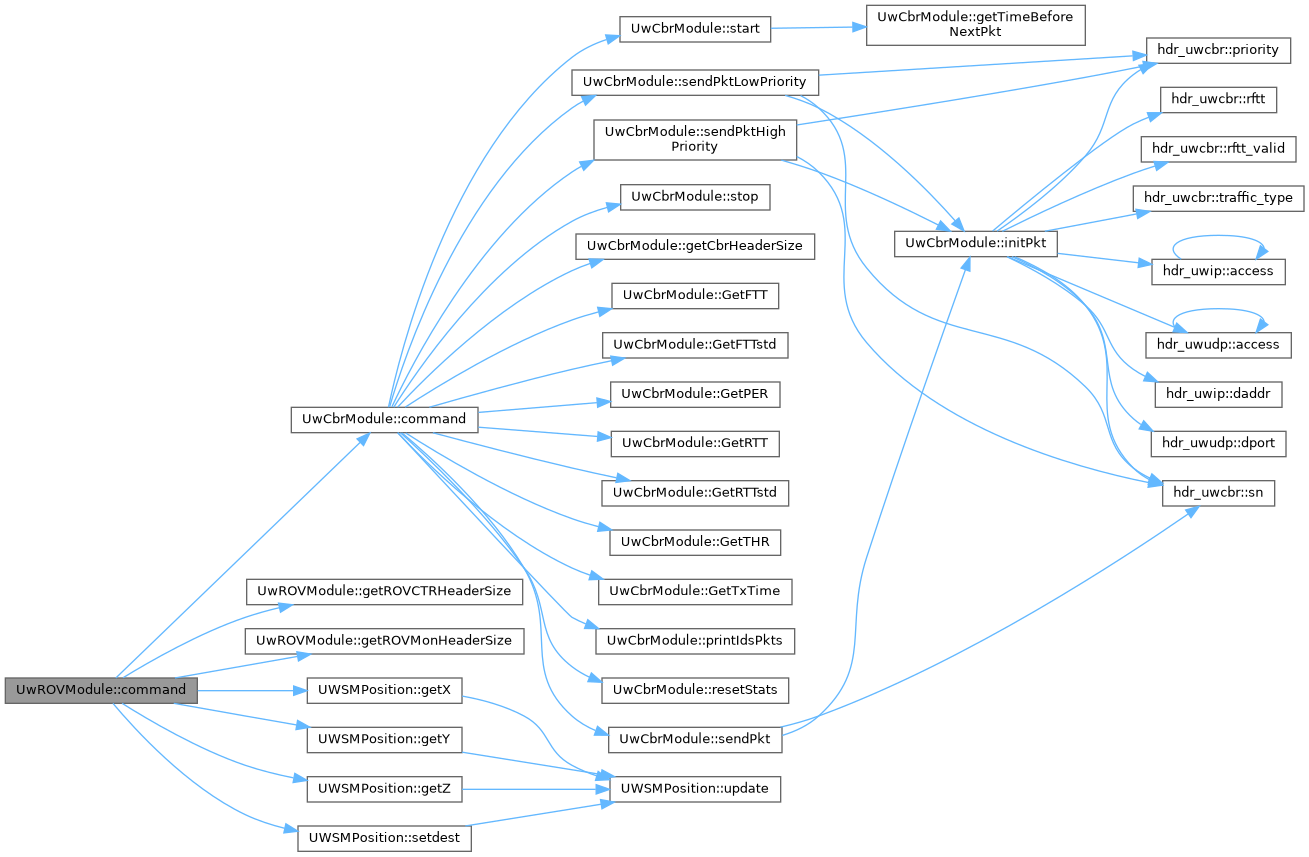

Here is the call graph for this function:

◆ getROVCTRHeaderSize()

static int UwROVModule::getROVCTRHeaderSize ( )

inlinestatic

Returns the size in byte of a hdr_uwROV_ctr packet header.

Returns: The size of a hdr_uwROV_ctr packet header.

Referenced by command().

◆ getROVMonHeaderSize()

static int UwROVModule::getROVMonHeaderSize ( )

inlinestatic

Returns the size in byte of a hdr_uwROV_monitoring packet header.

Returns: The size of a hdr_uwROV_monitoring packet header.

Referenced by command().

◆ initPkt()

void UwROVModule::initPkt ( Packet * p )

overridevirtual

Initializes a monitoring data packet passed as argument with the default values.

Parameters

Packet* Pointer to a packet already allocated to fill with the right values.

Reimplemented from UwCbrModule.

References ack, hdr_uwROV_monitoring::ack(), ackTimer_, UwCbrModule::debug_, UWSMPosition::getX(), UWSMPosition::getY(), UWSMPosition::getZ(), UwCbrModule::initPkt(), posit, hdr_uwcbr::priority(), UwCbrModule::priority_, hdr_uwROV_monitoring::x(), hdr_uwROV_monitoring::y(), and hdr_uwROV_monitoring::z().

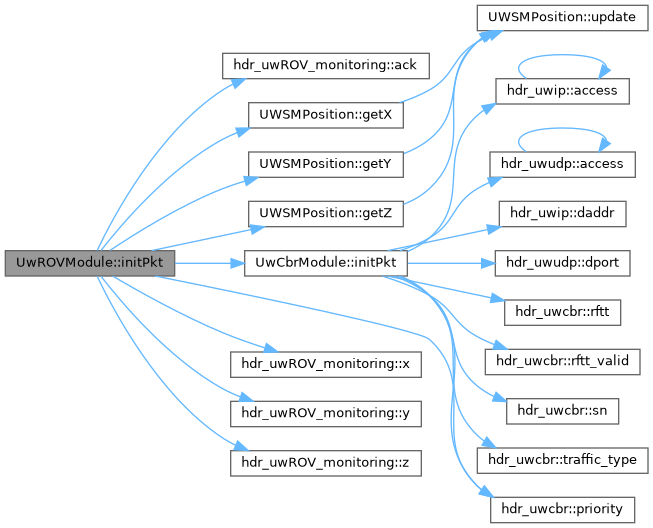

Here is the call graph for this function:

◆ recv() [1/2]

void UwROVModule::recv ( Packet * p )

overridevirtual

Performs the reception of packets from upper and lower layers.

Parameters

Packet* Pointer to the packet will be received.

Reimplemented from UwCbrModule.

References ack, ACK_IMMEDIATELY, ACK_PGBK_OR_TO, ackPolicy, ackPriority, ackTimeout, ackTimer_, UwCbrModule::debug_, drop_old_waypoints, UWSMPosition::getX(), UWSMPosition::getY(), UWSMPosition::getZ(), last_sn_confirmed, log_flag, out_file_stats, posit, UwCbrModule::priority_, UwCbrModule::recv(), UwCbrModule::sendPkt(), UwCbrModule::sendPktHighPriority(), UWSMPosition::setdest(), hdr_uwROV_ctr::sn(), hdr_uwROV_ctr::speed(), hdr_uwROV_ctr::x(), hdr_uwROV_ctr::y(), and hdr_uwROV_ctr::z().

Referenced by recv().

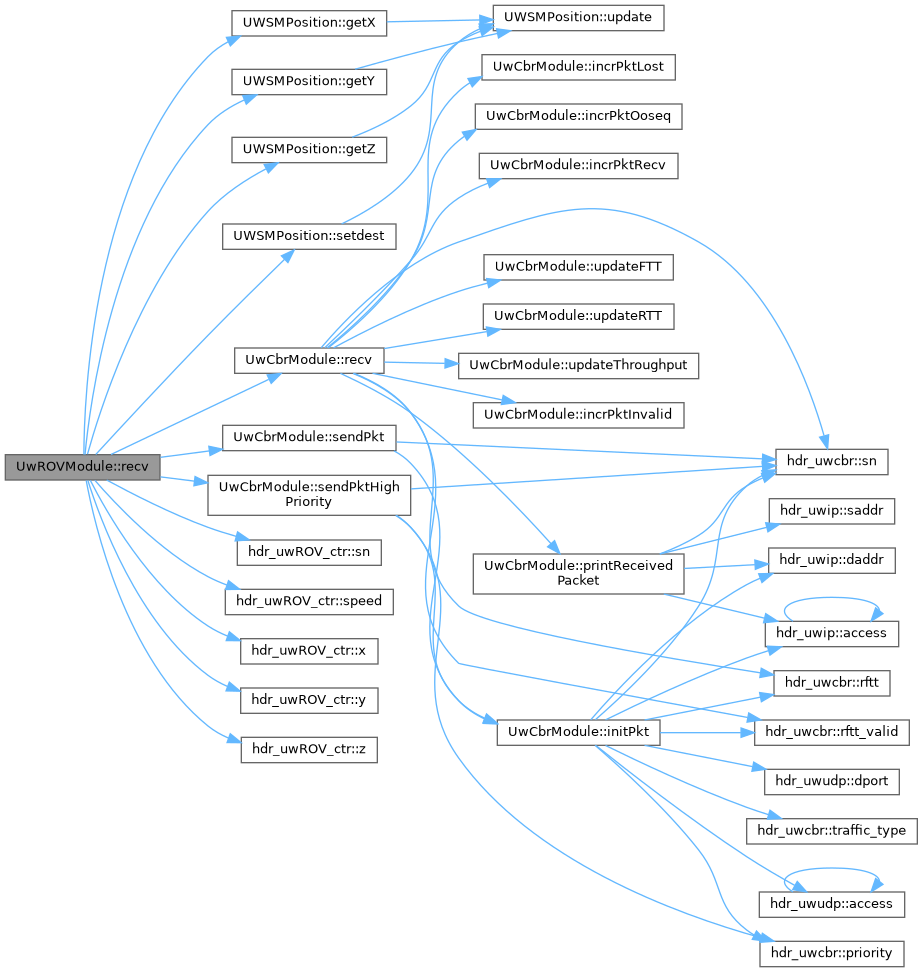

Here is the call graph for this function:

◆ recv() [2/2]

void UwROVModule::recv	(	Packet *	p,
		Handler *	h
	)

overridevirtual

Performs the reception of packets from upper and lower layers.

Parameters

Packet*	Pointer to the packet will be received.
Handler*	Handler.

Reimplemented from UwCbrModule.

References recv().

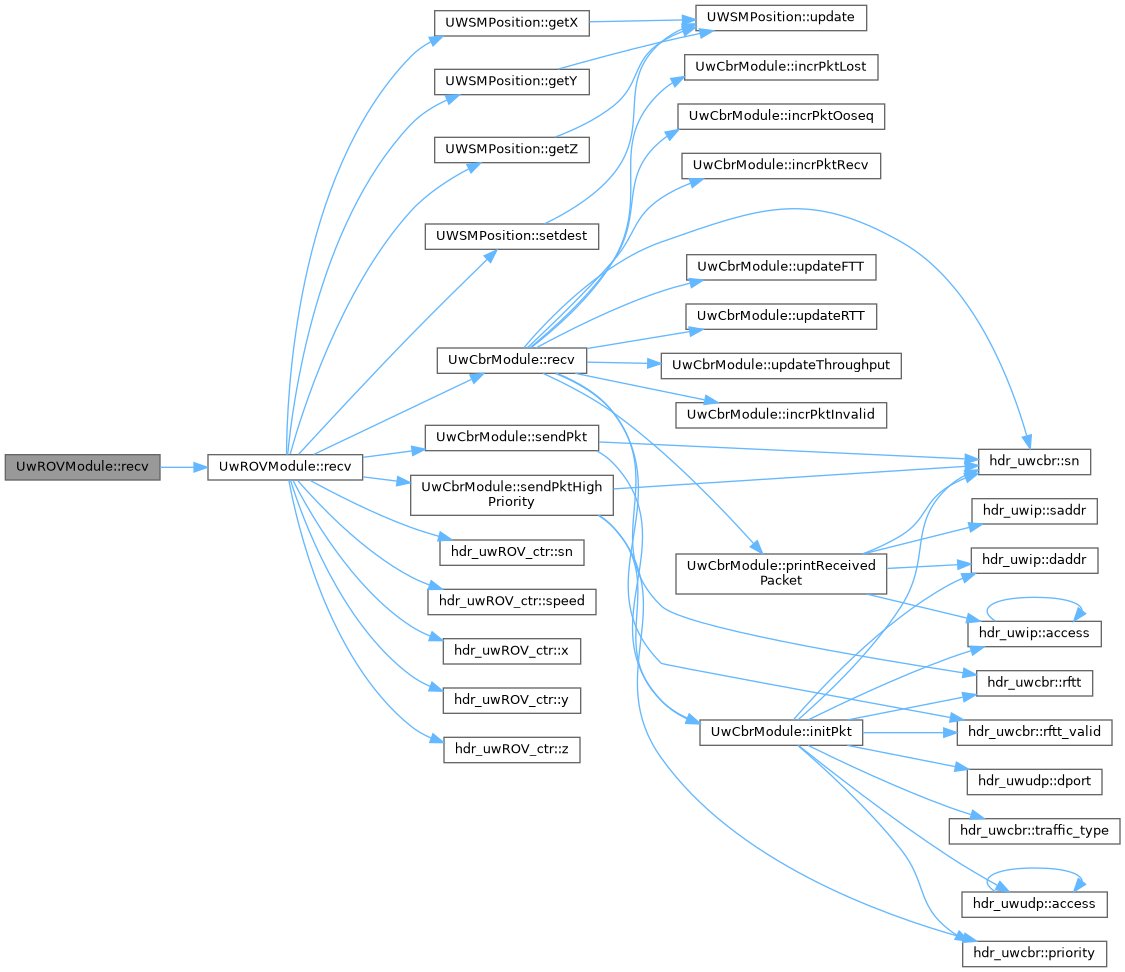

Here is the call graph for this function:

◆ sendAck()

void UwROVModule::sendAck ( )

virtual

Sends ACK if ackTimeout expire;

References ackNotPgbk, ackPriority, UwCbrModule::debug_, UwCbrModule::sendPkt(), and UwCbrModule::sendPktHighPriority().

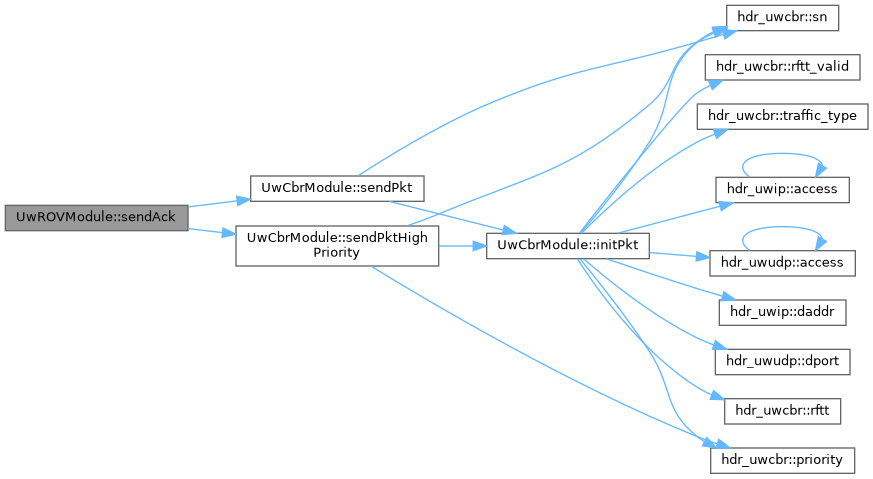

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ UwROVSendAckTimer

friend class UwROVSendAckTimer

friend

Member Data Documentation

◆ ack

int UwROVModule::ack

protected

If not zero, contains the ACK to the last command packet received.

Referenced by initPkt(), and recv().

◆ ackNotPgbk

int UwROVModule::ackNotPgbk

protected

Referenced by command(), and sendAck().

◆ ackPolicy

UWROV_ACK_POLICY UwROVModule::ackPolicy

protected

Flag to set the policy for ACK transimission, ACK_PIGGYBACK: ACK is always sent in piggyback, ACK_IMMEDIATELY: ACK is always sent immediately with a dedicated packet after the reception of CTR packet, ACK_PGBK_OR_TO: ACK is sent in piggyback if a ROV packet is generated before an ackTimeout otherwise ACK is sent with a dedicated packet after the acKTimeout.

Referenced by command(), and recv().

◆ ackPriority

int UwROVModule::ackPriority

protected

Flag to give higher priority to ACK or not.

Referenced by command(), recv(), sendAck(), and UwROVModule().

◆ ackTimeout

int UwROVModule::ackTimeout

protected

< Flag set to 1 to drop waypoints with sequence number lower or equal than last_sn_confirmed. Timeout after which ACK is sent if ackPolicy = ACK_PGBK_OR_TO.

Referenced by command(), recv(), and UwROVModule().

◆ ackTimer_

UwROVSendAckTimer UwROVModule::ackTimer_

protected

Timer to schedule ACK transmission.

Referenced by initPkt(), and recv().

◆ drop_old_waypoints

int UwROVModule::drop_old_waypoints

protected

< Number of ACK not sent in piggyback when ackPolicy = 2.

Referenced by recv(), and UwROVModule().

◆ last_sn_confirmed

int UwROVModule::last_sn_confirmed

protected

Sequence number of the last command packet received.

Referenced by recv().

◆ log_flag

int UwROVModule::log_flag

protected

Flag to enable log file writing.

Referenced by recv(), and UwROVModule().

◆ out_file_stats

std::ofstream UwROVModule::out_file_stats

protected

Output stream for the textual file of debug

Referenced by recv().

◆ posit

UWSMPosition* UwROVModule::posit

protected

ROV position.

Referenced by command(), initPkt(), and recv().

The documentation for this class was generated from the following files:

DESERT_Addons/uwrov/uwrov-module.h
DESERT_Addons/uwrov/uwrov-module.cc
