UwModem Class Reference

#include <uwmodem.h>

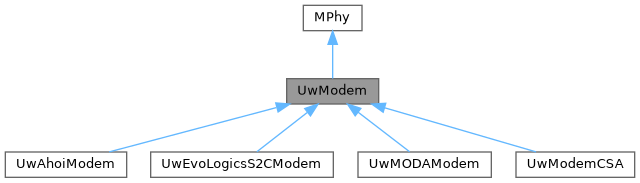

Inheritance diagram for UwModem:

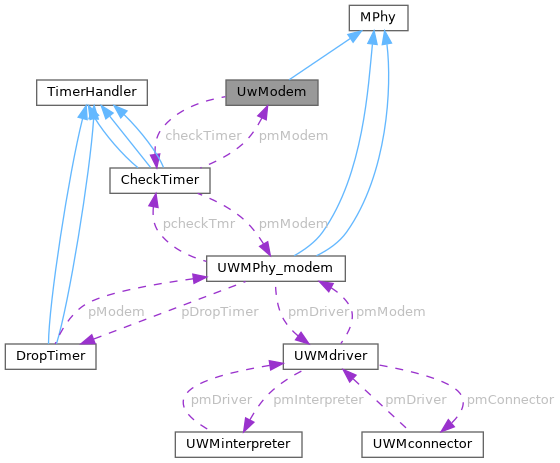

Collaboration diagram for UwModem:

Public Types
enum class	LogLevel { ERROR = 0 , INFO = 1 , DEBUG = 2 }

Public Member Functions
	UwModem ()
virtual	~UwModem ()
virtual void	recv (Packet *p)=0
virtual int	command (int argc, const char *const *argv)
virtual int	recvSyncClMsg (ClMessage *m)=0
virtual double	getTxDuration (Packet *p)
virtual int	getModulationType (Packet *P)
void	setModemID (int ID)
int	getModemID ()
void	printOnLog (LogLevel log_level, string module, string message)
LogLevel	getLogLevel ()
int	getDebug ()
std::string	getLogFile ()
void	realTxEnded (Packet *p)

Static Public Member Functions
static bool	string2log (const std::string &ll_string, LogLevel &ll)
static bool	log2string (LogLevel ll, std::string &ll_string)

Protected Member Functions
virtual void	startTx (Packet *p)=0
virtual void	endTx (Packet *p)
virtual void	startRx (Packet *p)=0
virtual void	endRx (Packet *p)=0
virtual void	start ()=0
virtual void	stop ()=0
void	checkEvent ()

Protected Attributes
int	modemID
std::vector< char >	data_buffer
std::queue< Packet * >	tx_queue
std::queue< Packet * >	rx_queue
unsigned int	DATA_BUFFER_LEN
int	MAX_READ_BYTES
std::string	modem_address
int	debug_
std::ofstream	outLog
std::string	logFile
std::string	log_suffix
LogLevel	loglevel_
bool	log_is_open
CheckTimer *	checkTimer
double	period
std::queue< ModemEvent >	event_q

Friends
class	CheckTimer

Detailed Description

Class that implements the interface to DESERT, as used through Tcl scripts. This class provides common functions to operate as a physical layer; its derivate classes will implement its virtual methods as specific to each device.

Member Enumeration Documentation

LogLevel

enum class UwModem::LogLevel

strong

Enum representing the amount of logs being generated ERROR: only errors will be generated INFO : general info about the algorithms running DEBUG: details that allow to understand the execution flow

Enumerator
ERROR
INFO
DEBUG

Constructor & Destructor Documentation

UwModem()

UwModem::UwModem

(

)

UwModem constructor

Parameters

address

string representing the address to connect to

References DATA_BUFFER_LEN, debug_, MAX_READ_BYTES, modemID, and period.

~UwModem()

UwModem::~UwModem ( )

virtual

UwModem destructor

References outLog.

Member Function Documentation

checkEvent()

void UwModem::checkEvent ( )

protected

Method to check if any event from real world has to go to ns

References checkTimer, event_q, ModemEvent::f, ModemEvent::p, and period.

Referenced by CheckTimer::expire().

command()

int UwModem::command ( int  argc, const char *const *  argv  )

virtual

Tcl command interpreter: Method that maps Tcl commands into C++ methods.

Parameters

argc	number of arguments in argv
argv	array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns

TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not

Reimplemented in UwAhoiModem, UwEvoLogicsS2CModem, UwMODAModem, and UwModemCSA.

References log_suffix, loglevel_, modem_address, start(), stop(), and string2log().

Referenced by UwAhoiModem::command(), UwEvoLogicsS2CModem::command(), UwMODAModem::command(), and UwModemCSA::command().

Here is the call graph for this function:

endRx()

virtual void UwModem::endRx ( Packet *  p )

protectedpure virtual

Method that ends a packet reception. This method is also in charge of sending the received NS-MIRACLE packet to the upper layers

Parameters

p	Packet pointer to the packet being sent

Implemented in UwAhoiModem, UwEvoLogicsS2CModem, UwMODAModem, and UwModemCSA.

endTx()

void UwModem::endTx ( Packet *  p )

protectedvirtual

Method that ends a packet transmission. This method is also in charge of sending a CrLayerMsg, Phy2MacEndTx(p), to notify the above layers of the simulator about the end of a transmission

Parameters

p	Packet pointer to the packet being received

Referenced by realTxEnded().

getDebug()

int UwModem::getDebug ( )

inline

Method to return the flag used to enable debug messages.

Returns

UwEvoLogicsS2CModem::debug_

References debug_.

Referenced by CheckTimer::CheckTimer(), and CheckTimer::CheckTimer().

getLogFile()

std::string UwModem::getLogFile ( )

inline

Method to return the name of the file where to log messages.

Returns

UwEvoLogicsS2CModem::logFile

References log_suffix, logFile, and modemID.

Referenced by printOnLog().

getLogLevel()

LogLevel UwModem::getLogLevel ( )

inline

Method to return the flag used to enable the printing of log messages in UwEvoLogicsS2CModem::logFile.

Returns

UwEvologicsS2CModem::log_

References loglevel_.

Referenced by printOnLog().

getModemID()

int UwModem::getModemID ( )

inline

Method that returns the current ID of the modem.

Returns

integer current ID of the modem

References modemID.

getModulationType()

virtual int UwModem::getModulationType ( Packet *  P )

inlinevirtual

Method that should return the modulation type used for the packet being transmitted. Inherited from MPhy, in NS-MIRACLE, could be left empty if no way exists to retrieve this information

Parameters

p	Packet pointer to the given packet being transmitted
modulation	type represented by an integer

Reimplemented in UwMODAModem.

Referenced by UwAhoiModem::recv(), UwEvoLogicsS2CModem::recv(), and UwModemCSA::recv().

getTxDuration()

virtual double UwModem::getTxDuration ( Packet *  p )

inlinevirtual

Method that returnd the duration of a given transmitted packet. Inherited from MPhy, in NS-MIRACLE, could be empty if there is no way to retrieve this information.

Parameters

p	Packet pointer to the given packet being transmitted

Returns

duration in seconds

Reimplemented in UwEvoLogicsS2CModem, UwMODAModem, and UwModemCSA.

log2string()

bool UwModem::log2string ( LogLevel  ll, std::string &  ll_string  )

static

Method that converts an enum type of the loglevel into the string representing it

Parameters

ll	return loglevel to be converted
ll_string	return param string representing the loglevel

Returns

boolean true if conversion was correctly performed

References DEBUG, ERROR, and INFO.

Referenced by printOnLog().

printOnLog()

void UwModem::printOnLog	(	LogLevel	log_level,
		string	module,
		string	message
	)

Function that, given the appropriate level of log, prints to the set log file the provided log message.

References getLogFile(), getLogLevel(), log2string(), log_is_open, and outLog.

Referenced by UwEvoLogicsS2CModem::configure(), UwAhoiModem::endRx(), UwEvoLogicsS2CModem::endRx(), UwMODAModem::endRx(), UwModemCSA::endRx(), UwEvoLogicsS2CModem::getTxDuration(), UwEvoLogicsS2CModem::initializeLUT(), UwAhoiModem::receivingData(), UwEvoLogicsS2CModem::receivingData(), UwMODAModem::receivingData(), UwAhoiModem::recv(), UwEvoLogicsS2CModem::recv(), UwMODAModem::recv(), UwModemCSA::recv(), UwEvoLogicsS2CModem::recvSyncClMsg(), UwMODAModem::recvSyncClMsg(), UwModemCSA::recvSyncClMsg(), UwAhoiModem::start(), UwEvoLogicsS2CModem::start(), UwMODAModem::start(), UwModemCSA::start(), UwAhoiModem::startRx(), UwEvoLogicsS2CModem::startRx(), UwMODAModem::startRx(), UwModemCSA::startRx(), UwAhoiModem::startTx(), UwEvoLogicsS2CModem::startTx(), UwMODAModem::startTx(), UwModemCSA::startTx(), UwAhoiModem::stop(), UwEvoLogicsS2CModem::stop(), UwMODAModem::stop(), UwModemCSA::stop(), UwAhoiModem::storePacketInfo(), UwAhoiModem::transmittingData(), UwEvoLogicsS2CModem::transmittingData(), UwMODAModem::transmittingData(), UwModemCSA::transmittingData(), UwAhoiModem::updateSN(), UwMODAModem::updateStatus(), UwAhoiModem::updateStatus(), and UwEvoLogicsS2CModem::updateStatus().

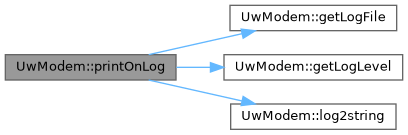

Here is the call graph for this function:

realTxEnded()

void UwModem::realTxEnded ( Packet *  p )

inline

Method to call endTx from end of real packet transmission

Parameters

p	Packet pointer to the packet being received

References endTx().

Referenced by UwEvoLogicsS2CModem::startTx(), UwMODAModem::startTx(), UwModemCSA::startTx(), and UwAhoiModem::transmittingData().

Here is the call graph for this function:

recv()

virtual void UwModem::recv ( Packet *  p )

pure virtual

Method that handles the reception of packets arriving from the upper layers of the network simulator.

Parameters

p	pointer to the packet that has been received from the simulator upper layers

Implemented in UwAhoiModem, UwEvoLogicsS2CModem, UwMODAModem, and UwModemCSA.

Referenced by UwMODAModem::receivingData(), UwModemCSA::startRealRx(), UwAhoiModem::updateStatus(), and UwEvoLogicsS2CModem::updateStatus().

recvSyncClMsg()

virtual int UwModem::recvSyncClMsg ( ClMessage *  m )

pure virtual

Cross-Layer messages synchronous interpreter.

Parameters

ClMessage*

an instance of ClMessage that represent the message received

Returns

0 if successful.

Implemented in UwAhoiModem, UwEvoLogicsS2CModem, UwMODAModem, and UwModemCSA.

setModemID()

void UwModem::setModemID ( int  ID )

inline

Set the modem's ID number. Used for identification purposes

Parameters

ID	integer number used as modem ID

References modemID.

start()

virtual void UwModem::start ( )

protectedpure virtual

Method that starts the driver operations. It performs all the needed operations to correctly fire up the device's driver.

Implemented in UwAhoiModem, UwEvoLogicsS2CModem, UwMODAModem, and UwModemCSA.

Referenced by command().

startRx()

virtual void UwModem::startRx ( Packet *  p )

protectedpure virtual

Method that starts a packet reception. This method is also in charge of sending a CrLayerMsg, Phy2MacStartRx(p), to notify the upper layers of the simulator about the start of the reception

Parameters

p	Packet pointer to the packet to be received

Implemented in UwAhoiModem, UwEvoLogicsS2CModem, UwMODAModem, and UwModemCSA.

startTx()

virtual void UwModem::startTx ( Packet *  p )

protectedpure virtual

Method that triggers the transmission of a packet through a specified modem.

Parameters

p	Packet pointer to the packet to be sent

Implemented in UwAhoiModem, UwEvoLogicsS2CModem, UwMODAModem, and UwModemCSA.

stop()

virtual void UwModem::stop ( )

protectedpure virtual

Method that stops the driver operations. It performs all the needed operations to correctly stop the device's driver before closing the simulation.

Implemented in UwAhoiModem, UwEvoLogicsS2CModem, UwMODAModem, and UwModemCSA.

Referenced by command().

string2log()

bool UwModem::string2log ( const std::string &  ll_string, LogLevel &  ll  )

static

Method that converts a string representing the loglevel into the enum type of loglevel

Parameters

ll_string	string to be converted
ll	return parameter containing the converted loglevel

Returns

boolean true if conversion was correctly performed

References DEBUG, ERROR, and INFO.

Referenced by command().

Friends And Related Symbol Documentation

CheckTimer

friend class CheckTimer

friend

Referenced by UwAhoiModem::start(), UwEvoLogicsS2CModem::start(), UwMODAModem::start(), and UwModemCSA::start().

Member Data Documentation

checkTimer

CheckTimer* UwModem::checkTimer

protected

Pointer to an object to schedule the "check-modem" events.

Referenced by checkEvent(), UwAhoiModem::start(), UwEvoLogicsS2CModem::start(), UwMODAModem::start(), UwModemCSA::start(), UwAhoiModem::stop(), UwEvoLogicsS2CModem::stop(), UwMODAModem::stop(), and UwModemCSA::stop().

data_buffer

std::vector<char> UwModem::data_buffer

protected

Char buffer (vector) that holds data read from the modem (unparsed data) Main container for data received by the connector.

Referenced by UwAhoiModem::receivingData(), UwEvoLogicsS2CModem::receivingData(), UwMODAModem::receivingData(), UwModemCSA::receivingData(), and UwMODAModem::UwMODAModem().

DATA_BUFFER_LEN

unsigned int UwModem::DATA_BUFFER_LEN

protected

Size of the buffer that holds data

Referenced by UwAhoiModem::receivingData(), UwEvoLogicsS2CModem::receivingData(), UwMODAModem::receivingData(), UwModemCSA::receivingData(), UwMODAModem::receivingSignaling(), UwAhoiModem::UwAhoiModem(), UwEvoLogicsS2CModem::UwEvoLogicsS2CModem(), UwModem(), and UwModemCSA::UwModemCSA().

debug_

int UwModem::debug_

protected

Usual debug value that chooses the debug level through Tcl interface

Referenced by getDebug(), and UwModem().

event_q

std::queue<ModemEvent> UwModem::event_q

protected

Queue of events that are scheduled for NS2 to execute (callbacks)

Referenced by checkEvent(), UwMODAModem::receivingData(), UwModemCSA::startRealRx(), UwEvoLogicsS2CModem::startTx(), UwMODAModem::startTx(), UwModemCSA::startTx(), UwAhoiModem::transmittingData(), UwAhoiModem::updateStatus(), and UwEvoLogicsS2CModem::updateStatus().

log_is_open

bool UwModem::log_is_open

protected

Flag to check if log file has already be opened

Referenced by printOnLog().

log_suffix

std::string UwModem::log_suffix

protected

Possibility to insert a log suffix

Referenced by command(), and getLogFile().

logFile

std::string UwModem::logFile

protected

Name of the disk-file where to write the interface's log messages.

Referenced by getLogFile().

loglevel_

LogLevel UwModem::loglevel_

protected

Log level on file, from ERROR (0) to DEBUG (2) in UwEvoLogicsS2CModem::logFile.

Referenced by command(), and getLogLevel().

MAX_READ_BYTES

int UwModem::MAX_READ_BYTES

protected

Maximum number of bytes to be read by a single dump of data

Referenced by UwAhoiModem::receivingData(), UwEvoLogicsS2CModem::receivingData(), UwMODAModem::receivingData(), UwModemCSA::receivingData(), UwMODAModem::receivingSignaling(), UwAhoiModem::UwAhoiModem(), UwEvoLogicsS2CModem::UwEvoLogicsS2CModem(), UwModem(), and UwModemCSA::UwModemCSA().

modem_address

std::string UwModem::modem_address

protected

String containing the address needed to connect to the device In case of socket, it may be expressed as: 192.168.XXX.XXX:PORTNUM In case of serial, it will be expressed in some other way

Referenced by command(), UwAhoiModem::start(), UwEvoLogicsS2CModem::start(), UwMODAModem::start(), and UwModemCSA::start().

modemID

int UwModem::modemID

protected

Number used for identification purposes: not specified

Referenced by UwEvoLogicsS2CModem::configure(), UwAhoiModem::fillAhoiPkt(), getLogFile(), getModemID(), setModemID(), UwAhoiModem::updateStatus(), and UwModem().

outLog

std::ofstream UwModem::outLog

protected

output strem to print into a disk-file log messages. See UwEvoLogicsS2CModem::logFile.

Referenced by printOnLog(), and ~UwModem().

period

double UwModem::period

protected

Checking period of the modem's buffer.

Referenced by checkEvent(), UwAhoiModem::start(), UwEvoLogicsS2CModem::start(), UwMODAModem::start(), UwModemCSA::start(), and UwModem().

rx_queue

std::queue<Packet *> UwModem::rx_queue

protected

Modem's reception queue: holds packets eceived from the channel awaiting to be pushed up the stack

tx_queue

std::queue<Packet *> UwModem::tx_queue

protected

Modem's transmission queue: holds packets that are to be transmitted

Referenced by UwAhoiModem::recv(), UwEvoLogicsS2CModem::recv(), UwMODAModem::recv(), UwModemCSA::recv(), UwAhoiModem::transmittingData(), UwEvoLogicsS2CModem::transmittingData(), UwMODAModem::transmittingData(), and UwModemCSA::transmittingData().

---

The documentation for this class was generated from the following files:

• DESERT_Framework/DESERT/physical/uwmodem/uwmodem.h
• DESERT_Framework/DESERT/physical/uwmodem/uwmodem.cpp
