#include <uwmodamodem.h>

Inheritance diagram for UwMODAModem:

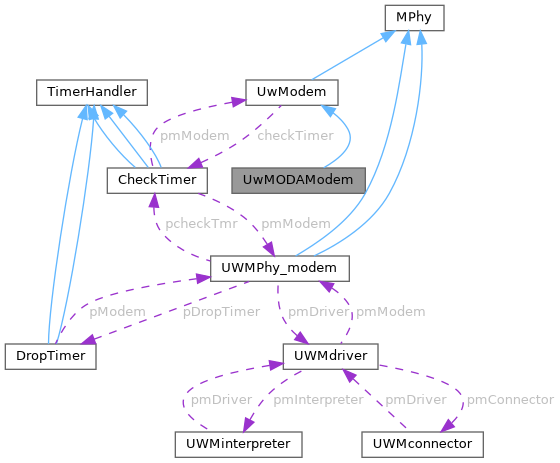

Collaboration diagram for UwMODAModem:

Public Types
enum class	ModemState { AVAILABLE = 0 , TRANSMITTING , RECEIVING , CONFIGURING }

enum class	ModemResponse { UNDEFINED = 0 , TX_END , RX_BEG , CFG_END }

Public Types inherited from UwModem
enum class	LogLevel { ERROR = 0 , INFO = 1 , DEBUG = 2 }

Public Member Functions
	UwMODAModem ()

virtual	~UwMODAModem ()

virtual void	recv (Packet *p)

virtual int	command (int argc, const char const argv)

virtual int	getModulationType (Packet *p)

virtual double	getTxDuration (Packet *p)

virtual int	recvSyncClMsg (ClMessage *m)

Public Member Functions inherited from UwModem
	UwModem ()

virtual	~UwModem ()

void	setModemID (int ID)

int	getModemID ()

void	printOnLog (LogLevel log_level, string module, string message)

LogLevel	getLogLevel ()

int	getDebug ()

std::string	getLogFile ()

void	realTxEnded (Packet *p)

Protected Member Functions
virtual void	startTx (Packet *p)

virtual void	startRx (Packet *p)

virtual void	endRx (Packet *p)

Protected Member Functions inherited from UwModem
virtual void	endTx (Packet *p)

void	checkEvent ()

Protected Attributes
ModemState	status

Protected Attributes inherited from UwModem
int	modemID

std::vector< char >	data_buffer

std::queue< Packet * >	tx_queue

std::queue< Packet * >	rx_queue

unsigned int	DATA_BUFFER_LEN

int	MAX_READ_BYTES

std::string	modem_address

int	debug_

std::ofstream	outLog

std::string	logFile

std::string	log_suffix

LogLevel	loglevel_

bool	log_is_open

CheckTimer *	checkTimer

double	period

std::queue< ModemEvent >	event_q

Private Member Functions
void	start ()

void	stop ()

void	receivingSignaling ()

void	receivingData ()

void	createRxPacket (Packet *p)

void	transmittingData ()

ModemResponse	parseSignaling (std::vector< char >::iterator &end_it)

void	updateStatus (ModemResponse response)

Private Attributes
std::mutex	status_m

std::condition_variable	status_cv

std::mutex	tx_queue_m

std::condition_variable	tx_queue_cv

std::atomic< bool >	receiving

std::atomic< bool >	transmitting

std::string	rx_payload

int	rx_size

std::thread	sig_thread

std::thread	rx_thread

std::thread	tx_thread

std::unique_ptr< UwConnector >	signal_conn

std::unique_ptr< UwConnector >	data_conn

std::vector< char >	signal_buffer

const std::string	sep = {"::"}

const std::string	end_delim = {";"}

std::string	signal_tag

std::string	signal_address

int	premodulation

Static Private Attributes
static std::vector< std::pair< std::string, ModemResponse > >	signaling_dict

static std::map< ModemState, std::string >	stateToString

static const int	SIGNALING_ADDRESS = 55006

static const int	DATA_ADDRESS = 55555

static const std::chrono::milliseconds	MODEM_TIMEOUT

Additional Inherited Members
Static Public Member Functions inherited from UwModem
static bool	string2log (const std::string &ll_string, LogLevel &ll)

static bool	log2string (LogLevel ll, std::string &ll_string)

Member Enumeration Documentation

◆ ModemResponse

enum class UwMODAModem::ModemResponse

strong

Enum type representing modem responses. UNDEFINED: unrecognized signaling TX_END: modem signals that it has ended a transmission RX_BEG: modem signals that it has begun receiving data CFG_END: modem signals that it has ended an ongoing configuration

Enumerator
UNDEFINED
TX_END
RX_BEG
CFG_END

◆ ModemState

enum class UwMODAModem::ModemState

strong

Enum type for the modem general state. AVAILABLE: immediately available to perform an operation TRANSMITTING: executing a tranmission command: must wait for it ot complete CONFIGURING: executing a configuration command: must wait for it to complete

Enumerator
AVAILABLE
TRANSMITTING
RECEIVING
CONFIGURING

Constructor & Destructor Documentation

◆ UwMODAModem()

UwMODAModem::UwMODAModem ( )

Constructor of the UwMODAModem class

References UwModem::data_buffer, data_conn, premodulation, and signal_conn.

◆ ~UwMODAModem()

UwMODAModem::~UwMODAModem ( )

virtual

Destructor of the UwMODAModem class

References stop().

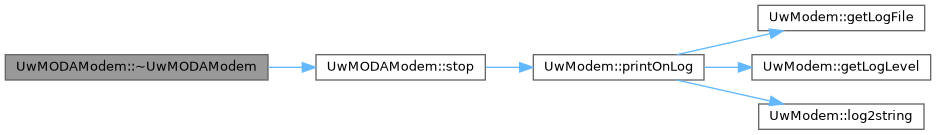

Here is the call graph for this function:

Member Function Documentation

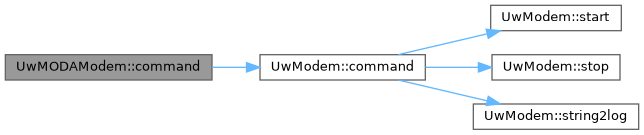

◆ command()

int UwMODAModem::command	(	int	argc,
		const char const	argv
	)

virtual

Tcl command interpreter: Method that maps Tcl commands into C++ methods.

Parameters

argc	number of arguments in argv
argv	array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not

Reimplemented from UwModem.

References UwModem::command(), and signal_address.

Here is the call graph for this function:

◆ createRxPacket()

void UwMODAModem::createRxPacket ( Packet * p )

private

Method that creates a packet from the received stream of bytes

Parameters

p	allocated empty packet to fill in with the received bytes

References hdr_uwal::binPkt(), hdr_uwal::binPktLength(), and rx_payload.

Referenced by receivingData().

Here is the call graph for this function:

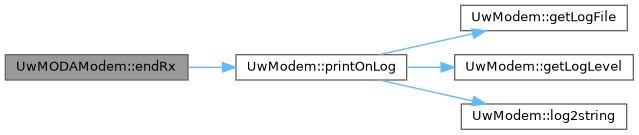

◆ endRx()

void UwMODAModem::endRx ( Packet * p )

protectedvirtual

Method that ends a packet reception. This method is also in charge of sending the received NS-MIRACLE packet to the upper layers

Parameters

p	Packet pointer to the packet being sent

Implements UwModem.

References UwModem::INFO, and UwModem::printOnLog().

Referenced by recv().

Here is the call graph for this function:

◆ getModulationType()

int UwMODAModem::getModulationType ( Packet * p )

virtual

Method that returns the modulation type used for the packet being transmitted. Inherited from MPhy, in NS-MIRACLE, could be left empty if no way exists to retrieve this information

Parameters

p	Packet pointer to the given packet being transmitted
modulation	type represented by an integer

Reimplemented from UwModem.

Referenced by recv().

◆ getTxDuration()

double UwMODAModem::getTxDuration ( Packet * p )

virtual

Method that returns the duration of a given transmitted packet. It uses a linear interpolation given the packet size. Inherited from MPhy, in NS-MIRACLE, could be empty if there is no way to retrieve this information.

Parameters

p	Packet pointer to the given packet being transmitted

Returns: duration in seconds

Reimplemented from UwModem.

References hdr_uwal::binPktLength(), and premodulation.

Referenced by recv(), and recvSyncClMsg().

Here is the call graph for this function:

◆ parseSignaling()

UwMODAModem::ModemResponse UwMODAModem::parseSignaling ( std::vector< char >::iterator & end_it )

private

Method that parses the content of the signaling data buffer to retrieve signaling messages

References end_delim, RX_BEG, rx_size, sep, signal_buffer, signal_tag, signaling_dict, and UNDEFINED.

Referenced by receivingSignaling().

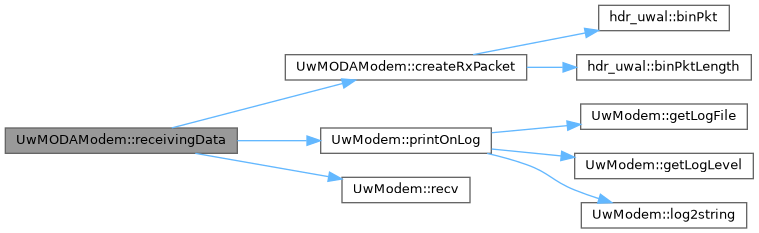

◆ receivingData()

void UwMODAModem::receivingData ( )

private

Method that dispatch a thread dedicated to receiving data from the data connector

References AVAILABLE, createRxPacket(), UwModem::data_buffer, UwModem::DATA_BUFFER_LEN, data_conn, UwModem::DEBUG, UwModem::event_q, UwModem::MAX_READ_BYTES, MODEM_TIMEOUT, UwModem::printOnLog(), receiving, UwModem::recv(), rx_payload, rx_size, status, status_cv, and status_m.

Referenced by start().

Here is the call graph for this function:

◆ receivingSignaling()

void UwMODAModem::receivingSignaling ( )

private

Method that dispacthes a thread dedicated to receiving signaling from the signaling connector Allows to be compliant with modem opeations: if channel fails, driver must stop operations until signaling resumes

References UwModem::DATA_BUFFER_LEN, UwModem::MAX_READ_BYTES, parseSignaling(), receiving, signal_buffer, signal_conn, UNDEFINED, and updateStatus().

Referenced by start().

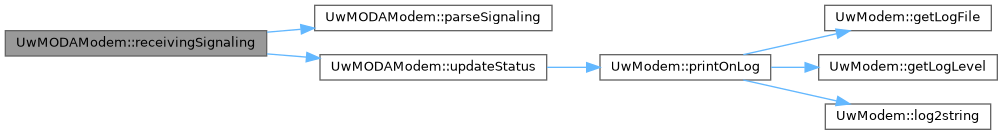

Here is the call graph for this function:

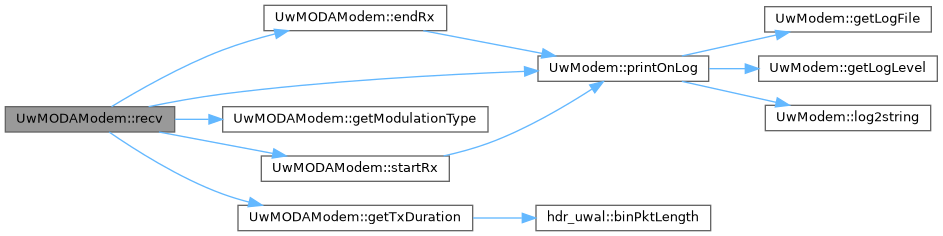

◆ recv()

void UwMODAModem::recv ( Packet * p )

virtual

Method that handles the reception of packets arriving from upper layers of the network simulator.

Parameters

p	pointer to the packet that has been received from the simulator upper layers

Implements UwModem.

References UwModem::DEBUG, endRx(), getModulationType(), getTxDuration(), UwModem::printOnLog(), startRx(), UwModem::tx_queue, tx_queue_cv, and tx_queue_m.

Here is the call graph for this function:

◆ recvSyncClMsg()

int UwMODAModem::recvSyncClMsg ( ClMessage * m )

virtual

Cross-Layer messages synchronous interpreter.

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

Implements UwModem.

References getTxDuration(), UwModem::INFO, and UwModem::printOnLog().

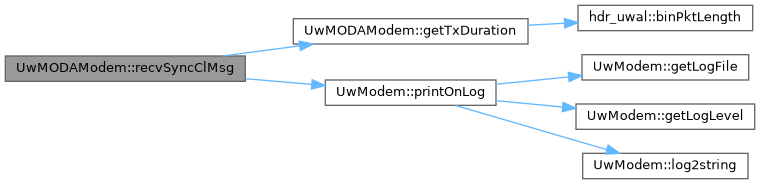

Here is the call graph for this function:

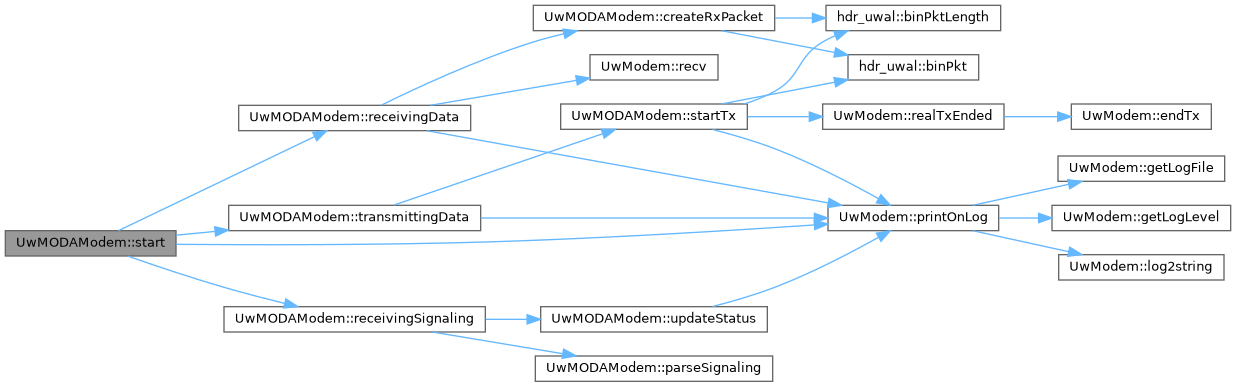

◆ start()

void UwMODAModem::start ( )

privatevirtual

Method that starts the driver operations. It performs all the needed operations to correctly fire up the device's driver.

Implements UwModem.

References UwModem::CheckTimer, UwModem::checkTimer, data_conn, UwModem::DEBUG, UwModem::ERROR, UwModem::modem_address, UwModem::period, UwModem::printOnLog(), receiving, receivingData(), receivingSignaling(), rx_thread, sig_thread, signal_address, signal_conn, transmitting, transmittingData(), and tx_thread.

Here is the call graph for this function:

◆ startRx()

void UwMODAModem::startRx ( Packet * p )

protectedvirtual

Method that starts a packet reception. This method is also in charge of sending a CrLayerMsg, Phy2MacStartRx(p), to notify the upper layers of the simulator about the start of the reception

Parameters

p	Packet pointer to the packet to be received

Implements UwModem.

References UwModem::INFO, and UwModem::printOnLog().

Referenced by recv().

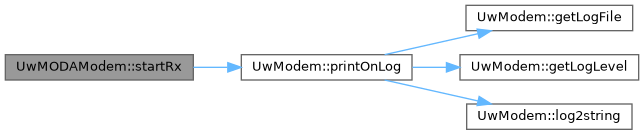

Here is the call graph for this function:

◆ startTx()

void UwMODAModem::startTx ( Packet * p )

protectedvirtual

Method that triggers the transmission of a packet through a specified modem.

Parameters

p	Packet pointer to the packet to be sent

Implements UwModem.

References hdr_uwal::binPkt(), hdr_uwal::binPktLength(), data_conn, UwModem::ERROR, UwModem::event_q, UwModem::INFO, MODEM_TIMEOUT, UwModem::printOnLog(), UwModem::realTxEnded(), status, status_cv, status_m, and TRANSMITTING.

Referenced by transmittingData().

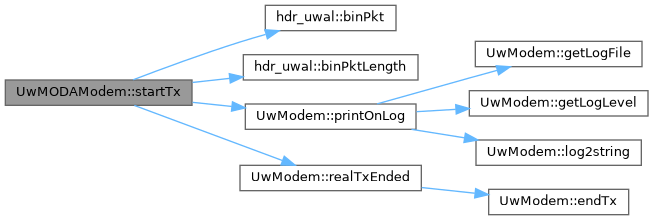

Here is the call graph for this function:

◆ stop()

void UwMODAModem::stop ( )

privatevirtual

Method that stops the driver operations. It performs all the needed operations to correctly stop the device's driver before closing operations.

Implements UwModem.

References UwModem::checkTimer, data_conn, UwModem::ERROR, UwModem::printOnLog(), receiving, rx_thread, sig_thread, signal_conn, status_cv, transmitting, tx_queue_cv, and tx_thread.

Referenced by ~UwMODAModem().

Here is the call graph for this function:

◆ transmittingData()

void UwMODAModem::transmittingData ( )

private

Method that dispatches a thread dedicated to transmitting data through the data connector

References UwModem::DEBUG, UwModem::printOnLog(), startTx(), transmitting, UwModem::tx_queue, tx_queue_cv, and tx_queue_m.

Referenced by start().

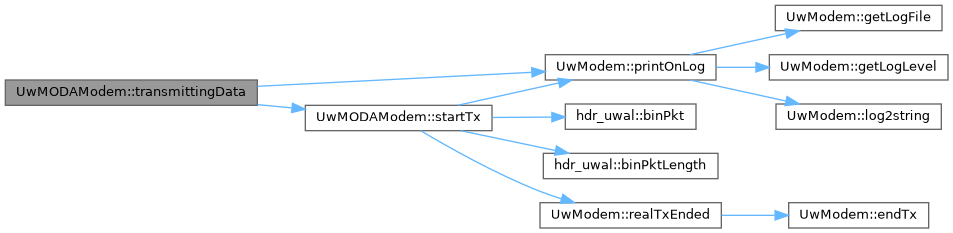

Here is the call graph for this function:

◆ updateStatus()

void UwMODAModem::updateStatus ( ModemResponse response )

private

Method that, based on the received signaling, updates the state machine of the driver

Parameters

response ModemRresponse response from the modem

References AVAILABLE, CFG_END, UwModem::DEBUG, UwModem::ERROR, UwModem::printOnLog(), RECEIVING, RX_BEG, stateToString, status, status_cv, status_m, and TX_END.

Referenced by receivingSignaling().

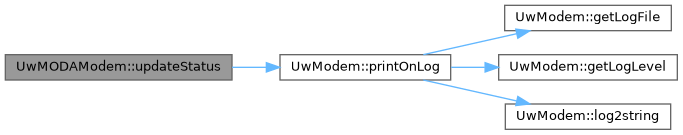

Here is the call graph for this function:

Member Data Documentation

◆ DATA_ADDRESS

const int UwMODAModem::DATA_ADDRESS = 55555

staticprivate

Port of the data channel

◆ data_conn

std::unique_ptr<UwConnector> UwMODAModem::data_conn

private

Data connector: used ot retrieve data coming from the modem data socket

Referenced by receivingData(), start(), startTx(), stop(), and UwMODAModem().

◆ end_delim

const std::string UwMODAModem::end_delim = {";"}

private

String end delimiter used in reception signaling

Referenced by parseSignaling().

◆ MODEM_TIMEOUT

const std::chrono::milliseconds UwMODAModem::MODEM_TIMEOUT

staticprivate

Initial value:

=

std::chrono::milliseconds(3000)

Maximum time to wait for modem to become ModemState::AVAILABLE

Referenced by receivingData(), and startTx().

◆ premodulation

int UwMODAModem::premodulation

private

True if premodulation is on, false otherwise

Referenced by getTxDuration(), and UwMODAModem().

◆ receiving

std::atomic<bool> UwMODAModem::receiving

private

Atomic boolean variable that controls the receiving looping thread

Referenced by receivingData(), receivingSignaling(), start(), and stop().

◆ rx_payload

std::string UwMODAModem::rx_payload

private

String that is updated with each new received message

Referenced by createRxPacket(), and receivingData().

◆ rx_size

int UwMODAModem::rx_size

private

Size of each new received message, coming from signaling

Referenced by parseSignaling(), and receivingData().

◆ rx_thread

std::thread UwMODAModem::rx_thread

private

Thread managing the data reception process

Referenced by start(), and stop().

◆ sep

const std::string UwMODAModem::sep = {"::"}

private

String separator used in reception signaling

Referenced by parseSignaling().

◆ sig_thread

std::thread UwMODAModem::sig_thread

private

Thread managing the signaling reception process

Referenced by start(), and stop().

◆ signal_address

std::string UwMODAModem::signal_address

private

Referenced by command(), and start().

◆ signal_buffer

std::vector<char> UwMODAModem::signal_buffer

private

Bytes buffer for the signaling channel (unparsed data)

Referenced by parseSignaling(), and receivingSignaling().

◆ signal_conn

std::unique_ptr<UwConnector> UwMODAModem::signal_conn

private

Signaling connector: used ot retrieve signaling coming from the modem signaling's channel

Referenced by receivingSignaling(), start(), stop(), and UwMODAModem().

◆ signal_tag

std::string UwMODAModem::signal_tag

private

Signaling tag to recognize signaling from the modem. It is not necessary but added in case of future additional features that want to use the signaling channel

Referenced by parseSignaling().

◆ SIGNALING_ADDRESS

const int UwMODAModem::SIGNALING_ADDRESS = 55006

staticprivate

Port of the signaling channel

◆ signaling_dict

std::vector< std::pair< std::string, UwMODAModem::ModemResponse > > UwMODAModem::signaling_dict

staticprivate

Initial value:

{
                std::make_pair("RX_STARTED", ModemResponse::RX_BEG),
                std::make_pair("TX_ENDED", ModemResponse::TX_END),
                std::make_pair("CFG_ENDED", ModemResponse::CFG_END)}

Dictionary of accepted signaling states

Referenced by parseSignaling().

◆ stateToString

std::map< UwMODAModem::ModemState, std::string > UwMODAModem::stateToString

staticprivate

Initial value:

{
        std::make_pair(ModemState::AVAILABLE, "AVAILABLE"),
        std::make_pair(ModemState::TRANSMITTING, "TRANSMITTING"),
        std::make_pair(ModemState::RECEIVING, "RECEIVING"),
        std::make_pair(ModemState::CONFIGURING, "CONFIGURING")}

Dictionary for converting a state to a printable string

Referenced by updateStatus().

◆ status

ModemState UwMODAModem::status

protected

Variable holding the current status of the modem

Referenced by receivingData(), startTx(), and updateStatus().

◆ status_cv

std::condition_variable UwMODAModem::status_cv

private

Condition variable that is linked with the status variable

Referenced by receivingData(), startTx(), stop(), and updateStatus().

◆ status_m

std::mutex UwMODAModem::status_m

private

Mutex associated with the state machine of the modem

Referenced by receivingData(), startTx(), and updateStatus().

◆ transmitting

std::atomic<bool> UwMODAModem::transmitting

private

Atomic boolean variable that controls the transmitting looping thread

Referenced by start(), stop(), and transmittingData().

◆ tx_queue_cv

std::condition_variable UwMODAModem::tx_queue_cv

private

Condition variable that is linked with the transmitting queue

Referenced by recv(), stop(), and transmittingData().

◆ tx_queue_m

std::mutex UwMODAModem::tx_queue_m

private

Mutex associated with the transmission queue

Referenced by recv(), and transmittingData().

◆ tx_thread

std::thread UwMODAModem::tx_thread

private

Thread managing the data transmission process

Referenced by start(), and stop().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/physical/uwmodamodem/uwmodamodem.h
DESERT_Framework/DESERT/physical/uwmodamodem/uwmodamodem.cpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Member Enumeration Documentation

◆ ModemResponse

◆ ModemState

Constructor & Destructor Documentation

◆ UwMODAModem()

◆ ~UwMODAModem()

Member Function Documentation

◆ command()

◆ createRxPacket()

◆ endRx()

◆ getModulationType()

◆ getTxDuration()

◆ parseSignaling()

◆ receivingData()

◆ receivingSignaling()

◆ recv()

◆ recvSyncClMsg()

◆ start()

◆ startRx()

◆ startTx()

◆ stop()

◆ transmittingData()

◆ updateStatus()

Member Data Documentation

◆ DATA_ADDRESS

◆ data_conn

◆ end_delim

◆ MODEM_TIMEOUT

◆ premodulation

◆ receiving

◆ rx_payload

◆ rx_size

◆ rx_thread

◆ sep

◆ sig_thread

◆ signal_address

◆ signal_buffer

◆ signal_conn

◆ signal_tag

◆ SIGNALING_ADDRESS

◆ signaling_dict

◆ stateToString

◆ status

◆ status_cv

◆ status_m

◆ transmitting

◆ tx_queue_cv

◆ tx_queue_m

◆ tx_thread
