UwEvoLogicsS2CModem Class Reference

#include <uwevologicss2cmodem.h>

Inheritance diagram for UwEvoLogicsS2CModem:

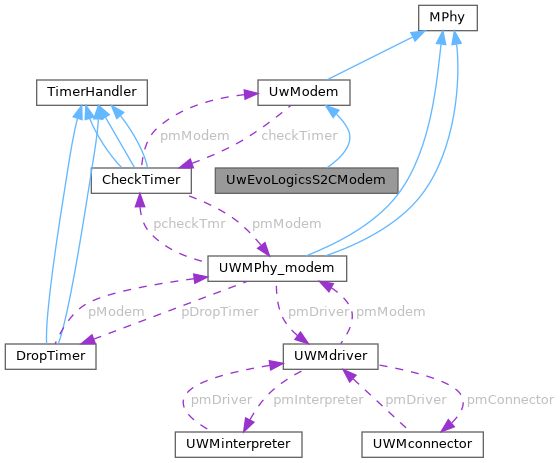

Collaboration diagram for UwEvoLogicsS2CModem:

Public Types
enum class	TransmissionMode { BURST = 0 , IM = 1 }
enum class	TransmissionState { TX_IDLE = 0 , TX_PENDING }
Public Types inherited from UwModem
enum class	LogLevel { ERROR = 0 , INFO = 1 , DEBUG = 2 }

Public Member Functions
	UwEvoLogicsS2CModem ()
virtual	~UwEvoLogicsS2CModem ()
virtual void	recv (Packet *p)
virtual int	command (int argc, const char *const *argv)
virtual int	recvSyncClMsg (ClMessage *m)
virtual double	getTxDuration (Packet *p)
virtual bool	configure (Config cmd)
virtual void	initializeLUT ()
Public Member Functions inherited from UwModem
	UwModem ()
virtual	~UwModem ()
virtual int	getModulationType (Packet *P)
void	setModemID (int ID)
int	getModemID ()
void	printOnLog (LogLevel log_level, string module, string message)
LogLevel	getLogLevel ()
int	getDebug ()
std::string	getLogFile ()
void	realTxEnded (Packet *p)

Private Types
enum class	Config {   ATL_GET , ATL_SET , ATAL_GET , ATAL_SET ,   MODEM_STATUS , CURR_SETTINGS , UNKNOWN }

Private Member Functions
virtual void	startTx (Packet *p)
virtual void	startRx (Packet *p)
virtual void	endRx (Packet *p)
virtual void	start ()
virtual void	stop ()
virtual void	transmittingData ()
virtual void	receivingData ()
void	updateStatus (UwInterpreterS2C::Response cmd)
void	setFailedTx (Packet *p)
void	createRxPacket (Packet *p)

Private Attributes
std::unique_ptr< UwConnector >	p_connector
std::unique_ptr< UwInterpreterS2C >	p_interpreter
ModemState	status
TransmissionState	tx_status
std::mutex	status_m
std::mutex	tx_status_m
std::mutex	tx_queue_m
std::condition_variable	status_cv
std::condition_variable	tx_status_cv
std::condition_variable	tx_queue_cv
std::atomic< bool >	receiving
std::atomic< bool >	transmitting
std::atomic< bool >	im_status_updated
std::thread	rx_thread
std::thread	tx_thread
std::string	rx_payload
TransmissionMode	tx_mode
bool	ack_mode
double	virtual_time_ref
int	curr_source_level
int	n_rx_failed
int	pend_source_level
bool	source_level_change
TransmissionDurationLUT	size2dur_
std::string	txdur_file_name_
char	txdur_token_separator_
bool	initLUT_

Static Private Attributes
static const std::chrono::milliseconds	MODEM_TIMEOUT
static const std::chrono::milliseconds	WAIT_DELIVERY_IM
static const std::chrono::seconds	WAIT_DELIVERY_BURST
static const double	EPSILON_S
static uint	MAX_N_STATUS_QUERIES = 10

Additional Inherited Members
Static Public Member Functions inherited from UwModem
static bool	string2log (const std::string &ll_string, LogLevel &ll)
static bool	log2string (LogLevel ll, std::string &ll_string)
Protected Member Functions inherited from UwModem
virtual void	endTx (Packet *p)
void	checkEvent ()
Protected Attributes inherited from UwModem
int	modemID
std::vector< char >	data_buffer
std::queue< Packet * >	tx_queue
std::queue< Packet * >	rx_queue
unsigned int	DATA_BUFFER_LEN
int	MAX_READ_BYTES
std::string	modem_address
int	debug_
std::ofstream	outLog
std::string	logFile
std::string	log_suffix
LogLevel	loglevel_
bool	log_is_open
CheckTimer *	checkTimer
double	period
std::queue< ModemEvent >	event_q

Member Enumeration Documentation

Config

enum class UwEvoLogicsS2CModem::Config

strongprivate

Enum listing the availbale configuration settings. See the EvoLogics S2C manuals or reach for www.evologics.de

Enumerator
ATL_GET
ATL_SET
ATAL_GET
ATAL_SET
MODEM_STATUS
CURR_SETTINGS
UNKNOWN

TransmissionMode

enum class UwEvoLogicsS2CModem::TransmissionMode

strong

Transmission mode: either IM or BURST See the EvoLogics S2C manuals or reach for www.evologics.de

Enumerator
BURST
IM

TransmissionState

enum class UwEvoLogicsS2CModem::TransmissionState

strong

Transmission state: controls the flow of execution for sending commands to the S2C device

Enumerator
TX_IDLE
TX_PENDING

Constructor & Destructor Documentation

UwEvoLogicsS2CModem()

UwEvoLogicsS2CModem::UwEvoLogicsS2CModem

(

)

Constructor of the UwEvoLogicsS2CModem class

Parameters

address	string containing the address to connect to
buflen	lenght in char of the data buffer
read	len length in char of a signle read from the connector

References UwModem::DATA_BUFFER_LEN, MAX_N_STATUS_QUERIES, and UwModem::MAX_READ_BYTES.

~UwEvoLogicsS2CModem()

UwEvoLogicsS2CModem::~UwEvoLogicsS2CModem ( )

virtual

Destructor of the UwEvoLogicsS2CModem class

References stop().

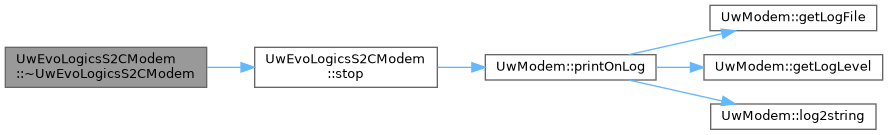

Here is the call graph for this function:

Member Function Documentation

command()

int UwEvoLogicsS2CModem::command ( int  argc, const char *const *  argv  )

virtual

Tcl command interpreter: Method that maps Tcl commands into C++ methods.

Parameters

argc	number of arguments in argv
argv	array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns

TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not

Reimplemented from UwModem.

References ack_mode, BURST, UwModem::command(), IM, initializeLUT(), p_connector, p_interpreter, start(), stop(), tx_mode, txdur_file_name_, and txdur_token_separator_.

Referenced by configure().

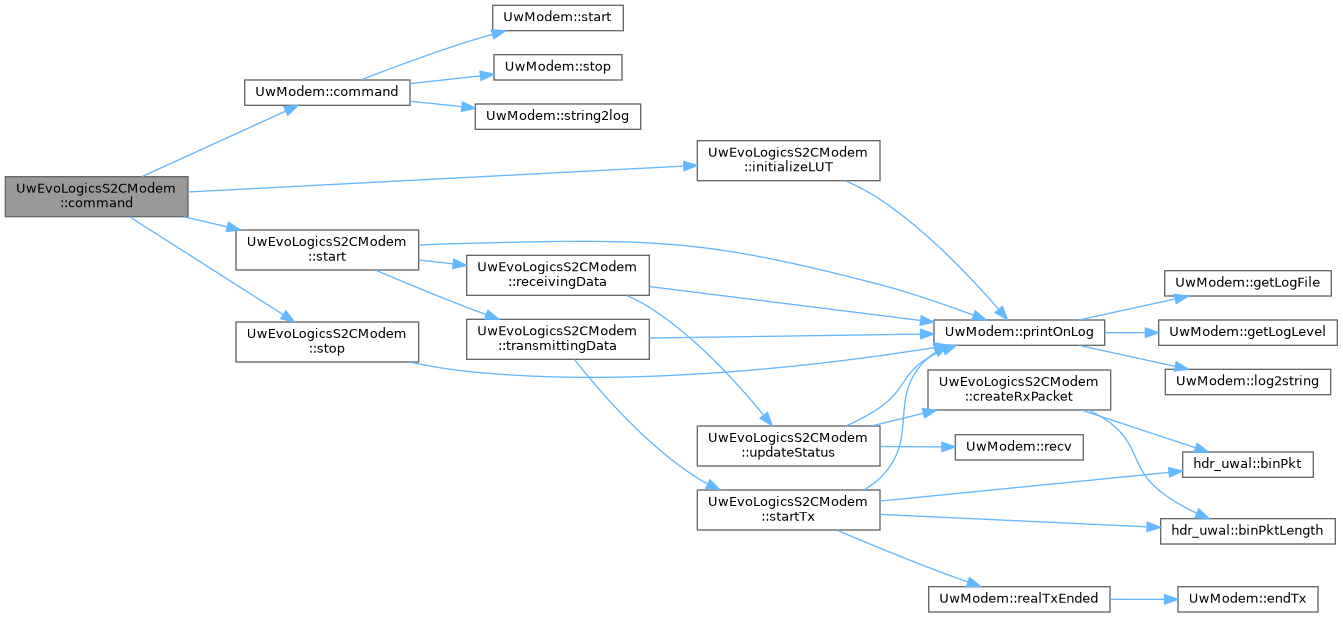

Here is the call graph for this function:

configure()

bool UwEvoLogicsS2CModem::configure ( Config  cmd )

virtual

Method that sends a written configuration the the EvoLgoics modem. The configuration string could be a request of configurations (the AT commands conaining '?') or a setting command (the AT commands containing '!').

Parameters

command

the command string complying with the device format requirements.

Returns

boolean true if the command was correctly sent to the device

References ATAL_GET, ATAL_SET, ATL_GET, ATL_SET, BUSY, command(), CURR_SETTINGS, UwModem::ERROR, MODEM_STATUS, MODEM_TIMEOUT, UwModem::modemID, p_connector, p_interpreter, pend_source_level, UwModem::printOnLog(), status, status_cv, status_m, TX_PENDING, tx_status, and tx_status_m.

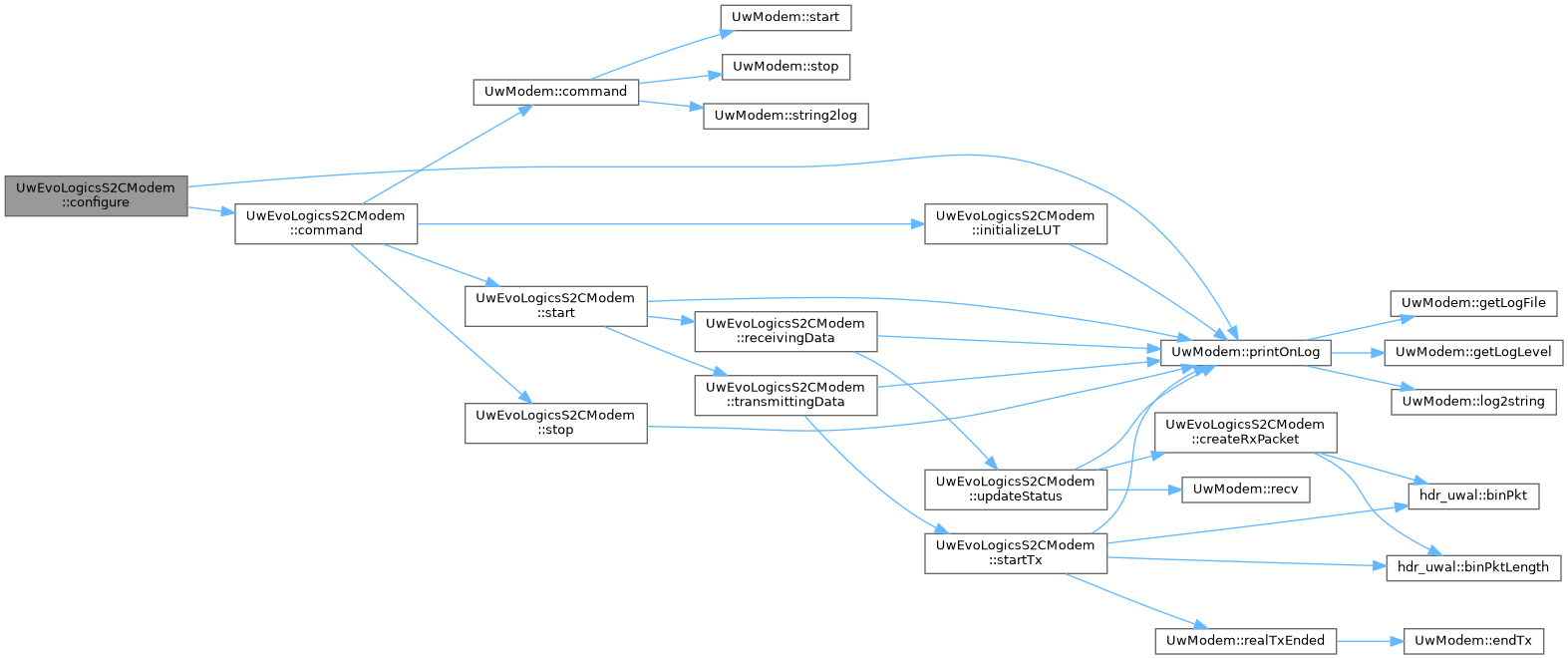

Here is the call graph for this function:

createRxPacket()

void UwEvoLogicsS2CModem::createRxPacket ( Packet *  p )

private

Method that fills up a packet with the needed header and payload and makes it ready to be sent to the layer above

Parameters

p	instance of an empty packet to be filled

References hdr_uwal::binPkt(), hdr_uwal::binPktLength(), and rx_payload.

Referenced by updateStatus().

Here is the call graph for this function:

endRx()

void UwEvoLogicsS2CModem::endRx ( Packet *  p )

privatevirtual

Method that ends a packet reception. This method is also in charge of sending the received NS-MIRACLE packet to the upper layers

Parameters

p	Packet pointer to the packet being sent

Implements UwModem.

References UwModem::INFO, and UwModem::printOnLog().

Referenced by recv().

Here is the call graph for this function:

getTxDuration()

double UwEvoLogicsS2CModem::getTxDuration ( Packet *  p )

virtual

Method that return the duration of a given transmitted packet. Inherited from MPhy, in NS-MIRACLE, could be empty if there is no way to retrieve this information.

Parameters

p	Packet pointer to the given packet being transmitted

Returns

duration in seconds

Reimplemented from UwModem.

References hdr_uwal::binPktLength(), UwModem::ERROR, initLUT_, UwModem::printOnLog(), and size2dur_.

Referenced by recv(), and recvSyncClMsg().

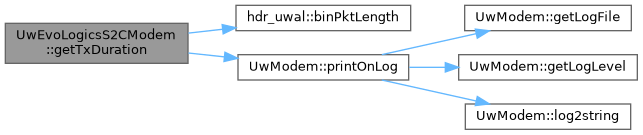

Here is the call graph for this function:

initializeLUT()

void UwEvoLogicsS2CModem::initializeLUT ( )

virtual

Method that loads the TX LUT into a map. Also adds the processing delay if any.

References UwModem::ERROR, initLUT_, UwModem::printOnLog(), size2dur_, txdur_file_name_, and txdur_token_separator_.

Referenced by command().

Here is the call graph for this function:

receivingData()

void UwEvoLogicsS2CModem::receivingData ( )

privatevirtual

Mehod that detach a thread devoted to receiving data from the connector.

References UwModem::data_buffer, UwModem::DATA_BUFFER_LEN, UwModem::DEBUG, UwModem::MAX_READ_BYTES, UwInterpreterS2C::NO_COMMAND, p_connector, p_interpreter, UwModem::printOnLog(), receiving, rx_payload, and updateStatus().

Referenced by start().

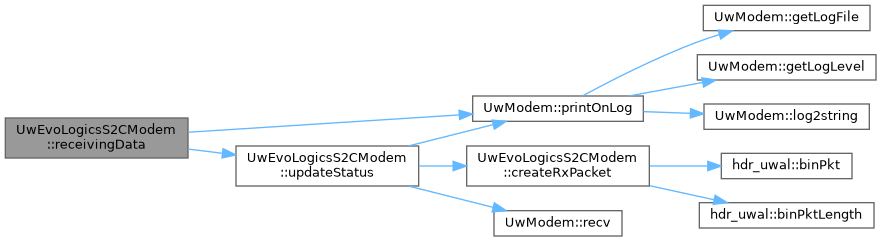

Here is the call graph for this function:

recv()

void UwEvoLogicsS2CModem::recv ( Packet *  p )

virtual

Method that handles the reception of packets arriving from upper layers of the network simulator.

Parameters

p	pointer to the packet that has been received from the simulator upper layers

Implements UwModem.

References UwModem::DEBUG, endRx(), UwModem::getModulationType(), getTxDuration(), UwModem::printOnLog(), startRx(), UwModem::tx_queue, tx_queue_cv, and tx_queue_m.

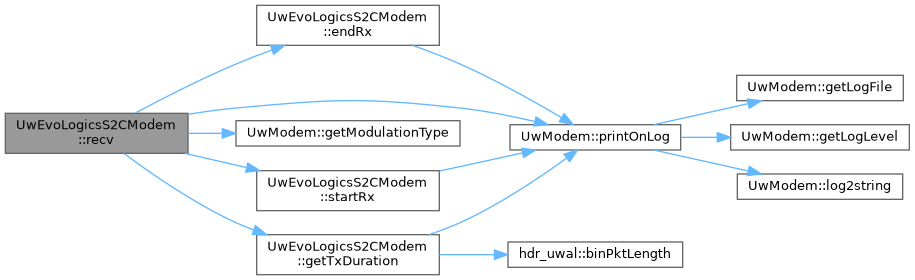

Here is the call graph for this function:

recvSyncClMsg()

int UwEvoLogicsS2CModem::recvSyncClMsg ( ClMessage *  m )

virtual

Cross-Layer messages synchronous interpreter.

Parameters

ClMessage*

an instance of ClMessage that represent the message received

Returns

0 if successful.

Implements UwModem.

References BURST, CLMSG_S2C_POWER_LEVEL, CLMSG_S2C_RX_FAILED, CLMSG_S2C_TX_MODE, curr_source_level, ClMsgS2CPowerLevel::get_power_level(), ClMsgUwPhy::GET_REPLY, ClMsgUwPhy::GET_REQ, ClMsgS2CTxMode::get_tx_mode(), ClMsgUwPhy::getReqType(), getTxDuration(), IM, UwModem::INFO, n_rx_failed, pend_source_level, UwModem::printOnLog(), ClMsgS2CTxMode::S2C_TX_MODE_BURST, ClMsgS2CTxMode::S2C_TX_MODE_IM, ClMsgS2CRxFailed::set_n_rx_failed(), ClMsgS2CPowerLevel::set_power_level(), ClMsgUwPhy::SET_REPLY, ClMsgUwPhy::SET_REQ, ClMsgS2CTxMode::set_tx_mode(), ClMsgUwPhy::setReqType(), source_level_change, and tx_mode.

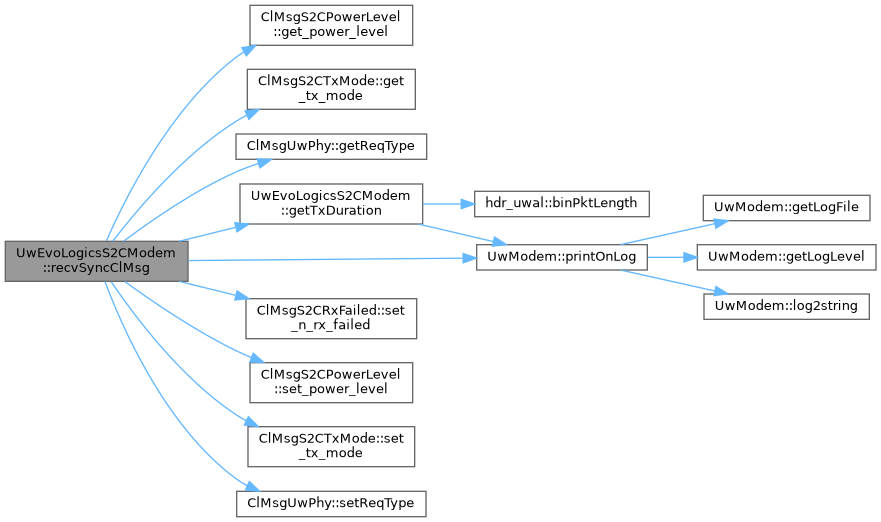

Here is the call graph for this function:

setFailedTx()

void UwEvoLogicsS2CModem::setFailedTx ( Packet *  p )

private

Method that allows to set the error flag on the packet to notify upper layers about un-tranmsitted packets due to, e.g., modem unavailability.

Parameters

p	Packet pointer ot the packet being transmitted

start()

void UwEvoLogicsS2CModem::start ( )

privatevirtual

Method that starts the driver operations. It performs all the needed operations to correctly fire up the device's driver.

Implements UwModem.

References UwModem::CheckTimer, UwModem::checkTimer, UwModem::ERROR, UwModem::modem_address, p_connector, UwModem::period, UwModem::printOnLog(), receiving, receivingData(), rx_thread, transmitting, transmittingData(), and tx_thread.

Referenced by command().

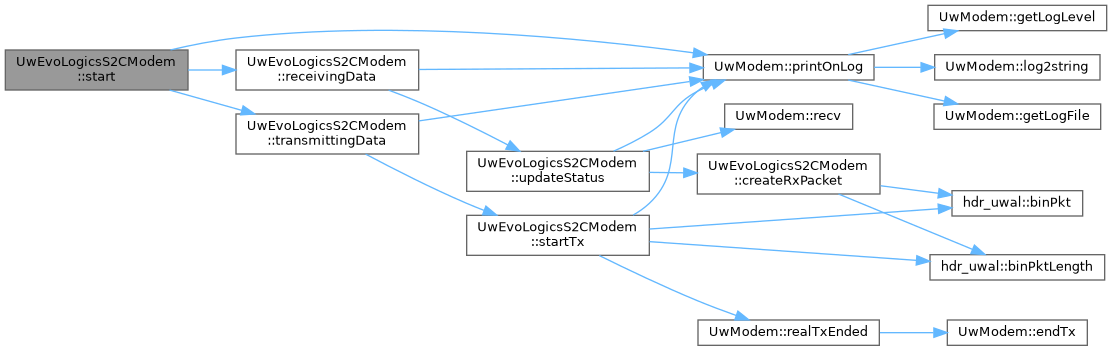

Here is the call graph for this function:

startRx()

void UwEvoLogicsS2CModem::startRx ( Packet *  p )

privatevirtual

Method that starts a packet reception. This method is also in charge of sending a ClMsg, Phy2MacStartRx(p), to notify the upper layers of the simulator about the start of the reception

Parameters

p	Packet pointer to the packet to be received

Implements UwModem.

References UwModem::INFO, and UwModem::printOnLog().

Referenced by recv().

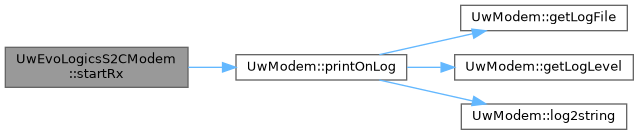

Here is the call graph for this function:

startTx()

void UwEvoLogicsS2CModem::startTx ( Packet *  p )

privatevirtual

Method that triggers the transmission of a packet through a specified modem.

Parameters

p	Packet pointer to the packet to be sent

Implements UwModem.

References ack_mode, AVAILABLE, hdr_uwal::binPkt(), hdr_uwal::binPktLength(), BUSY, UwModem::DEBUG, UwModem::ERROR, UwModem::event_q, IM, im_status_updated, UwModem::INFO, MAX_N_STATUS_QUERIES, MODEM_TIMEOUT, p_connector, p_interpreter, UwModem::printOnLog(), UwModem::realTxEnded(), status, status_cv, status_m, TX_IDLE, tx_mode, TX_PENDING, tx_status, tx_status_cv, tx_status_m, WAIT_DELIVERY_BURST, and WAIT_DELIVERY_IM.

Referenced by transmittingData().

Here is the call graph for this function:

stop()

void UwEvoLogicsS2CModem::stop ( )

privatevirtual

Method that stops the driver operations. It performs all the needed operations to correctly stop the device's driver before closing the simulation.

Implements UwModem.

References UwModem::checkTimer, UwModem::ERROR, UwModem::INFO, p_connector, UwModem::printOnLog(), receiving, rx_thread, transmitting, tx_queue_cv, and tx_thread.

Referenced by command(), and ~UwEvoLogicsS2CModem().

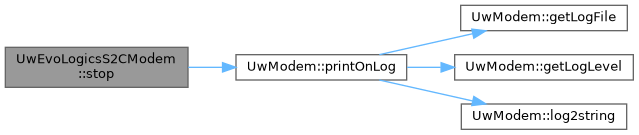

Here is the call graph for this function:

transmittingData()

void UwEvoLogicsS2CModem::transmittingData ( )

privatevirtual

Method that detach a thread devoted to sending packets found in tx_queue.

References UwModem::DEBUG, UwModem::printOnLog(), startTx(), transmitting, UwModem::tx_queue, tx_queue_cv, and tx_queue_m.

Referenced by start().

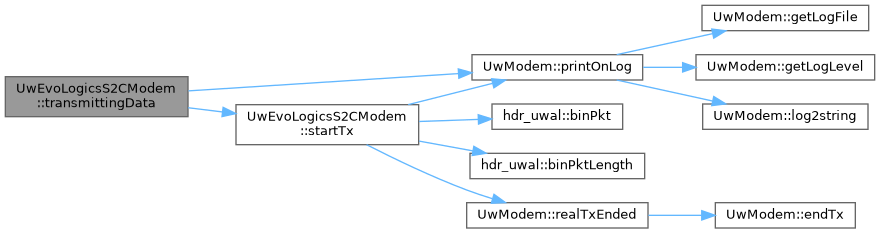

Here is the call graph for this function:

updateStatus()

void UwEvoLogicsS2CModem::updateStatus ( UwInterpreterS2C::Response  cmd )

private

Method that updates the status of the modem State Machine: state change is triggered by reception of commands on the connector interface, or by commands to be sent to the device, e.g., SEND or SENDIM.

Parameters

cmd	command received on the connector interface

References AVAILABLE, UwInterpreterS2C::BITRATE, UwInterpreterS2C::BUFF_NOT_EMPTY, UwInterpreterS2C::BUFFER_FULL, BUSY, UwInterpreterS2C::BUSY, UwInterpreterS2C::CONN_CLOSED, createRxPacket(), DEAF, UwModem::DEBUG, UwInterpreterS2C::DELIVERED, UwInterpreterS2C::DELIVERING, UwInterpreterS2C::DROPCNT, UwInterpreterS2C::EMPTY, UwModem::event_q, UwInterpreterS2C::FAIL, im_status_updated, UwModem::INFO, UwInterpreterS2C::INIT_DEAF, UwInterpreterS2C::INIT_LISTEN, UwInterpreterS2C::INIT_NOISE, UwInterpreterS2C::INTERNAL, n_rx_failed, NOISE, UwInterpreterS2C::NOT_ACCEPTED, UwInterpreterS2C::OK, UwInterpreterS2C::OUT_OF_RANGE, p_interpreter, UwInterpreterS2C::PHYOFF, UwModem::printOnLog(), UwInterpreterS2C::PROTOCOL_ID, QUIT, UwInterpreterS2C::RECV, UwModem::recv(), UwInterpreterS2C::RECVEND, UwInterpreterS2C::RECVFAIL, UwInterpreterS2C::RECVIM, UwInterpreterS2C::RECVSTART, RESET, UwInterpreterS2C::SENDEND, UwInterpreterS2C::SENDSTART, status, status_cv, status_m, TX_IDLE, tx_status, tx_status_cv, tx_status_m, UwInterpreterS2C::UNKNOWN, UwInterpreterS2C::USBLANGLES, UwInterpreterS2C::USBLLONG, and UwInterpreterS2C::WRONG_ADDR.

Referenced by receivingData().

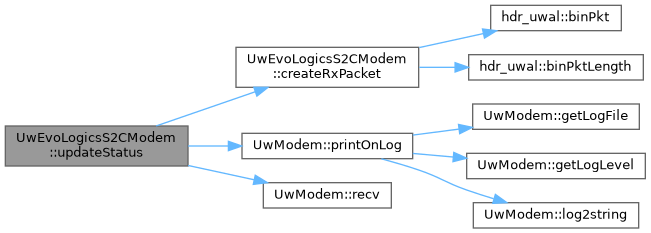

Here is the call graph for this function:

Member Data Documentation

ack_mode

bool UwEvoLogicsS2CModem::ack_mode

private

Set to true to enable IM ack

Referenced by command(), and startTx().

curr_source_level

int UwEvoLogicsS2CModem::curr_source_level

private

Current source level already set in device

Referenced by recvSyncClMsg().

EPSILON_S

const double UwEvoLogicsS2CModem::EPSILON_S

staticprivate

Minimum time to wait before to schedule a new event in seconds

im_status_updated

std::atomic<bool> UwEvoLogicsS2CModem::im_status_updated

private

Atomic boolean variable controlling if the modem had responded to ATDI

Referenced by startTx(), and updateStatus().

initLUT_

bool UwEvoLogicsS2CModem::initLUT_

private

Flag that tells whether the TX duration LUT is loaded or not.

Referenced by getTxDuration(), and initializeLUT().

MAX_N_STATUS_QUERIES

uint UwEvoLogicsS2CModem::MAX_N_STATUS_QUERIES = 10

staticprivate

Maximum number of time to query the modem transmission status before to discard the transmitted packet

Referenced by startTx(), and UwEvoLogicsS2CModem().

MODEM_TIMEOUT

const std::chrono::milliseconds UwEvoLogicsS2CModem::MODEM_TIMEOUT

staticprivate

Initial value:

=
        std::chrono::milliseconds(210)

Maximum time to wait for modem to become ModemState::AVAILABLE

Referenced by configure(), and startTx().

n_rx_failed

int UwEvoLogicsS2CModem::n_rx_failed

private

Number of failed receptions up to now

Referenced by recvSyncClMsg(), and updateStatus().

p_connector

std::unique_ptr<UwConnector> UwEvoLogicsS2CModem::p_connector

private

Pointer to Connector object that interfaces with the device

Referenced by command(), configure(), receivingData(), start(), startTx(), and stop().

p_interpreter

std::unique_ptr<UwInterpreterS2C> UwEvoLogicsS2CModem::p_interpreter

private

Pointer to Interpreter object to parse device syntax

Referenced by command(), configure(), receivingData(), startTx(), and updateStatus().

pend_source_level

int UwEvoLogicsS2CModem::pend_source_level

private

Pending source level, requested but not set

Referenced by configure(), and recvSyncClMsg().

receiving

std::atomic<bool> UwEvoLogicsS2CModem::receiving

private

Atomic boolean variable that controls the receiving looping thread

Referenced by receivingData(), start(), and stop().

rx_payload

std::string UwEvoLogicsS2CModem::rx_payload

private

String that is updated witn each new received messsage

Referenced by createRxPacket(), and receivingData().

rx_thread

std::thread UwEvoLogicsS2CModem::rx_thread

private

Object with the rx thread

Referenced by start(), and stop().

size2dur_

TransmissionDurationLUT UwEvoLogicsS2CModem::size2dur_

private

Map from size [byte] to TX duration [s].

Referenced by getTxDuration(), and initializeLUT().

source_level_change

bool UwEvoLogicsS2CModem::source_level_change

private

Flag that tells a new SL value to be applied

Referenced by recvSyncClMsg().

status

ModemState UwEvoLogicsS2CModem::status

private

Variable holding the current status of the modem

Referenced by configure(), startTx(), and updateStatus().

status_cv

std::condition_variable UwEvoLogicsS2CModem::status_cv

private

Condition variable to wait for ModemState::AVAILABLE

Referenced by configure(), startTx(), and updateStatus().

status_m

std::mutex UwEvoLogicsS2CModem::status_m

private

Mutex associated with the state machine of the modem

Referenced by configure(), startTx(), and updateStatus().

transmitting

std::atomic<bool> UwEvoLogicsS2CModem::transmitting

private

Atomic boolean variable that controls the transmitting looping thread

Referenced by start(), stop(), and transmittingData().

tx_mode

TransmissionMode UwEvoLogicsS2CModem::tx_mode

private

Either burst or im.

Referenced by command(), recvSyncClMsg(), and startTx().

tx_queue_cv

std::condition_variable UwEvoLogicsS2CModem::tx_queue_cv

private

Condition variable that is linked with the transmitting queue

Referenced by recv(), stop(), and transmittingData().

tx_queue_m

std::mutex UwEvoLogicsS2CModem::tx_queue_m

private

Mutex associated with the transmission queue

Referenced by recv(), and transmittingData().

tx_status

TransmissionState UwEvoLogicsS2CModem::tx_status

private

Variable holding the current transmission status of the modem

Referenced by configure(), startTx(), and updateStatus().

tx_status_cv

std::condition_variable UwEvoLogicsS2CModem::tx_status_cv

private

Condition variable to wait for TransmissionState::TX_IDLE

Referenced by startTx(), and updateStatus().

tx_status_m

std::mutex UwEvoLogicsS2CModem::tx_status_m

private

Mutex associated with the transmission state machine of the modem

Referenced by configure(), startTx(), and updateStatus().

tx_thread

std::thread UwEvoLogicsS2CModem::tx_thread

private

Object with the tx thread

Referenced by start(), and stop().

txdur_file_name_

std::string UwEvoLogicsS2CModem::txdur_file_name_

private

TX duration LUT file name.

Referenced by command(), and initializeLUT().

txdur_token_separator_

char UwEvoLogicsS2CModem::txdur_token_separator_

private

TX duration LUT separator.

Referenced by command(), and initializeLUT().

virtual_time_ref

double UwEvoLogicsS2CModem::virtual_time_ref

private

virtual time reference

WAIT_DELIVERY_BURST

const std::chrono::seconds UwEvoLogicsS2CModem::WAIT_DELIVERY_BURST

staticprivate

Initial value:

=
        std::chrono::seconds(5)

Time interval tu wait for a burst message tobe confirmed through a DELIVERED response. Given in SECONDS

Referenced by startTx().

WAIT_DELIVERY_IM

const std::chrono::milliseconds UwEvoLogicsS2CModem::WAIT_DELIVERY_IM

staticprivate

Initial value:

=
        std::chrono::milliseconds(200)

Time interval to wait for the modem notifying that there no more IM in its queue and a new IM can be sent

Referenced by startTx().

---

The documentation for this class was generated from the following files:

• DESERT_Framework/DESERT/physical/uwevologicss2cmodem/uwevologicss2cmodem.h
• DESERT_Framework/DESERT/physical/uwevologicss2cmodem/uwevologicss2cmodem.cpp
