#include <uwinterpreters2c.h>

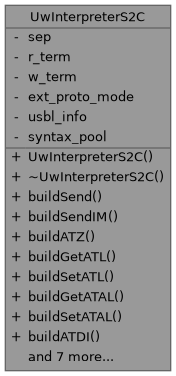

Collaboration diagram for UwInterpreterS2C:

Public Types
enum class	Response { RECVIM = 0 , RECV , OK , EMPTY , BUSY , DELIVERING , DELIVERED , DELIVEREDIM , DROPCNT , PHYOFF , NOT_ACCEPTED , WRONG_ADDR , CONN_CLOSED , BUFF_NOT_EMPTY , OUT_OF_RANGE , PROTOCOL_ID , INTERNAL , BUFFER_FULL , FAIL , CURR_SETTINGS , MODEM_STATUS , INIT_NOISE , INIT_DEAF , INIT_LISTEN , RECVSTART , RECVEND , RECVFAIL , SENDSTART , SENDEND , BITRATE , UNKNOWN , USBLANGLES , USBLLONG , NO_COMMAND }

Public Member Functions
	UwInterpreterS2C ()

virtual	~UwInterpreterS2C ()

std::string	buildSend (std::string msg, int dest)

std::string	buildSendIM (std::string msg, int dest, bool ack)

std::string	buildATZ (int level)

std::string	buildGetATL ()

std::string	buildSetATL (int level)

std::string	buildGetATAL ()

std::string	buildSetATAL (int addr)

std::string	buildATDI ()

std::string	buildATS ()

std::string	buildATV ()

UwInterpreterS2C::Response	findResponse (std::vector< char >::iterator beg, std::vector< char >::iterator end, std::vector< char >::iterator &rsp)

bool	parseResponse (UwInterpreterS2C::Response rsp, std::vector< char >::iterator end, std::vector< char >::iterator rsp_beg, std::vector< char >::iterator &rsp_end, std::string &rx_payload)

void	setExtProtoMode (bool enabled)

std::shared_ptr< USBLInfo >	getUSBLInfo ()

void	setTerminator (std::string terminator)

Private Attributes
std::string	sep

std::string	r_term

std::string	w_term

bool	ext_proto_mode

std::shared_ptr< USBLInfo >	usbl_info

Static Private Attributes
static std::vector< std::pair< std::string, UwInterpreterS2C::Response > >	syntax_pool

Member Enumeration Documentation

◆ Response

enum class UwInterpreterS2C::Response

strong

Enum listing the types of commands that could be received or sent by a S2C device; See the EvoLogics S2C manuals or reach for www.evologics.de

Enumerator
RECVIM
RECV
OK
EMPTY
BUSY
DELIVERING
DELIVERED
DELIVEREDIM
DROPCNT
PHYOFF
NOT_ACCEPTED
WRONG_ADDR
CONN_CLOSED
BUFF_NOT_EMPTY
OUT_OF_RANGE
PROTOCOL_ID
INTERNAL
BUFFER_FULL
FAIL
CURR_SETTINGS
MODEM_STATUS
INIT_NOISE
INIT_DEAF
INIT_LISTEN
RECVSTART
RECVEND
RECVFAIL
SENDSTART
SENDEND
BITRATE
UNKNOWN
USBLANGLES
USBLLONG
NO_COMMAND

Constructor & Destructor Documentation

◆ UwInterpreterS2C()

UwInterpreterS2C::UwInterpreterS2C ( )

Class constructor

References usbl_info.

◆ ~UwInterpreterS2C()

UwInterpreterS2C::~UwInterpreterS2C ( )

virtual

Class destructor

Member Function Documentation

◆ buildATDI()

std::string UwInterpreterS2C::buildATDI ( )

Method that builds the command to check the IM delivery status

Returns: string of the requested command

References w_term.

◆ buildATS()

std::string UwInterpreterS2C::buildATS ( )

Method that builds the command to ask for modem status: it enlists local address, acoustic link status and pool status and whether promiscous mode is on.

Returns: string of the requested command

References w_term.

◆ buildATV()

std::string UwInterpreterS2C::buildATV ( )

Method that builds the command to ask for current settings: it enlists source level, gain, retry timeout, carrier ID and other See the EvoLogics S2C manuals or reach for www.evologics.de

Returns: string of the requested command

References w_term.

◆ buildATZ()

std::string UwInterpreterS2C::buildATZ ( int level )

Method that builds a reboot sequence: depending on the provided index different levels of reset can be requested.

Parameters

level integer level of reset requested

Returns: string of the requested command

References w_term.

◆ buildGetATAL()

std::string UwInterpreterS2C::buildGetATAL ( )

Method that builds the command to set the local address of the device

Returns: string of the requested command

References w_term.

◆ buildGetATL()

std::string UwInterpreterS2C::buildGetATL ( )

Method that builds the command to get the source level of the device

Returns: string of the requested command

References w_term.

◆ buildSend()

std::string UwInterpreterS2C::buildSend	(	std::string	msg,
		int	dest
	)

Method that builds the command to send data through SEND command SEND is used to send burst data: payload is saved in S2C internal memory until the device is ready to transmit, at the negotiated bitrate.

Parameters

msg	string containing the payload to be sent
dest	integer number representing the destination local address

Returns: string of the requested command

References ext_proto_mode, sep, and w_term.

◆ buildSendIM()

std::string UwInterpreterS2C::buildSendIM	(	std::string	msg,
		int	dest,
		bool	ack
	)

Method that builds the command to send data through SENDIM command SENDIM is used to send Instant Messages: these messages are immediately transmitted at the minimum bitrate availbale in the device.

Parameters

msg	string containing the payload to be sent
dest	integer number representing the destination local address
ack	boolean set to true if ACK is needed, false otherwise

Returns: string of the requested command

References ext_proto_mode, sep, and w_term.

◆ buildSetATAL()

std::string UwInterpreterS2C::buildSetATAL ( int addr )

Method that builds the command to set the local address of the device

Parameters

level integer value of the Local Address of the device

Returns: string of the requested command

References w_term.

◆ buildSetATL()

std::string UwInterpreterS2C::buildSetATL ( int level )

Method that builds the command to set the source level of the device

Parameters

level integer level of the Source Level of the device

Returns: string of the requested command

References w_term.

◆ findResponse()

UwInterpreterS2C::Response UwInterpreterS2C::findResponse	(	std::vector< char >::iterator	beg,
		std::vector< char >::iterator	end,
		std::vector< char >::iterator &	rsp
	)

Method to look for S2C response inside a provided chunk of unparsed data This method only finds the beginning of the returned response,not the end

Parameters

beg	iterator to beginning of search section
end	iterator to end of search section
rsp	output iterator first response found

Returns: type of the first valid response found, of type UwInterpreterS2C::Response

References NO_COMMAND, and syntax_pool.

◆ getUSBLInfo()

std::shared_ptr< USBLInfo > UwInterpreterS2C::getUSBLInfo ( )

Method to retrieve the USBL information saved upon reception of a USBL message

Returns: USBLinfo structure loaded with values

References usbl_info.

◆ parseResponse()

bool UwInterpreterS2C::parseResponse	(	UwInterpreterS2C::Response	rsp,
		std::vector< char >::iterator	end,
		std::vector< char >::iterator	rsp_beg,
		std::vector< char >::iterator &	rsp_end,
		std::string &	rx_payload
	)

Method that tries to parse a found response: if the response section of the buffer, which needs to be passed, is found to be incomplete, the method return false. If parsing is successful, proper action is taken. The method also locates the end of the response looking for term.

Parameters

[in]	rsp	response found by call to UwInterpreterS2C::findResponse
[in]	end	beginning of the buffer section to parse
[in]	rsp_beg	of the responses as found by findResponse()
[out]	rsp_end	of the response, if found by parsing
[out]	rx_payload	containing the payload stored in the response, if any.

Returns: false if attempt to parse command fails (e.g., for missing bytes)

References BITRATE, BUFFER_FULL, BUSY, CURR_SETTINGS, DELIVERED, DELIVEREDIM, DELIVERING, DROPCNT, EMPTY, ext_proto_mode, FAIL, MODEM_STATUS, OK, r_term, RECV, RECVEND, RECVFAIL, RECVIM, RECVSTART, SENDEND, SENDSTART, UNKNOWN, usbl_info, USBLANGLES, and USBLLONG.

◆ setExtProtoMode()

void UwInterpreterS2C::setExtProtoMode ( bool enabled )

Method that sets whether Extended Protocol Mode is used or not

Parameters

enabled true if Extended Protocol Mode is used, false otherwise

References ext_proto_mode.

◆ setTerminator()

void UwInterpreterS2C::setTerminator ( std::string terminator )

inline

Method that sets the terminator for the AT commands wrtten to device

Parameters

[in] terminator type of the terminator

References w_term.

Member Data Documentation

◆ ext_proto_mode

bool UwInterpreterS2C::ext_proto_mode

private

Flag telling if Extened Protol Mode is in use

Referenced by buildSend(), buildSendIM(), parseResponse(), and setExtProtoMode().

◆ r_term

std::string UwInterpreterS2C::r_term

private

Terminating sequence for commands read from device

Referenced by parseResponse().

◆ sep

std::string UwInterpreterS2C::sep

private

Separator for paramters fo the commands: a comma

Referenced by buildSend(), and buildSendIM().

◆ syntax_pool

std::vector< std::pair< std::string, UwInterpreterS2C::Response > > UwInterpreterS2C::syntax_pool

staticprivate

Vector holding all possible commands for the S2C syntax and corresponding identifying token. It is important that RECV and RECVIM remain at the beginning, as the other commands may be inside the binary payload of these two.

Referenced by findResponse().

◆ usbl_info

std::shared_ptr<USBLInfo> UwInterpreterS2C::usbl_info

private

Strucure holding info retrived via USBL message

Referenced by getUSBLInfo(), parseResponse(), and UwInterpreterS2C().

◆ w_term

std::string UwInterpreterS2C::w_term

private

Terminating sequence for commands wrtten to device

Referenced by buildATDI(), buildATS(), buildATV(), buildATZ(), buildGetATAL(), buildGetATL(), buildSend(), buildSendIM(), buildSetATAL(), buildSetATL(), and setTerminator().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/physical/uwevologicss2cmodem/uwinterpreters2c.h
DESERT_Framework/DESERT/physical/uwevologicss2cmodem/uwinterpreters2c.cpp
