#include <uwmodemcsa.h>

Inheritance diagram for UwModemCSA:

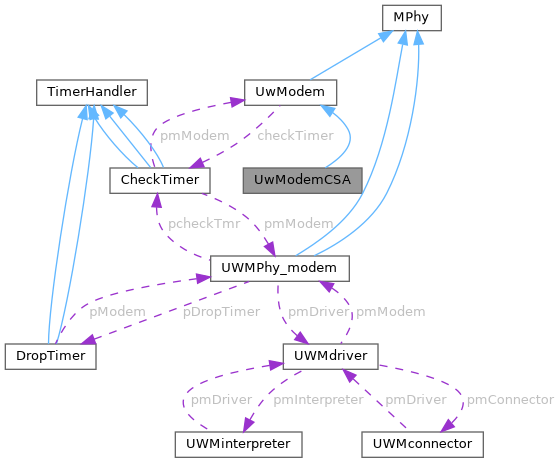

Collaboration diagram for UwModemCSA:

Public Member Functions
	UwModemCSA ()

virtual	~UwModemCSA ()

virtual void	recv (Packet *p)

virtual int	recvSyncClMsg (ClMessage *m)

virtual double	getTxDuration (Packet *p)

virtual int	command (int argc, const char const argv)

Public Member Functions inherited from UwModem
	UwModem ()

virtual	~UwModem ()

virtual int	getModulationType (Packet *P)

void	setModemID (int ID)

int	getModemID ()

void	printOnLog (LogLevel log_level, string module, string message)

LogLevel	getLogLevel ()

int	getDebug ()

std::string	getLogFile ()

void	realTxEnded (Packet *p)

Private Member Functions
virtual void	startTx (Packet *p)

virtual void	startRx (Packet *p)

virtual void	endRx (Packet *p)

virtual void	start ()

virtual void	stop ()

virtual void	transmittingData ()

virtual void	receivingData ()

virtual std::string	findCommand (std::vector< char >::iterator beg_it, std::vector< char >::iterator end_it, std::vector< char >::iterator &cmd_b, std::vector< char >::iterator &cmd_e)

virtual bool	parseCommand (std::vector< char >::iterator cmd_b, std::vector< char >::iterator cmd_e, std::string &rx_payload)

virtual std::string	buildSend (const std::string &payload, int dest)

void	startRealRx (const std::string &cmd)

void	createRxPacket (Packet *p)

Private Attributes
std::unique_ptr< UwConnector >	p_connector

ModemState	status

std::mutex	status_m

std::mutex	tx_queue_m

std::condition_variable	status_cv

std::condition_variable	tx_queue_cv

std::atomic< bool >	receiving

std::atomic< bool >	transmitting

std::thread	rx_thread

std::thread	tx_thread

std::string	rx_payload

std::string	del_b

std::string	del_e

Static Private Attributes
static const std::chrono::milliseconds	MODEM_TIMEOUT

static const double	EPSILON_S = 0.01

static const size_t	MAX_TX_STATUS_POLL = 20

Additional Inherited Members
Public Types inherited from UwModem
enum class	LogLevel { ERROR = 0 , INFO = 1 , DEBUG = 2 }

Static Public Member Functions inherited from UwModem
static bool	string2log (const std::string &ll_string, LogLevel &ll)

static bool	log2string (LogLevel ll, std::string &ll_string)

Protected Member Functions inherited from UwModem
virtual void	endTx (Packet *p)

void	checkEvent ()

Protected Attributes inherited from UwModem
int	modemID

std::vector< char >	data_buffer

std::queue< Packet * >	tx_queue

std::queue< Packet * >	rx_queue

unsigned int	DATA_BUFFER_LEN

int	MAX_READ_BYTES

std::string	modem_address

int	debug_

std::ofstream	outLog

std::string	logFile

std::string	log_suffix

LogLevel	loglevel_

bool	log_is_open

CheckTimer *	checkTimer

double	period

std::queue< ModemEvent >	event_q

Constructor & Destructor Documentation

◆ UwModemCSA()

UwModemCSA::UwModemCSA ( )

Constructor of the UwModemCSA class

Parameters

address	string containing the address to connect to
buflen	lenght in char of the data buffer
read	len length in char of a signle read from the connector

References UwModem::DATA_BUFFER_LEN, and UwModem::MAX_READ_BYTES.

◆ ~UwModemCSA()

UwModemCSA::~UwModemCSA ( )

virtual

Destructor of the UwModemCSA class

References stop().

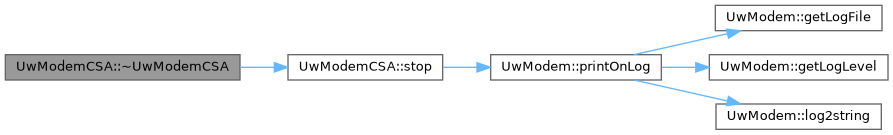

Here is the call graph for this function:

Member Function Documentation

◆ buildSend()

std::string UwModemCSA::buildSend	(	const std::string &	payload,
		int	dest
	)

privatevirtual

Referenced by startTx().

◆ command()

int UwModemCSA::command	(	int	argc,
		const char const	argv
	)

virtual

Tcl command interpreter: Method that maps Tcl commands into C++ methods.

Parameters

argc	number of arguments in argv
argv	array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not

Reimplemented from UwModem.

References UwModem::command(), and p_connector.

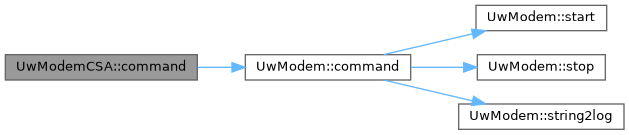

Here is the call graph for this function:

◆ createRxPacket()

void UwModemCSA::createRxPacket ( Packet * p )

private

References hdr_uwal::binPkt(), hdr_uwal::binPktLength(), and rx_payload.

Referenced by startRealRx().

Here is the call graph for this function:

◆ endRx()

void UwModemCSA::endRx ( Packet * p )

privatevirtual

Method that ends a packet reception. This method is also in charge of sending the received NS-MIRACLE packet to the upper layers

Parameters

p	Packet pointer to the packet being sent

Implements UwModem.

References UwModem::INFO, and UwModem::printOnLog().

Referenced by recv().

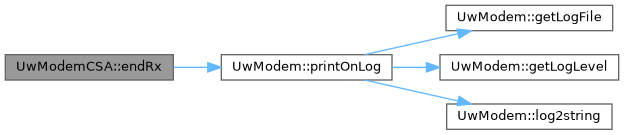

Here is the call graph for this function:

◆ findCommand()

std::string UwModemCSA::findCommand	(	std::vector< char >::iterator	beg_it,
		std::vector< char >::iterator	end_it,
		std::vector< char >::iterator &	cmd_b,
		std::vector< char >::iterator &	cmd_e
	)

privatevirtual

Method that finds the position of a command in a buffer.

References del_b, and del_e.

Referenced by receivingData().

◆ getTxDuration()

double UwModemCSA::getTxDuration ( Packet * p )

virtual

Method that returns the duration of a given transmitted packet. Inherited from MPhy, in NS-MIRACLE, could be empty if there is no way to retrieve this information.

Parameters

p	Packet pointer to the given packet being transmitted

Returns: duration in seconds

Reimplemented from UwModem.

Referenced by recv(), and recvSyncClMsg().

◆ parseCommand()

bool UwModemCSA::parseCommand	(	std::vector< char >::iterator	cmd_b,
		std::vector< char >::iterator	cmd_e,
		std::string &	rx_payload
	)

privatevirtual

Method that parses the command to obtain the recquired informations.

References rx_payload.

Referenced by receivingData().

◆ receivingData()

void UwModemCSA::receivingData ( )

privatevirtual

Method that detach a thread devoted to receiving data from the connector.

References UwModem::data_buffer, UwModem::DATA_BUFFER_LEN, findCommand(), UwModem::MAX_READ_BYTES, p_connector, parseCommand(), receiving, rx_payload, and startRealRx().

Referenced by start().

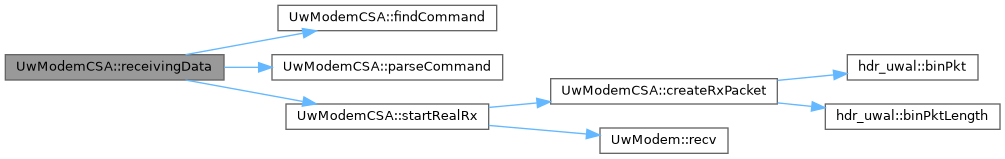

Here is the call graph for this function:

◆ recv()

void UwModemCSA::recv ( Packet * p )

virtual

Method that handles the reception of packets arriving from upper layers of the network simulator.

Parameters

p	pointer to the packet that has been received from the simulator upper layers

Implements UwModem.

References UwModem::DEBUG, endRx(), UwModem::getModulationType(), getTxDuration(), UwModem::printOnLog(), startRx(), UwModem::tx_queue, tx_queue_cv, and tx_queue_m.

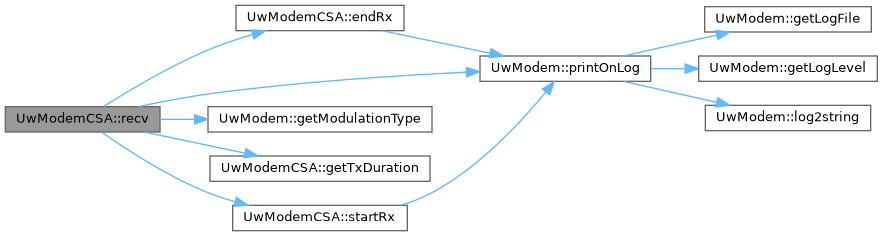

Here is the call graph for this function:

◆ recvSyncClMsg()

int UwModemCSA::recvSyncClMsg ( ClMessage * m )

virtual

Cross-Layer messages synchronous interpreter.

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

Implements UwModem.

References getTxDuration(), UwModem::INFO, and UwModem::printOnLog().

Here is the call graph for this function:

◆ start()

void UwModemCSA::start ( )

privatevirtual

Method that starts the driver operations. It performs all the needed operations to correctly fire up the device's driver.

Implements UwModem.

References UwModem::CheckTimer, UwModem::checkTimer, UwModem::ERROR, UwModem::modem_address, p_connector, UwModem::period, UwModem::printOnLog(), receiving, receivingData(), rx_thread, transmitting, transmittingData(), and tx_thread.

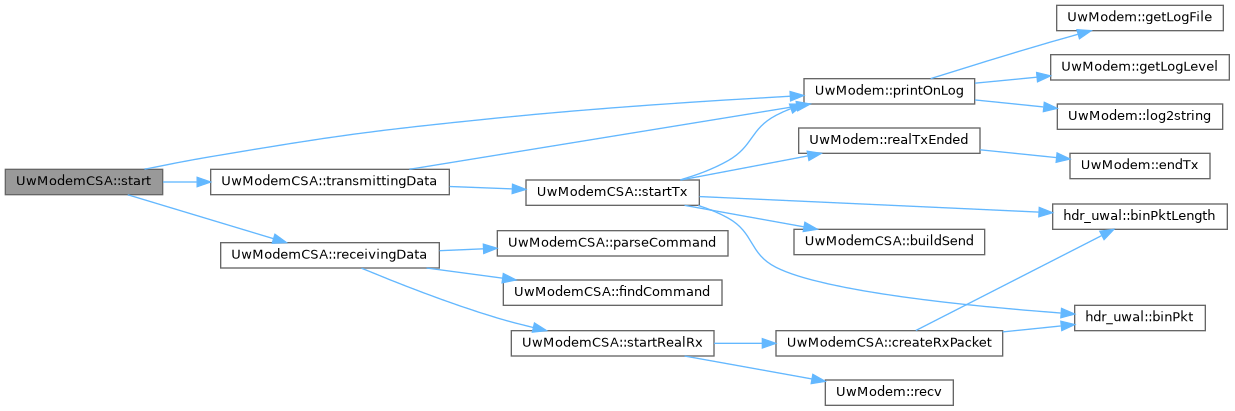

Here is the call graph for this function:

◆ startRealRx()

void UwModemCSA::startRealRx ( const std::string & cmd )

private

Method that updates the status of the modem State Machine: state change is triggered by reception of commands on the connector interface, or by commands to be sent to the device, e.g., SEND or SENDIM.

Parameters

cmd	command received on the connector interface

References AVAILABLE, createRxPacket(), UwModem::event_q, UwModem::recv(), status, status_cv, and status_m.

Referenced by receivingData().

Here is the call graph for this function:

◆ startRx()

void UwModemCSA::startRx ( Packet * p )

privatevirtual

Method that starts a packet reception. This method is also in charge of sending a ClMsg, Phy2MacStartRx(p), to notify the upper layers of the simulator about the start of the reception

Parameters

p	Packet pointer to the packet to be received

Implements UwModem.

References UwModem::INFO, and UwModem::printOnLog().

Referenced by recv().

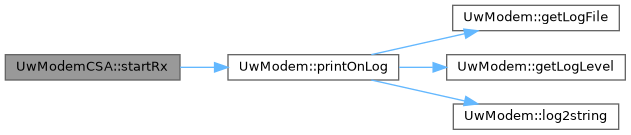

Here is the call graph for this function:

◆ startTx()

void UwModemCSA::startTx ( Packet * p )

privatevirtual

Method that triggers the transmission of a packet through a specified modem.

Parameters

p	Packet pointer to the packet to be sent

Implements UwModem.

References AVAILABLE, hdr_uwal::binPkt(), hdr_uwal::binPktLength(), buildSend(), BUSY, UwModem::ERROR, UwModem::event_q, UwModem::INFO, MODEM_TIMEOUT, p_connector, UwModem::printOnLog(), UwModem::realTxEnded(), status, status_cv, and status_m.

Referenced by transmittingData().

Here is the call graph for this function:

◆ stop()

void UwModemCSA::stop ( )

privatevirtual

Method that stops the driver operations. It performs all the needed operations to correctly stop the device's driver before closing the simulation.

Implements UwModem.

References UwModem::checkTimer, UwModem::ERROR, UwModem::INFO, p_connector, UwModem::printOnLog(), receiving, rx_thread, transmitting, tx_queue_cv, and tx_thread.

Referenced by ~UwModemCSA().

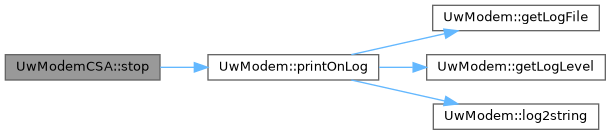

Here is the call graph for this function:

◆ transmittingData()

void UwModemCSA::transmittingData ( )

privatevirtual

Method that detach a thread devoted to sending packets found in tx_queue.

References UwModem::DEBUG, UwModem::printOnLog(), startTx(), transmitting, UwModem::tx_queue, tx_queue_cv, and tx_queue_m.

Referenced by start().

Here is the call graph for this function:

Member Data Documentation

◆ del_b

std::string UwModemCSA::del_b

private

Referenced by findCommand().

◆ del_e

std::string UwModemCSA::del_e

private

Referenced by findCommand().

◆ EPSILON_S

const double UwModemCSA::EPSILON_S = 0.01

staticprivate

minimum time to wait before to schedule a new event in seconds

◆ MAX_TX_STATUS_POLL

const size_t UwModemCSA::MAX_TX_STATUS_POLL = 20

staticprivate

maximum number of time to poll the modem transmission status before to discard the transmitted packet

◆ MODEM_TIMEOUT

const std::chrono::milliseconds UwModemCSA::MODEM_TIMEOUT

staticprivate

Initial value:

=

std::chrono::milliseconds(210)

Maximum time to wait for modem to become ModemState::AVAILABLE

Referenced by startTx().

◆ p_connector

std::unique_ptr<UwConnector> UwModemCSA::p_connector

private

Pointer to Connector object that interfaces with the device

Referenced by command(), receivingData(), start(), startTx(), and stop().

◆ receiving

std::atomic<bool> UwModemCSA::receiving

private

Atomic boolean variable that controls the receiving looping thread

Referenced by receivingData(), start(), and stop().

◆ rx_payload

std::string UwModemCSA::rx_payload

private

String that is updated witn each new received messsage

Referenced by createRxPacket(), parseCommand(), and receivingData().

◆ rx_thread

std::thread UwModemCSA::rx_thread

private

Object with the rx thread

Referenced by start(), and stop().

◆ status

ModemState UwModemCSA::status

private

Variable holding the current status of the modem

Referenced by startRealRx(), and startTx().

◆ status_cv

std::condition_variable UwModemCSA::status_cv

private

Condition variable to wait for ModemState::AVAILABLE

Referenced by startRealRx(), and startTx().

◆ status_m

std::mutex UwModemCSA::status_m

private

Mutex associated with the state machine of the modem

Referenced by startRealRx(), and startTx().

◆ transmitting

std::atomic<bool> UwModemCSA::transmitting

private

Atomic boolean variable that controls the transmitting looping thread

Referenced by start(), stop(), and transmittingData().

◆ tx_queue_cv

std::condition_variable UwModemCSA::tx_queue_cv

private

Condition variable that is linked with the transmitting queue

Referenced by recv(), stop(), and transmittingData().

◆ tx_queue_m

std::mutex UwModemCSA::tx_queue_m

private

Mutex associated with the transmission queue

Referenced by recv(), and transmittingData().

◆ tx_thread

std::thread UwModemCSA::tx_thread

private

Object with the tx thread

Referenced by start(), and stop().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/physical/uwmodemcsa/uwmodemcsa.h
DESERT_Framework/DESERT/physical/uwmodemcsa/uwmodemcsa.cpp

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ UwModemCSA()

◆ ~UwModemCSA()

Member Function Documentation

◆ buildSend()

◆ command()

◆ createRxPacket()

◆ endRx()

◆ findCommand()

◆ getTxDuration()

◆ parseCommand()

◆ receivingData()

◆ recv()

◆ recvSyncClMsg()

◆ start()

◆ startRealRx()

◆ startRx()

◆ startTx()

◆ stop()

◆ transmittingData()

Member Data Documentation

◆ del_b

◆ del_e

◆ EPSILON_S

◆ MAX_TX_STATUS_POLL

◆ MODEM_TIMEOUT

◆ p_connector

◆ receiving

◆ rx_payload

◆ rx_thread

◆ status

◆ status_cv

◆ status_m

◆ transmitting

◆ tx_queue_cv

◆ tx_queue_m

◆ tx_thread
