UWMconnector Class Reference

#include <uwmconnector.h>

Inheritance diagram for UWMconnector:

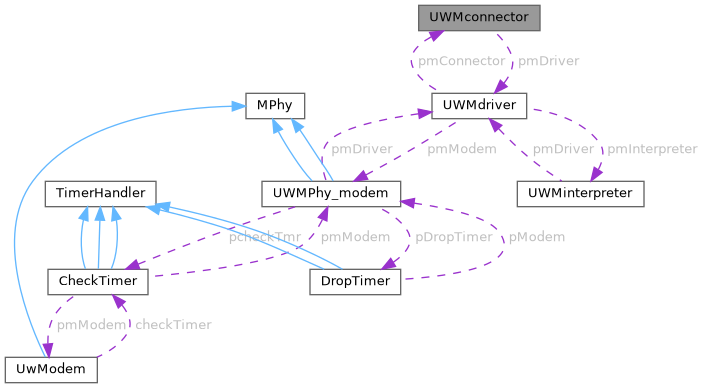

Collaboration diagram for UWMconnector:

Public Member Functions
	UWMconnector (UWMdriver *, std::string)
	~UWMconnector ()
virtual int	openConnection ()=0
virtual void	closeConnection ()
virtual int	writeToModem (std::string)=0
std::string	readFromModem ()
void	setDriverQueueLength (int length)
uint	getDriverQueueLength ()
	UWMconnector (UWMdriver *, std::string)
	~UWMconnector ()
virtual int	openConnection ()=0
virtual void	closeConnection ()
virtual int	writeToModem (std::string)=0
std::string	readFromModem ()
void	setDriverQueueLength (int length)
uint	getDriverQueueLength ()

Public Attributes
std::queue< msgModem >	queueMsg

Protected Attributes
UWMdriver *	pmDriver
std::string	pathToDevice
uint	driver_queue_length

Detailed Description

The class needed by UWMPhy_modem to manage string exchange with the modem. This class just provides the definition of the basic needed functionalities and it must be extended to handle e.g., serial connection (see Mserial) or TCP/IP connection (see Msocket).

Constructor & Destructor Documentation

UWMconnector() [1/2]

UWMconnector::UWMconnector	(	UWMdriver *	pmDriver_,
		std::string	pathToDevice_
	)

Class constructor.

Parameters

pmDriver_	pointer to the UWMdriver object to link with this UWMconnector object.
pathToDevice_	the path to the device that must be connected with NS-Miracle (e.g., /dev/ttyUSB0 for a serial connection)

References pathToDevice, and pmDriver.

~UWMconnector() [1/2]

UWMconnector::~UWMconnector

(

)

Class destructor.

UWMconnector() [2/2]

UWMconnector::UWMconnector	(	UWMdriver *	,
		std::string
	)

Class constructor.

Parameters

pmDriver_	pointer to the UWMdriver object to link with this UWMconnector object.
pathToDevice_	the path to the device that must be connected with NS-Miracle (e.g., /dev/ttyUSB0 for a serial connection)

~UWMconnector() [2/2]

UWMconnector::~UWMconnector

(

)

Class destructor.

Member Function Documentation

closeConnection() [1/2]

virtual void UWMconnector::closeConnection ( )

virtual

Method to close the connection with the modem.

Reimplemented in Msocket, and Msocket.

closeConnection() [2/2]

void UWMconnector::closeConnection ( )

virtual

Method to close the connection with the modem.

Reimplemented in Msocket, and Msocket.

getDriverQueueLength() [1/2]

uint UWMconnector::getDriverQueueLength ( )

inline

References driver_queue_length.

getDriverQueueLength() [2/2]

uint UWMconnector::getDriverQueueLength ( )

inline

References driver_queue_length.

Referenced by read_process_msocket().

openConnection() [1/2]

virtual int UWMconnector::openConnection ( )

pure virtual

Method to open the connection with the modem.

Returns

_MODEM_OK if everything went fine, any other int value otherwise.

Implemented in Msocket, and Msocket.

openConnection() [2/2]

virtual int UWMconnector::openConnection ( )

pure virtual

Method to open the connection with the modem.

Returns

_MODEM_OK if everything went fine, any other int value otherwise.

Implemented in Msocket, and Msocket.

readFromModem() [1/2]

std::string UWMconnector::readFromModem

(

)

Method to check the receiving modem buffer.

Returns

return_str the string corresponding to the last received message from the modem

readFromModem() [2/2]

std::string UWMconnector::readFromModem

(

)

Method to check the receiving modem buffer.

Returns

return_str the string corresponding to the last received message from the modem

References LOG_LEVEL_ERROR, msgModem::msg_rx, pmDriver, UWMdriver::printOnLog(), and queueMsg.

Referenced by MdriverS2C_Evo_lowlev::start(), MdriverS2C_Evo_lowlev::stop(), and MdriverS2C_Evo_lowlev::updateStatus().

Here is the call graph for this function:

setDriverQueueLength() [1/2]

void UWMconnector::setDriverQueueLength

(

int

length

)

setDriverQueueLength() [2/2]

void UWMconnector::setDriverQueueLength

(

int

length

)

References driver_queue_length.

Referenced by UWMdriver::setConnections().

writeToModem() [1/2]

virtual int UWMconnector::writeToModem ( std::string  )

pure virtual

Method for writing to the modem.

Parameters

[in]

str

the string to pass to the modem

Returns

the number of transmitted bytes

Implemented in Msocket, and Msocket.

writeToModem() [2/2]

virtual int UWMconnector::writeToModem ( std::string  )

pure virtual

Method for writing to the modem.

Parameters

[in]

str

the string to pass to the modem

Returns

the number of transmitted bytes

Implemented in Msocket, and Msocket.

Member Data Documentation

driver_queue_length

uint UWMconnector::driver_queue_length

protected

Referenced by getDriverQueueLength(), and setDriverQueueLength().

pathToDevice

std::string UWMconnector::pathToDevice

protected

The path to be connected with the modem device

Referenced by Msocket::Msocket(), and UWMconnector().

pmDriver

UWMdriver * UWMconnector::pmDriver

protected

Pointer to UWMdriver object that contains this UWMconnector.

Referenced by readFromModem(), and UWMconnector().

queueMsg

std::queue< msgModem > UWMconnector::queueMsg

Queue used to buffer incoming strings from the modem.

Referenced by read_process_msocket(), and readFromModem().

---

The documentation for this class was generated from the following files:

• DESERT_Framework/DESERT/physical/uwmphy_modem/uwmconnector.h
• DESERT_Addons/uwmphy_modem/uwmconnector.h
• DESERT_Framework/DESERT/physical/uwmphy_modem/uwmconnector.cpp
• DESERT_Addons/uwmphy_modem/uwmconnector.cpp
