#include <msocket.h>

Inheritance diagram for Msocket:

[legend]

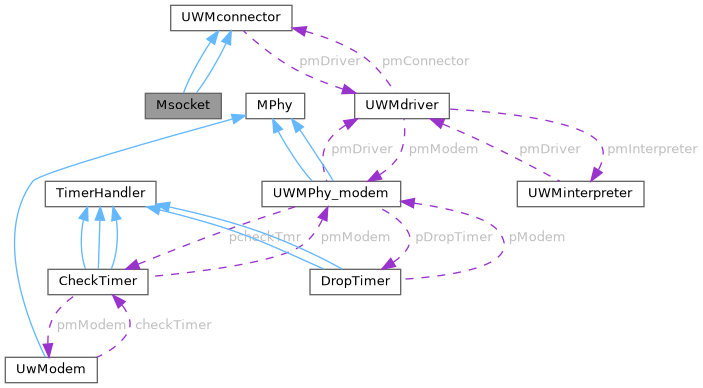

Collaboration diagram for Msocket:

[legend]

Public Member Functions
	Msocket (UWMdriver *, std::string)

	~Msocket ()

virtual int	openConnection ()

virtual void	closeConnection ()

virtual int	writeToModem (std::string)

int	getSocket ()

	Msocket (UWMdriver *, std::string)

	~Msocket ()

virtual int	openConnection ()

virtual void	closeConnection ()

virtual int	writeToModem (std::string)

int	getSocket ()

Public Member Functions inherited from UWMconnector
	UWMconnector (UWMdriver *, std::string)

	~UWMconnector ()

std::string	readFromModem ()

void	setDriverQueueLength (int length)

uint	getDriverQueueLength ()

	UWMconnector (UWMdriver *, std::string)

	~UWMconnector ()

std::string	readFromModem ()

void	setDriverQueueLength (int length)

uint	getDriverQueueLength ()

Private Member Functions
void	error (const char *)

void	error (const char *)

Private Attributes
int	sockfd

int	portno

int	rc

pthread_t	thread_id

struct sockaddr_in	serv_addr

std::string	server_host

struct hostent *	server

char	msg_tx [_MAX_MSG_LENGTH]

int	modem_queue_length

Additional Inherited Members
Public Attributes inherited from UWMconnector
std::queue< msgModem >	queueMsg

Protected Attributes inherited from UWMconnector
UWMdriver *	pmDriver

std::string	pathToDevice

uint	driver_queue_length

Detailed Description

Class used to manage host/modem string exchange via TCP/IP connection (this class is a derived class of UWMconnector).

Definition at line 60 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.h.

Constructor & Destructor Documentation

◆ Msocket() [1/2]

Msocket::Msocket	(	UWMdriver *	pmDriver_,
		std::string	portno_
	)

Class constructor.

Parameters

pmDriver_	pointer to the UWMdriver object to link with this UWMconnector object.
pathToDevice_	the path to the device that must be connected with NS-Miracle (e.g., the port "9200" for a TCP/IP connection)

Definition at line 50 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.cpp.

◆ ~Msocket() [1/2]

Msocket::~Msocket ( )

Class destructor.

Definition at line 69 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.cpp.

◆ Msocket() [2/2]

Msocket::Msocket	(	UWMdriver *	,
		std::string
	)

Class constructor.

Parameters

pmDriver_	pointer to the UWMdriver object to link with this UWMconnector object.
pathToDevice_	the path to the device that must be connected with NS-Miracle (e.g., the port "9200" for a TCP/IP connection)

◆ ~Msocket() [2/2]

Msocket::~Msocket ( )

Class destructor.

Member Function Documentation

◆ closeConnection() [1/2]

virtual void Msocket::closeConnection ( )

virtual

Method to close the connection with the modem.

Reimplemented from UWMconnector.

◆ closeConnection() [2/2]

void Msocket::closeConnection ( )

virtual

Method to close the connection with the modem.

Reimplemented from UWMconnector.

Definition at line 108 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.cpp.

◆ error() [1/2]

void Msocket::error ( const char * )

private

Method report errors.

Parameters

[in] msg pointer to an error message to report.

◆ error() [2/2]

void Msocket::error ( const char * msg )

private

Method report errors.

Parameters

[in] msg pointer to an error message to report.

Definition at line 44 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.cpp.

◆ getSocket() [1/2]

int Msocket::getSocket ( )

inline

Method to read the pointer to the socket where to write (it is needed by the reading function invoked by the parallel thread)

Returns: Msocket::sockfd

Definition at line 129 of file DESERT_Addons/uwmphy_modem/msocket.h.

◆ getSocket() [2/2]

int Msocket::getSocket ( )

inline

Method to read the pointer to the socket where to write (it is needed by the reading function invoked by the parallel thread)

Returns: Msocket::sockfd

Definition at line 129 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.h.

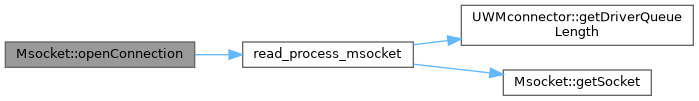

◆ openConnection() [1/2]

virtual int Msocket::openConnection ( )

virtual

Method to open the connection with the modem.

Returns: _MODEM_OK (see uwmconnector.h) if everything went fine, any other int value otherwise.

Implements UWMconnector.

◆ openConnection() [2/2]

int Msocket::openConnection ( )

virtual

Method to open the connection with the modem.

Returns: _MODEM_OK (see uwmconnector.h) if everything went fine, any other int value otherwise.

Implements UWMconnector.

Definition at line 74 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.cpp.

◆ writeToModem() [1/2]

virtual int Msocket::writeToModem ( std::string )

virtual

Method for writing to the modem.

Parameters

[in] str the string to pass to the modem

Returns: w_bytes, the number of transmitted bytes

Implements UWMconnector.

◆ writeToModem() [2/2]

int Msocket::writeToModem ( std::string str )

virtual

Method for writing to the modem.

Parameters

[in] str the string to pass to the modem

Returns: w_bytes, the number of transmitted bytes

Implements UWMconnector.

Definition at line 115 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.cpp.

Member Data Documentation

◆ modem_queue_length

int Msocket::modem_queue_length

private

Definition at line 76 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.h.

◆ msg_tx

char Msocket::msg_tx

private

Message to be transmitted host to modem.

Definition at line 74 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.h.

◆ portno

int Msocket::portno

private

Port number.

Definition at line 63 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.h.

◆ rc

int Msocket::rc

private

Indicator of the thread creation.

Definition at line 64 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.h.

◆ serv_addr

struct sockaddr_in Msocket::serv_addr

private

Structure to contain the Internet address to be used.

Definition at line 66 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.h.

◆ server

struct hostent * Msocket::server

private

Structure to define the server host.

Definition at line 73 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.h.

◆ server_host

std::string Msocket::server_host

private

Name of the server host on the Internet to which we want to be connected as client.

Definition at line 69 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.h.

◆ sockfd

int Msocket::sockfd

private

Pointer to the socket.

Definition at line 62 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.h.

◆ thread_id

pthread_t Msocket::thread_id

private

Id of a parallel thread.

Definition at line 65 of file DESERT_Framework/DESERT/physical/uwmphy_modem/msocket.h.

The documentation for this class was generated from the following files:
