#include <uwmphy_modem.h>

Inheritance diagram for UWMPhy_modem:

[legend]

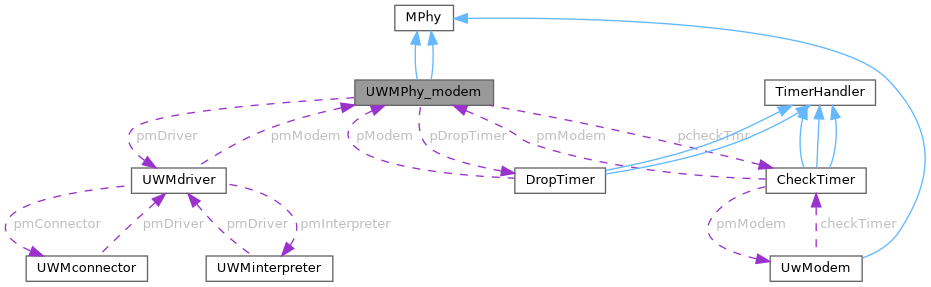

Collaboration diagram for UWMPhy_modem:

[legend]

Public Member Functions
	UWMPhy_modem (std::string)

	~UWMPhy_modem ()

virtual void	recv (Packet *)

virtual int	command (int, const char const )

virtual int	recvSyncClMsg (ClMessage *m)=0

int	getID ()

double	getPeriod ()

std::string	getPathToDevice ()

uint	getQueueLength ()

int	getDebug ()

std::string	getLogFile ()

log_level_t	getLogLevel ()

unsigned long int	getEpoch ()

void	updatePktRx (Packet *)

	UWMPhy_modem (std::string)

	~UWMPhy_modem ()

virtual void	recv (Packet *)

virtual int	command (int, const char const )

virtual int	recvSyncClMsg (ClMessage *m)=0

int	getID ()

double	getPeriod ()

std::string	getPathToDevice ()

uint	getQueueLength ()

int	getDebug ()

std::string	getLogFile ()

log_level_t	getLogLevel ()

unsigned long int	getEpoch ()

void	updatePktRx (Packet *)

Protected Member Functions
void	setConnections (CheckTimer , UWMdriver , DropTimer *)

virtual void	start ()

virtual void	stop ()

virtual modem_state_t	check_modem ()=0

virtual void	startTx (Packet *)

virtual void	endTx (Packet *)

virtual void	startRx (Packet *)

virtual void	endRx (Packet *)

Packet *	popTxBuff ()

virtual double	getTxDuration (Packet *p)

virtual int	getModulationType (Packet *p)

void	setConnections (CheckTimer , UWMdriver , DropTimer *)

virtual void	start ()

virtual void	stop ()

virtual modem_state_t	check_modem ()=0

virtual void	startTx (Packet *)

virtual void	endTx (Packet *)

virtual void	startRx (Packet *)

virtual void	endRx (Packet *)

Packet *	popTxBuff ()

virtual double	getTxDuration (Packet *p)

virtual int	getModulationType (Packet *p)

Protected Attributes
CheckTimer *	pcheckTmr

UWMdriver *	pmDriver

DropTimer *	pDropTimer

int	ID

double	period

Packet *	modemTxBuff [_MTBL]

int	t

Packet *	PktRx

std::string	pToDevice

int	debug_

std::ofstream	outLog

std::string	logFile

char *	log_suffix

int	loglevel_

int	SetModemID

uint	queue_length

Friends
class	CheckTimer

class	DropTimer

Detailed Description

The main class implementing the module used to implement the interface between ns2/NS-Miracle and real acoustic modems.

UWMPhy_modem (as well as its possible derived classes) handles all the messages needed by NS-Miracle (e.g., cross-layer messages between MAC and PHY) and contains all the variables set by the tcl-user; furthermore, this module coordinates the interactions between UWMcodec and UWMdriver. This class replaces the physical layer of NS-Miracle and inherits from MPhy (see NS-Miracle documentation at http://telecom.dei.unipd.it/ns/miracle/doxygen/classMPhy.html).

Definition at line 86 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

Constructor & Destructor Documentation

◆ UWMPhy_modem() [1/2]

UWMPhy_modem::UWMPhy_modem ( std::string pToDevice_ )

Class constructor.

Parameters

pToDevice_ the path to the device that must be connected with NS-Miracle (e.g., /dev/ttyUSB0 for a serial connection)

Definition at line 39 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

◆ ~UWMPhy_modem() [1/2]

UWMPhy_modem::~UWMPhy_modem ( )

Class destructor.

Definition at line 69 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

◆ UWMPhy_modem() [2/2]

UWMPhy_modem::UWMPhy_modem ( std::string )

Class constructor.

Parameters

pToDevice_ the path to the device that must be connected with NS-Miracle (e.g., /dev/ttyUSB0 for a serial connection)

◆ ~UWMPhy_modem() [2/2]

UWMPhy_modem::~UWMPhy_modem ( )

Class destructor.

Member Function Documentation

◆ check_modem() [1/2]

virtual modem_state_t UWMPhy_modem::check_modem ( )

protectedpure virtual

Modem checker.

This method is at the core of the "check-modem" process. It is called periodically by the timer object linked to this UWMPhy_modem object (see UWMPhy_modem::checkTmr_); its due is to verify if something has been received or is going to be received from the channel.

Returns: modemStatus, a flag on the status of the modem, see UWMdriver for a description of the driver state machine.

Implemented in MS2C_Evo_lowlev.

◆ check_modem() [2/2]

virtual modem_state_t UWMPhy_modem::check_modem ( )

protectedpure virtual

Modem checker.

This method is at the core of the "check-modem" process. It is called periodically by the timer object linked to this UWMPhy_modem object (see UWMPhy_modem::checkTmr_); its due is to verify if something has been received or is going to be received from the channel.

Returns: modemStatus, a flag on the status of the modem, see UWMdriver for a description of the driver state machine.

Implemented in MS2C_Evo_lowlev.

◆ command() [1/2]

virtual int UWMPhy_modem::command	(	int	,
		const char const
	)

virtual

Method to map tcl commands into c++ methods.

Parameters

argc	number of arguments in argv
argv	array of arguments where argv[3] is the tcl command name and argv[4, 5, ...] are the parameters for the corresponding c++ method.

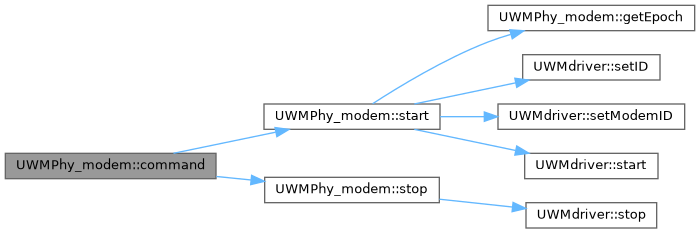

◆ command() [2/2]

int UWMPhy_modem::command	(	int	argc,
		const char const	argv
	)

virtual

Method to map tcl commands into c++ methods.

Parameters

argc	number of arguments in argv
argv	array of arguments where argv[3] is the tcl command name and argv[4, 5, ...] are the parameters for the corresponding c++ method.

Definition at line 74 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

◆ endRx() [1/2]

virtual void UWMPhy_modem::endRx ( Packet * )

protectedvirtual

Method to end a packet reception.

This method is also in charge to send the received NS-Miracle packet (as recovered from the received acoustic packet) to the above layers of the simulator.

Parameters

p	pointer to the last received packet.

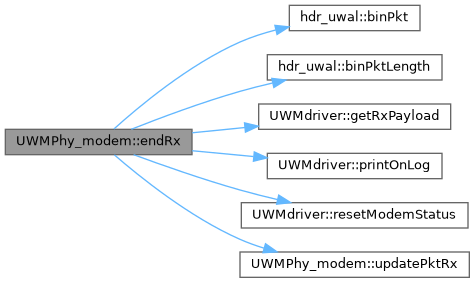

◆ endRx() [2/2]

void UWMPhy_modem::endRx ( Packet * p )

protectedvirtual

Method to end a packet reception.

This method is also in charge to send the received NS-Miracle packet (as recovered from the received acoustic packet) to the above layers of the simulator.

Parameters

p	pointer to the last received packet.

Definition at line 229 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

◆ endTx() [1/2]

virtual void UWMPhy_modem::endTx ( Packet * )

protectedvirtual

Method to end a packet transmission.

This method is also in charge to send a cross layer message Phy2MacEndTx(p) to notify the above layers of the simulator about the end of a transmission, see http://telecom.dei.unipd.it/ns/miracle/doxygen/classMPhy.html#c8c2f52d3833fed8ac736aca0ee52c98.

Parameters

p	pointer to the last transmitted packet.

◆ endTx() [2/2]

void UWMPhy_modem::endTx ( Packet * p )

protectedvirtual

Method to end a packet transmission.

This method is also in charge to send a cross layer message Phy2MacEndTx(p) to notify the above layers of the simulator about the end of a transmission, see http://telecom.dei.unipd.it/ns/miracle/doxygen/classMPhy.html#c8c2f52d3833fed8ac736aca0ee52c98.

Parameters

p	pointer to the last transmitted packet.

Definition at line 211 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

◆ getDebug() [1/2]

int UWMPhy_modem::getDebug ( )

inline

Method to return the flag used to enable debug messages.

Returns: UWMPhy_modem::debug_

Definition at line 177 of file DESERT_Addons/uwmphy_modem/uwmphy_modem.h.

◆ getDebug() [2/2]

int UWMPhy_modem::getDebug ( )

inline

Method to return the flag used to enable debug messages.

Returns: UWMPhy_modem::debug_

Definition at line 177 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ getEpoch() [1/2]

unsigned long int UWMPhy_modem::getEpoch ( )

inline

Calculate the epoch of the event.

Used in sea-trial mode

Returns: the epoch of the system

Definition at line 209 of file DESERT_Addons/uwmphy_modem/uwmphy_modem.h.

◆ getEpoch() [2/2]

unsigned long int UWMPhy_modem::getEpoch ( )

inline

Calculate the epoch of the event.

Used in sea-trial mode

Returns: the epoch of the system

Definition at line 209 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ getID() [1/2]

int UWMPhy_modem::getID ( )

inline

Method to return the node ID.

Returns: UWMPhy_modem::ID

Definition at line 137 of file DESERT_Addons/uwmphy_modem/uwmphy_modem.h.

◆ getID() [2/2]

int UWMPhy_modem::getID ( )

inline

Method to return the node ID.

Returns: UWMPhy_modem::ID

Definition at line 137 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ getLogFile() [1/2]

std::string UWMPhy_modem::getLogFile ( )

inline

Method to return the name of the file where to log messages.

Returns: UWMPhy_modem::logFile

Definition at line 187 of file DESERT_Addons/uwmphy_modem/uwmphy_modem.h.

◆ getLogFile() [2/2]

std::string UWMPhy_modem::getLogFile ( )

inline

Method to return the name of the file where to log messages.

Returns: UWMPhy_modem::logFile

Definition at line 187 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ getLogLevel() [1/2]

log_level_t UWMPhy_modem::getLogLevel ( )

inline

Method to return the flag used to enable the printing of log messages in UWMPhy_modem::logFile.

Returns: UWMPhy_modem::log_

Definition at line 199 of file DESERT_Addons/uwmphy_modem/uwmphy_modem.h.

◆ getLogLevel() [2/2]

log_level_t UWMPhy_modem::getLogLevel ( )

inline

Method to return the flag used to enable the printing of log messages in UWMPhy_modem::logFile.

Returns: UWMPhy_modem::log_

Definition at line 199 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ getModulationType() [1/2]

virtual int UWMPhy_modem::getModulationType ( Packet * p )

inlineprotectedvirtual

Method to get the modulation type used to transmit/receive a given packet.

NOTE: not implemented or used at the moment.

Parameters

p	a pointer to the packet for which to return the modulation used.

Returns: the modulation type.

Definition at line 366 of file DESERT_Addons/uwmphy_modem/uwmphy_modem.h.

◆ getModulationType() [2/2]

virtual int UWMPhy_modem::getModulationType ( Packet * p )

inlineprotectedvirtual

Method to get the modulation type used to transmit/receive a given packet.

NOTE: not implemented or used at the moment.

Parameters

p	a pointer to the packet for which to return the modulation used.

Returns: the modulation type.

Definition at line 366 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ getPathToDevice() [1/2]

std::string UWMPhy_modem::getPathToDevice ( )

inline

Method to return the path to the device to be connect with the network simulator.

Returns: UWMPhy_modem::pToDevice

Definition at line 160 of file DESERT_Addons/uwmphy_modem/uwmphy_modem.h.

◆ getPathToDevice() [2/2]

std::string UWMPhy_modem::getPathToDevice ( )

inline

Method to return the path to the device to be connect with the network simulator.

Returns: UWMPhy_modem::pToDevice

Definition at line 160 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ getPeriod() [1/2]

double UWMPhy_modem::getPeriod ( )

inline

Method to return the checking period of the modem (i.e., the time interval between two succesive checks on the modem buffer).

Returns: UWMPhy_modem::period

Definition at line 148 of file DESERT_Addons/uwmphy_modem/uwmphy_modem.h.

◆ getPeriod() [2/2]

double UWMPhy_modem::getPeriod ( )

inline

Method to return the checking period of the modem (i.e., the time interval between two succesive checks on the modem buffer).

Returns: UWMPhy_modem::period

Definition at line 148 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ getQueueLength() [1/2]

uint UWMPhy_modem::getQueueLength ( )

inline

Definition at line 166 of file DESERT_Addons/uwmphy_modem/uwmphy_modem.h.

◆ getQueueLength() [2/2]

uint UWMPhy_modem::getQueueLength ( )

inline

Definition at line 166 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ getTxDuration() [1/2]

virtual double UWMPhy_modem::getTxDuration ( Packet * p )

inlineprotectedvirtual

Method to get the transmission duration for a given packet.

NOTE: not implemented or used at the moment.

Parameters

p	a pointer to the packet for which to return the duration.

Returns: the transmission duration.

Definition at line 353 of file DESERT_Addons/uwmphy_modem/uwmphy_modem.h.

◆ getTxDuration() [2/2]

virtual double UWMPhy_modem::getTxDuration ( Packet * p )

inlineprotectedvirtual

Method to get the transmission duration for a given packet.

NOTE: not implemented or used at the moment.

Parameters

p	a pointer to the packet for which to return the duration.

Returns: the transmission duration.

Definition at line 353 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ popTxBuff() [1/2]

Packet * UWMPhy_modem::popTxBuff ( )

protected

Method to pop the oldest packet in the TX buffer or to delete after a tx or to drop it.

Parameters

temp	pointer to the popped packet.

◆ popTxBuff() [2/2]

Packet * UWMPhy_modem::popTxBuff ( )

protected

Method to pop the oldest packet in the TX buffer or to delete after a tx or to drop it.

Parameters

temp	pointer to the popped packet.

Definition at line 248 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

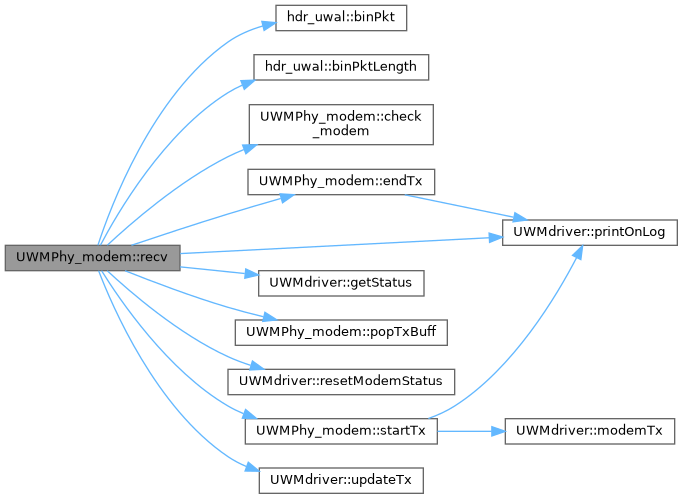

◆ recv() [1/2]

virtual void UWMPhy_modem::recv ( Packet * )

virtual

Method to handle the reception of packets arriving from the upper layers of the network simulator.

Parameters

p	pointer to the packet that has been received from the simulator's upper layers.

◆ recv() [2/2]

void UWMPhy_modem::recv ( Packet * p )

virtual

Method to handle the reception of packets arriving from the upper layers of the network simulator.

Parameters

p	pointer to the packet that has been received from the simulator's upper layers.

Definition at line 106 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

◆ recvSyncClMsg() [1/2]

virtual int UWMPhy_modem::recvSyncClMsg ( ClMessage * m )

pure virtual

Implemented in MS2C_Evo_lowlev.

◆ recvSyncClMsg() [2/2]

virtual int UWMPhy_modem::recvSyncClMsg ( ClMessage * m )

pure virtual

Implemented in MS2C_Evo_lowlev.

◆ setConnections() [1/2]

void UWMPhy_modem::setConnections	(	CheckTimer *	,
		UWMdriver *	,
		DropTimer *
	)

protected

Link connector.

This method must be used by any derived class D of UWMPhy_modem to link the members pcheckTmr, pmDriver and pmCodec to the corresponding derived objects contained in D;

See also: e.g., MFSK_WHOI_MM or MS2C_EvoLogics

Parameters

[in]	pcheckTmr_	pointer to a CheckTimer object
[in]	pmDriver_	pointer to an UWMdriver object
[in]	pmCodec_	pointer to an UWMcodec object
[out]	pcheckTmr	(i.e., the member UWMPhy_modem::pcheckTmr)
[out]	pmDriver	(i.e., the member UWMPhy_modem::pmDriver)
[out]	pmCodec	(i.e., the member UWMPhy_modem::pmCodec)

◆ setConnections() [2/2]

void UWMPhy_modem::setConnections	(	CheckTimer *	pcheckTmr_,
		UWMdriver *	pmDriver_,
		DropTimer *	pDropTimer_
	)

protected

Link connector.

This method must be used by any derived class D of UWMPhy_modem to link the members pcheckTmr, pmDriver and pmCodec to the corresponding derived objects contained in D;

See also: e.g., MFSK_WHOI_MM or MS2C_EvoLogics

Parameters

[in]	pcheckTmr_	pointer to a CheckTimer object
[in]	pmDriver_	pointer to an UWMdriver object
[in]	pmCodec_	pointer to an UWMcodec object
[out]	pcheckTmr	(i.e., the member UWMPhy_modem::pcheckTmr)
[out]	pmDriver	(i.e., the member UWMPhy_modem::pmDriver)
[out]	pmCodec	(i.e., the member UWMPhy_modem::pmCodec)

Definition at line 158 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

◆ start() [1/2]

virtual void UWMPhy_modem::start ( )

protectedvirtual

Connection starter.

This method starts the connection with the modem. It performs all the needed operations to open an host-modem connection (e.g., set up of the connection port's parameters, start of the "check-modem" process).

◆ start() [2/2]

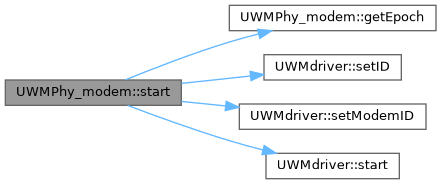

void UWMPhy_modem::start ( )

protectedvirtual

Connection starter.

This method starts the connection with the modem. It performs all the needed operations to open an host-modem connection (e.g., set up of the connection port's parameters, start of the "check-modem" process).

Definition at line 167 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

◆ startRx() [1/2]

virtual void UWMPhy_modem::startRx ( Packet * )

protectedvirtual

Method to start a packet reception.

This method is also in charge to send a cross layer message Phy2MacStartRx(p) to notify the above layers of the simulator about the start of a reception, see http://telecom.dei.unipd.it/ns/miracle/doxygen/classMPhy.html#a15cc91b98013e1c631ad85072867ab6.

Parameters

p	pointer to the last received packet.

◆ startRx() [2/2]

void UWMPhy_modem::startRx ( Packet * p )

protectedvirtual

Method to start a packet reception.

This method is also in charge to send a cross layer message Phy2MacStartRx(p) to notify the above layers of the simulator about the start of a reception, see http://telecom.dei.unipd.it/ns/miracle/doxygen/classMPhy.html#a15cc91b98013e1c631ad85072867ab6.

Parameters

p	pointer to the last received packet.

Definition at line 220 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

◆ startTx() [1/2]

virtual void UWMPhy_modem::startTx ( Packet * )

protectedvirtual

Method to send to an UWMdriver object the packet to be transmitted, see UWMdriver::modemTx().

Parameters

p	pointer to the packet to be transmitted.

◆ startTx() [2/2]

void UWMPhy_modem::startTx ( Packet * p )

protectedvirtual

Method to send to an UWMdriver object the packet to be transmitted, see UWMdriver::modemTx().

Parameters

p	pointer to the packet to be transmitted.

Definition at line 202 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

◆ stop() [1/2]

virtual void UWMPhy_modem::stop ( )

protectedvirtual

Connection stopper.

This method should be used before stopping the simulation. It closes and, if needed, resets all the opened files and ports.

◆ stop() [2/2]

void UWMPhy_modem::stop ( )

protectedvirtual

Connection stopper.

This method should be used before stopping the simulation. It closes and, if needed, resets all the opened files and ports.

Definition at line 195 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

◆ updatePktRx() [1/2]

void UWMPhy_modem::updatePktRx ( Packet * )

Method to update the value of the pointer to the last received packet.

This method should be used by an object of the class UWMcodec.

See also: UWMcodec

Parameters

[in]	p	pointer to the last received packet (recovered from the last received acoustic message)
[out]	PktRx	(i.e., the member UWMPhy_modem::PktRx)

◆ updatePktRx() [2/2]

void UWMPhy_modem::updatePktRx ( Packet * p )

Method to update the value of the pointer to the last received packet.

This method should be used by an object of the class UWMcodec.

See also: UWMcodec

Parameters

[in]	p	pointer to the last received packet (recovered from the last received acoustic message)
[out]	PktRx	(i.e., the member UWMPhy_modem::PktRx)

Definition at line 100 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.cpp.

Friends And Related Symbol Documentation

◆ CheckTimer

CheckTimer

friend

Friend class used to implement the timer handler.

See also: CheckTimer

Definition at line 93 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ DropTimer

DropTimer

friend

Definition at line 95 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

Member Data Documentation

◆ debug_

int UWMPhy_modem::debug_

protected

Flag to enable debug mode (i.e., printing of debug messages) if set to 1.

Definition at line 245 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ ID

int UWMPhy_modem::ID

protected

ID of the node.

NOTE: when the node transmits, this value must coincide with the source ID.

Definition at line 232 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ log_suffix

char * UWMPhy_modem::log_suffix

protected

Possibility to insert a log suffix.

Definition at line 251 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ logFile

std::string UWMPhy_modem::logFile

protected

Name of the disk-file where to write the interface's log messages.

Definition at line 249 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ loglevel_

int UWMPhy_modem::loglevel_

protected

Log level on file, from ERROR (0) to DEBUG (2) in UWMPhy_modem::logFile.

Definition at line 252 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ modemTxBuff

Packet * UWMPhy_modem::modemTxBuff

protected

Transmission buffer to store packets that cannot be sent immediately because the real acoustic modem is busy (receiving or transmitting).

Definition at line 235 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ outLog

std::ofstream UWMPhy_modem::outLog

protected

output strem to print into a disk-file log messages.

See UWMPhy_modem::logFile.

Definition at line 247 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ pcheckTmr

CheckTimer * UWMPhy_modem::pcheckTmr

protected

Pointer to an object to schedule the "check-modem" events.

Definition at line 226 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ pDropTimer

DropTimer * UWMPhy_modem::pDropTimer

protected

Definition at line 230 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ period

double UWMPhy_modem::period

protected

Checking period of the modem's buffer.

Definition at line 234 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ PktRx

Packet * UWMPhy_modem::PktRx

protected

Transmission buffer's index; it must be in {-1, 0, 1, ..., _MTBL-1}.

Address of the last received packet.

Definition at line 241 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ pmDriver

UWMdriver * UWMPhy_modem::pmDriver

protected

Pointer to an object to drive the modem operations.

Definition at line 228 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ pToDevice

std::string UWMPhy_modem::pToDevice

protected

A string containing the path to the device to be connected with the network simulator.

Definition at line 242 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ queue_length

uint UWMPhy_modem::queue_length

protected

Definition at line 256 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ SetModemID

int UWMPhy_modem::SetModemID

protected

Flag to indicate if the interface has to force the modem to have the ID indicated in the tcl script.

Definition at line 254 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

◆ t

int UWMPhy_modem::t

protected

Definition at line 239 of file DESERT_Framework/DESERT/physical/uwmphy_modem/uwmphy_modem.h.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ UWMPhy_modem() [1/2]

◆ ~UWMPhy_modem() [1/2]

◆ UWMPhy_modem() [2/2]

◆ ~UWMPhy_modem() [2/2]

Member Function Documentation

◆ check_modem() [1/2]

◆ check_modem() [2/2]

◆ command() [1/2]

◆ command() [2/2]

◆ endRx() [1/2]

◆ endRx() [2/2]

◆ endTx() [1/2]

◆ endTx() [2/2]

◆ getDebug() [1/2]

◆ getDebug() [2/2]

◆ getEpoch() [1/2]

◆ getEpoch() [2/2]

◆ getID() [1/2]

◆ getID() [2/2]

◆ getLogFile() [1/2]

◆ getLogFile() [2/2]

◆ getLogLevel() [1/2]

◆ getLogLevel() [2/2]

◆ getModulationType() [1/2]

◆ getModulationType() [2/2]

◆ getPathToDevice() [1/2]

◆ getPathToDevice() [2/2]

◆ getPeriod() [1/2]

◆ getPeriod() [2/2]

◆ getQueueLength() [1/2]

◆ getQueueLength() [2/2]

◆ getTxDuration() [1/2]

◆ getTxDuration() [2/2]

◆ popTxBuff() [1/2]

◆ popTxBuff() [2/2]

◆ recv() [1/2]

◆ recv() [2/2]

◆ recvSyncClMsg() [1/2]

◆ recvSyncClMsg() [2/2]

◆ setConnections() [1/2]

◆ setConnections() [2/2]

◆ start() [1/2]

◆ start() [2/2]

◆ startRx() [1/2]

◆ startRx() [2/2]

◆ startTx() [1/2]

◆ startTx() [2/2]

◆ stop() [1/2]

◆ stop() [2/2]

◆ updatePktRx() [1/2]

◆ updatePktRx() [2/2]

Friends And Related Symbol Documentation

◆ CheckTimer

◆ DropTimer

Member Data Documentation

◆ debug_

◆ ID

◆ log_suffix

◆ logFile

◆ loglevel_

◆ modemTxBuff

◆ outLog

◆ pcheckTmr

◆ pDropTimer

◆ period

◆ PktRx

◆ pmDriver

◆ pToDevice

◆ queue_length

◆ SetModemID

◆ t
