hdr_uwal Struct Reference

#include <hdr-uwal.h>

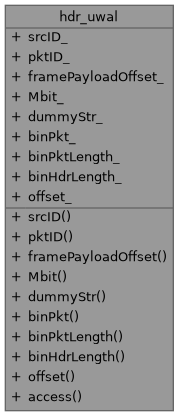

Collaboration diagram for hdr_uwal:
Collaboration graph

Public Member Functions

uint8_t & srcID ()

unsigned int & pktID ()

uint16_t & framePayloadOffset ()

uint8_t & Mbit ()

char * dummyStr ()

char * binPkt ()

uint32_t & binPktLength ()

uint32_t & binHdrLength ()


Static Public Member Functions

static int & offset ()

static struct hdr_uwal * access (const Packet *p)


Public Attributes

uint8_t srcID_

unsigned int pktID_

uint16_t framePayloadOffset_

uint8_t Mbit_

char dummyStr_ [MAX_DUMMY_STRING_LENGTH]

char binPkt_ [MAX_BIN_PKT_ARRAY_LENGTH]

uint32_t binPktLength_

uint32_t binHdrLength_


Static Public Attributes

static int offset_


Detailed Description

hdr_uwal describes the packet header used by Uwal objects.

Member Function Documentation

◆ access()

static struct hdr_uwal * hdr_uwal::access ( const Packet *  p)
inlinestatic

References access(), and offset_.

Referenced by access().

Here is the call graph for this function:

◆ binHdrLength()

uint32_t & hdr_uwal::binHdrLength ( )
inline

Reference to the binHdrLength_ variable.

References binHdrLength_.

Referenced by Uwal::checkRxFrameSet(), Uwal::fragmentPkt(), Uwal::initializeHdr(), packer::packHdr(), Uwal::reassembleFrames(), packer::unpackHdr(), and packer::unpackPayload().

◆ binPkt()

char * hdr_uwal::binPkt ( )
inline

Return to the binPkt_ array pointer.

References binPkt_.

Referenced by Uwal::checkRxFrameSet(), UwAhoiModem::createRxPacket(), UwEvoLogicsS2CModem::createRxPacket(), UwMODAModem::createRxPacket(), UwModemCSA::createRxPacket(), UWMPhy_modem::endRx(), UwAhoiModem::fillAhoiPkt(), Uwal::fragmentPkt(), Uwal::initializeHdr(), packer::packHdr(), packer::packPayload(), Uwal::reassembleFrames(), UWMPhy_modem::recv(), UwEvoLogicsS2CModem::startTx(), UwMODAModem::startTx(), UwModemCSA::startTx(), packer::unpackHdr(), and packer::unpackPayload().

◆ binPktLength()

uint32_t & hdr_uwal::binPktLength ( )
inline

Reference to the binPktLength_ variable.

References binPktLength_.

Referenced by Uwal::checkRxFrameSet(), UwAhoiModem::createRxPacket(), UwEvoLogicsS2CModem::createRxPacket(), UwMODAModem::createRxPacket(), UwModemCSA::createRxPacket(), UWMPhy_modem::endRx(), UwAhoiModem::fillAhoiPkt(), Uwal::fragmentPkt(), UwEvoLogicsS2CModem::getTxDuration(), UwMODAModem::getTxDuration(), Uwal::initializeHdr(), packer::packHdr(), packer::packPayload(), Uwal::reassembleFrames(), UWMPhy_modem::recv(), UwEvoLogicsS2CModem::startTx(), UwMODAModem::startTx(), UwModemCSA::startTx(), and packer::unpackPayload().

◆ dummyStr()

char * hdr_uwal::dummyStr ( )
inline

Return the pointer to the dummyStr_ array.

References dummyStr_.

Referenced by Uwal::initializeHdr(), and packer::printMyHdrField().

◆ framePayloadOffset()

uint16_t & hdr_uwal::framePayloadOffset ( )
inline

Reference to the frameOffset_ variable.

References framePayloadOffset_.

Referenced by Uwal::fragmentPkt(), Uwal::initializeHdr(), packer::printMyHdrField(), and Uwal::reassembleFrames().

◆ Mbit()

uint8_t & hdr_uwal::Mbit ( )
inline

Reference to the Mbit_ variable.

References Mbit_.

Referenced by Uwal::fragmentPkt(), Uwal::initializeHdr(), packer::printMyHdrField(), Uwal::reassembleFrames(), Uwal::recvSyncClMsg(), and Uwal::startTx().

◆ offset()

static int & hdr_uwal::offset ( )
inlinestatic

References offset_.

◆ pktID()

unsigned int & hdr_uwal::pktID ( )
inline

Reference to the pktID_ variable.

References pktID_.

Referenced by Uwal::fragmentPkt(), Uwal::initializeHdr(), packer::printMyHdrField(), and Uwal::reassembleFrames().

◆ srcID()

uint8_t & hdr_uwal::srcID ( )
inline

Reference to the srcID_ variable.

References srcID_.

Referenced by Uwal::checkRxFrameSet(), Uwal::initializeHdr(), packer::printMyHdrField(), Uwal::reassembleFrames(), and UwAhoiModem::storePacketInfo().

Member Data Documentation

◆ binHdrLength_

uint32_t hdr_uwal::binHdrLength_

number of chars in binPkt_ to consider as header.

Referenced by binHdrLength().

◆ binPkt_

char hdr_uwal::binPkt_[MAX_BIN_PKT_ARRAY_LENGTH]

array to store binary data as encoded from or to be decoded to this NS-Miracle packet header (NOTE: this CANNOT be fragmented) and the active packers linked to packer.

See also
classes packer and uwmphy_modem

Referenced by binPkt().

◆ binPktLength_

uint32_t hdr_uwal::binPktLength_

number of chars in binPkt_ to consider.

Referenced by binPktLength().

◆ dummyStr_

char hdr_uwal::dummyStr_[MAX_DUMMY_STRING_LENGTH]

array containing a dummy string.

Referenced by dummyStr(), packer::packMyHdr(), and packer::unpackMyHdr().

◆ framePayloadOffset_

uint16_t hdr_uwal::framePayloadOffset_

Offset of the frame payload.

Referenced by framePayloadOffset(), packer::packMyHdr(), and packer::unpackMyHdr().

◆ Mbit_

uint8_t hdr_uwal::Mbit_

M bit: if set to 0 the current frame is the last or the only one; if set to 1 the current frame is not the last.

Referenced by Mbit(), packer::packMyHdr(), and packer::unpackMyHdr().

◆ offset_

int hdr_uwal::offset_
static

Referenced by access(), and offset().

◆ pktID_

unsigned int hdr_uwal::pktID_

ID of the packet.

Referenced by packer::packMyHdr(), pktID(), and packer::unpackMyHdr().

◆ srcID_

uint8_t hdr_uwal::srcID_

ID of the packet's source node.

Referenced by packer::packMyHdr(), srcID(), and packer::unpackMyHdr().
