#include <uwal.h>

Inheritance diagram for Uwal:

Collaboration diagram for Uwal:

Public Member Functions
	Uwal ()

	~Uwal ()

virtual int	recvSyncClMsg (ClMessage *m)

virtual void	recv (Packet *)

virtual int	command (int, const char const )

size_t	getPSDU ()

Protected Member Functions
void	ALqueueManager ()

void	initializeHdr (Packet *, unsigned int)

void	fragmentPkt (Packet *)

void	reassembleFrames (Packet *)

void	checkRxFrameSet ()

virtual void	startTx (Packet *)

virtual void	endTx (Packet *)

virtual void	startRx (Packet *)

virtual void	endRx (Packet *)

virtual double	getTxDuration (Packet *)

virtual int	getModulationType (Packet *)

virtual bool	isInPERList (int mac_addr)

virtual double	getPERfromID (int mac_addr)

Protected Attributes
int	nodeID

unsigned int	pkt_counter

packer *	pPacker

size_t	PSDU

string	dummyStr

int	debug_

std::queue< Packet * >	sendDownPkts

std::queue< Packet * >	sendDownFrames

std::queue< Packet * >	sendUpFrames

std::queue< Packet * >	sendUpPkts

list< PERListElement >	PERList

std::map< RxFrameSetKey, RxFrameSet >	sendUpFrameSet

Private Attributes
TxFrameTimer	InterframeTmr

double	interframe_period

double	frame_set_validity

int	frame_padding

int	force_endTx_

bool	has_tap_clmsg

Friends
class	TxFrameTimer

Detailed Description

The main class implementing the module used to implement the adaptation layer between ns2/NS-Miracle and binary data packets.

Constructor & Destructor Documentation

◆ Uwal()

Uwal::Uwal ( )

Class constructor.

References debug_, dummyStr, force_endTx_, frame_padding, frame_set_validity, interframe_period, nodeID, and PSDU.

◆ ~Uwal()

Uwal::~Uwal ( )

Class destructor.

References InterframeTmr.

Member Function Documentation

◆ ALqueueManager()

void Uwal::ALqueueManager ( )

protected

Method responsible to manage the queueing system of Adaptation Layer

References ALqueueManager(), checkRxFrameSet(), endRx(), fragmentPkt(), reassembleFrames(), sendDownFrames, sendDownPkts, sendUpFrames, sendUpPkts, startRx(), and startTx().

Referenced by ALqueueManager(), TxFrameTimer::expire(), and recv().

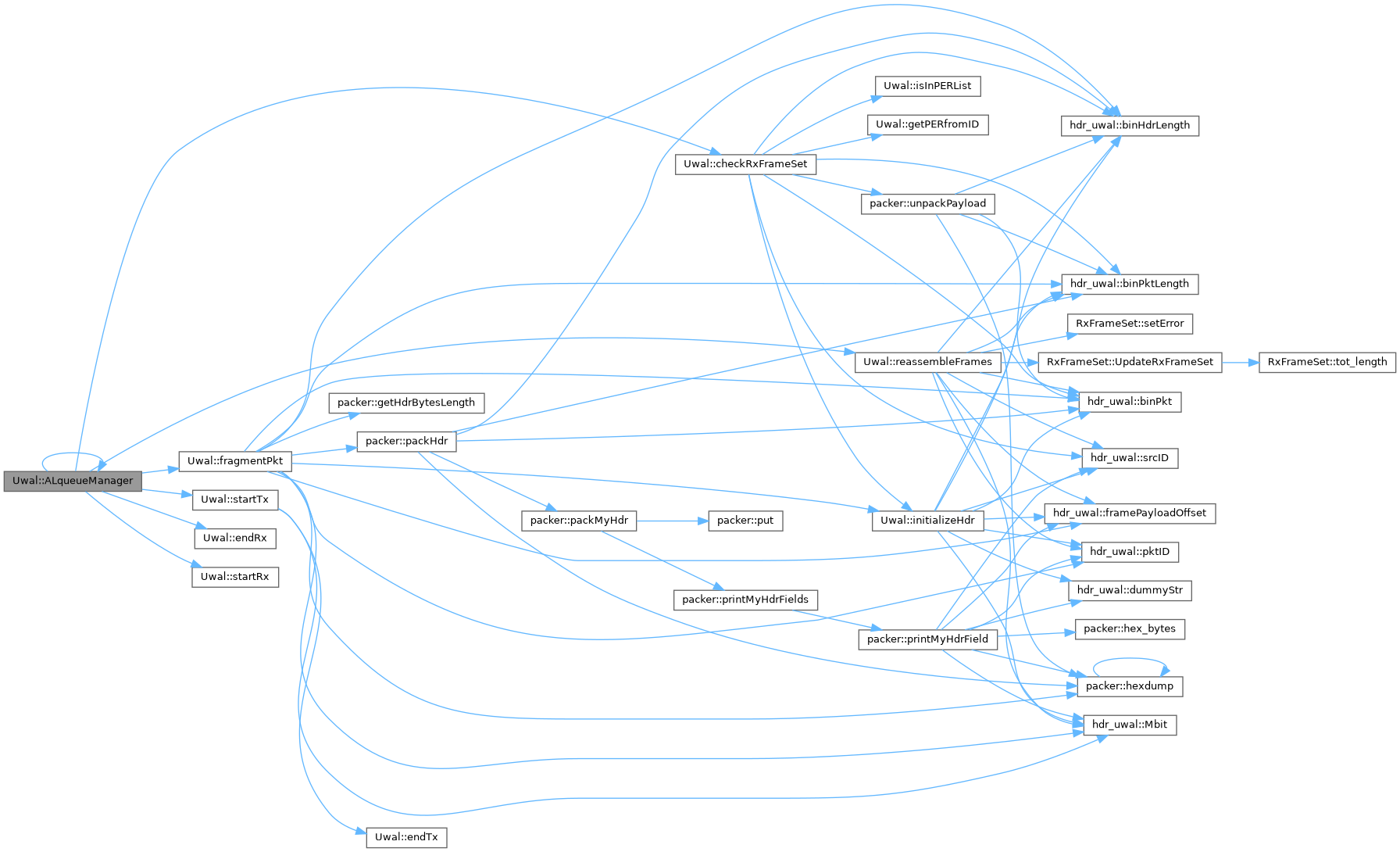

Here is the call graph for this function:

◆ checkRxFrameSet()

void Uwal::checkRxFrameSet ( )

protected

Method responsible to check for errors the received frames

References hdr_uwal::binHdrLength(), hdr_uwal::binPkt(), hdr_uwal::binPktLength(), debug_, frame_set_validity, getPERfromID(), initializeHdr(), isInPERList(), nodeID, pPacker, sendUpFrameSet, sendUpPkts, hdr_uwal::srcID(), and packer::unpackPayload().

Referenced by ALqueueManager().

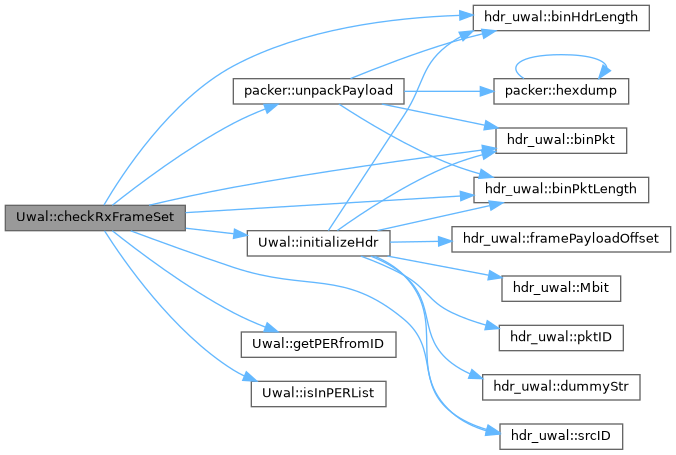

Here is the call graph for this function:

◆ command()

int Uwal::command	(	int	argc,
		const char const	argv
	)

virtual

Method to map tcl commands into c++ methods.

Parameters

argc	number of arguments in argv
argv	array of arguments where argv[3] is the tcl command name and argv[4, 5, ...] are the parameters for the corresponding c++ method.

References dummyStr, PERListElement::node_ID, PERListElement::per, PERList, pPacker, and PSDU.

◆ endRx()

void Uwal::endRx ( Packet * p )

protectedvirtual

Method to end a packet reception.

Parameters

p	pointer to the last received packet.

Referenced by ALqueueManager().

◆ endTx()

void Uwal::endTx ( Packet * p )

protectedvirtual

Method to end a packet transmission. This method is also in charge to send a cross layer message Phy2MacEndTx(p) to notify the above layers of the simulator about the end of a transmission, see http://telecom.dei.unipd.it/ns/miracle/doxygen/classMPhy.html#c8c2f52d3833fed8ac736aca0ee52c98.

Parameters

p	pointer to the last transmitted packet.

Referenced by startTx().

◆ fragmentPkt()

void Uwal::fragmentPkt ( Packet * p )

protected

Method responsible to fragment the packet

Parameters

Pointer to the packet that are going to be fragmented

References hdr_uwal::binHdrLength(), hdr_uwal::binPkt(), hdr_uwal::binPktLength(), debug_, frame_padding, hdr_uwal::framePayloadOffset(), packer::getHdrBytesLength(), packer::hexdump(), initializeHdr(), hdr_uwal::Mbit(), packer::packHdr(), hdr_uwal::pktID(), pPacker, PSDU, and sendDownFrames.

Referenced by ALqueueManager().

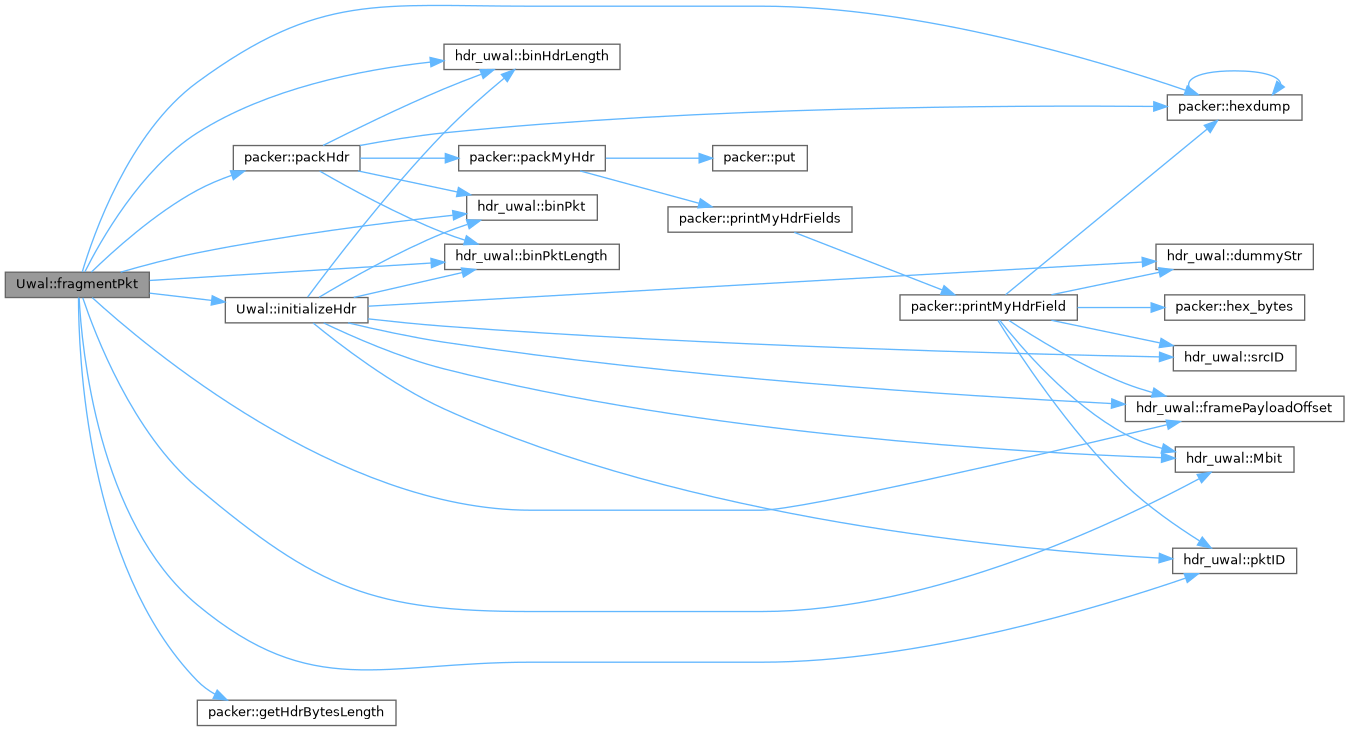

Here is the call graph for this function:

◆ getModulationType()

virtual int Uwal::getModulationType ( Packet * )

inlineprotectedvirtual

Unused method at the moment. To be implemented because defined as virtual in MPhy.

◆ getPERfromID()

double Uwal::getPERfromID ( int mac_addr )

protectedvirtual

Method to search for the PER associated with a particular MAC address

Parameters

mac_addr Addr of the node for which search the related Packet Error Rate

Returns: the Packet Error Rate associated

References PERList.

Referenced by checkRxFrameSet().

◆ getPSDU()

size_t Uwal::getPSDU ( )

inline

References PSDU.

◆ getTxDuration()

virtual double Uwal::getTxDuration ( Packet * )

inlineprotectedvirtual

Unused method at the moment. To be implemented because defined as virtual in MPhy.

◆ initializeHdr()

void Uwal::initializeHdr	(	Packet *	p,
		unsigned int	pkt_counter_
	)

protected

Method responsible to initialize the headers of the packet

Parameters

Pointer	to the packet
ID	of the packet

References hdr_uwal::binHdrLength(), hdr_uwal::binPkt(), hdr_uwal::binPktLength(), hdr_uwal::dummyStr(), dummyStr, hdr_uwal::framePayloadOffset(), hdr_uwal::Mbit(), nodeID, hdr_uwal::pktID(), and hdr_uwal::srcID().

Referenced by checkRxFrameSet(), fragmentPkt(), recv(), and recvSyncClMsg().

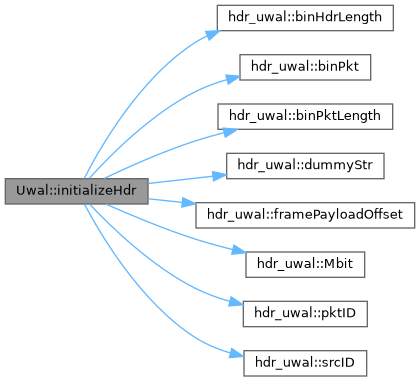

Here is the call graph for this function:

◆ isInPERList()

bool Uwal::isInPERList ( int mac_addr )

protectedvirtual

Method to search a MAC address in the PER List

Parameters

mac_addr Address to search

Returns: true if mac_addr in in the PERList, false otherwise

References PERList.

Referenced by checkRxFrameSet().

◆ reassembleFrames()

void Uwal::reassembleFrames ( Packet * p )

protected

Method responsible to reassemble the various fragments in a unique packets

Parameters

pointer to the original Packet

References hdr_uwal::binHdrLength(), hdr_uwal::binPkt(), hdr_uwal::binPktLength(), debug_, hdr_uwal::framePayloadOffset(), hdr_uwal::Mbit(), nodeID, hdr_uwal::pktID(), pPacker, PSDU, sendUpFrameSet, sendUpPkts, RxFrameSet::setError(), hdr_uwal::srcID(), and RxFrameSet::UpdateRxFrameSet().

Referenced by ALqueueManager().

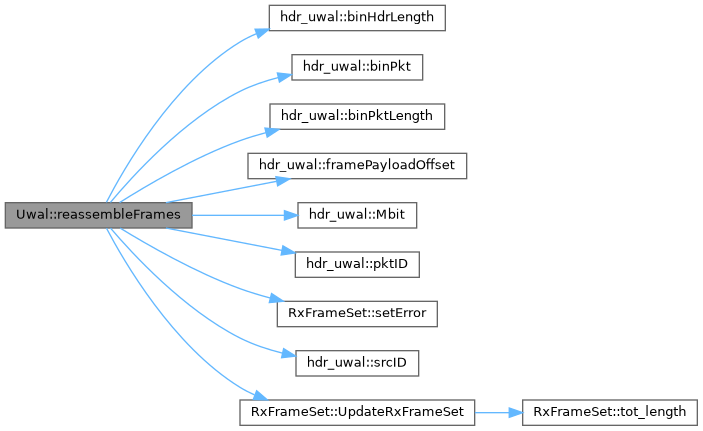

Here is the call graph for this function:

◆ recv()

void Uwal::recv ( Packet * p )

virtual

Method to handle the reception of packets arriving from the upper layers of the network simulator.

Parameters

p	pointer to the packet that has been received from the simulator's upper layers.

References ALqueueManager(), debug_, has_tap_clmsg, initializeHdr(), nodeID, packer::packHdr(), packer::packPayload(), pkt_counter, pPacker, sendDownPkts, sendUpFrames, and packer::unpackHdr().

Here is the call graph for this function:

◆ recvSyncClMsg()

int Uwal::recvSyncClMsg ( ClMessage * m )

virtual

Method to handle the reception of a synchronous crosslayer message

Parameters

m	pointer to the crosslayer message.

Returns: 0 if seccess

References debug_, force_endTx_, has_tap_clmsg, initializeHdr(), hdr_uwal::Mbit(), nodeID, packer::packHdr(), packer::packPayload(), pkt_counter, and pPacker.

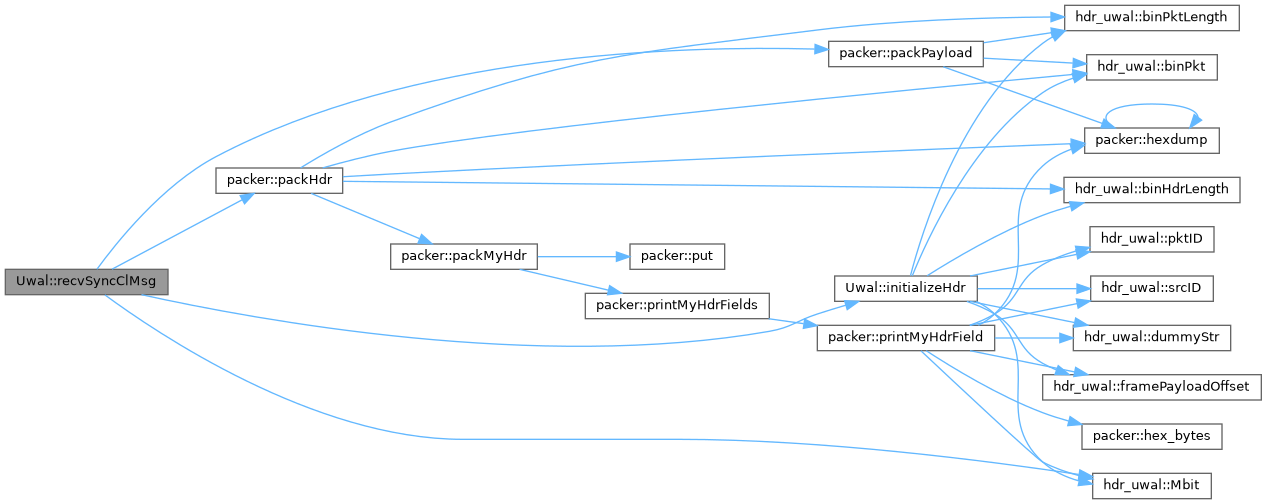

Here is the call graph for this function:

◆ startRx()

void Uwal::startRx ( Packet * p )

protectedvirtual

Method to start a packet reception. This method is also in charge to send a cross layer message Phy2MacStartRx(p) to notify the above layers of the simulator about the start of a reception, see http://telecom.dei.unipd.it/ns/miracle/doxygen/classMPhy.html#a15cc91b98013e1c631ad85072867ab6.

Parameters

p	pointer to the last received packet.

Referenced by ALqueueManager().

◆ startTx()

void Uwal::startTx ( Packet * p )

protectedvirtual

Method to start the packet transmission.

Parameters

p	pointer to the packet to be transmitted.

References endTx(), force_endTx_, interframe_period, InterframeTmr, and hdr_uwal::Mbit().

Referenced by ALqueueManager().

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ TxFrameTimer

friend class TxFrameTimer

friend

Friend class used to implement the timer handler.

See also: TxFrameTimer

Member Data Documentation

◆ debug_

int Uwal::debug_

protected

String containing dummy characters to be used as padding chars if necessary. Flag to enable debug mode (i.e., printing of debug messages) if set to 1.

Referenced by checkRxFrameSet(), fragmentPkt(), reassembleFrames(), recv(), recvSyncClMsg(), and Uwal().

◆ dummyStr

string Uwal::dummyStr

protected

Referenced by command(), initializeHdr(), and Uwal().

◆ force_endTx_

int Uwal::force_endTx_

private

0 not force, otherwise force endTx

Referenced by recvSyncClMsg(), startTx(), and Uwal().

◆ frame_padding

int Uwal::frame_padding

private

Flag to determine if perfoming bit padding up to PSDU size.

Referenced by fragmentPkt(), and Uwal().

◆ frame_set_validity

double Uwal::frame_set_validity

private

Time of validity of a frame set

Referenced by checkRxFrameSet(), and Uwal().

◆ has_tap_clmsg

bool Uwal::has_tap_clmsg

private

True if received a ClMessage from uwTAP.

Referenced by recv(), and recvSyncClMsg().

◆ interframe_period

double Uwal::interframe_period

private

Time period [s] between two successive frame to be sent down.

Referenced by startTx(), and Uwal().

◆ InterframeTmr

TxFrameTimer Uwal::InterframeTmr

private

Object of the class TxFrameTimer

Referenced by startTx(), and ~Uwal().

◆ nodeID

int Uwal::nodeID

protected

Node ID

Referenced by checkRxFrameSet(), initializeHdr(), reassembleFrames(), recv(), recvSyncClMsg(), and Uwal().

◆ PERList

list<PERListElement> Uwal::PERList

protected

PER list (couple of ID of the node and Packet Error Rate associated )

Referenced by command(), getPERfromID(), and isInPERList().

◆ pkt_counter

unsigned int Uwal::pkt_counter

protected

Counter for the pktID to set in TX.

Referenced by recv(), and recvSyncClMsg().

◆ pPacker

packer* Uwal::pPacker

protected

Pointer to the packer of the protocol headers

Referenced by checkRxFrameSet(), command(), fragmentPkt(), reassembleFrames(), recv(), and recvSyncClMsg().

◆ PSDU

size_t Uwal::PSDU

protected

size of the PSDU

Referenced by command(), fragmentPkt(), getPSDU(), reassembleFrames(), and Uwal().

◆ sendDownFrames

std::queue<Packet *> Uwal::sendDownFrames

protected

queue of the frames to send down

Referenced by ALqueueManager(), and fragmentPkt().

◆ sendDownPkts

std::queue<Packet *> Uwal::sendDownPkts

protected

queue of the packet to send down to the modem

Referenced by ALqueueManager(), and recv().

◆ sendUpFrames

std::queue<Packet *> Uwal::sendUpFrames

protected

queue of the frames to send up to the upper protocols

Referenced by ALqueueManager(), and recv().

◆ sendUpFrameSet

std::map<RxFrameSetKey, RxFrameSet> Uwal::sendUpFrameSet

protected

map of the frames to send up

Referenced by checkRxFrameSet(), and reassembleFrames().

◆ sendUpPkts

std::queue<Packet *> Uwal::sendUpPkts

protected

queue of the packets to send up to the upper protocols

Referenced by ALqueueManager(), checkRxFrameSet(), and reassembleFrames().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/physical/uw-al/uwal.h
DESERT_Framework/DESERT/physical/uw-al/uwal.cpp
