#include <packer.h>

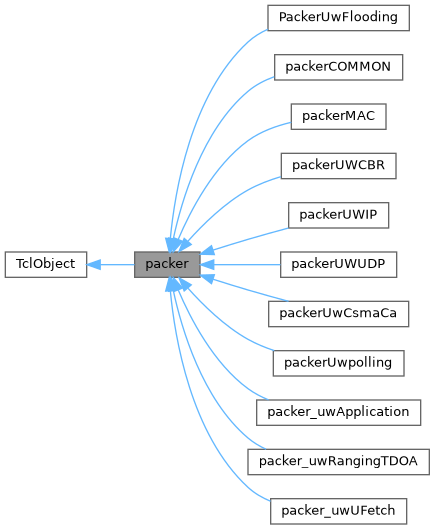

Inheritance diagram for packer:

Collaboration diagram for packer:

Public Member Functions
	packer (bool)

	~packer ()

int	command (int, const char const )

size_t	getPayloadBytesLength ()

size_t	getHdrBytesLength ()

size_t	getPayloadBinLength ()

size_t	getHdrBinLength ()

std::string	packPayload (Packet *)

std::string	packHdr (Packet *)

Packet *	unpackPayload (Packet *)

Packet *	unpackHdr (Packet *)

void	printMap ()

Static Public Member Functions
template<typename T >
static T	restoreSignedValue (T _header_field, const uint32_t &_num_compressed_bits)

static std::string	hexdump_nice (std::string)

static std::string	hexdump_nice (const char *, size_t)

static std::string	hexdump (std::string)

static std::string	hex_bytes (float)

static std::string	hex_bytes (double)

static std::string	hex_bytes (const char &, const uint32_t &)

static std::string	hex_bytes (const int8_t &, const uint32_t &)

static std::string	hex_bytes (const int16_t &, const uint32_t &)

static std::string	hex_bytes (const int32_t &, const uint32_t &)

static std::string	hex_bytes (const int64_t &, const uint32_t &)

static std::string	hex_bytes (const uint8_t &, const uint32_t &)

static std::string	hex_bytes (const uint16_t &, const uint32_t &)

static std::string	hex_bytes (const uint32_t &, const uint32_t &)

static std::string	hex_bytes (const uint64_t &, const uint32_t &)

static std::string	hexdump (const char *, size_t)

static std::string	bindump (std::string)

static std::string	bindump (const char *, size_t)

Protected Member Functions
virtual void	init ()

virtual size_t	packMyHdr (Packet , unsigned char , size_t)

virtual size_t	unpackMyHdr (unsigned char , size_t, Packet )

virtual void	printMyHdrMap ()

virtual void	printMyHdrFields (Packet *)

virtual void	printMyHdrField (Packet *, int)

size_t	getMyHdrBinLength ()

size_t	get (unsigned char buffer, size_t offset, void val, size_t h)

size_t	put (unsigned char buffer, size_t offset, void val, size_t h)

Protected Attributes
std::vector< size_t >	n_bits

int	debug_

Private Attributes
std::vector< packer * >	activePackers

size_t	payload_length

size_t	hdr_length

bool	printAllFields

size_t	SRC_ID_Bits

size_t	PKT_ID_Bits

size_t	FRAME_OFFSET_Bits

size_t	M_BIT_Bits

size_t	DUMMY_CONTENT_Bits

Detailed Description

Class exploited by the Uwal module to map an NS-Miracle packet into a bit stream, and vice-versa.

Constructor & Destructor Documentation

◆ packer()

packer::packer ( bool init_ )

Class constructor.

References debug_, DUMMY_CONTENT_Bits, FRAME_OFFSET_Bits, getMyHdrBinLength(), hdr_length, M_BIT_Bits, n_bits, PKT_ID_Bits, printAllFields, and SRC_ID_Bits.

Here is the call graph for this function:

◆ ~packer()

packer::~packer ( )

Class destructor.

Member Function Documentation

◆ bindump() [1/2]

std::string packer::bindump	(	const char *	data,
		size_t	len
	)

static

◆ bindump() [2/2]

std::string packer::bindump ( std::string str )

static

References bindump().

Referenced by bindump(), and RxFrameSet::displaySet().

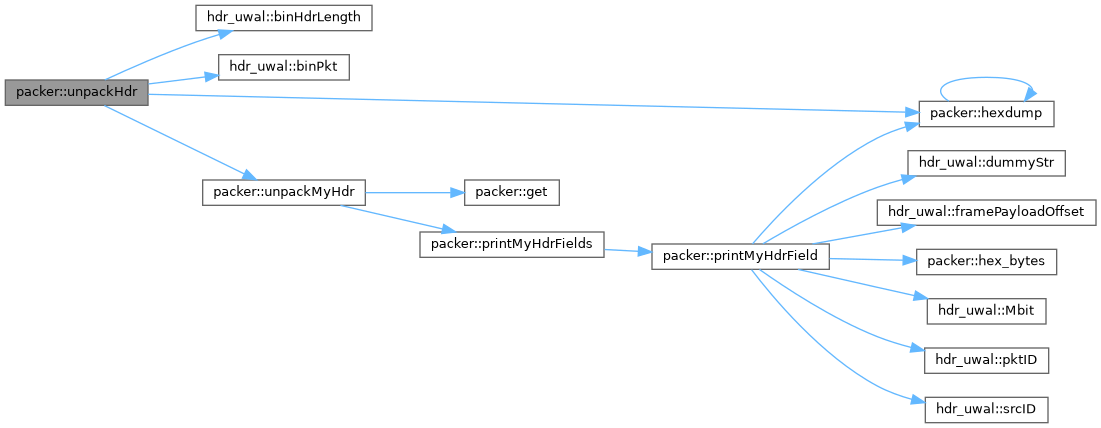

Here is the call graph for this function:

◆ command()

int packer::command	(	int	argc,
		const char const	argv
	)

Method to map tcl commands into c++ methods.

Parameters

argc	number of arguments in argv
argv	array of arguments where argv[3] is the tcl command name and argv[4, 5, ...] are the parameters for the corresponding c++ method.

References activePackers, debug_, getMyHdrBinLength(), getPayloadBinLength(), hdr_length, init(), payload_length, printAllFields, and printMap().

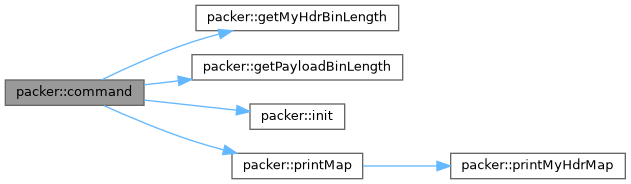

Here is the call graph for this function:

◆ get()

size_t packer::get	(	unsigned char *	buffer,
		size_t	offset,
		void *	val,
		size_t	h
	)

protected

Method used to retrieve a given variable from a certain number of bits contained in a buffer of chars.

Parameters

[in]	buffer	pointer to a buffer of characters.
[in]	offset	position from which to start reading the buffer of characters.
[in,out]	val	pointer to variable to retrieve (passed as reference).
	h	the number of bits to read.

Returns: h, namely the number of read bits.

Referenced by packerUWCBR::unpackMyHdr(), packerUwCsmaCa::unpackMyHdr(), PackerUwFlooding::unpackMyHdr(), packerUWIP::unpackMyHdr(), packerUwpolling::unpackMyHdr(), packerUWUDP::unpackMyHdr(), packer_uwUFetch::unpackMyHdr(), unpackMyHdr(), packerCOMMON::unpackMyHdr(), packerMAC::unpackMyHdr(), packer_uwApplication::unpackMyHdr(), and packer_uwRangingTDOA::unpackMyHdr().

◆ getHdrBinLength()

size_t packer::getHdrBinLength ( )

References getMyHdrBinLength().

Here is the call graph for this function:

◆ getHdrBytesLength()

size_t packer::getHdrBytesLength ( )

inline

References hdr_length.

Referenced by Uwal::fragmentPkt().

◆ getMyHdrBinLength()

size_t packer::getMyHdrBinLength ( )

protected

References n_bits.

Referenced by command(), getHdrBinLength(), and packer().

◆ getPayloadBinLength()

size_t packer::getPayloadBinLength ( )

References activePackers.

Referenced by command().

◆ getPayloadBytesLength()

size_t packer::getPayloadBytesLength ( )

inline

References payload_length.

◆ hex_bytes() [1/11]

std::string packer::hex_bytes	(	const char &	value,
		const uint32_t &	len_bits
	)

static

◆ hex_bytes() [2/11]

std::string packer::hex_bytes	(	const int16_t &	value,
		const uint32_t &	len_bits
	)

static

◆ hex_bytes() [3/11]

std::string packer::hex_bytes	(	const int32_t &	value,
		const uint32_t &	len_bits
	)

static

◆ hex_bytes() [4/11]

std::string packer::hex_bytes	(	const int64_t &	value,
		const uint32_t &	len_bits
	)

static

◆ hex_bytes() [5/11]

std::string packer::hex_bytes	(	const int8_t &	value,
		const uint32_t &	len_bits
	)

static

◆ hex_bytes() [6/11]

std::string packer::hex_bytes	(	const uint16_t &	value,
		const uint32_t &	len_bits
	)

static

◆ hex_bytes() [7/11]

std::string packer::hex_bytes	(	const uint32_t &	value,
		const uint32_t &	len_bits
	)

static

◆ hex_bytes() [8/11]

std::string packer::hex_bytes	(	const uint64_t &	value,
		const uint32_t &	len_bits
	)

static

◆ hex_bytes() [9/11]

std::string packer::hex_bytes	(	const uint8_t &	value,
		const uint32_t &	len_bits
	)

static

◆ hex_bytes() [10/11]

std::string packer::hex_bytes ( double value )

static

◆ hex_bytes() [11/11]

std::string packer::hex_bytes ( float value )

static

Referenced by printMyHdrField(), PackerUwFlooding::printMyHdrFields(), packerUWIP::printMyHdrFields(), packerUWUDP::printMyHdrFields(), packerCOMMON::printMyHdrFields(), and packerMAC::printMyHdrFields().

◆ hexdump() [1/2]

std::string packer::hexdump	(	const char *	data,
		size_t	len
	)

static

◆ hexdump() [2/2]

std::string packer::hexdump ( std::string str )

static

References hexdump().

Referenced by Uwal::fragmentPkt(), hexdump(), packHdr(), packPayload(), printMyHdrField(), unpackHdr(), and unpackPayload().

Here is the call graph for this function:

◆ hexdump_nice() [1/2]

std::string packer::hexdump_nice	(	const char *	data,
		size_t	len
	)

static

◆ hexdump_nice() [2/2]

std::string packer::hexdump_nice ( std::string str )

static

Function used for log and debug purposes (in order to print binary strings, even if they contain special characters)

Parameters

str	the binary string to print

Returns: str_out the string to print (special characters are reported in hex form)

References hexdump_nice().

Referenced by RxFrameSet::displaySet(), and hexdump_nice().

Here is the call graph for this function:

◆ init()

void packer::init ( )

protectedvirtual

Reimplemented in packer_uwApplication, packerUWCBR, packerUwCsmaCa, PackerUwFlooding, packerUWIP, packerUwpolling, packerUWUDP, packer_uwUFetch, packerCOMMON, packerMAC, and packer_uwRangingTDOA.

References debug_, DUMMY_CONTENT_Bits, FRAME_OFFSET_Bits, M_BIT_Bits, n_bits, PKT_ID_Bits, and SRC_ID_Bits.

Referenced by command().

◆ packHdr()

std::string packer::packHdr ( Packet * p )

References hdr_uwal::binHdrLength(), hdr_uwal::binPkt(), hdr_uwal::binPktLength(), debug_, hdr_length, hexdump(), packMyHdr(), and payload_length.

Referenced by Uwal::fragmentPkt(), Uwal::recv(), and Uwal::recvSyncClMsg().

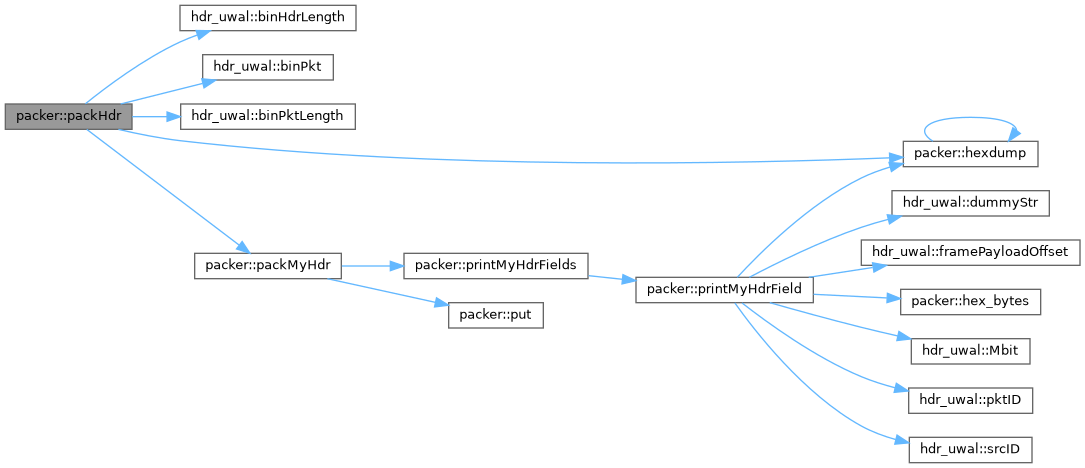

Here is the call graph for this function:

◆ packMyHdr()

size_t packer::packMyHdr	(	Packet *	p,
		unsigned char *	buf,
		size_t	offset
	)

protectedvirtual

Reimplemented in packerUWCBR, packerUwCsmaCa, PackerUwFlooding, packerUWIP, packerUwpolling, packerUWUDP, packer_uwUFetch, packerCOMMON, packerMAC, packer_uwApplication, and packer_uwRangingTDOA.

References debug_, hdr_uwal::dummyStr_, hdr_uwal::framePayloadOffset_, hdr_uwal::Mbit_, n_bits, hdr_uwal::pktID_, printMyHdrFields(), put(), and hdr_uwal::srcID_.

Referenced by packHdr().

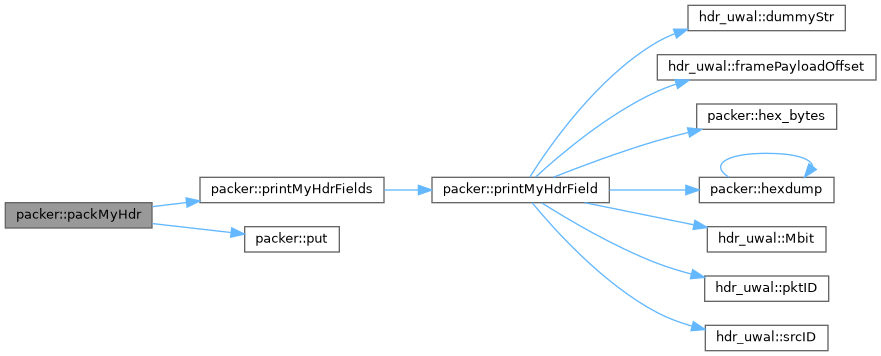

Here is the call graph for this function:

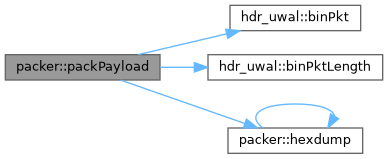

◆ packPayload()

std::string packer::packPayload ( Packet * p )

Method to map an NS-Miracle packet into a legal modem payload (i.e., a string of binary characters) when one among the following protocol stack is in use (see UWMPhy_modem::stack):

STACK1, that includes:
- UWCBR/UWUDP/UWStaticRouting/UWIP/UWMLL/ALOHA/MFSK_WHOI_MM,or subsets of it;
- UWCBR/UWUDP/UWStaticRouting/UWIP/UWMLL/ALOHA-CSMA/MFSK_WHOI_MM,or subsets of it;
- UWVBR/UWUDP/UWStaticRouting/UWIP/UWMLL/ALOHA/MFSK_WHOI_MM,or subsets of it;
- UWVBR/UWUDP/UWStaticRouting/UWIP/UWMLL/ALOHA-CSMA/MFSK_WHOI_MM,or subsets of it.
STACK2, that includes:
- UWCBR/UWUDP/UWSUN/UWIP/UWMLL/ALOHA/MFSK_WHOI_MM,or subsets of it;
- UWVBR/UWUDP/UWSUN/UWIP/UWMLL/ALOHA-CSMA/MFSK_WHOI_MM,or subsets of it.

NOTE: With the currently implemented map:

we do not guarentee to support ARP message exchanges at the MLL layer (i.e., we suggest to manually set the ARP tables in the tcl files)

See also: packer_IM::pack1; packer_IM::pack2

Parameters

p	pointer to the NS-Miracle packet that must be mapped into a modem payload.

Returns: res, a binary string to be sent acoustically as payload of the next modem packet to transmit.

References activePackers, hdr_uwal::binPkt(), hdr_uwal::binPktLength(), debug_, hdr_length, hexdump(), and payload_length.

Referenced by Uwal::recv(), and Uwal::recvSyncClMsg().

Here is the call graph for this function:

◆ printMap()

void packer::printMap ( )

References activePackers, hdr_length, payload_length, and printMyHdrMap().

Referenced by command().

Here is the call graph for this function:

◆ printMyHdrField()

void packer::printMyHdrField	(	Packet *	p,
		int	field
	)

protectedvirtual

References hdr_uwal::dummyStr(), hdr_uwal::framePayloadOffset(), hex_bytes(), hexdump(), hdr_uwal::Mbit(), n_bits, hdr_uwal::pktID(), and hdr_uwal::srcID().

Referenced by printMyHdrFields().

Here is the call graph for this function:

◆ printMyHdrFields()

void packer::printMyHdrFields ( Packet * p )

protectedvirtual

Reimplemented in packer_uwApplication, packerUWCBR, packerUwCsmaCa, PackerUwFlooding, packerUWIP, packerUwpolling, packerUWUDP, packer_uwUFetch, packerCOMMON, packerMAC, and packer_uwRangingTDOA.

References n_bits, printAllFields, and printMyHdrField().

Referenced by packMyHdr(), and unpackMyHdr().

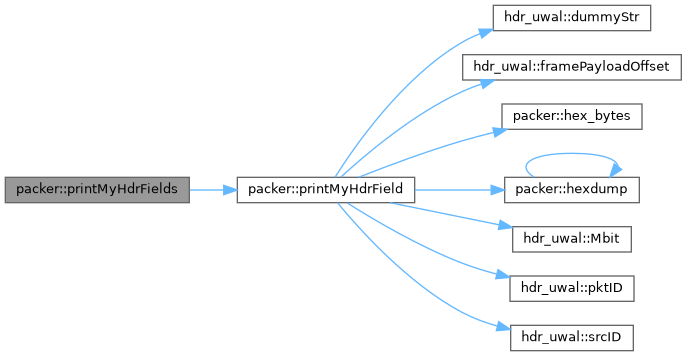

Here is the call graph for this function:

◆ printMyHdrMap()

void packer::printMyHdrMap ( )

protectedvirtual

Reimplemented in packer_uwApplication, packerUWCBR, packerUwCsmaCa, PackerUwFlooding, packerUWIP, packerUwpolling, packerUWUDP, packer_uwUFetch, packerCOMMON, packerMAC, and packer_uwRangingTDOA.

References DUMMY_CONTENT_Bits, FRAME_OFFSET_Bits, M_BIT_Bits, PKT_ID_Bits, and SRC_ID_Bits.

Referenced by printMap().

◆ put()

size_t packer::put	(	unsigned char *	buffer,
		size_t	offset,
		void *	val,
		size_t	h
	)

protected

Method used to map in a certain number of bits, contained in a buffer of chars, a given variable.

Parameters

[in]	buffer	pointer to a buffer of characters.
[in]	offset	position from which to start writing to the buffer of characters.
[in,out]	val	pointer to the variable to map (passed as reference).
	h	the number of bits to use for the mapping.

Returns: h, namely the number of written bits.

Referenced by packerUWCBR::packMyHdr(), packerUwCsmaCa::packMyHdr(), PackerUwFlooding::packMyHdr(), packerUWIP::packMyHdr(), packerUwpolling::packMyHdr(), packerUWUDP::packMyHdr(), packer_uwUFetch::packMyHdr(), packMyHdr(), packerCOMMON::packMyHdr(), packerMAC::packMyHdr(), packer_uwApplication::packMyHdr(), and packer_uwRangingTDOA::packMyHdr().

◆ restoreSignedValue()

template<typename T >

static T packer::restoreSignedValue	(	T	_header_field,
		const uint32_t &	_num_compressed_bits
	)

inlinestatic

Referenced by packerCOMMON::unpackMyHdr(), and packerMAC::unpackMyHdr().

◆ unpackHdr()

Packet * packer::unpackHdr ( Packet * p )

References hdr_uwal::binHdrLength(), hdr_uwal::binPkt(), debug_, hdr_length, hexdump(), and unpackMyHdr().

Referenced by Uwal::recv().

Here is the call graph for this function:

◆ unpackMyHdr()

size_t packer::unpackMyHdr	(	unsigned char *	buf,
		size_t	offset,
		Packet *	p
	)

protectedvirtual

Reimplemented in packerUWCBR, packerUwCsmaCa, PackerUwFlooding, packerUWIP, packerUwpolling, packerUWUDP, packer_uwUFetch, packerCOMMON, packerMAC, packer_uwApplication, and packer_uwRangingTDOA.

References debug_, hdr_uwal::dummyStr_, hdr_uwal::framePayloadOffset_, get(), hdr_uwal::Mbit_, n_bits, hdr_uwal::pktID_, printMyHdrFields(), and hdr_uwal::srcID_.

Referenced by unpackHdr().

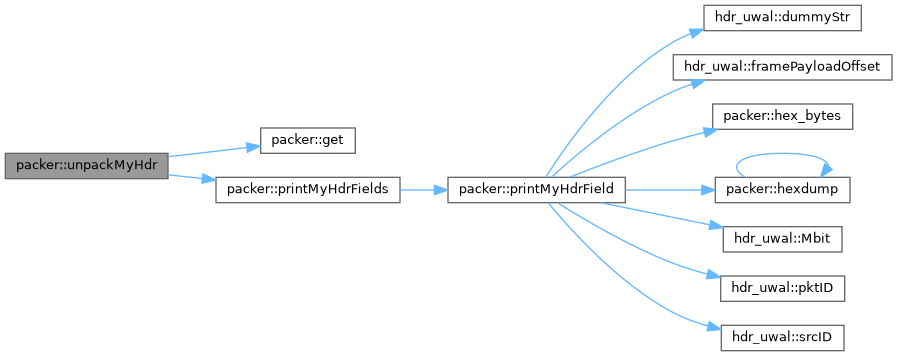

Here is the call graph for this function:

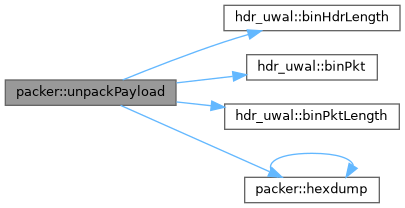

◆ unpackPayload()

Packet * packer::unpackPayload ( Packet * p )

Method to de-map a legal modem payload (i.e., a string of binary characters) into an NS-Miracle packet, when one among the following protocol stack is in use (see UWMPhy_modem::stack):

STACK1, that includes: UWCBR/UWUDP/UWStaticRouting/UWIP/UWMLL/ALOHA/S2C_EvoLogics,or subsets of it UWCBR/UWUDP/UWStaticRouting/UWIP/UWMLL/ALOHA-CSMA/S2C_EvoLogics,or subsets of it UWVBR/UWUDP/UWStaticRouting/UWIP/UWMLL/ALOHA/S2C_EvoLogics,or subsets of it UWVBR/UWUDP/UWStaticRouting/UWIP/UWMLL/ALOHA-CSMA/S2C_EvoLogics,or subsets of it
STACK2, that includes: UWCBR/UWUDP/UWSUN/UWIP/UWMLL/ALOHA/S2C_EvoLogics,or subsets of it UWCBR/UWUDP/UWSUN/UWIP/UWMLL/ALOHA-CSMA/S2C_EvoLogics,or subsets of it UWVBR/UWUDP/UWSUN/UWIP/UWMLL/ALOHA/S2C_EvoLogics,or subsets of it UWVBR/UWUDP/UWSUN/UWIP/UWMLL/ALOHA-CSMA/S2C_EvoLogics,or subsets of it

See also: packer_IM::pack; packer_IM::unpack1; packer_IM::unpack2

Parameters

s	the node ID from which the last received packet arrives.
d	the node ID to which the last received packet is sent.
src	the payload of the last packet received from the modem.

Returns: p the NS-Miracle packet recovered from the information contained in s, d and src.

References activePackers, hdr_uwal::binHdrLength(), hdr_uwal::binPkt(), hdr_uwal::binPktLength(), debug_, hexdump(), and payload_length.

Referenced by Uwal::checkRxFrameSet().

Here is the call graph for this function:

Member Data Documentation

◆ activePackers

std::vector<packer *> packer::activePackers

private

Vector of elements containing the pointers to the active packers (i.e., the derived classed of packer actually in charge of pack and unpack packets. These are set by the tcl user through the command "addPacker". See packer::command).

Referenced by command(), getPayloadBinLength(), packPayload(), printMap(), and unpackPayload().

◆ debug_

int packer::debug_

protected

Flag to enable debug messages.

◆ DUMMY_CONTENT_Bits

size_t packer::DUMMY_CONTENT_Bits

private

Bit length of the Mbit_ field to be put in the header stream of bits.

Referenced by init(), packer(), and printMyHdrMap().

◆ FRAME_OFFSET_Bits

size_t packer::FRAME_OFFSET_Bits

private

Bit length of the pktID_ field to be put in the header stream of bits.

Referenced by init(), packer(), and printMyHdrMap().

◆ hdr_length

size_t packer::hdr_length

private

The minimum number of elements that a buffer of char must have in order to store the header fields of the AL.

See also: : hdr-uwal.h

Referenced by command(), getHdrBytesLength(), packer(), packHdr(), packPayload(), printMap(), and unpackHdr().

◆ M_BIT_Bits

size_t packer::M_BIT_Bits

private

Bit length of the frameID_ field to be put in the header stream of bits.

Referenced by init(), packer(), and printMyHdrMap().

◆ n_bits

std::vector<size_t> packer::n_bits

protected

Vector of elements containing the indication of the number of bits to consider for each header field.

Referenced by getMyHdrBinLength(), packer_uwApplication::init(), packerUWCBR::init(), packerUwCsmaCa::init(), PackerUwFlooding::init(), packerUWIP::init(), packerUwpolling::init(), packerUWUDP::init(), packer_uwUFetch::init(), init(), packerCOMMON::init(), packerMAC::init(), packer_uwRangingTDOA::init(), packer(), packerCOMMON::packerCOMMON(), packerMAC::packerMAC(), packerUWCBR::packerUWCBR(), PackerUwFlooding::PackerUwFlooding(), packerUWIP::packerUWIP(), packerUWUDP::packerUWUDP(), packerUWCBR::packMyHdr(), PackerUwFlooding::packMyHdr(), packerUWIP::packMyHdr(), packerUwpolling::packMyHdr(), packerUWUDP::packMyHdr(), packer_uwUFetch::packMyHdr(), packMyHdr(), packerCOMMON::packMyHdr(), packerMAC::packMyHdr(), packer_uwApplication::packMyHdr(), packer_uwRangingTDOA::packMyHdr(), printMyHdrField(), packerUWCBR::printMyHdrFields(), PackerUwFlooding::printMyHdrFields(), packerUWIP::printMyHdrFields(), packerUWUDP::printMyHdrFields(), printMyHdrFields(), packerCOMMON::printMyHdrFields(), packerMAC::printMyHdrFields(), packer_uwApplication::printMyHdrMap(), packer_uwUFetch::printMyHdrMap(), packer_uwRangingTDOA::printMyHdrMap(), packerUWCBR::unpackMyHdr(), PackerUwFlooding::unpackMyHdr(), packerUWIP::unpackMyHdr(), packerUwpolling::unpackMyHdr(), packerUWUDP::unpackMyHdr(), packer_uwUFetch::unpackMyHdr(), unpackMyHdr(), packerCOMMON::unpackMyHdr(), packerMAC::unpackMyHdr(), packer_uwApplication::unpackMyHdr(), and packer_uwRangingTDOA::unpackMyHdr().

◆ payload_length

size_t packer::payload_length

private

The minimum number of elements that a buffer of char must have in order to store the fields to be coded by the activePackers into a string of bytes.

Referenced by command(), getPayloadBytesLength(), packHdr(), packPayload(), printMap(), and unpackPayload().

◆ PKT_ID_Bits

size_t packer::PKT_ID_Bits

private

Bit length of the srcID_ field to be put in the header stream of bits.

Referenced by init(), packer(), and printMyHdrMap().

◆ printAllFields

bool packer::printAllFields

private

Referenced by command(), packer(), and printMyHdrFields().

◆ SRC_ID_Bits

size_t packer::SRC_ID_Bits

private

Referenced by init(), packer(), and printMyHdrMap().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/physical/uw-al/packer.h
DESERT_Framework/DESERT/physical/uw-al/packer.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ packer()

◆ ~packer()

Member Function Documentation

◆ bindump() [1/2]

◆ bindump() [2/2]

◆ command()

◆ get()

◆ getHdrBinLength()

◆ getHdrBytesLength()

◆ getMyHdrBinLength()

◆ getPayloadBinLength()

◆ getPayloadBytesLength()

◆ hex_bytes() [1/11]

◆ hex_bytes() [2/11]

◆ hex_bytes() [3/11]

◆ hex_bytes() [4/11]

◆ hex_bytes() [5/11]

◆ hex_bytes() [6/11]

◆ hex_bytes() [7/11]

◆ hex_bytes() [8/11]

◆ hex_bytes() [9/11]

◆ hex_bytes() [10/11]

◆ hex_bytes() [11/11]

◆ hexdump() [1/2]

◆ hexdump() [2/2]

◆ hexdump_nice() [1/2]

◆ hexdump_nice() [2/2]

◆ init()

◆ packHdr()

◆ packMyHdr()

◆ packPayload()

◆ printMap()

◆ printMyHdrField()

◆ printMyHdrFields()

◆ printMyHdrMap()

◆ put()

◆ restoreSignedValue()

◆ unpackHdr()

◆ unpackMyHdr()

◆ unpackPayload()

Member Data Documentation

◆ activePackers

◆ debug_

◆ DUMMY_CONTENT_Bits

◆ FRAME_OFFSET_Bits

◆ hdr_length

◆ M_BIT_Bits

◆ n_bits

◆ payload_length

◆ PKT_ID_Bits

◆ printAllFields

◆ SRC_ID_Bits
