DESERT: packer_uwApplication Class Reference

DESERT 4.0.0

#include <packer_uwApplication.h>

Inheritance diagram for packer_uwApplication:

Inheritance graph

Collaboration diagram for packer_uwApplication:

Collaboration graph

Public Member Functions
	packer_uwApplication ()

	~packer_uwApplication ()

Public Member Functions inherited from packer
	packer (bool)

	~packer ()

int	command (int, const char const )

size_t	getPayloadBytesLength ()

size_t	getHdrBytesLength ()

size_t	getPayloadBinLength ()

size_t	getHdrBinLength ()

std::string	packPayload (Packet *)

std::string	packHdr (Packet *)

Packet *	unpackPayload (Packet *)

Packet *	unpackHdr (Packet *)

void	printMap ()

Private Types
enum	nbits_index { SN_FIELD = 0 , RFFT_FIELD , RFFTVALID_FIELD , PRIORITY_FIELD , PAYLOAD_SIZE_FIELD }

Private Member Functions
void	init ()

size_t	packMyHdr (Packet p, unsigned char buffer, size_t offset)

size_t	unpackMyHdr (unsigned char buffer, size_t offset, Packet p)

void	printMyHdrMap ()

void	printMyHdrFields (Packet *)

Private Attributes
size_t	sn_field_Bits

size_t	rfft_field_Bits

size_t	rfftvalid_field_Bits

size_t	priority_filed_Bits

size_t	payload_size_field_Bits

Additional Inherited Members
Static Public Member Functions inherited from packer
template<typename T >
static T	restoreSignedValue (T _header_field, const uint32_t &_num_compressed_bits)

static std::string	hexdump_nice (std::string)

static std::string	hexdump_nice (const char *, size_t)

static std::string	hexdump (std::string)

static std::string	hex_bytes (float)

static std::string	hex_bytes (double)

static std::string	hex_bytes (const char &, const uint32_t &)

static std::string	hex_bytes (const int8_t &, const uint32_t &)

static std::string	hex_bytes (const int16_t &, const uint32_t &)

static std::string	hex_bytes (const int32_t &, const uint32_t &)

static std::string	hex_bytes (const int64_t &, const uint32_t &)

static std::string	hex_bytes (const uint8_t &, const uint32_t &)

static std::string	hex_bytes (const uint16_t &, const uint32_t &)

static std::string	hex_bytes (const uint32_t &, const uint32_t &)

static std::string	hex_bytes (const uint64_t &, const uint32_t &)

static std::string	hexdump (const char *, size_t)

static std::string	bindump (std::string)

static std::string	bindump (const char *, size_t)

Protected Member Functions inherited from packer
virtual void	printMyHdrField (Packet *, int)

size_t	getMyHdrBinLength ()

size_t	get (unsigned char buffer, size_t offset, void val, size_t h)

size_t	put (unsigned char buffer, size_t offset, void val, size_t h)

Protected Attributes inherited from packer
std::vector< size_t >	n_bits

int	debug_

Detailed Description

Class to map a ns2 mac header into a bit stream, and vice-versa.

Member Enumeration Documentation

◆ nbits_index

enum packer_uwApplication::nbits_index

private

Enumerator
SN_FIELD	Serial number of the packet.
RFFT_FIELD	Forward Trip Time of the packet.
RFFTVALID_FIELD	Flag used to set the validity of the fft field.
PRIORITY_FIELD	Priority flag: 1 means high priority, 0 normal priority.
PAYLOAD_SIZE_FIELD	Message payload

Constructor & Destructor Documentation

◆ packer_uwApplication()

packer_uwApplication::packer_uwApplication ( )

Constructor packer_uwApplication class

References init(), payload_size_field_Bits, priority_filed_Bits, rfft_field_Bits, rfftvalid_field_Bits, and sn_field_Bits.

Here is the call graph for this function:

◆ ~packer_uwApplication()

packer_uwApplication::~packer_uwApplication ( )

Destructor packer_uwApplication class

Member Function Documentation

◆ init()

void packer_uwApplication::init ( )

privatevirtual

Init the packer for uwApplication prototocol

Reimplemented from packer.

References packer::debug_, packer::n_bits, PAYLOAD_SIZE_FIELD, payload_size_field_Bits, PRIORITY_FIELD, priority_filed_Bits, RFFT_FIELD, rfft_field_Bits, RFFTVALID_FIELD, rfftvalid_field_Bits, SN_FIELD, and sn_field_Bits.

Referenced by packer_uwApplication().

◆ packMyHdr()

size_t packer_uwApplication::packMyHdr	(	Packet *	p,
		unsigned char *	buffer,
		size_t	offset
	)

privatevirtual

Method to transform the headers of uwApplication protocol into a stream of bits

Parameters

Pointer	to the packet to serialize
Pointer	to the buffer
Offset	from the begin of the buffer

Returns: size_t New offset after packing the headers of the packets

Reimplemented from packer.

References packer::debug_, packer::n_bits, hdr_DATA_APPLICATION::payload_msg, hdr_DATA_APPLICATION::payload_size(), hdr_DATA_APPLICATION::payload_size_, PAYLOAD_SIZE_FIELD, printMyHdrFields(), hdr_DATA_APPLICATION::priority_, PRIORITY_FIELD, PT_DATA_APPLICATION, packer::put(), RFFT_FIELD, RFFTVALID_FIELD, hdr_DATA_APPLICATION::rftt_, hdr_DATA_APPLICATION::rftt_valid_, hdr_DATA_APPLICATION::sn_, and SN_FIELD.

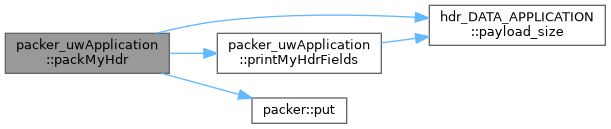

Here is the call graph for this function:

◆ printMyHdrFields()

void packer_uwApplication::printMyHdrFields ( Packet * p )

privatevirtual

Method used for debug purposes. It prints the value of the headers of a packet

Parameters

Pointer of the packet Index bits

Reimplemented from packer.

References hdr_DATA_APPLICATION::payload_msg, hdr_DATA_APPLICATION::payload_size(), hdr_DATA_APPLICATION::payload_size_, hdr_DATA_APPLICATION::priority_, PT_DATA_APPLICATION, hdr_DATA_APPLICATION::rftt_, hdr_DATA_APPLICATION::rftt_valid_, and hdr_DATA_APPLICATION::sn_.

Referenced by packMyHdr(), and unpackMyHdr().

Here is the call graph for this function:

◆ printMyHdrMap()

void packer_uwApplication::printMyHdrMap ( )

privatevirtual

Method used for debug purposes. It prints the number of bits for each header serialized

Reimplemented from packer.

References packer::n_bits, PAYLOAD_SIZE_FIELD, PRIORITY_FIELD, RFFT_FIELD, RFFTVALID_FIELD, and SN_FIELD.

◆ unpackMyHdr()

size_t packer_uwApplication::unpackMyHdr	(	unsigned char *	buffer,
		size_t	offset,
		Packet *	p
	)

privatevirtual

Method responsible to take the informations from the received buffer and store it into the headers of the packet

Parameters

Pointer	to the buffer received
Offset	from the begin of the buffer
Pointer	to the new packet

Returns: size_t New offset after unpacking the headers

Reimplemented from packer.

References packer::debug_, packer::get(), packer::n_bits, hdr_DATA_APPLICATION::payload_msg, hdr_DATA_APPLICATION::payload_size(), hdr_DATA_APPLICATION::payload_size_, PAYLOAD_SIZE_FIELD, printMyHdrFields(), hdr_DATA_APPLICATION::priority_, PRIORITY_FIELD, PT_DATA_APPLICATION, RFFT_FIELD, RFFTVALID_FIELD, hdr_DATA_APPLICATION::rftt_, hdr_DATA_APPLICATION::rftt_valid_, hdr_DATA_APPLICATION::sn_, and SN_FIELD.

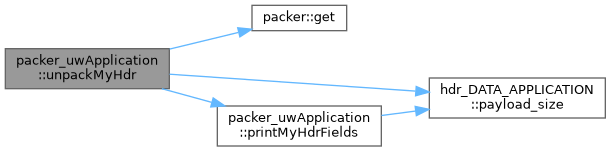

Here is the call graph for this function:

Member Data Documentation

◆ payload_size_field_Bits

size_t packer_uwApplication::payload_size_field_Bits

private

Bit length of the payloadmsg_field to be put in the header stream of bits.

Referenced by init(), and packer_uwApplication().

◆ priority_filed_Bits

size_t packer_uwApplication::priority_filed_Bits

private

Bit length of the priority_field to be put in the header stream of bits.

Referenced by init(), and packer_uwApplication().

◆ rfft_field_Bits

size_t packer_uwApplication::rfft_field_Bits

private

Bit length of the rfft_field to be put in the header stream of bits.

Referenced by init(), and packer_uwApplication().

◆ rfftvalid_field_Bits

size_t packer_uwApplication::rfftvalid_field_Bits

private

Bit length of the rfftvalid_field to be put in the header stream of bits.

Referenced by init(), and packer_uwApplication().

◆ sn_field_Bits

size_t packer_uwApplication::sn_field_Bits

private

Bit length of the sn_ field to be put in the header stream of bits.

Referenced by init(), and packer_uwApplication().

The documentation for this class was generated from the following files:

DESERT_Addons/packer_uwApplication/packer_uwApplication.h
DESERT_Addons/packer_uwApplication/packer_uwApplication.cc
