#include <uwranging_tokenbus.h>

Inheritance diagram for UwRangingTokenBus:

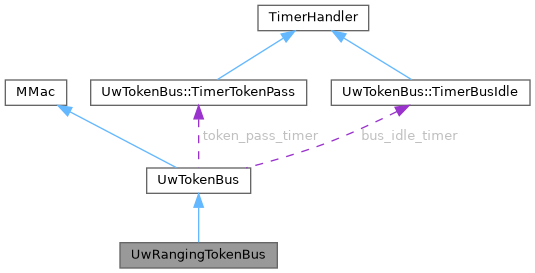

Collaboration diagram for UwRangingTokenBus:

Public Member Functions
	UwRangingTokenBus ()

virtual	~UwRangingTokenBus ()

Public Member Functions inherited from UwTokenBus
	UwTokenBus ()

virtual	~UwTokenBus ()

Protected Member Functions
virtual bool	validToken (Packet *p) const override

virtual void	sendToken (int next_id) override

virtual void	Phy2MacEndRx (Packet *p) override

virtual void	computeDist ()
	compute the linear regression and updates the distances vector

virtual int	command (int argc, const char const argv)

Protected Member Functions inherited from UwTokenBus
virtual void	expireBusIdle ()

virtual void	expireTokenPass ()

virtual void	initRing ()

virtual void	txData ()

virtual int	normId (int id) const

virtual int	nextId (int id) const

virtual int	nextIdOwned (int id) const

virtual void	recvFromUpperLayers (Packet *p) override

virtual void	Phy2MacStartRx (const Packet *p) override

virtual void	Mac2PhyStartTx (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p) override

virtual void	initPkt (Packet *p)

constexpr int	NMOD (int n)

Protected Attributes
const int	dist_num

double	epsilon

double	max_tt

std::vector< std::vector< int > >	dist_map

std::vector< std::vector< double > >	times_mat

std::vector< std::vector< int > >	times_age

std::vector< std::vector< double > >	x_mat

std::vector< double >	distances

double	time_last_range

int	id_last_range

Protected Attributes inherited from UwTokenBus
int	node_id

int	n_nodes

int	last_token_id_heard = 0

int	last_token_id_owned = 0

double	max_token_hold_time

double	min_token_hold_time

double	token_rx_time

int	max_queue_size

std::deque< Packet * >	buffer

UWTokenBus_STATUS	rtx_status

bool	got_token

double	slot_time

double	token_pass_timeout

double	bus_idle_timeout

TimerTokenPass	token_pass_timer

TimerBusIdle	bus_idle_timer

int	count_token_resend

int	count_token_regen

int	count_token_invalid

int	debug

int	drop_old_

int	checkPriority

Additional Inherited Members
Public Types inherited from UwTokenBus
enum	UWTokenBus_STATUS { IDLE , TRANSMITTING , RECEIVING }

Static Protected Attributes inherited from UwTokenBus
static int	count_nodes = 0

static int	count_token_pass_exp = 0

static int	count_bus_idle_exp

Detailed Description

Class that represents a TokenBus Node

Constructor & Destructor Documentation

◆ UwRangingTokenBus()

UwRangingTokenBus::UwRangingTokenBus ( )

Default constructor of the TokenBus class

References dist_map, dist_num, distances, epsilon, max_tt, UwTokenBus::n_nodes, UwTokenBus::NMOD(), times_age, times_mat, and x_mat.

Here is the call graph for this function:

◆ ~UwRangingTokenBus()

UwRangingTokenBus::~UwRangingTokenBus ( )

virtual

Destructor of the TokenBus class

Member Function Documentation

◆ command()

int UwRangingTokenBus::command	(	int	argc,
		const char const	argv
	)

protectedvirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UwTokenBus.

References UwTokenBus::command(), computeDist(), dist_map, distances, UwTokenBus::n_nodes, and UwTokenBus::NMOD().

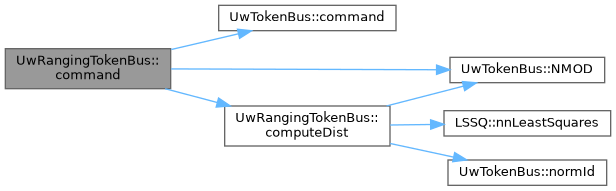

Here is the call graph for this function:

◆ computeDist()

void UwRangingTokenBus::computeDist ( )

protectedvirtual

compute the linear regression and updates the distances vector

References dist_num, distances, epsilon, id_last_range, max_tt, UwTokenBus::n_nodes, UwTokenBus::NMOD(), LSSQ::nnLeastSquares(), UwTokenBus::normId(), LSSQ::OK, LSSQ::TIMEOUT, times_age, times_mat, and x_mat.

Referenced by command().

Here is the call graph for this function:

◆ Phy2MacEndRx()

void UwRangingTokenBus::Phy2MacEndRx ( Packet * p )

overrideprotectedvirtual

Method called when the Phy Layer finish to receive a Packet

Parameters

p	pointer to a Packet object that rapresent the Packet in reception

Reimplemented from UwTokenBus.

References UwTokenBus::bus_idle_timeout, UwTokenBus::bus_idle_timer, UwTokenBus::debug, UwTokenBus::got_token, id_last_range, UwTokenBus::IDLE, UwTokenBus::last_token_id_heard, UwTokenBus::last_token_id_owned, UwTokenBus::min_token_hold_time, UwTokenBus::n_nodes, UwTokenBus::NMOD(), UwTokenBus::node_id, UwTokenBus::normId(), PT_UWRANGING_TOKENBUS, PT_UWTOKENBUS, UwTokenBus::rtx_status, time_last_range, hdr_uwranging_tokenbus::times(), times_age, times_mat, hdr_uwranging_tokenbus::token_hold(), UwTokenBus::token_pass_timer, UwTokenBus::token_rx_time, hdr_tokenbus::tokenId(), UwTokenBus::TRANSMITTING, UwTokenBus::txData(), and validToken().

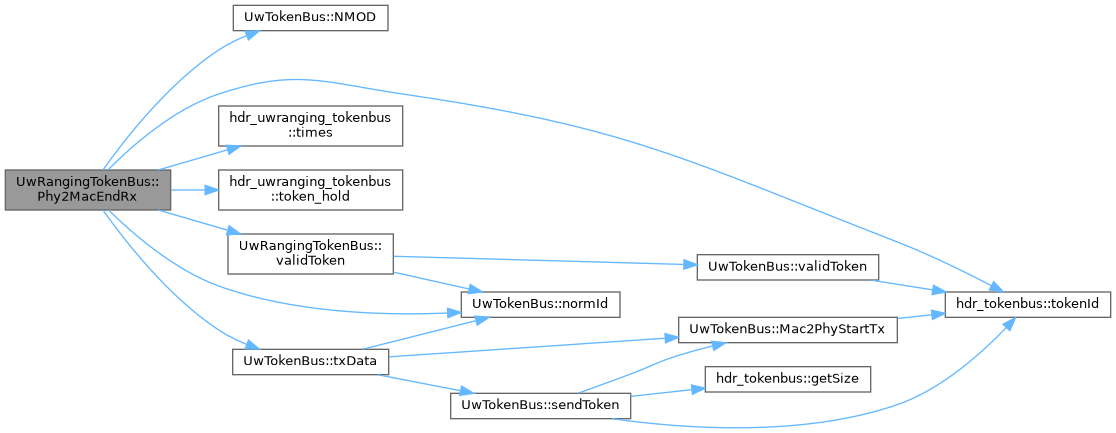

Here is the call graph for this function:

◆ sendToken()

void UwRangingTokenBus::sendToken ( int next_id )

overrideprotectedvirtual

Passes the token to the next node

Parameters

next_id node receiving the token

Reimplemented from UwTokenBus.

References hdr_tokenbus::getSize(), hdr_uwranging_tokenbus::getSize(), UwTokenBus::got_token, id_last_range, UwTokenBus::last_token_id_heard, UwTokenBus::Mac2PhyStartTx(), UwTokenBus::n_nodes, UwTokenBus::NMOD(), UwTokenBus::node_id, UwTokenBus::normId(), PT_UWRANGING_TOKENBUS, time_last_range, hdr_uwranging_tokenbus::times(), times_age, times_mat, hdr_uwranging_tokenbus::token_hold(), hdr_uwranging_tokenbus::token_resend(), UwTokenBus::token_rx_time, and hdr_tokenbus::tokenId().

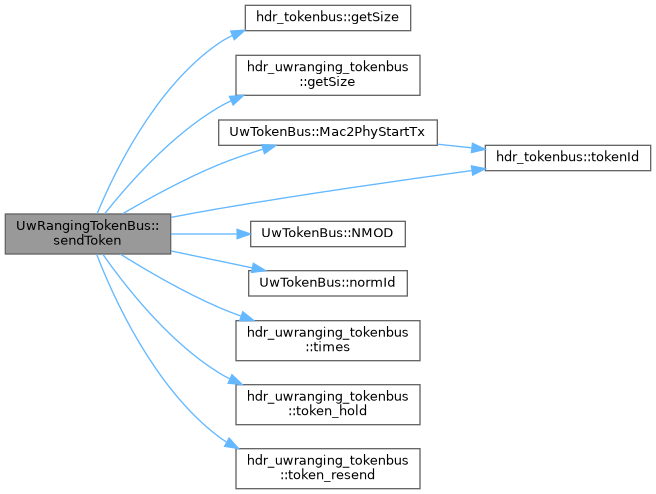

Here is the call graph for this function:

◆ validToken()

bool UwRangingTokenBus::validToken ( Packet * p ) const

overrideprotectedvirtual

Assert if the received token id is valid, i.e it follows the monotonic progression taking in account overflow.

Parameters

p	Packet with token

Reimplemented from UwTokenBus.

References UwTokenBus::last_token_id_owned, UwTokenBus::n_nodes, UwTokenBus::normId(), and UwTokenBus::validToken().

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

Member Data Documentation

◆ dist_map

std::vector<std::vector<int> > UwRangingTokenBus::dist_map

protected

of size [n_nodes][n_nodes] maps(nodeX,nodeY) -> distance

Referenced by command(), and UwRangingTokenBus().

◆ dist_num

const int UwRangingTokenBus::dist_num

protected

num of distances: will be initialized to n_nodes*(n_nodes-1)/2

Referenced by computeDist(), and UwRangingTokenBus().

◆ distances

std::vector<double> UwRangingTokenBus::distances

protected

vector of shape [D], contains the one way travel times between nodes to be transformed to distances by the user according to the chosen speed of sound model

Referenced by command(), computeDist(), and UwRangingTokenBus().

◆ epsilon

double UwRangingTokenBus::epsilon

protected

difference between virtually equal distances can result in small negative numbers due to floating point precision so values within epsilon will not be discarded by NNLS algo

Referenced by computeDist(), and UwRangingTokenBus().

◆ id_last_range

int UwRangingTokenBus::id_last_range

protected

node id from which I received the last ranging pkt

Referenced by computeDist(), Phy2MacEndRx(), and sendToken().

◆ max_tt

double UwRangingTokenBus::max_tt

protected

max travel time between nodes in seconds, used to discard bad nnleast_squares() results

Referenced by computeDist(), and UwRangingTokenBus().

◆ time_last_range

double UwRangingTokenBus::time_last_range

protected

time of last ping reception (or transmission)

Referenced by Phy2MacEndRx(), and sendToken().

◆ times_age

std::vector<std::vector<int> > UwRangingTokenBus::times_age

protected

vector of shape [n_nodes][n_nodes-1] holds the age of a time (slot number in which the time was calculate or received)

Referenced by computeDist(), Phy2MacEndRx(), sendToken(), and UwRangingTokenBus().

◆ times_mat

std::vector<std::vector<double> > UwRangingTokenBus::times_mat

protected

vector of shape [n_nodes][n_nodes-1] holds the travel times: the first index is the node_id which has calculated them

Referenced by computeDist(), Phy2MacEndRx(), sendToken(), and UwRangingTokenBus().

◆ x_mat

std::vector<std::vector<double> > UwRangingTokenBus::x_mat

protected

of size [2D][D] it's the sparse matrix with the equations coefficients (-1,0,1)

Referenced by computeDist(), and UwRangingTokenBus().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/ranging/uwranging_tokenbus/uwranging_tokenbus.h
DESERT_Framework/DESERT/ranging/uwranging_tokenbus/uwranging_tokenbus.cpp
