#include <uwtokenbus.h>

Inheritance diagram for UwTokenBus:

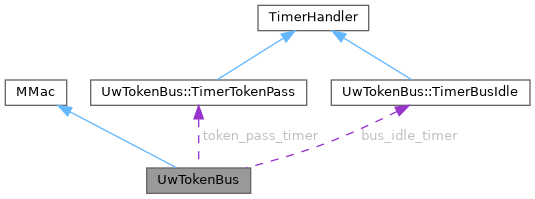

Collaboration diagram for UwTokenBus:

Classes
class	TimerBusIdle

class	TimerTokenPass

Public Types
enum	UWTokenBus_STATUS { IDLE , TRANSMITTING , RECEIVING }

Public Member Functions
	UwTokenBus ()

virtual	~UwTokenBus ()

Protected Member Functions
virtual void	expireBusIdle ()

virtual void	expireTokenPass ()

virtual void	initRing ()

virtual bool	validToken (Packet *p) const

virtual void	sendToken (int next_id)

virtual void	txData ()

virtual int	normId (int id) const

virtual int	nextId (int id) const

virtual int	nextIdOwned (int id) const

virtual void	recvFromUpperLayers (Packet *p) override

virtual void	Phy2MacEndRx (Packet *p) override

virtual void	Phy2MacStartRx (const Packet *p) override

virtual void	Mac2PhyStartTx (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p) override

virtual void	initPkt (Packet *p)

virtual int	command (int argc, const char const argv) override

constexpr int	NMOD (int n)

Protected Attributes
int	node_id

int	n_nodes

int	last_token_id_heard = 0

int	last_token_id_owned = 0

double	max_token_hold_time

double	min_token_hold_time

double	token_rx_time

int	max_queue_size

std::deque< Packet * >	buffer

UWTokenBus_STATUS	rtx_status

bool	got_token

double	slot_time

double	token_pass_timeout

double	bus_idle_timeout

TimerTokenPass	token_pass_timer

TimerBusIdle	bus_idle_timer

int	count_token_resend

int	count_token_regen

int	count_token_invalid

int	debug

int	drop_old_

int	checkPriority

Static Protected Attributes
static int	count_nodes = 0

static int	count_token_pass_exp = 0

static int	count_bus_idle_exp

Detailed Description

Class that represents a TokenBus Node

Member Enumeration Documentation

◆ UWTokenBus_STATUS

enum UwTokenBus::UWTokenBus_STATUS

Enumerator
IDLE
TRANSMITTING
RECEIVING

Constructor & Destructor Documentation

◆ UwTokenBus()

UwTokenBus::UwTokenBus ( )

Default constructor of the TokenBus class

References bus_idle_timeout, checkPriority, debug, drop_old_, initRing(), max_queue_size, max_token_hold_time, min_token_hold_time, n_nodes, slot_time, and token_pass_timeout.

Here is the call graph for this function:

◆ ~UwTokenBus()

UwTokenBus::~UwTokenBus ( )

virtual

Destructor of the TokenBus class

Member Function Documentation

◆ command()

int UwTokenBus::command	(	int	argc,
		const char const	argv
	)

overrideprotectedvirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented in UwRangingTokenBus.

References buffer, bus_idle_timeout, count_bus_idle_exp, count_token_invalid, count_token_pass_exp, count_token_regen, count_token_resend, slot_time, and token_pass_timeout.

Referenced by UwRangingTokenBus::command().

◆ expireBusIdle()

void UwTokenBus::expireBusIdle ( )

protectedvirtual

called when bus_idle_timer expires

References count_bus_idle_exp, got_token, last_token_id_owned, min_token_hold_time, n_nodes, normId(), token_pass_timer, token_rx_time, and txData().

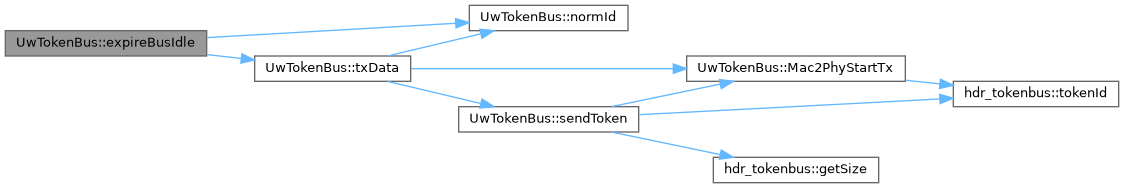

Here is the call graph for this function:

◆ expireTokenPass()

void UwTokenBus::expireTokenPass ( )

protectedvirtual

called when token_pass_timer expires

References count_token_pass_exp, got_token, last_token_id_owned, normId(), and sendToken().

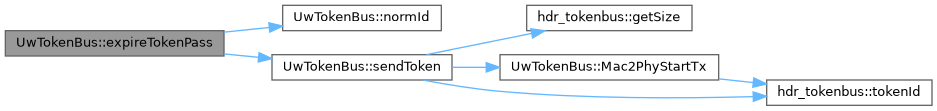

Here is the call graph for this function:

◆ initPkt()

void UwTokenBus::initPkt ( Packet * p )

protectedvirtual

Method called to add the MAC header size

Parameters

p	pointer to a Packet object that rapresent the Packet in transmission

References hdr_tokenbus::getSize().

Referenced by recvFromUpperLayers().

Here is the call graph for this function:

◆ initRing()

void UwTokenBus::initRing ( )

protectedvirtual

Initialize the network and generates the first token

References bus_idle_timeout, bus_idle_timer, last_token_id_owned, n_nodes, and node_id.

Referenced by UwTokenBus().

◆ Mac2PhyStartTx()

void UwTokenBus::Mac2PhyStartTx ( Packet * p )

protectedvirtual

Method called when the Mac Layer start to transmit a Packet

Parameters

p	pointer to a packet object that rapresent the packet in transmission

References bus_idle_timer, last_token_id_heard, RECEIVING, rtx_status, hdr_tokenbus::tokenId(), and TRANSMITTING.

Referenced by sendToken(), UwRangingTokenBus::sendToken(), and txData().

Here is the call graph for this function:

◆ nextId()

int UwTokenBus::nextId ( int id ) const

protectedvirtual

Returns: token Id of next node

References n_nodes, and TOKENIDMAX.

◆ nextIdOwned()

int UwTokenBus::nextIdOwned ( int id ) const

protectedvirtual

Returns: next token id owned by this node

References n_nodes, node_id, and TOKENIDMAX.

◆ NMOD()

constexpr int UwTokenBus::NMOD ( int n )

inlineconstexprprotected

given any int returns the corresponding node id via modulo operations

References n_nodes.

Referenced by UwRangingTokenBus::command(), UwRangingTokenBus::computeDist(), UwRangingTokenBus::Phy2MacEndRx(), UwRangingTokenBus::sendToken(), and UwRangingTokenBus::UwRangingTokenBus().

◆ normId()

int UwTokenBus::normId ( int id ) const

protectedvirtual

Returns: the token id modulo TOKENIDMAX

References n_nodes, and TOKENIDMAX.

Referenced by UwRangingTokenBus::computeDist(), expireBusIdle(), expireTokenPass(), UwRangingTokenBus::Phy2MacEndRx(), UwRangingTokenBus::sendToken(), txData(), and UwRangingTokenBus::validToken().

◆ Phy2MacEndRx()

void UwTokenBus::Phy2MacEndRx ( Packet * p )

overrideprotectedvirtual

Method called when the Phy Layer finish to receive a Packet

Parameters

p	pointer to a Packet object that rapresent the Packet in reception

Reimplemented in UwRangingTokenBus.

References bus_idle_timeout, bus_idle_timer, got_token, IDLE, last_token_id_heard, last_token_id_owned, min_token_hold_time, n_nodes, node_id, PT_UWTOKENBUS, rtx_status, token_pass_timer, token_rx_time, hdr_tokenbus::tokenId(), TRANSMITTING, txData(), and validToken().

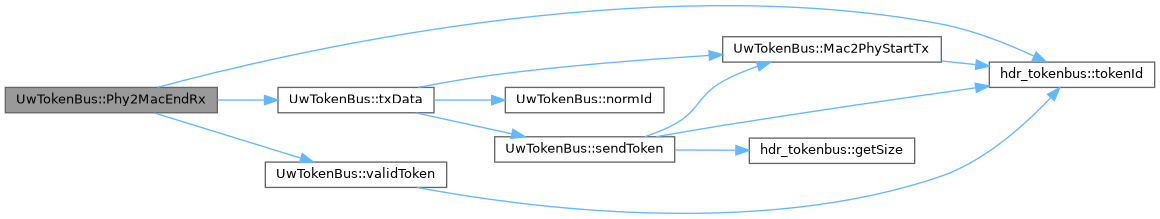

Here is the call graph for this function:

◆ Phy2MacEndTx()

void UwTokenBus::Phy2MacEndTx ( const Packet * p )

overrideprotectedvirtual

Method called when the Mac Layer finish to transmit a Packet

Parameters

p	pointer to a Packet object that rapresent the Packet in transmission

References bus_idle_timeout, bus_idle_timer, got_token, IDLE, n_nodes, rtx_status, and txData().

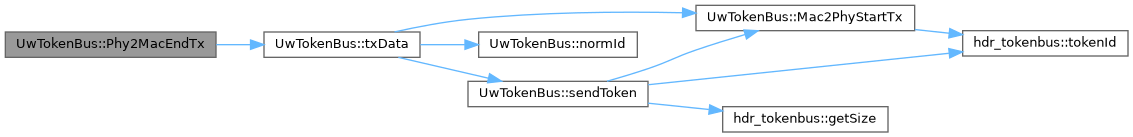

Here is the call graph for this function:

◆ Phy2MacStartRx()

void UwTokenBus::Phy2MacStartRx ( const Packet * p )

overrideprotectedvirtual

Method called when the Phy Layer start to receive a Packet

Parameters

p	pointer to a packet object that rapresent the Packet in reception

References IDLE, RECEIVING, rtx_status, and TRANSMITTING.

◆ recvFromUpperLayers()

void UwTokenBus::recvFromUpperLayers ( Packet * p )

overrideprotectedvirtual

Receive the packet from the upper layer (e.g. IP)

Parameters

p	pointer to the packet received

References buffer, checkPriority, drop_old_, got_token, initPkt(), max_queue_size, hdr_uwcbr::priority(), PT_UWCBR, and txData().

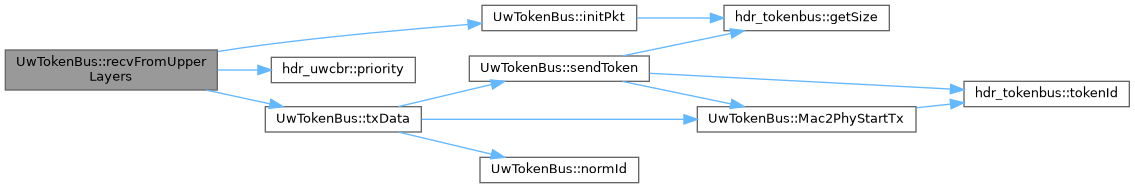

Here is the call graph for this function:

◆ sendToken()

void UwTokenBus::sendToken ( int next_id )

protectedvirtual

Passes the token to the next node

Parameters

next_id node receiving the token

Reimplemented in UwRangingTokenBus.

References hdr_tokenbus::getSize(), got_token, Mac2PhyStartTx(), n_nodes, PT_UWTOKENBUS, and hdr_tokenbus::tokenId().

Referenced by expireTokenPass(), and txData().

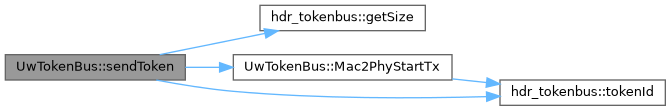

Here is the call graph for this function:

◆ txData()

void UwTokenBus::txData ( )

protectedvirtual

Starts transmitting the packets from the queue

References buffer, got_token, IDLE, last_token_id_owned, Mac2PhyStartTx(), max_token_hold_time, min_token_hold_time, node_id, normId(), RECEIVING, rtx_status, sendToken(), token_pass_timeout, token_pass_timer, token_rx_time, and TRANSMITTING.

Referenced by expireBusIdle(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), Phy2MacEndTx(), and recvFromUpperLayers().

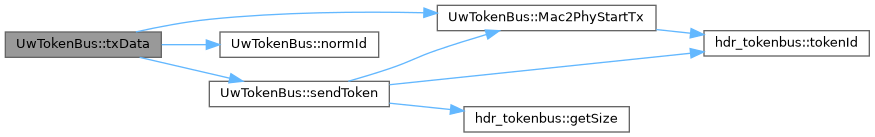

Here is the call graph for this function:

◆ validToken()

bool UwTokenBus::validToken ( Packet * p ) const

protectedvirtual

Assert if the received token id is valid, i.e it follows the monotonic progression taking in account uint16 overflow.

Parameters

p	Packet with token

Reimplemented in UwRangingTokenBus.

References last_token_id_heard, n_nodes, hdr_tokenbus::tokenId(), and TOKENIDMAX.

Referenced by Phy2MacEndRx(), and UwRangingTokenBus::validToken().

Here is the call graph for this function:

Member Data Documentation

◆ buffer

std::deque<Packet *> UwTokenBus::buffer

protected

outgoing packets dequeue

Referenced by command(), recvFromUpperLayers(), and txData().

◆ bus_idle_timeout

double UwTokenBus::bus_idle_timeout

protected

base timeout for the namesake timer should be (slot_time+max_token_hold_time)

Referenced by command(), initRing(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), Phy2MacEndTx(), and UwTokenBus().

◆ bus_idle_timer

TimerBusIdle UwTokenBus::bus_idle_timer

protected

token_pass_timer is scheduled when a node pass the token, it's cancelled when activity from the following node is heard and when it expires it resends the token.

Referenced by initRing(), Mac2PhyStartTx(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), and Phy2MacEndTx().

◆ checkPriority

int UwTokenBus::checkPriority

protected

flag to set to 1 if UWCBR module uses packets with priority, set to 0 otherwise. Priority can be used only with UWCBR module

Referenced by recvFromUpperLayers(), and UwTokenBus().

◆ count_bus_idle_exp

int UwTokenBus::count_bus_idle_exp

staticprotected

Initial value:

=

-1

count bus idle timer expirations

Referenced by command(), and expireBusIdle().

◆ count_nodes

int UwTokenBus::count_nodes = 0

staticprotected

counter of the instantiated nodes, used for assigning node ids in default contructor

◆ count_token_invalid

int UwTokenBus::count_token_invalid

protected

node count of invalid received token

Referenced by command().

◆ count_token_pass_exp

int UwTokenBus::count_token_pass_exp = 0

staticprotected

count token pass timer expirations

Referenced by command(), and expireTokenPass().

◆ count_token_regen

int UwTokenBus::count_token_regen

protected

node count of token regeneration

Referenced by command().

◆ count_token_resend

int UwTokenBus::count_token_resend

protected

bus_idle_timer is rescheduled everytime a new token_id is heard on the bus: the first time node n hears a token_id meant to node k, it sets the timeout to (3*(n-k+1)*bus_idle_timeout) in order to allow all the previous nodes to regenerate the token first When it expires, it regenerates the token and starts transmitting. node count of token retransmissions

Referenced by command().

◆ debug

int UwTokenBus::debug

protected

Debug variable: 0 for no info

Referenced by UwRangingTokenBus::Phy2MacEndRx(), and UwTokenBus().

◆ drop_old_

int UwTokenBus::drop_old_

protected

flag to set the drop packet policy in case of buffer overflow: if 0 (default) drops the new packet, if 1 the oldest

Referenced by recvFromUpperLayers(), and UwTokenBus().

◆ got_token

bool UwTokenBus::got_token

protected

set if node is currently holding the token

Referenced by expireBusIdle(), expireTokenPass(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), Phy2MacEndTx(), recvFromUpperLayers(), sendToken(), UwRangingTokenBus::sendToken(), and txData().

◆ last_token_id_heard

int UwTokenBus::last_token_id_heard = 0

protected

last token id heard on the bus

Referenced by Mac2PhyStartTx(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), UwRangingTokenBus::sendToken(), and validToken().

◆ last_token_id_owned

int UwTokenBus::last_token_id_owned = 0

protected

last token id owned

Referenced by expireBusIdle(), expireTokenPass(), initRing(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), txData(), and UwRangingTokenBus::validToken().

◆ max_queue_size

int UwTokenBus::max_queue_size

protected

max packets in the queue

Referenced by recvFromUpperLayers(), and UwTokenBus().

◆ max_token_hold_time

double UwTokenBus::max_token_hold_time

protected

max token holding time

Referenced by txData(), and UwTokenBus().

◆ min_token_hold_time

double UwTokenBus::min_token_hold_time

protected

if the node has en empty queue when it receive the token, it waits this time before passing the token

Referenced by expireBusIdle(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), txData(), and UwTokenBus().

◆ n_nodes

int UwTokenBus::n_nodes

protected

number of nodes in the ring

Referenced by UwRangingTokenBus::command(), UwRangingTokenBus::computeDist(), expireBusIdle(), initRing(), nextId(), nextIdOwned(), NMOD(), normId(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), Phy2MacEndTx(), sendToken(), UwRangingTokenBus::sendToken(), UwRangingTokenBus::UwRangingTokenBus(), UwTokenBus(), validToken(), and UwRangingTokenBus::validToken().

◆ node_id

int UwTokenBus::node_id

protected

id of the node (0 to n_nodes-1)

Referenced by initRing(), nextIdOwned(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), UwRangingTokenBus::sendToken(), and txData().

◆ rtx_status

UWTokenBus_STATUS UwTokenBus::rtx_status

protected

Referenced by Mac2PhyStartTx(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), Phy2MacEndTx(), Phy2MacStartRx(), and txData().

◆ slot_time

double UwTokenBus::slot_time

protected

max travel time between any pair of nodes, used as time unit for some of the timers timeouts

Referenced by command(), and UwTokenBus().

◆ token_pass_timeout

double UwTokenBus::token_pass_timeout

protected

timeout for the namesake timer for token retransmission attempt, should be 2*slot_time+min_token_hold_time

Referenced by command(), txData(), and UwTokenBus().

◆ token_pass_timer

TimerTokenPass UwTokenBus::token_pass_timer

protected

Referenced by expireBusIdle(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), and txData().

◆ token_rx_time

double UwTokenBus::token_rx_time

protected

time of token reception

Referenced by expireBusIdle(), Phy2MacEndRx(), UwRangingTokenBus::Phy2MacEndRx(), UwRangingTokenBus::sendToken(), and txData().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uwtokenbus/uwtokenbus.h
DESERT_Framework/DESERT/data_link/uwtokenbus/uwtokenbus.cpp

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ UWTokenBus_STATUS

Constructor & Destructor Documentation

◆ UwTokenBus()

◆ ~UwTokenBus()

Member Function Documentation

◆ command()

◆ expireBusIdle()

◆ expireTokenPass()

◆ initPkt()

◆ initRing()

◆ Mac2PhyStartTx()

◆ nextId()

◆ nextIdOwned()

◆ NMOD()

◆ normId()

◆ Phy2MacEndRx()

◆ Phy2MacEndTx()

◆ Phy2MacStartRx()

◆ recvFromUpperLayers()

◆ sendToken()

◆ txData()

◆ validToken()

Member Data Documentation

◆ buffer

◆ bus_idle_timeout

◆ bus_idle_timer

◆ checkPriority

◆ count_bus_idle_exp

◆ count_nodes

◆ count_token_invalid

◆ count_token_pass_exp

◆ count_token_regen

◆ count_token_resend

◆ debug

◆ drop_old_

◆ got_token

◆ last_token_id_heard

◆ last_token_id_owned

◆ max_queue_size

◆ max_token_hold_time

◆ min_token_hold_time

◆ n_nodes

◆ node_id

◆ rtx_status

◆ slot_time

◆ token_pass_timeout

◆ token_pass_timer

◆ token_rx_time
