UwRangingTDMA Class Reference

#include <uwranging_tdma.h>

Inheritance diagram for UwRangingTDMA:

Collaboration diagram for UwRangingTDMA:

Public Member Functions
	UwRangingTDMA ()
virtual	~UwRangingTDMA ()
Public Member Functions inherited from UwTDMA
	UwTDMA ()
virtual	~UwTDMA ()
virtual int	recvSyncClMsg (ClMessage *m)

Protected Member Functions
virtual void	sendRange ()
virtual void	stateTxData ()
virtual void	Phy2MacEndRx (Packet *p)
virtual void	Phy2MacStartRx (const Packet *p)
virtual void	Mac2PhyStartTx (Packet *p)
virtual int	command (int argc, const char *const *argv)
Protected Member Functions inherited from UwTDMA
virtual void	txData ()
virtual void	changeStatus ()
virtual void	start (double delay)
virtual void	stop ()
virtual void	recvFromUpperLayers (Packet *p)
virtual void	Phy2MacEndTx (const Packet *p)
virtual void	rxPacketNotForMe (Packet *p)
virtual void	initPkt (Packet *p)
unsigned long int	getEpoch ()

Protected Attributes
int	node_id
int	slot_id
int	n_nodes
int	slotidmax
std::vector< double >	owtt_vec
std::vector< std::vector< int > >	owtt_map
Protected Attributes inherited from UwTDMA
UWTDMA_STATUS	transceiver_status
int	slot_status
int	debug_
int	sea_trial_
int	fair_mode
int	tot_slots
int	slot_number
int	HDR_size
double	frame_duration
double	guard_time
double	slot_duration
double	start_time
UwTDMATimer	tdma_timer
std::deque< Packet * >	buffer
std::ofstream	out_file_stats
bool	enable
int	max_queue_size
int	max_packet_per_slot
int	packet_sent_curr_slot_
int	drop_old_
std::string	name_label_
int	checkPriority

Static Protected Attributes
static int	count_nodes = 0

Additional Inherited Members
Protected Types inherited from UwTDMA
enum	UWTDMA_STATUS { IDLE , TRANSMITTING , RECEIVING }

Detailed Description

Class that represents a UwRangingTDMA Node

Constructor & Destructor Documentation

UwRangingTDMA()

UwRangingTDMA::UwRangingTDMA

(

)

Constructor of the UwRangingTDMA class

References count_nodes, n_nodes, node_id, owtt_map, owtt_vec, UwTDMA::slot_number, and UwTDMA::tot_slots.

~UwRangingTDMA()

UwRangingTDMA::~UwRangingTDMA ( )

virtual

Destructor of the UwRangingTDMA class

Member Function Documentation

command()

int UwRangingTDMA::command ( int  argc, const char *const *  argv  )

protectedvirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters

Returns

TCL_OK or TCL_ERROR

Reimplemented from UwTDMA.

References UwTDMA::command(), n_nodes, owtt_map, and owtt_vec.

Here is the call graph for this function:

Mac2PhyStartTx()

void UwRangingTDMA::Mac2PhyStartTx ( Packet *  p )

protectedvirtual

Method called when the Mac Layer start to transmit a Packet

Parameters

const

Packet* Pointer to a Packet object that rapresent the Packet in transmission

Reimplemented from UwTDMA.

References UwTDMA::sea_trial_, UwTDMA::transceiver_status, and UwTDMA::TRANSMITTING.

Referenced by sendRange().

Phy2MacEndRx()

void UwRangingTDMA::Phy2MacEndRx ( Packet *  p )

protectedvirtual

Method called when the Phy Layer finish to receive a Packet

Parameters

Packet*

Pointer to an Packet object that rapresent the Packet in reception

Reimplemented from UwTDMA.

References UwTDMA::IDLE, n_nodes, node_id, owtt_map, owtt_vec, UwTDMA::Phy2MacEndRx(), PT_UWRANGING_TDMA, UwTDMA::slot_duration, hdr_ranging_tdma::slotId(), slotidmax, hdr_ranging_tdma::times(), UwTDMA::transceiver_status, and UwTDMA::TRANSMITTING.

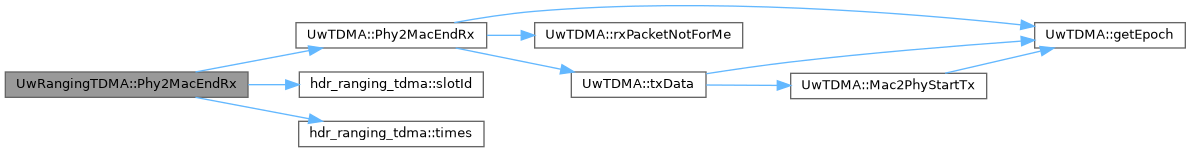

Here is the call graph for this function:

Phy2MacStartRx()

void UwRangingTDMA::Phy2MacStartRx ( const Packet *  p )

protectedvirtual

Method called when the Phy Layer start to receive a Packet

Parameters

const

Packet* Pointer to a Packet object that rapresent the Packet in reception

Reimplemented from UwTDMA.

References UwTDMA::IDLE, UwTDMA::RECEIVING, and UwTDMA::transceiver_status.

sendRange()

void UwRangingTDMA::sendRange ( )

protectedvirtual

sends the ranging packet at the beginning of my slot

References hdr_ranging_tdma::getSize(), Mac2PhyStartTx(), n_nodes, node_id, owtt_map, owtt_vec, PT_UWRANGING_TDMA, slot_id, hdr_ranging_tdma::slotId(), slotidmax, and hdr_ranging_tdma::times().

Referenced by stateTxData().

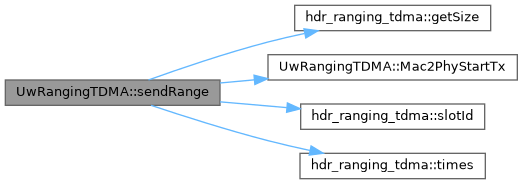

Here is the call graph for this function:

stateTxData()

void UwRangingTDMA::stateTxData ( )

protectedvirtual

Change transceiver status and and start to transmit if in my slot Used when there's spare time, useful for transmitting other packtes.

Reimplemented from UwTDMA.

References sendRange().

Here is the call graph for this function:

Member Data Documentation

count_nodes

int UwRangingTDMA::count_nodes = 0

staticprotected

counts the instantiated nodes, used for assigning node ids in default contructor

Referenced by UwRangingTDMA().

n_nodes

int UwRangingTDMA::n_nodes

protected

number of nodes

Referenced by command(), Phy2MacEndRx(), sendRange(), and UwRangingTDMA().

node_id

int UwRangingTDMA::node_id

protected

id of the node (0 to n_nodes-1)

Referenced by Phy2MacEndRx(), sendRange(), and UwRangingTDMA().

owtt_map

std::vector<std::vector<int> > UwRangingTDMA::owtt_map

protected

of size [n_nodes][n_nodes] maps(nodeX,nodeY) -> owtt_vec index

Referenced by command(), Phy2MacEndRx(), sendRange(), and UwRangingTDMA().

owtt_vec

std::vector<double> UwRangingTDMA::owtt_vec

protected

vector of lenght D = n_nodes*(n_nodes-1)/2 + 1 where the one way travel times are stored

Referenced by command(), Phy2MacEndRx(), sendRange(), and UwRangingTDMA().

slot_id

int UwRangingTDMA::slot_id

protected

= node_id + k*n_nodes; slot_id value is written in the outgoing ranging packet then k is incremented

Referenced by sendRange().

slotidmax

int UwRangingTDMA::slotidmax

protected

maximum slot_id allowable in packet header

Referenced by Phy2MacEndRx(), and sendRange().

---

The documentation for this class was generated from the following files:

• DESERT_Framework/DESERT/ranging/uwranging_tdma/uwranging_tdma.h
• DESERT_Framework/DESERT/ranging/uwranging_tdma/uwranging_tdma.cpp
