#include <uwtdma.h>

Inheritance diagram for UwTDMA:

Collaboration diagram for UwTDMA:

Public Member Functions
	UwTDMA ()

virtual	~UwTDMA ()

virtual int	recvSyncClMsg (ClMessage *m)

Protected Types
enum	UWTDMA_STATUS { IDLE , TRANSMITTING , RECEIVING }

Protected Member Functions
virtual void	txData ()

virtual void	stateTxData ()

virtual void	changeStatus ()

virtual void	start (double delay)

virtual void	stop ()

virtual void	recvFromUpperLayers (Packet *p)

virtual void	Phy2MacEndRx (Packet *p)

virtual void	Phy2MacStartRx (const Packet *p)

virtual void	Mac2PhyStartTx (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p)

virtual void	rxPacketNotForMe (Packet *p)

virtual void	initPkt (Packet *p)

unsigned long int	getEpoch ()

virtual int	command (int argc, const char const argv)

Protected Attributes
UWTDMA_STATUS	transceiver_status

int	slot_status

int	debug_

int	sea_trial_

int	fair_mode

int	tot_slots

int	slot_number

int	HDR_size

double	frame_duration

double	guard_time

double	slot_duration

double	start_time

UwTDMATimer	tdma_timer

std::deque< Packet * >	buffer

std::ofstream	out_file_stats

bool	enable

int	max_queue_size

int	max_packet_per_slot

int	packet_sent_curr_slot_

int	drop_old_

std::string	name_label_

int	checkPriority

Friends
class	UwTDMATimer

Detailed Description

Class that represents a TDMA Node

Member Enumeration Documentation

◆ UWTDMA_STATUS

enum UwTDMA::UWTDMA_STATUS

protected

Enumeration class of UWTDMA status.

Enumerator
IDLE
TRANSMITTING
RECEIVING

Constructor & Destructor Documentation

◆ UwTDMA()

UwTDMA::UwTDMA ( )

Constructor of the TDMA class

References checkPriority, debug_, drop_old_, fair_mode, frame_duration, guard_time, HDR_size, max_packet_per_slot, max_queue_size, sea_trial_, and tot_slots.

◆ ~UwTDMA()

UwTDMA::~UwTDMA ( )

virtual

Destructor of the TDMA class

Member Function Documentation

◆ changeStatus()

void UwTDMA::changeStatus ( )

protectedvirtual

Alternate TDMA status between MY_STATUS and NOT_MY_STATUS

Reimplemented in UwTDMA_frame.

References debug_, frame_duration, getEpoch(), guard_time, out_file_stats, packet_sent_curr_slot_, sea_trial_, slot_duration, slot_status, stateTxData(), and tdma_timer.

Referenced by UwTDMA_frame::changeStatus().

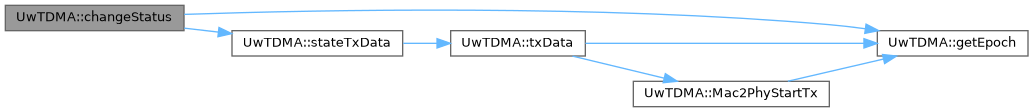

Here is the call graph for this function:

◆ command()

int UwTDMA::command	(	int	argc,
		const char const	argv
	)

protectedvirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented in UwTDMA_frame, and UwRangingTDMA.

References buffer, debug_, fair_mode, frame_duration, guard_time, name_label_, slot_duration, slot_number, start(), start_time, stop(), and tot_slots.

Referenced by UwTDMA_frame::command(), UwRangingTDMA::command(), and recvSyncClMsg().

Here is the call graph for this function:

◆ getEpoch()

unsigned long int UwTDMA::getEpoch ( )

inlineprotected

Calculate the epoch of the event. Used in sea-trial mode

Returns: the epoch of the system

Referenced by UwTDMA_frame::changeStatus(), changeStatus(), Mac2PhyStartTx(), Phy2MacEndRx(), Phy2MacEndTx(), start(), stop(), and txData().

◆ initPkt()

void UwTDMA::initPkt ( Packet * p )

protectedvirtual

Method called to add the MAC header size

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in transmission

References HDR_size.

Referenced by recvFromUpperLayers().

◆ Mac2PhyStartTx()

void UwTDMA::Mac2PhyStartTx ( Packet * p )

protectedvirtual

Method called when the Mac Layer start to transmit a Packet

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in transmission

Reimplemented in UwRangingTDMA.

References debug_, getEpoch(), IDLE, max_packet_per_slot, out_file_stats, packet_sent_curr_slot_, sea_trial_, transceiver_status, and TRANSMITTING.

Referenced by txData().

Here is the call graph for this function:

◆ Phy2MacEndRx()

void UwTDMA::Phy2MacEndRx ( Packet * p )

protectedvirtual

Method called when the Phy Layer finish to receive a Packet

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in reception

Reimplemented in UwRangingTDMA.

References debug_, getEpoch(), IDLE, out_file_stats, rxPacketNotForMe(), sea_trial_, slot_status, transceiver_status, TRANSMITTING, and txData().

Referenced by UwRangingTDMA::Phy2MacEndRx().

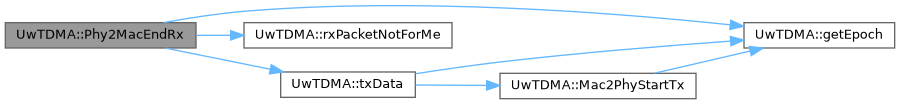

Here is the call graph for this function:

◆ Phy2MacEndTx()

void UwTDMA::Phy2MacEndTx ( const Packet * p )

protectedvirtual

Method called when the Mac Layer finish to transmit a Packet

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in transmission

References getEpoch(), IDLE, out_file_stats, packet_sent_curr_slot_, sea_trial_, transceiver_status, and txData().

Here is the call graph for this function:

◆ Phy2MacStartRx()

void UwTDMA::Phy2MacStartRx ( const Packet * p )

protectedvirtual

Method called when the Phy Layer start to receive a Packet

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in reception

Reimplemented in UwRangingTDMA.

References IDLE, RECEIVING, sea_trial_, and transceiver_status.

◆ recvFromUpperLayers()

void UwTDMA::recvFromUpperLayers ( Packet * p )

protectedvirtual

Receive the packet from the upper layer (e.g. IP)

Parameters

Packet* pointer to the packet received

References buffer, checkPriority, debug_, drop_old_, initPkt(), max_queue_size, hdr_uwcbr::priority(), and txData().

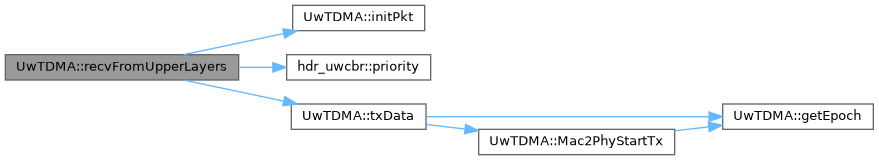

Here is the call graph for this function:

◆ recvSyncClMsg()

int UwTDMA::recvSyncClMsg ( ClMessage * m )

virtual

Cross-Layer messages synchronous interpreter.

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

References CLMSG_UWMMAC_ENABLE, command(), ClMsgUwMmac::SET_REPLY, ClMsgUwMmac::SET_REQ, start(), start_time, and stop().

Here is the call graph for this function:

◆ rxPacketNotForMe()

void UwTDMA::rxPacketNotForMe ( Packet * p )

protectedvirtual

Method called when the Packet received is determined to be not for me

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in reception

Referenced by Phy2MacEndRx().

◆ start()

void UwTDMA::start ( double delay )

protectedvirtual

Schedule the beginning of each TDMA cycle, each one after delay

Parameters

delay to await before starting the TDMA

References debug_, enable, getEpoch(), name_label_, out_file_stats, sea_trial_, slot_status, and tdma_timer.

Referenced by UwTDMA_frame::command(), command(), and recvSyncClMsg().

Here is the call graph for this function:

◆ stateTxData()

void UwTDMA::stateTxData ( )

protectedvirtual

Change transceiver status and and start to transmit if in my slot Used when there's spare time, useful for transmitting other packtes.

Reimplemented in UwRangingTDMA.

References txData().

Referenced by changeStatus().

Here is the call graph for this function:

◆ stop()

void UwTDMA::stop ( )

protectedvirtual

Terminate a TDMA cycle, essentially cancel the TDMA timer

References enable, getEpoch(), out_file_stats, sea_trial_, and tdma_timer.

Referenced by UwTDMA_frame::command(), command(), and recvSyncClMsg().

Here is the call graph for this function:

◆ txData()

void UwTDMA::txData ( )

protectedvirtual

Transmit a data packet if in my slot

References buffer, debug_, getEpoch(), IDLE, Mac2PhyStartTx(), max_packet_per_slot, out_file_stats, packet_sent_curr_slot_, sea_trial_, slot_status, and transceiver_status.

Referenced by Phy2MacEndRx(), Phy2MacEndTx(), recvFromUpperLayers(), and stateTxData().

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ UwTDMATimer

friend class UwTDMATimer

friend

Member Data Documentation

◆ buffer

std::deque<Packet *> UwTDMA::buffer

protected

Buffer of the MAC node

Referenced by command(), recvFromUpperLayers(), and txData().

◆ checkPriority

int UwTDMA::checkPriority

protected

flag to set to 1 if UWCBR module uses packets with priority, set to 0 otherwise. Priority can be used only with UWCBR module

Referenced by recvFromUpperLayers(), and UwTDMA().

◆ debug_

int UwTDMA::debug_

protected

Debug variable: 0 for no info, >-5 for small info, <-5 for complete info

Referenced by UwTDMA_frame::changeStatus(), changeStatus(), command(), UwTDMA_frame::getCurrentSlot(), UwTDMA_frame::getNextMySlot(), UwTDMA_frame::initializeTopologyS(), Mac2PhyStartTx(), Phy2MacEndRx(), recvFromUpperLayers(), start(), txData(), and UwTDMA().

◆ drop_old_

int UwTDMA::drop_old_

protected

flag to set the drop packet policy in case of buffer overflow: if 0 (default) drops the new packet, if 1 the oldest

Referenced by recvFromUpperLayers(), and UwTDMA().

◆ enable

bool UwTDMA::enable

protected

Referenced by start(), and stop().

◆ fair_mode

int UwTDMA::fair_mode

protected

Fair modality on if 1: then only set tot_slots and common guard_time

Referenced by UwTDMA_frame::command(), command(), UwTDMA(), and UwTDMA_frame::UwTDMA_frame().

◆ frame_duration

double UwTDMA::frame_duration

protected

Frame duration

Referenced by changeStatus(), UwTDMA_frame::command(), command(), and UwTDMA().

◆ guard_time

double UwTDMA::guard_time

protected

Guard time between slots

Referenced by UwTDMA_frame::changeStatus(), changeStatus(), UwTDMA_frame::command(), command(), UwTDMA(), and UwTDMA_frame::UwTDMA_frame().

◆ HDR_size

int UwTDMA::HDR_size

protected

Size of the HDR if any

Referenced by initPkt(), and UwTDMA().

◆ max_packet_per_slot

int UwTDMA::max_packet_per_slot

protected

max numer of packet it can transmit per slot

Referenced by Mac2PhyStartTx(), txData(), and UwTDMA().

◆ max_queue_size

int UwTDMA::max_queue_size

protected

Maximum dimension of Queue

Referenced by recvFromUpperLayers(), and UwTDMA().

◆ name_label_

std::string UwTDMA::name_label_

protected

label added in the log file, empty string by default

Referenced by command(), and start().

◆ out_file_stats

std::ofstream UwTDMA::out_file_stats

protected

File stream for the log file

Referenced by UwTDMA_frame::changeStatus(), changeStatus(), Mac2PhyStartTx(), Phy2MacEndRx(), Phy2MacEndTx(), start(), stop(), and txData().

◆ packet_sent_curr_slot_

int UwTDMA::packet_sent_curr_slot_

protected

counter of packet has been sent in the current slot

Referenced by changeStatus(), Mac2PhyStartTx(), Phy2MacEndTx(), and txData().

◆ sea_trial_

int UwTDMA::sea_trial_

protected

Written log variable

Referenced by UwTDMA_frame::changeStatus(), changeStatus(), Mac2PhyStartTx(), UwRangingTDMA::Mac2PhyStartTx(), Phy2MacEndRx(), Phy2MacEndTx(), Phy2MacStartRx(), start(), stop(), txData(), and UwTDMA().

◆ slot_duration

double UwTDMA::slot_duration

protected

Slot duration

Referenced by UwTDMA_frame::changeStatus(), changeStatus(), UwTDMA_frame::command(), command(), and UwRangingTDMA::Phy2MacEndRx().

◆ slot_number

int UwTDMA::slot_number

protected

set the position of the node in the frame (fair_mode) (starting from 0 to tot_slots-1)

Referenced by command(), UwTDMA_frame::initializeTopologyS(), and UwRangingTDMA::UwRangingTDMA().

◆ slot_status

int UwTDMA::slot_status

protected

Is it my turn to transmit data?

Referenced by UwTDMA_frame::changeStatus(), changeStatus(), Phy2MacEndRx(), start(), and txData().

◆ start_time

double UwTDMA::start_time

protected

Time to wait before starting the protocol

Referenced by UwTDMA_frame::command(), command(), and recvSyncClMsg().

◆ tdma_timer

UwTDMATimer UwTDMA::tdma_timer

protected

TDMA timer handler

Referenced by UwTDMA_frame::changeStatus(), changeStatus(), start(), and stop().

◆ tot_slots

int UwTDMA::tot_slots

protected

Number of slots in the frame (fair_mode)

Referenced by UwTDMA_frame::changeStatus(), UwTDMA_frame::command(), command(), UwTDMA_frame::initializeTopologyS(), UwRangingTDMA::UwRangingTDMA(), UwTDMA(), and UwTDMA_frame::UwTDMA_frame().

◆ transceiver_status

UWTDMA_STATUS UwTDMA::transceiver_status

protected

Variable holding the status enum type

Referenced by Mac2PhyStartTx(), UwRangingTDMA::Mac2PhyStartTx(), Phy2MacEndRx(), UwRangingTDMA::Phy2MacEndRx(), Phy2MacEndTx(), Phy2MacStartRx(), UwRangingTDMA::Phy2MacStartRx(), and txData().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uwtdma/uwtdma.h
DESERT_Framework/DESERT/data_link/uwtdma/uwtdma.cpp

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ UWTDMA_STATUS

Constructor & Destructor Documentation

◆ UwTDMA()

◆ ~UwTDMA()

Member Function Documentation

◆ changeStatus()

◆ command()

◆ getEpoch()

◆ initPkt()

◆ Mac2PhyStartTx()

◆ Phy2MacEndRx()

◆ Phy2MacEndTx()

◆ Phy2MacStartRx()

◆ recvFromUpperLayers()

◆ recvSyncClMsg()

◆ rxPacketNotForMe()

◆ start()

◆ stateTxData()

◆ stop()

◆ txData()

Friends And Related Symbol Documentation

◆ UwTDMATimer

Member Data Documentation

◆ buffer

◆ checkPriority

◆ debug_

◆ drop_old_

◆ enable

◆ fair_mode

◆ frame_duration

◆ guard_time

◆ HDR_size

◆ max_packet_per_slot

◆ max_queue_size

◆ name_label_

◆ out_file_stats

◆ packet_sent_curr_slot_

◆ sea_trial_

◆ slot_duration

◆ slot_number

◆ slot_status

◆ start_time

◆ tdma_timer

◆ tot_slots

◆ transceiver_status
