UwMultiStackController Class Reference

#include <uwmulti-stack-controller.h>

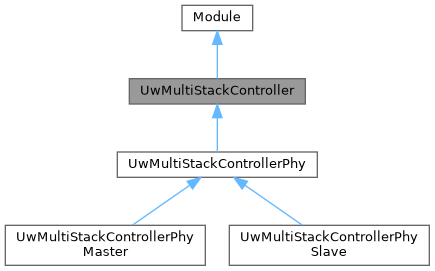

Inheritance diagram for UwMultiStackController:

Collaboration diagram for UwMultiStackController:

Public Member Functions
	UwMultiStackController ()
virtual	~UwMultiStackController ()
virtual int	command (int, const char *const *)
virtual void	addLayer (int id, int order)
virtual void	addThreshold (int i, int j, double thres_ij)
virtual void	recv (Packet *p)
int	getOrder (int layer_id)
int	getId (int layer_order)

Static Public Attributes
static int const	layer_not_exist = -1

Protected Types
enum	Mode { UW_MANUAL_SWITCH = 0 , UW_AUTOMATIC_SWITCH }

Protected Member Functions
virtual void	recvFromUpperLayers (Packet *p)
virtual int	getBestLayer (Packet *p)
virtual bool	isLayerAvailable (int id)
virtual double	getMetricFromSelectedLowerLayer (int id, Packet *p)
virtual bool	getThreshold (int i, int j, double &thres_ij)
virtual void	eraseThreshold (int i, int j)
void	setThreshold (int i, int j, double thres_ij)

Protected Attributes
int	debug_
double	min_delay_
Mode	switch_mode_
int	lower_id_active_
std::map< int, int >	id2order
ThresMatrix	threshold_map
std::map< int, int >	order2id
int	signaling_pktSize_

Detailed Description

Class used to represents the UwMultiStackController layer of a node.

Member Enumeration Documentation

Mode

enum UwMultiStackController::Mode

protected

< Switch modes >

Enumerator
UW_MANUAL_SWITCH	State to switch-mode manually.
UW_AUTOMATIC_SWITCH	State to switch-mode automatically.

Constructor & Destructor Documentation

UwMultiStackController()

UwMultiStackController::UwMultiStackController

(

)

Constructor of UwMultiPhy class.

References debug_, lower_id_active_, min_delay_, signaling_pktSize_, and switch_mode_.

~UwMultiStackController()

virtual UwMultiStackController::~UwMultiStackController ( )

inlinevirtual

Destructor of UwMultiPhy class.

Member Function Documentation

addLayer()

void UwMultiStackController::addLayer ( int  id, int  order  )

virtual

Add a layer in the layer map

Parameters

id	unique identifier of the module
order	of the id in the controller logic

References id2order, and order2id.

Referenced by command().

addThreshold()

void UwMultiStackController::addThreshold ( int  i, int  j, double  thres_ij  )

virtual

set the threshold value for the transition from layer i to layer j, checking first whether the layers exists

Parameters

i	id of the layer i
j	id of the layer j
thres_ij	threshold to pass from i to j

References id2order, and setThreshold().

Referenced by command().

Here is the call graph for this function:

command()

int UwMultiStackController::command ( int  argc, const char *const *  argv  )

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns

TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

parameters: layer_id, layer_order, a positive and unique integer to order the set if physical ids

parameters: layer_id1, layer_id2, transition threshold

Reimplemented in UwMultiStackControllerPhyMaster, UwMultiStackControllerPhySlave, and UwMultiStackControllerPhy.

References addLayer(), addThreshold(), lower_id_active_, switch_mode_, UW_AUTOMATIC_SWITCH, and UW_MANUAL_SWITCH.

Referenced by UwMultiStackControllerPhy::command().

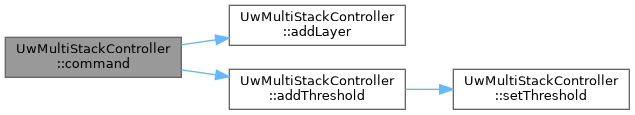

Here is the call graph for this function:

eraseThreshold()

void UwMultiStackController::eraseThreshold ( int  i, int  j  )

protectedvirtual

remove the threshold value for the transition from layer i to layer j, checking first whether the layers exists

Parameters

i	id of the layer i
j	id of the layer j

References threshold_map.

getBestLayer()

virtual int UwMultiStackController::getBestLayer ( Packet *  p )

inlineprotectedvirtual

Return the best layer to forward the packet when the system works in AUTOMATIC_MODE. It has to be overloaded in the extended classes to implement the choice rule.

Parameters

p	pointer to the packet

Returns

id of the module representing the best layer. ///@fgue what if there is no layer id active?

Reimplemented in UwMultiStackControllerPhyMaster, and UwMultiStackControllerPhySlave.

References lower_id_active_, switch_mode_, and UW_AUTOMATIC_SWITCH.

Referenced by recvFromUpperLayers().

getId()

int UwMultiStackController::getId ( int  layer_order )

inline

return the id of the controlled layer given its order in the controller logic

Parameters

order

of the mapped layer

Returns

the layer id

References layer_not_exist, and order2id.

Referenced by UwMultiStackControllerPhyMaster::getLongerRangeLayer(), and UwMultiStackControllerPhyMaster::getShorterRangeLayer().

getMetricFromSelectedLowerLayer()

double UwMultiStackController::getMetricFromSelectedLowerLayer ( int  id, Packet *  p  )

protectedvirtual

return the new metrics value obtained from the selected lower layer, in proactive way via ClMessage

Parameters

id	to select the lower layer
p	pointer to the packet

Returns

the value of the new value of the metrics obtained in proactive way ///@fgue what happens if the requested id is not present?

References ClMsgController::getMetrics().

Here is the call graph for this function:

getOrder()

int UwMultiStackController::getOrder ( int  layer_id )

inline

return the order of the id for the controller logic

Parameters

id	to select the layer

Returns

the order of the id

References id2order, and layer_not_exist.

Referenced by UwMultiStackControllerPhyMaster::getLongerRangeLayer(), and UwMultiStackControllerPhyMaster::getShorterRangeLayer().

getThreshold()

bool UwMultiStackController::getThreshold ( int  i, int  j, double &  thres_ij  )

protectedvirtual

get the threshold value for the transition from layer i to layer j, checking first whether the layers exists

Parameters

i	id of the layer i
j	id of the layer j
thres_ij	output reference to threshold(i,j); if it doesn't exist, the original value is left untouched

Returns

True iff threshold exists and thres_ij is set

References threshold_map.

Referenced by UwMultiStackControllerPhyMaster::checkBestLayer().

isLayerAvailable()

bool UwMultiStackController::isLayerAvailable ( int  id )

protectedvirtual

return if the specified layer, identified by id, is available

Parameters

id	unique identifier of the module

Returns

if the specified layer is available

References id2order.

recv()

void UwMultiStackController::recv ( Packet *  p )

virtual

recv method. It is called when a packet is received from the other layers

Parameters

Packet*

Pointer to the packet that are going to be received

References min_delay_, and recvFromUpperLayers().

Here is the call graph for this function:

recvFromUpperLayers()

void UwMultiStackController::recvFromUpperLayers ( Packet *  p )

protectedvirtual

By default the signaling is not employed, if it is needed, here where to set the signaling packet size Handle a packet coming from upper layers

Parameters

p	pointer to the packet

References getBestLayer(), lower_id_active_, min_delay_, switch_mode_, and UW_AUTOMATIC_SWITCH.

Referenced by recv(), and UwMultiStackControllerPhy::stateBusy2Tx().

Here is the call graph for this function:

setThreshold()

void UwMultiStackController::setThreshold ( int  i, int  j, double  thres_ij  )

inlineprotected

set the threshold value for the transition from layer i to layer j

Parameters

i	id of the layer i
j	id of the layer j
thres_ij	threshold to pass from i to j

References threshold_map.

Referenced by addThreshold().

Member Data Documentation

debug_

int UwMultiStackController::debug_

protected

Flag to activate debug verbosity.

Referenced by UwMultiStackControllerPhyMaster::checkBestLayer(), UwMultiStackControllerPhySlave::getBestLayer(), UwMultiStackControllerPhySlave::recv(), UwMultiStackControllerPhy::recv(), UwMultiStackControllerPhy::recvSyncClMsg(), UwMultiStackControllerPhyMaster::resetCheckAndSignal(), UwMultiStackControllerPhyMaster::signalsBestPhy(), UwMultiStackControllerPhy::stateBusy2Rx(), UwMultiStackControllerPhy::stateBusy2Tx(), UwMultiStackControllerPhy::stateIdle(), UwMultiStackControllerPhyMaster::updateMasterStatistics(), UwMultiStackControllerPhySlave::updateSlave(), and UwMultiStackController().

id2order

std::map<int, int> UwMultiStackController::id2order

protected

Maps each layer id to its order in the threshold matrix. (layer_id, order).

Referenced by addLayer(), addThreshold(), getOrder(), and isLayerAvailable().

layer_not_exist

const int UwMultiStackController::layer_not_exist = -1

static

This constant is returned when a searched layer does not exist>

Referenced by getId(), UwMultiStackControllerPhyMaster::getLongerRangeLayer(), getOrder(), and UwMultiStackControllerPhyMaster::getShorterRangeLayer().

lower_id_active_

int UwMultiStackController::lower_id_active_

protected

<Current switch mode (either AUTOMATIC or MANUAL). Id of the current lower layer active. It is used only in MANUAL MODE.

Referenced by UwMultiStackControllerPhyMaster::checkAndSignal(), UwMultiStackControllerPhyMaster::checkBestLayer(), UwMultiStackControllerPhyMaster::command(), UwMultiStackControllerPhySlave::command(), command(), UwMultiStackControllerPhyMaster::getBestLayer(), UwMultiStackControllerPhySlave::getBestLayer(), getBestLayer(), UwMultiStackControllerPhySlave::recv(), recvFromUpperLayers(), UwMultiStackControllerPhy::recvSyncClMsg(), UwMultiStackControllerPhyMaster::signalsBestPhy(), UwMultiStackControllerPhyMaster::updateMasterStatistics(), and UwMultiStackController().

min_delay_

double UwMultiStackController::min_delay_

protected

Referenced by recv(), UwMultiStackControllerPhySlave::recv(), UwMultiStackControllerPhy::recv(), recvFromUpperLayers(), UwMultiStackControllerPhyMaster::signalsBestPhy(), and UwMultiStackController().

order2id

std::map<int, int> UwMultiStackController::order2id

protected

Return the layer order given its order in the threshold matrix. (layer_order, layer_id).

Referenced by addLayer(), and getId().

signaling_pktSize_

int UwMultiStackController::signaling_pktSize_

protected

Referenced by UwMultiStackControllerPhyMaster::signalsBestPhy(), and UwMultiStackController().

switch_mode_

Mode UwMultiStackController::switch_mode_

protected

Referenced by command(), UwMultiStackControllerPhyMaster::getBestLayer(), UwMultiStackControllerPhySlave::getBestLayer(), getBestLayer(), recvFromUpperLayers(), and UwMultiStackController().

threshold_map

ThresMatrix UwMultiStackController::threshold_map

protected

Returns the switch layer theshold given a layer order.

Referenced by eraseThreshold(), getThreshold(), and setThreshold().

---

The documentation for this class was generated from the following files:

• DESERT_Addons/uwmulti_stack_controller/uwmulti-stack-controller.h
• DESERT_Addons/uwmulti_stack_controller/uwmulti-stack-controller.cc
