#include <uwmulti-stack-controller-phy-slave.h>

Inheritance diagram for UwMultiStackControllerPhySlave:

Collaboration diagram for UwMultiStackControllerPhySlave:

Public Member Functions
	UwMultiStackControllerPhySlave ()

virtual	~UwMultiStackControllerPhySlave ()

virtual int	command (int, const char const )

virtual void	recv (Packet *p, int idSrc)

Public Member Functions inherited from UwMultiStackControllerPhy
	UwMultiStackControllerPhy ()

virtual	~UwMultiStackControllerPhy ()

Public Member Functions inherited from UwMultiStackController
	UwMultiStackController ()

virtual	~UwMultiStackController ()

virtual void	addLayer (int id, int order)

virtual void	addThreshold (int i, int j, double thres_ij)

virtual void	recv (Packet *p)

int	getOrder (int layer_id)

int	getId (int layer_order)

Protected Member Functions
virtual int	getBestLayer (Packet *p)

virtual void	updateSlave (Packet *p, int idSrc)

int	recvSyncClMsg (ClMessage *m)

Protected Member Functions inherited from UwMultiStackControllerPhy
virtual void	initInfo ()

virtual void	stateIdle ()

virtual void	stateBusy2Rx (int id)

virtual void	stateBusy2Tx (Packet *p)

Protected Member Functions inherited from UwMultiStackController
virtual void	recvFromUpperLayers (Packet *p)

virtual bool	isLayerAvailable (int id)

virtual double	getMetricFromSelectedLowerLayer (int id, Packet *p)

virtual bool	getThreshold (int i, int j, double &thres_ij)

virtual void	eraseThreshold (int i, int j)

void	setThreshold (int i, int j, double thres_ij)

Protected Attributes
int	slave_lower_layer_

int	signaling_recv_

int	signaling_active_

Protected Attributes inherited from UwMultiStackControllerPhy
int	receiving_id

UWPHY_CONTROLLER_STATE	current_state

Protected Attributes inherited from UwMultiStackController
int	debug_

double	min_delay_

Mode	switch_mode_

int	lower_id_active_

std::map< int, int >	id2order

ThresMatrix	threshold_map

std::map< int, int >	order2id

int	signaling_pktSize_

Additional Inherited Members
Static Public Attributes inherited from UwMultiStackController
static int const	layer_not_exist = -1

Protected Types inherited from UwMultiStackControllerPhy
enum	UWPHY_CONTROLLER_STATE { UWPHY_CONTROLLER_STATE_IDLE = 1 , UWPHY_CONTROLLER_STATE_BUSY_2_TX , UWPHY_CONTROLLER_STATE_BUSY_2_RX }

Protected Types inherited from UwMultiStackController
enum	Mode { UW_MANUAL_SWITCH = 0 , UW_AUTOMATIC_SWITCH }

Static Protected Attributes inherited from UwMultiStackControllerPhy
static map< UWPHY_CONTROLLER_STATE, string >	state_info

Detailed Description

Class used to represents the UwMultiStackControllerPhySlave layer of a node.

Constructor & Destructor Documentation

◆ UwMultiStackControllerPhySlave()

UwMultiStackControllerPhySlave::UwMultiStackControllerPhySlave ( )

Constructor of UwMultiPhy class.

References signaling_active_.

◆ ~UwMultiStackControllerPhySlave()

virtual UwMultiStackControllerPhySlave::~UwMultiStackControllerPhySlave ( )

inlinevirtual

Destructor of UwMultiPhy class.

Member Function Documentation

◆ command()

int UwMultiStackControllerPhySlave::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UwMultiStackControllerPhy.

References UwMultiStackControllerPhy::command(), UwMultiStackController::lower_id_active_, signaling_active_, signaling_recv_, and slave_lower_layer_.

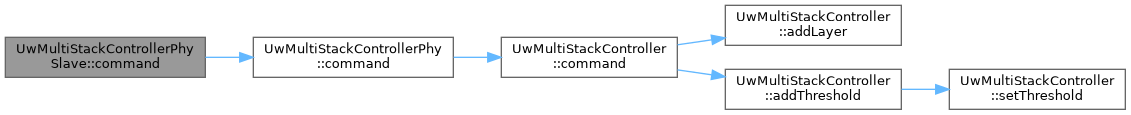

Here is the call graph for this function:

◆ getBestLayer()

int UwMultiStackControllerPhySlave::getBestLayer ( Packet * p )

protectedvirtual

If true slave is in signaling mode, otherwise not Return the best layer to forward the packet when the system works in AUTOMATIC_MODE. It has to be overload in the extended classes to implement the choice rule.

Parameters

p	pointer to the packet

Returns: id of the module representing the best layer

Reimplemented from UwMultiStackController.

References UwMultiStackController::debug_, UwMultiStackController::lower_id_active_, slave_lower_layer_, UwMultiStackController::switch_mode_, and UwMultiStackController::UW_AUTOMATIC_SWITCH.

◆ recv()

void UwMultiStackControllerPhySlave::recv	(	Packet *	p,
		int	idSrc
	)

virtual

It manages each packet reception, either from the upper and the lower layer

Parameters

p	pointer to the packet will be received
idSrc	unique id of the module that has sent the packet

See also: SAP, ChSAP

Reimplemented from UwMultiStackControllerPhy.

References UwMultiStackController::debug_, UwMultiStackController::lower_id_active_, UwMultiStackController::min_delay_, PT_MULTI_ST_SIGNALING, UwMultiStackControllerPhy::recv(), signaling_active_, signaling_recv_, and updateSlave().

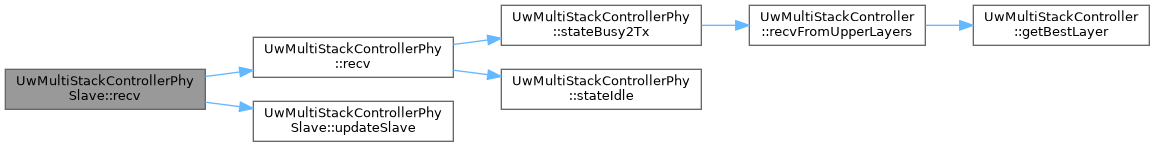

Here is the call graph for this function:

◆ recvSyncClMsg()

int UwMultiStackControllerPhySlave::recvSyncClMsg ( ClMessage * m )

protectedvirtual

Cross-Layer messages synchronous interpreter. It has to be properly extended in order to interpret custom cross-layer messages used by this particular plug-in. This type of communication need to be directly answered in the message exchanged in order to be synchronous with the source.

Parameters

m	an instance of ClMessage that represent the message received and used for the answer

Returns: zero if successful

See also: NodeCore, ClMessage, ClSAP, ClTracer, UwMultiStackControllerPhy

Reimplemented from UwMultiStackControllerPhy.

References PT_MULTI_ST_SIGNALING, and UwMultiStackControllerPhy::recvSyncClMsg().

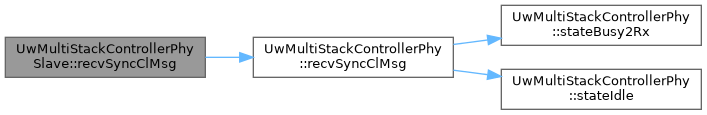

Here is the call graph for this function:

◆ updateSlave()

void UwMultiStackControllerPhySlave::updateSlave	(	Packet *	p,
		int	idSrc
	)

protectedvirtual

It implements the slave choice rule to choose the lower layer when the system works in AUTOMATIC_MODE.

Parameters

p	pointer to the packet
idSrc	unique id of the module that has sent the packet

References UwMultiStackController::debug_, and slave_lower_layer_.

Referenced by recv().

Member Data Documentation

◆ signaling_active_

int UwMultiStackControllerPhySlave::signaling_active_

protected

Number of signaling packets received

Referenced by command(), recv(), and UwMultiStackControllerPhySlave().

◆ signaling_recv_

int UwMultiStackControllerPhySlave::signaling_recv_

protected

Referenced by command(), and recv().

◆ slave_lower_layer_

int UwMultiStackControllerPhySlave::slave_lower_layer_

protected

Referenced by command(), getBestLayer(), and updateSlave().

The documentation for this class was generated from the following files:

DESERT_Addons/uwmulti_stack_controller/uwmulti-stack-controller-phy-slave.h
DESERT_Addons/uwmulti_stack_controller/uwmulti-stack-controller-phy-slave.cc
