#include <uwmulti-stack-controller-phy-master.h>

Inheritance diagram for UwMultiStackControllerPhyMaster:

[legend]

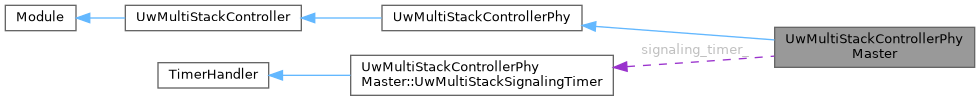

Collaboration diagram for UwMultiStackControllerPhyMaster:

[legend]

Classes
class	UwMultiStackSignalingTimer

Public Member Functions
	UwMultiStackControllerPhyMaster ()

virtual	~UwMultiStackControllerPhyMaster ()

virtual int	command (int, const char const )

virtual void	recv (Packet *p, int idSrc)

Public Member Functions inherited from UwMultiStackControllerPhy
	UwMultiStackControllerPhy ()

virtual	~UwMultiStackControllerPhy ()

Public Member Functions inherited from UwMultiStackController
	UwMultiStackController ()

virtual	~UwMultiStackController ()

virtual void	addLayer (int id, int order)

virtual void	addThreshold (int i, int j, double thres_ij)

virtual void	recv (Packet *p)

int	getOrder (int layer_id)

int	getId (int layer_order)

Protected Member Functions
virtual int	getBestLayer (Packet *p)

virtual void	checkAndSignal ()

virtual void	resetCheckAndSignal ()

virtual int	checkBestLayer ()

virtual void	signalsBestPhy ()

int	recvSyncClMsg (ClMessage *m)

virtual void	updateMasterStatistics (Packet *p, int idSrc)

int	getShorterRangeLayer (int layer_id)

int	getLongerRangeLayer (int layer_id)

Protected Member Functions inherited from UwMultiStackControllerPhy
virtual void	initInfo ()

virtual void	stateIdle ()

virtual void	stateBusy2Rx (int id)

virtual void	stateBusy2Tx (Packet *p)

Protected Member Functions inherited from UwMultiStackController
virtual void	recvFromUpperLayers (Packet *p)

virtual bool	isLayerAvailable (int id)

virtual double	getMetricFromSelectedLowerLayer (int id, Packet *p)

virtual bool	getThreshold (int i, int j, double &thres_ij)

virtual void	eraseThreshold (int i, int j)

void	setThreshold (int i, int j, double thres_ij)

Protected Attributes
int	signaling_active_

int	last_layer_used_

double	power_statistics_

int	power_stat_node_

double	alpha_

double	signaling_period_

int	signaling_sent_

UwMultiStackSignalingTimer	signaling_timer_

Protected Attributes inherited from UwMultiStackControllerPhy
int	receiving_id

UWPHY_CONTROLLER_STATE	current_state

Protected Attributes inherited from UwMultiStackController
int	debug_

double	min_delay_

Mode	switch_mode_

int	lower_id_active_

std::map< int, int >	id2order

ThresMatrix	threshold_map

std::map< int, int >	order2id

int	signaling_pktSize_

Additional Inherited Members
Static Public Attributes inherited from UwMultiStackController
static int const	layer_not_exist = -1

Protected Types inherited from UwMultiStackControllerPhy
enum	UWPHY_CONTROLLER_STATE { UWPHY_CONTROLLER_STATE_IDLE = 1 , UWPHY_CONTROLLER_STATE_BUSY_2_TX , UWPHY_CONTROLLER_STATE_BUSY_2_RX }

Protected Types inherited from UwMultiStackController
enum	Mode { UW_MANUAL_SWITCH = 0 , UW_AUTOMATIC_SWITCH }

Static Protected Attributes inherited from UwMultiStackControllerPhy
static map< UWPHY_CONTROLLER_STATE, string >	state_info

Detailed Description

Class used to represents the UwMultiStackControllerPhyMaster layer of a node.

Definition at line 52 of file uwmulti-stack-controller-phy-master.h.

Constructor & Destructor Documentation

◆ UwMultiStackControllerPhyMaster()

UwMultiStackControllerPhyMaster::UwMultiStackControllerPhyMaster ( )

Constructor of UwMultiPhy class.

Definition at line 63 of file uwmulti-stack-controller-phy-master.cc.

◆ ~UwMultiStackControllerPhyMaster()

virtual UwMultiStackControllerPhyMaster::~UwMultiStackControllerPhyMaster ( )

inlinevirtual

Destructor of UwMultiPhy class.

Definition at line 64 of file uwmulti-stack-controller-phy-master.h.

Member Function Documentation

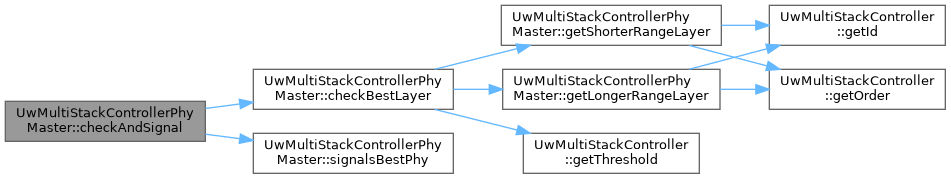

◆ checkAndSignal()

void UwMultiStackControllerPhyMaster::checkAndSignal ( )

protectedvirtual

If signaling is active, check the average power thresholds at each packet received.

Definition at line 151 of file uwmulti-stack-controller-phy-master.cc.

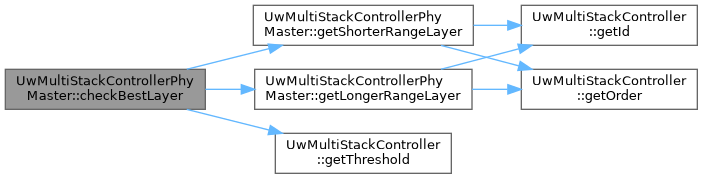

◆ checkBestLayer()

int UwMultiStackControllerPhyMaster::checkBestLayer ( )

protectedvirtual

Check the average power thresholds.

Definition at line 176 of file uwmulti-stack-controller-phy-master.cc.

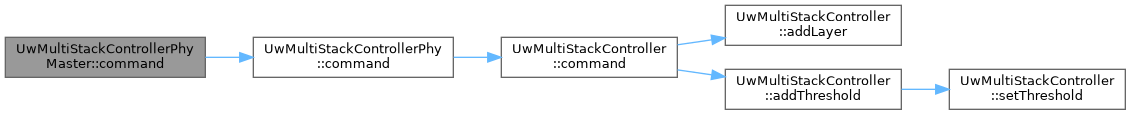

◆ command()

int UwMultiStackControllerPhyMaster::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter.

It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UwMultiStackControllerPhy.

Definition at line 80 of file uwmulti-stack-controller-phy-master.cc.

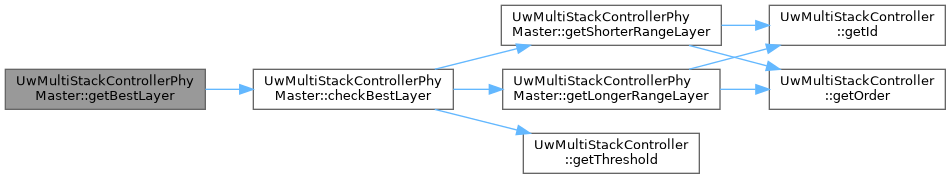

◆ getBestLayer()

int UwMultiStackControllerPhyMaster::getBestLayer ( Packet * p )

protectedvirtual

Return the best layer to forward the packet when the system works in AUTOMATIC_MODE.

It overloads in the extended classes to implement the choice rule.

Parameters

p	pointer to the packet

Returns: id of the module representing the best layer

Reimplemented from UwMultiStackController.

Definition at line 140 of file uwmulti-stack-controller-phy-master.cc.

◆ getLongerRangeLayer()

int UwMultiStackControllerPhyMaster::getLongerRangeLayer ( int layer_id )

inlineprotected

Return the previous layer in order which can achieve longer range with lower bitrete.

Parameters

layer_id id of the current layer

Returns: id of the previous layer in order

Definition at line 185 of file uwmulti-stack-controller-phy-master.h.

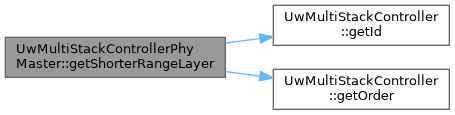

◆ getShorterRangeLayer()

int UwMultiStackControllerPhyMaster::getShorterRangeLayer ( int layer_id )

inlineprotected

Return the next layer in order which can achieve shorter range with higer bitrete.

Parameters

layer_id id of the current layer

Returns: id of the next layer in order

Definition at line 174 of file uwmulti-stack-controller-phy-master.h.

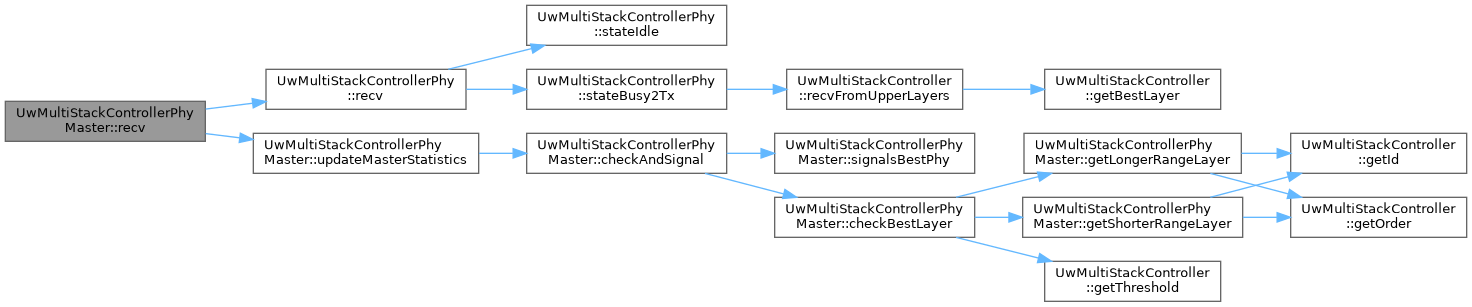

◆ recv()

void UwMultiStackControllerPhyMaster::recv	(	Packet *	p,
		int	idSrc
	)

virtual

It manages each packet reception, either from the upper and the lower layer.

Parameters

p	pointer to the packet will be received
idSrc	unique id of the module that has sent the packet

See also: SAP, ChSAP

Reimplemented from UwMultiStackControllerPhy.

Definition at line 128 of file uwmulti-stack-controller-phy-master.cc.

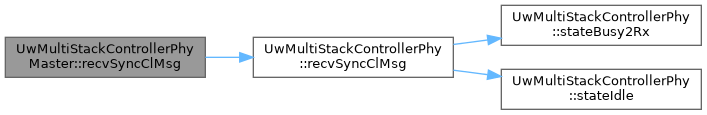

◆ recvSyncClMsg()

int UwMultiStackControllerPhyMaster::recvSyncClMsg ( ClMessage * m )

protectedvirtual

Cross-Layer messages synchronous interpreter.

It has to be properly extended in order to interpret custom cross-layer messages used by this particular plug-in. This type of communication need to be directly answered in the message exchanged in order to be synchronous with the source.

Parameters

m	an instance of ClMessage that represent the message received and used for the answer

Returns: zero if successful

See also: NodeCore, ClMessage, ClSAP, ClTracer, UwMultiStackControllerPhy

Reimplemented from UwMultiStackControllerPhy.

Definition at line 237 of file uwmulti-stack-controller-phy-master.cc.

◆ resetCheckAndSignal()

void UwMultiStackControllerPhyMaster::resetCheckAndSignal ( )

protectedvirtual

If signaling is active and signaling timer expires, check the average power thresholds at each packet received.

Definition at line 164 of file uwmulti-stack-controller-phy-master.cc.

◆ signalsBestPhy()

void UwMultiStackControllerPhyMaster::signalsBestPhy ( )

protectedvirtual

Signals the best phy.

Definition at line 211 of file uwmulti-stack-controller-phy-master.cc.

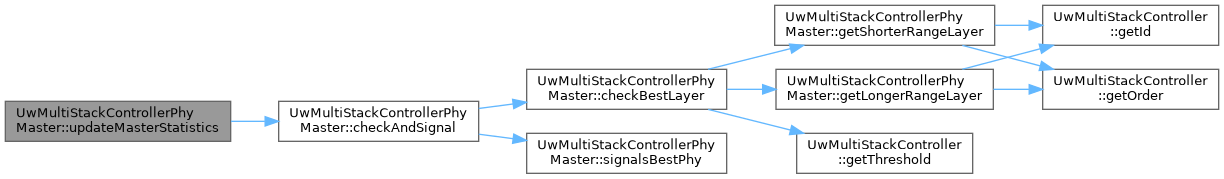

◆ updateMasterStatistics()

void UwMultiStackControllerPhyMaster::updateMasterStatistics	(	Packet *	p,
		int	idSrc
	)

protectedvirtual

It implements the slave choice rule to choose the lower layer when the system works in AUTOMATIC_MODE.

Parameters

p	pointer to the packet
idSrc	unique id of the module that has sent the packet

Definition at line 254 of file uwmulti-stack-controller-phy-master.cc.

Member Data Documentation

◆ alpha_

double UwMultiStackControllerPhyMaster::alpha_

protected

Address of the node which the master is collecting the average power.

IIR parameter

Definition at line 105 of file uwmulti-stack-controller-phy-master.h.

◆ last_layer_used_

int UwMultiStackControllerPhyMaster::last_layer_used_

protected

If true master is in signaling mode, otherwise not.

Definition at line 102 of file uwmulti-stack-controller-phy-master.h.

◆ power_stat_node_

int UwMultiStackControllerPhyMaster::power_stat_node_

protected

Average received power from the closest node according to the IIR filter.

Definition at line 104 of file uwmulti-stack-controller-phy-master.h.

◆ power_statistics_

double UwMultiStackControllerPhyMaster::power_statistics_

protected

ID of the last PHY layer used.

Definition at line 103 of file uwmulti-stack-controller-phy-master.h.

◆ signaling_active_

int UwMultiStackControllerPhyMaster::signaling_active_

protected

Definition at line 101 of file uwmulti-stack-controller-phy-master.h.

◆ signaling_period_

double UwMultiStackControllerPhyMaster::signaling_period_

protected

Definition at line 106 of file uwmulti-stack-controller-phy-master.h.

◆ signaling_sent_

int UwMultiStackControllerPhyMaster::signaling_sent_

protected

Period to check the best layer if no interactions occurs.

Definition at line 107 of file uwmulti-stack-controller-phy-master.h.

◆ signaling_timer_

UwMultiStackSignalingTimer UwMultiStackControllerPhyMaster::signaling_timer_

protected

Number of signaling packets sent.

UwMultiStack signaling timer handler

Definition at line 108 of file uwmulti-stack-controller-phy-master.h.
