#include <mmac.h>
#include <vector>
#include <string>
#include <map>
#include <set>
#include <queue>
#include <utility>
#include <fstream>
#include <mphy.h>

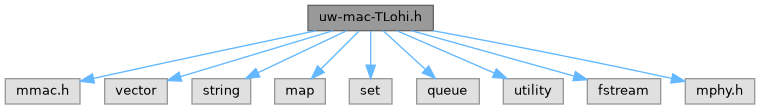

Include dependency graph for uw-mac-TLohi.h:

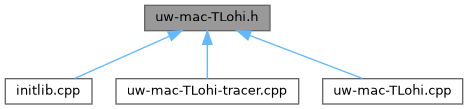

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	hdr_tlohi

class	Timer

class	DataTimer

class	MMacTLOHI

Macros
#define	HDR_TLOHI(P) (hdr_tlohi::access(P))

#define	TLOHI_DROP_REASON_WRONG_STATE "WST"

#define	TLOHI_DROP_REASON_WRONG_RECEIVER "WRCV"

#define	TLOHI_DROP_REASON_UNKNOWN_TYPE "UPT"

#define	TLOHI_DROP_REASON_BUFFER_FULL "DBF"

Typedefs
typedef struct hdr_tlohi	hdr_tlohi

Enumerations
enum	TLOHI_STATUS { STATE_IDLE = 1 , STATE_BACKOFF , STATE_START_CONTENTION , STATE_WAIT_END_CONTENTION , STATE_TX_DATA , STATE_SLEEP , STATE_TX_ACK , STATE_WAIT_ACK , STATE_DATA_RECEIVED , STATE_ACK_RECEIVED , STATE_WAIT_END_CR , STATE_COUNT_CONTENDERS , STATE_RECONTEND_WINDOW , STATE_WAIT_XACK , STATE_NOT_SET }

enum	TLOHI_REASON_STATUS { REASON_TONE_TX = 1 , REASON_DATA_PENDING , REASON_TONE_RX , REASON_WAIT_CR_END , REASON_NO_CONTENDERS , REASON_CONTENDERS , REASON_DATA_RX , REASON_XDATA_RX , REASON_XACK_RX , REASON_DATA_TX , REASON_ACK_TX , REASON_ACK_RX , REASON_BACKOFF_TIMEOUT , REASON_ACK_TIMEOUT , REASON_SLEEP_TIMEOUT , REASON_RECONTEND_END , REASON_CR_END , REASON_DATA_EMPTY , REASON_XACK_TIMEOUT , REASON_NOT_SET , REASON_MAX_TX_TRIES }

enum	TLOHI_PKT_TYPE { TONE_PKT = 1 , ACK_PKT , DATA_PKT , DATAMAX_PKT }

enum	TLOHI_ACK_MODE { ACK_MODE = 1 , NO_ACK_MODE }

enum	TLOHI_MODE { CONSERVATIVE_UNSYNC_MODE = 1 , AGGRESSIVE_UNSYNC_MODE , SYNC_MODE }

enum	TIMER_STATUS { RUNNING = 1 , STOPPED , FREEZED }

Variables
packet_t	PT_TLOHI

static const int	prop_speed

Detailed Description

Provides the declaration of uw-mac-TLohi MAC protocol.

Author: Federico Guerra

Version: 1.0.0

Definition in file uw-mac-TLohi.h.

Macro Definition Documentation

◆ HDR_TLOHI

#define HDR_TLOHI ( P ) (hdr_tlohi::access(P))

Definition at line 54 of file uw-mac-TLohi.h.

◆ TLOHI_DROP_REASON_BUFFER_FULL

#define TLOHI_DROP_REASON_BUFFER_FULL "DBF"

Definition at line 59 of file uw-mac-TLohi.h.

◆ TLOHI_DROP_REASON_UNKNOWN_TYPE

#define TLOHI_DROP_REASON_UNKNOWN_TYPE "UPT"

Definition at line 58 of file uw-mac-TLohi.h.

◆ TLOHI_DROP_REASON_WRONG_RECEIVER

#define TLOHI_DROP_REASON_WRONG_RECEIVER "WRCV"

Definition at line 57 of file uw-mac-TLohi.h.

◆ TLOHI_DROP_REASON_WRONG_STATE

#define TLOHI_DROP_REASON_WRONG_STATE "WST"

Definition at line 56 of file uw-mac-TLohi.h.

Typedef Documentation

◆ hdr_tlohi

typedef struct hdr_tlohi hdr_tlohi

Struct that defines the header of T-LOHI in the packets.

Enumeration Type Documentation

◆ TIMER_STATUS

enum TIMER_STATUS

Enumeration that indicates the possible state of the timers, namely: RUNNING, STOPPED or FREEZED.

Enumerator
RUNNING
STOPPED
FREEZED

Definition at line 143 of file uw-mac-TLohi.h.

◆ TLOHI_ACK_MODE

enum TLOHI_ACK_MODE

Enumeration that indicates the possible type of ACK MODE, namely: ACK_MODE or NO_ACK_MODE.

Enumerator
ACK_MODE
NO_ACK_MODE

Definition at line 125 of file uw-mac-TLohi.h.

◆ TLOHI_MODE

enum TLOHI_MODE

Enumeration that indicates the possible modality of T-LOHI protocol, namely: CONSERVATIVE_UNSYNC_MODE or AGGRESSIVE_UNSYNC_MODE.

Enumerator
CONSERVATIVE_UNSYNC_MODE
AGGRESSIVE_UNSYNC_MODE
SYNC_MODE

Definition at line 132 of file uw-mac-TLohi.h.

◆ TLOHI_PKT_TYPE

enum TLOHI_PKT_TYPE

Enumeration that indicates the possibile type of packets in T-LOHI MAC protocol.

Enumerator
TONE_PKT
ACK_PKT
DATA_PKT
DATAMAX_PKT

Definition at line 119 of file uw-mac-TLohi.h.

◆ TLOHI_REASON_STATUS

enum TLOHI_REASON_STATUS

Enumeration that indicates the possibile reason for the change of state in T-LOHI MAC protocol.

Enumerator
REASON_TONE_TX
REASON_DATA_PENDING
REASON_TONE_RX
REASON_WAIT_CR_END
REASON_NO_CONTENDERS
REASON_CONTENDERS
REASON_DATA_RX
REASON_XDATA_RX
REASON_XACK_RX
REASON_DATA_TX
REASON_ACK_TX
REASON_ACK_RX
REASON_BACKOFF_TIMEOUT
REASON_ACK_TIMEOUT
REASON_SLEEP_TIMEOUT
REASON_RECONTEND_END
REASON_CR_END
REASON_DATA_EMPTY
REASON_XACK_TIMEOUT
REASON_NOT_SET
REASON_MAX_TX_TRIES

Definition at line 91 of file uw-mac-TLohi.h.

◆ TLOHI_STATUS

enum TLOHI_STATUS

Enumeration that indicates the possible state of T-LOHI MAC.

Enumerator
STATE_IDLE
STATE_BACKOFF
STATE_START_CONTENTION
STATE_WAIT_END_CONTENTION
STATE_TX_DATA
STATE_SLEEP
STATE_TX_ACK
STATE_WAIT_ACK
STATE_DATA_RECEIVED
STATE_ACK_RECEIVED
STATE_WAIT_END_CR
STATE_COUNT_CONTENDERS
STATE_RECONTEND_WINDOW
STATE_WAIT_XACK
STATE_NOT_SET

Definition at line 69 of file uw-mac-TLohi.h.

Variable Documentation

◆ prop_speed

const int prop_speed

static

Initial value:

=

1500

typical sound speed in underwater scenario

Definition at line 63 of file uw-mac-TLohi.h.

◆ PT_TLOHI

packet_t PT_TLOHI

extern

Definition at line 47 of file DESERT_Framework/DESERT/data_link/uw-t-lohi/initlib.cpp.
