#include <uw-mac-TLohi.h>

Inheritance diagram for MMacTLOHI:

Collaboration diagram for MMacTLOHI:

Public Member Functions
	MMacTLOHI ()

virtual	~MMacTLOHI ()

virtual int	command (int argc, const char const argv)

virtual int	crLayCommand (ClMessage *m)

Protected Member Functions
virtual void	recvFromUpperLayers (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p)

virtual void	Phy2MacStartRx (const Packet *p)

virtual void	Phy2MacEndRx (Packet *p)

virtual double	computeTxTime (TLOHI_PKT_TYPE type)

virtual void	initPkt (Packet *p, TLOHI_PKT_TYPE pkt_type)

virtual void	getBackoffTime ()

virtual double	getCRduration ()

virtual void	checkDataPhy ()

virtual int	countContenders (double time)

virtual void	txTone ()

virtual void	txData ()

virtual void	txAck ()

virtual void	rxTone (Packet *p)

virtual void	rxAck (Packet *p)

virtual void	rxElse (Packet *p)

virtual void	stateIdle ()

virtual void	stateBackoff ()

virtual void	stateStartContention ()

virtual void	stateWaitEndContention ()

virtual void	stateCountContenders ()

virtual void	stateTxData ()

virtual void	stateSleep ()

virtual void	stateWaitAck ()

virtual void	stateWaitXAck ()

virtual void	stateDataReceived (Packet *data_pkt)

virtual void	stateTxAck ()

virtual void	stateRecontendWindow ()

virtual void	stateWaitCR ()

virtual void	printStateInfo (double delay=0)

virtual void	initInfo ()

virtual void	initData ()

virtual void	initMphyIds ()

virtual void	refreshState (TLOHI_STATUS state)

virtual void	refreshReason (TLOHI_REASON_STATUS reason)

virtual void	exitBackoff ()

virtual void	setDestAddr (int mac_addr)

virtual void	setSessionDistance (double distance)

virtual void	checkPhyInit ()

virtual void	incrCurrTxRounds ()

virtual void	resetSession ()

virtual void	queuePop (bool flag)

virtual void	waitForUser ()

virtual void	incrTonePktsTx ()

virtual void	incrTonePktsRx ()

virtual void	incrCurrTxTries ()

virtual void	resetStats ()

virtual int	getRemainingPkts ()

virtual int	getTonePktsTx ()

virtual int	getTonePktsRx ()

virtual int	getUpLayersDataPktsRx ()

Protected Attributes
int	tone_pkts_tx

int	tone_pkts_rx

double	max_prop_delay

int	max_tx_rounds

double	max_tx_tries

double	backoff_tuner

double	wait_costant

int	max_payload

int	HDR_size

int	ACK_size

double	sleep_timeout

double	DATA_listen_timeout

double	ACK_timeout

double	recontend_time

double	tone_data_delay

int	buffer_pkts

queue< Packet * >	Q

bool	TxActive

bool	session_active

bool	backoff_pending

bool	tone_transmitted

bool	print_transitions

bool	mphy_ids_initialized

bool	has_buffer_queue

TLOHI_ACK_MODE	ack_mode

TLOHI_MODE	op_mode

int	tone_phy_id

int	data_phy_id

double	CR_duration

int	curr_dest_addr

int	last_data_id_tx

int	last_data_id_rx

Packet *	curr_data_pkt

int	curr_contenders

int	curr_tx_rounds

int	curr_tx_tries

TLOHI_REASON_STATUS	last_reason

TLOHI_STATUS	curr_state

TLOHI_STATUS	prev_state

double	session_distance

double	backoff_start_time

double	backoff_duration

double	backoff_remaining

int	u_data_id

int	txsn

string	tcl_modulation

Timer	timer

DataTimer	data_phy_timer

ofstream	fout

Static Protected Attributes
static bool	initialized = false

static int	u_pkt_id

static map< TLOHI_STATUS, string >	status_info

static map< TLOHI_REASON_STATUS, string >	reason_info

static map< TLOHI_PKT_TYPE, string >	pkt_type_info

Friends
class	Timer

class	DataTimer

Detailed Description

Class that represents the T-LOHI MAC protocol for a node

Constructor & Destructor Documentation

◆ MMacTLOHI()

MMacTLOHI::MMacTLOHI ( )

Constructor of the class

References ACK_size, buffer_pkts, has_buffer_queue, HDR_size, max_payload, max_prop_delay, max_tx_rounds, max_tx_tries, recontend_time, tcl_modulation, tone_data_delay, u_pkt_id, and wait_costant.

◆ ~MMacTLOHI()

MMacTLOHI::~MMacTLOHI ( )

virtual

Destructor of the class

Member Function Documentation

◆ checkDataPhy()

void MMacTLOHI::checkDataPhy ( )

protectedvirtual

Checks if the PHY layer for Data is active. If not, actives it for a fixed amout of time

References DATA_listen_timeout, data_phy_id, data_phy_timer, and wait_costant.

Referenced by rxTone().

◆ checkPhyInit()

void MMacTLOHI::checkPhyInit ( )

protectedvirtual

Checks if the PHY layers (for DATA and TONE) are initialized

References initialized, and mphy_ids_initialized.

Referenced by command().

◆ command()

int MMacTLOHI::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References ACK_MODE, ack_mode, AGGRESSIVE_UNSYNC_MODE, checkPhyInit(), computeTxTime(), CONSERVATIVE_UNSYNC_MODE, CR_duration, data_phy_id, fout, getCRduration(), getTonePktsRx(), getTonePktsTx(), getUpLayersDataPktsRx(), initData(), initialized, initInfo(), initMphyIds(), max_prop_delay, NO_ACK_MODE, op_mode, print_transitions, Q, tcl_modulation, tone_phy_id, and TONE_PKT.

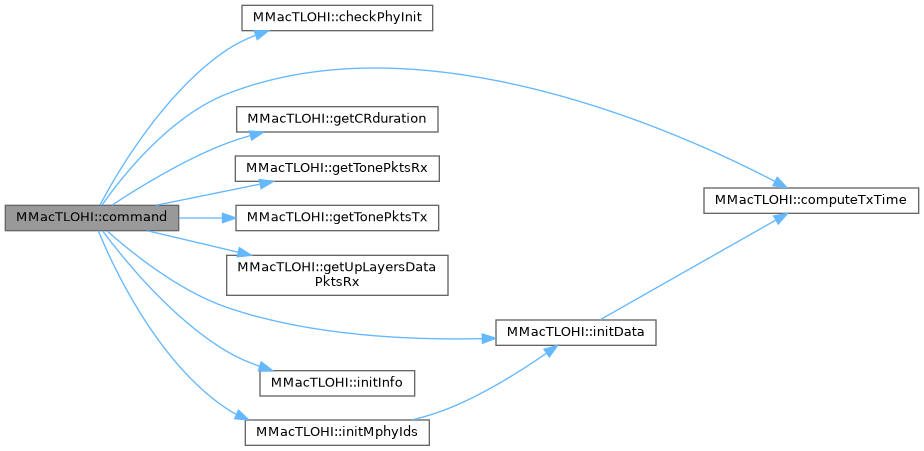

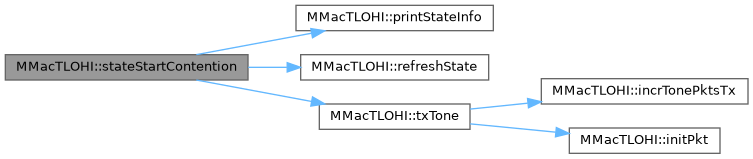

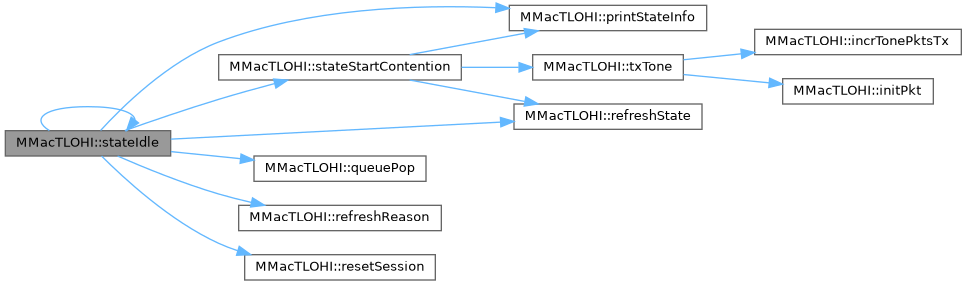

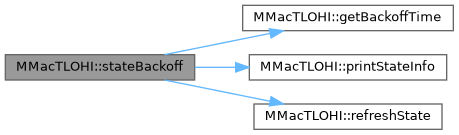

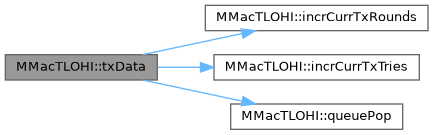

Here is the call graph for this function:

◆ computeTxTime()

double MMacTLOHI::computeTxTime ( TLOHI_PKT_TYPE type )

protectedvirtual

Computes the Transmission Time of a Packet using a CrLayer Message to ask the PHY to perform this calculation

Parameters

TLOHI_PKT_TYPE type of the packet

References ACK_PKT, ACK_size, data_phy_id, DATA_PKT, HDR_size, max_payload, PT_WKUP, Q, tone_phy_id, and TONE_PKT.

Referenced by command(), countContenders(), initData(), rxTone(), and stateWaitXAck().

◆ countContenders()

int MMacTLOHI::countContenders ( double time )

protectedvirtual

Returns the number of Contenders in this Contention Round based on the number of tones received

Parameters

double time interval at which count the contenders

Returns: the number of contenders

References computeTxTime(), and TONE_PKT.

Referenced by rxTone().

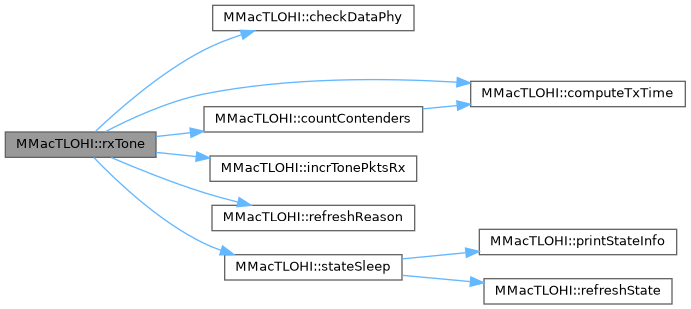

Here is the call graph for this function:

◆ crLayCommand()

int MMacTLOHI::crLayCommand ( ClMessage * m )

virtual

Cross-Layer messages interpreter

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

◆ exitBackoff()

void MMacTLOHI::exitBackoff ( )

protectedvirtual

Reset the timer for Backoff (i.e. after the reception of an ACK packet

References backoff_duration, backoff_pending, backoff_remaining, backoff_start_time, NOT_SET, and timer.

◆ getBackoffTime()

void MMacTLOHI::getBackoffTime ( )

protectedvirtual

Performs the calculation of the Backoff timer

References backoff_duration, CR_duration, and curr_contenders.

Referenced by stateBackoff().

◆ getCRduration()

virtual double MMacTLOHI::getCRduration ( )

inlineprotectedvirtual

Returns the duration of the Contention Round, where the nodes contend the channel

Returns: CR_duration

References CR_duration.

Referenced by command().

◆ getRemainingPkts()

virtual int MMacTLOHI::getRemainingPkts ( )

inlineprotectedvirtual

returns the number of Packet remained in the queue at the end of the simulation

Returns: number of packet remained in the queue

References Q.

◆ getTonePktsRx()

virtual int MMacTLOHI::getTonePktsRx ( )

inlineprotectedvirtual

returns the number of tones received in the simulation

Returns: number of tones received

References tone_pkts_rx.

Referenced by command().

◆ getTonePktsTx()

virtual int MMacTLOHI::getTonePktsTx ( )

inlineprotectedvirtual

returns the number of tones transmitted in the simulation

Returns: number of tones transmitted

References tone_pkts_tx.

Referenced by command().

◆ getUpLayersDataPktsRx()

virtual int MMacTLOHI::getUpLayersDataPktsRx ( )

inlineprotectedvirtual

Referenced by command().

◆ incrCurrTxRounds()

virtual void MMacTLOHI::incrCurrTxRounds ( )

inlineprotectedvirtual

Increments the number of times a packet has been transmitted

References curr_tx_rounds.

Referenced by txData().

◆ incrCurrTxTries()

virtual void MMacTLOHI::incrCurrTxTries ( )

inlineprotectedvirtual

Increments the number of tries for the transmission of a packet

References curr_tx_tries.

Referenced by txData().

◆ incrTonePktsRx()

virtual void MMacTLOHI::incrTonePktsRx ( )

inlineprotectedvirtual

Increments the number of the TONE received

References tone_pkts_rx.

Referenced by rxTone().

◆ incrTonePktsTx()

virtual void MMacTLOHI::incrTonePktsTx ( )

inlineprotectedvirtual

Increments the number of the TONE sended

References tone_pkts_tx.

Referenced by txTone().

◆ initData()

void MMacTLOHI::initData ( )

protectedvirtual

Initializes the information of the protocol related to the data PHY layers (i.e. the duration of the timers, the length of the buffers for data packets)

References ACK_MODE, ack_mode, ACK_PKT, ACK_timeout, buffer_pkts, computeTxTime(), DATA_listen_timeout, DATA_PKT, has_buffer_queue, max_prop_delay, max_tx_tries, sleep_timeout, TONE_PKT, and wait_costant.

Referenced by command(), and initMphyIds().

Here is the call graph for this function:

◆ initInfo()

void MMacTLOHI::initInfo ( )

protectedvirtual

Initializes the map between the protocol states and the textual description of these states

References ACK_PKT, DATA_PKT, DATAMAX_PKT, initialized, pkt_type_info, print_transitions, REASON_ACK_RX, REASON_ACK_TIMEOUT, REASON_ACK_TX, REASON_BACKOFF_TIMEOUT, REASON_CONTENDERS, REASON_CR_END, REASON_DATA_EMPTY, REASON_DATA_PENDING, REASON_DATA_RX, REASON_DATA_TX, reason_info, REASON_MAX_TX_TRIES, REASON_NO_CONTENDERS, REASON_RECONTEND_END, REASON_SLEEP_TIMEOUT, REASON_TONE_RX, REASON_TONE_TX, REASON_WAIT_CR_END, REASON_XACK_RX, REASON_XACK_TIMEOUT, REASON_XDATA_RX, STATE_ACK_RECEIVED, STATE_BACKOFF, STATE_COUNT_CONTENDERS, STATE_DATA_RECEIVED, STATE_IDLE, STATE_RECONTEND_WINDOW, STATE_SLEEP, STATE_START_CONTENTION, STATE_TX_ACK, STATE_TX_DATA, STATE_WAIT_ACK, STATE_WAIT_END_CONTENTION, STATE_WAIT_END_CR, STATE_WAIT_XACK, status_info, and TONE_PKT.

Referenced by command().

◆ initMphyIds()

void MMacTLOHI::initMphyIds ( )

protectedvirtual

Initializes the ID of the PHY layer for tone and Data

References data_phy_id, initData(), mphy_ids_initialized, tcl_modulation, and tone_phy_id.

Referenced by command().

Here is the call graph for this function:

◆ initPkt()

void MMacTLOHI::initPkt	(	Packet *	p,
		TLOHI_PKT_TYPE	pkt_type
	)

protectedvirtual

Init the packet with the MAC address of the receiver and the sender, the size of the packet and the type

Parameters

UWPOLLING_PKT_TYPE the type of the packet

References ACK_PKT, ACK_size, curr_dest_addr, DATA_PKT, hdr_tlohi::data_sn, HDR_size, hdr_tlohi::orig_type, hdr_tlohi::pkt_type, PT_TLOHI, PT_WKUP, hdr_tlohi::sn, TONE_PKT, hdr_tlohi::ts, txsn, u_data_id, and u_pkt_id.

Referenced by recvFromUpperLayers(), txAck(), and txTone().

◆ Phy2MacEndRx()

void MMacTLOHI::Phy2MacEndRx ( Packet * p )

protectedvirtual

Method called when the Phy Layer finish to receive a Packet

Parameters

const Packet* Pointer to an object of type Packet that rapresent the packet received

References ACK_MODE, ack_mode, ACK_PKT, curr_dest_addr, curr_state, DATA_PKT, hdr_tlohi::pkt_type, pkt_type_info, PT_TLOHI, PT_WKUP, queuePop(), REASON_ACK_RX, REASON_XACK_RX, REASON_XDATA_RX, refreshReason(), rxTone(), setDestAddr(), STATE_IDLE, STATE_SLEEP, STATE_WAIT_ACK, STATE_WAIT_XACK, stateDataReceived(), stateIdle(), stateRecontendWindow(), stateWaitXAck(), and status_info.

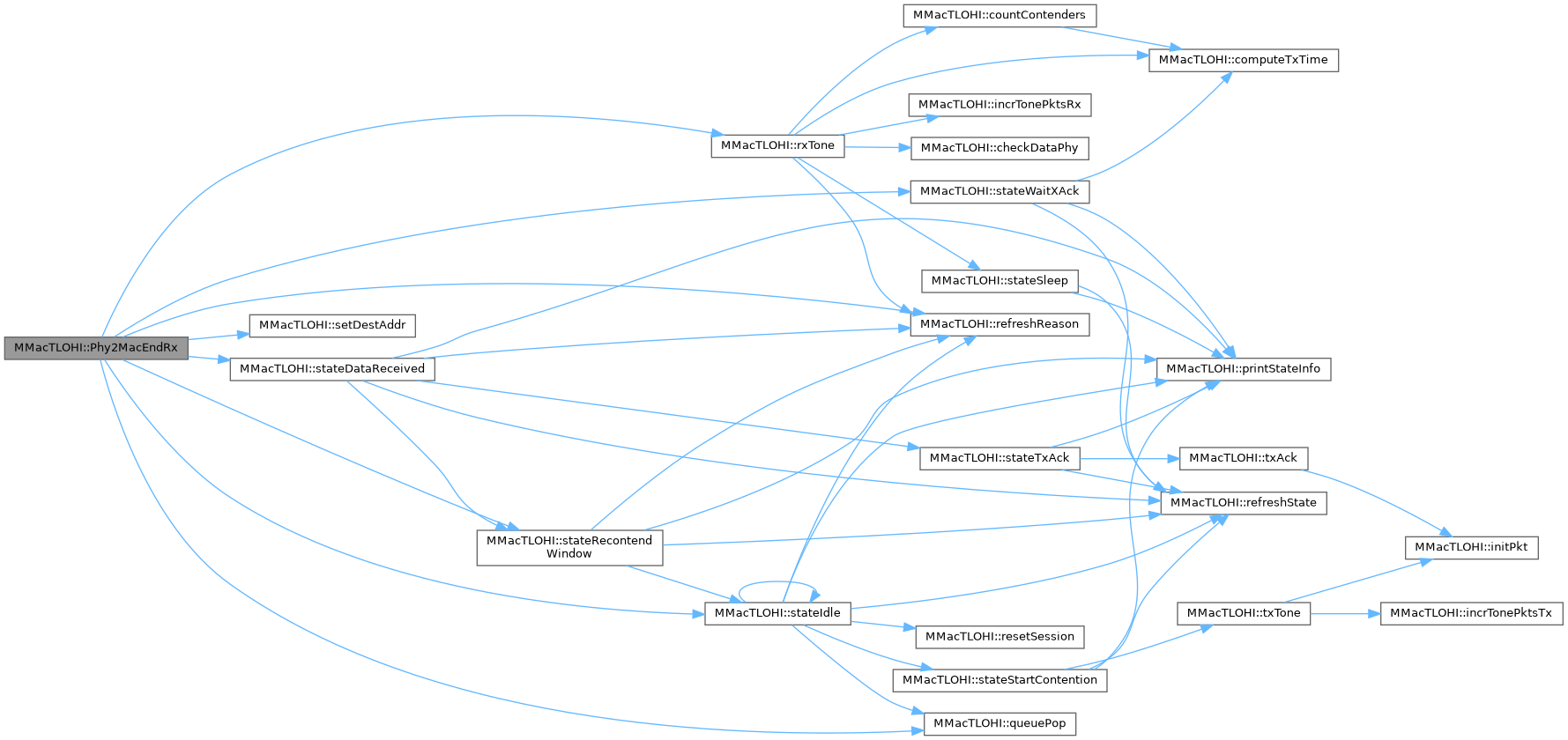

Here is the call graph for this function:

◆ Phy2MacEndTx()

void MMacTLOHI::Phy2MacEndTx ( const Packet * p )

protectedvirtual

Method called when the PHY layer finish to transmit the packet.

Parameters

Packet* Pointer to an object of type Packet that rapresent the Packet transmitted

References ACK_MODE, ack_mode, curr_state, REASON_ACK_TX, REASON_DATA_TX, REASON_TONE_TX, refreshReason(), STATE_IDLE, STATE_RECONTEND_WINDOW, STATE_START_CONTENTION, STATE_TX_ACK, STATE_TX_DATA, STATE_WAIT_ACK, STATE_WAIT_END_CONTENTION, stateIdle(), stateRecontendWindow(), stateWaitAck(), stateWaitEndContention(), status_info, tone_transmitted, txAck(), TxActive, and txData().

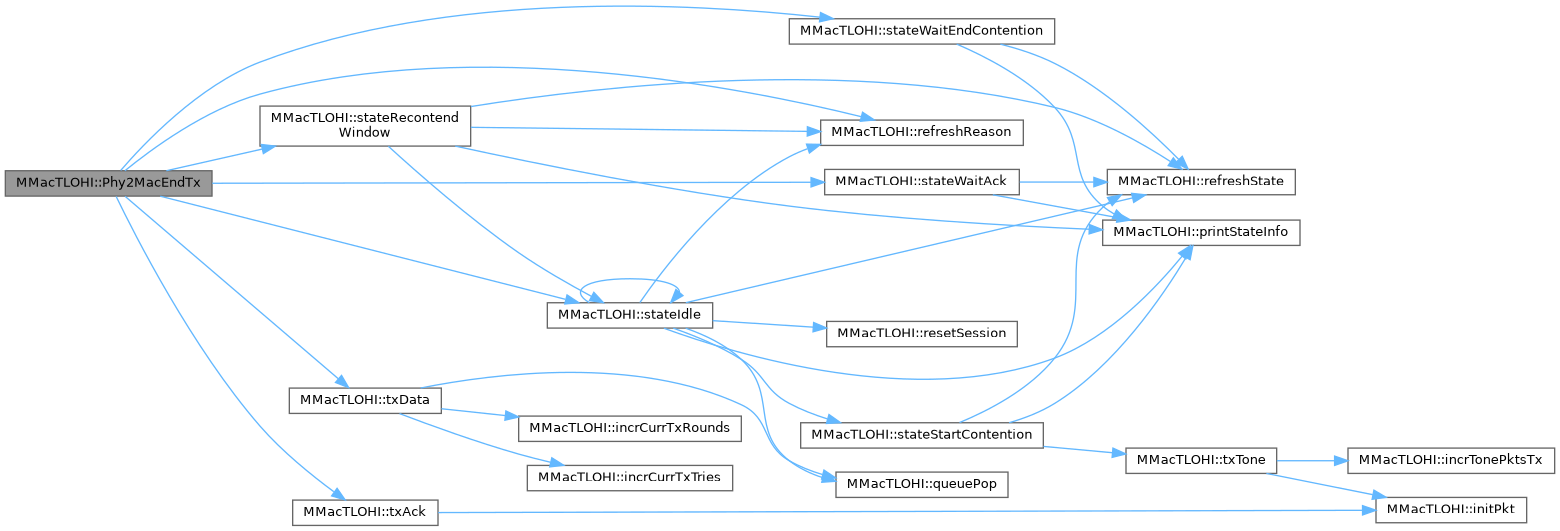

Here is the call graph for this function:

◆ Phy2MacStartRx()

void MMacTLOHI::Phy2MacStartRx ( const Packet * p )

protectedvirtual

Method called when the Phy Layer start to receive a Packet

Parameters

const Packet* Pointer to an object of type Packet that rapresent the Packet that is in reception

References ACK_PKT, data_phy_timer, DATA_PKT, PT_TLOHI, and wait_costant.

◆ printStateInfo()

void MMacTLOHI::printStateInfo ( double delay = 0 )

protectedvirtual

Initializes the protocol at the beginning of the simulation. This method is called by a command in tcl.

Parameters

double delay

See also: command method

References curr_state, fout, last_reason, prev_state, reason_info, STATE_BACKOFF, and status_info.

Referenced by stateBackoff(), stateCountContenders(), stateDataReceived(), stateIdle(), stateRecontendWindow(), stateSleep(), stateStartContention(), stateTxAck(), stateTxData(), stateWaitAck(), stateWaitCR(), stateWaitEndContention(), and stateWaitXAck().

◆ queuePop()

virtual void MMacTLOHI::queuePop ( bool flag )

inlineprotectedvirtual

Pop the first element of the data packets queue

References Q.

Referenced by Phy2MacEndRx(), stateIdle(), and txData().

◆ recvFromUpperLayers()

void MMacTLOHI::recvFromUpperLayers ( Packet * p )

protectedvirtual

Receives the packet from the upper layer (e.g. IP)

Parameters

Packet* pointer to the packet received

References buffer_pkts, curr_state, DATA_PKT, has_buffer_queue, initPkt(), last_reason, Q, REASON_DATA_PENDING, session_active, STATE_IDLE, and stateStartContention().

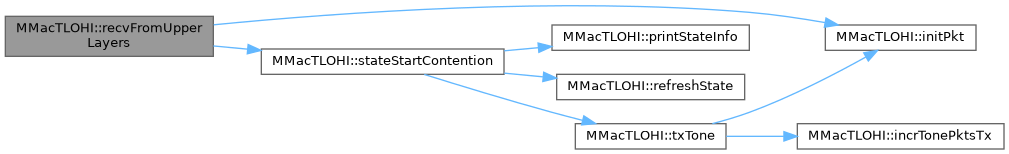

Here is the call graph for this function:

◆ refreshReason()

virtual void MMacTLOHI::refreshReason ( TLOHI_REASON_STATUS reason )

inlineprotectedvirtual

Refresh the reason for the change of state of the protocol

References last_reason.

Referenced by Phy2MacEndRx(), Phy2MacEndTx(), rxTone(), stateCountContenders(), stateDataReceived(), stateIdle(), and stateRecontendWindow().

◆ refreshState()

virtual void MMacTLOHI::refreshState ( TLOHI_STATUS state )

inlineprotectedvirtual

Refresh the state of the protocol

References curr_state, and prev_state.

Referenced by stateBackoff(), stateCountContenders(), stateDataReceived(), stateIdle(), stateRecontendWindow(), stateSleep(), stateStartContention(), stateTxAck(), stateTxData(), stateWaitAck(), stateWaitCR(), stateWaitEndContention(), and stateWaitXAck().

◆ resetSession()

void MMacTLOHI::resetSession ( )

protectedvirtual

Resets the variable related to the Session (i.e. the distance between transmitter and receiver, the MAC address of the destination

References curr_contenders, curr_dest_addr, curr_tx_rounds, NOT_SET, session_distance, and SESSION_DISTANCE_NOT_SET.

Referenced by stateIdle().

◆ resetStats()

virtual void MMacTLOHI::resetStats ( )

inlineprotectedvirtual

Resets the variables related to the Statiscal computation

References tone_pkts_rx, and tone_pkts_tx.

◆ rxAck()

void MMacTLOHI::rxAck ( Packet * p )

protectedvirtual

Method that receive an ACK packet

Parameters

Packet* pointer to the ACK packet received

◆ rxElse()

void MMacTLOHI::rxElse ( Packet * p )

protectedvirtual

Receives other types of packets

Parameters

Packet* pointer to packet received

◆ rxTone()

void MMacTLOHI::rxTone ( Packet * p )

protectedvirtual

Method that receives a Tone

Parameters

Packet* pointer to the tone received

References checkDataPhy(), computeTxTime(), countContenders(), curr_contenders, curr_state, hdr_wkup::endRx_time, incrTonePktsRx(), REASON_TONE_RX, refreshReason(), hdr_wkup::startRx_time, STATE_BACKOFF, STATE_IDLE, STATE_SLEEP, STATE_START_CONTENTION, STATE_WAIT_ACK, STATE_WAIT_END_CONTENTION, STATE_WAIT_END_CR, STATE_WAIT_XACK, stateSleep(), status_info, and TONE_PKT.

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ setDestAddr()

virtual void MMacTLOHI::setDestAddr ( int mac_addr )

inlineprotectedvirtual

Store the MAC address of the destination for this session

References curr_dest_addr.

Referenced by Phy2MacEndRx().

◆ setSessionDistance()

virtual void MMacTLOHI::setSessionDistance ( double distance )

inlineprotectedvirtual

Set the distance between transmitter and receiver for this session

References session_distance.

◆ stateBackoff()

void MMacTLOHI::stateBackoff ( )

protectedvirtual

The node is in Backoff state

References backoff_duration, backoff_pending, backoff_start_time, getBackoffTime(), print_transitions, printStateInfo(), refreshState(), STATE_BACKOFF, and timer.

Referenced by stateCountContenders().

Here is the call graph for this function:

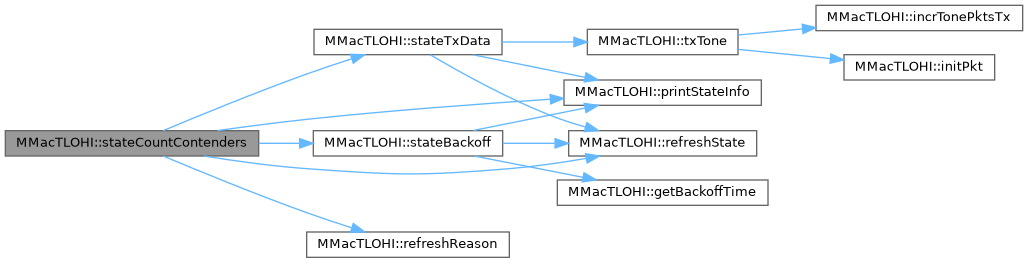

◆ stateCountContenders()

void MMacTLOHI::stateCountContenders ( )

protectedvirtual

The node counts the contenders in the CR

References curr_contenders, print_transitions, printStateInfo(), REASON_CONTENDERS, REASON_NO_CONTENDERS, refreshReason(), refreshState(), STATE_COUNT_CONTENDERS, stateBackoff(), stateTxData(), and timer.

Here is the call graph for this function:

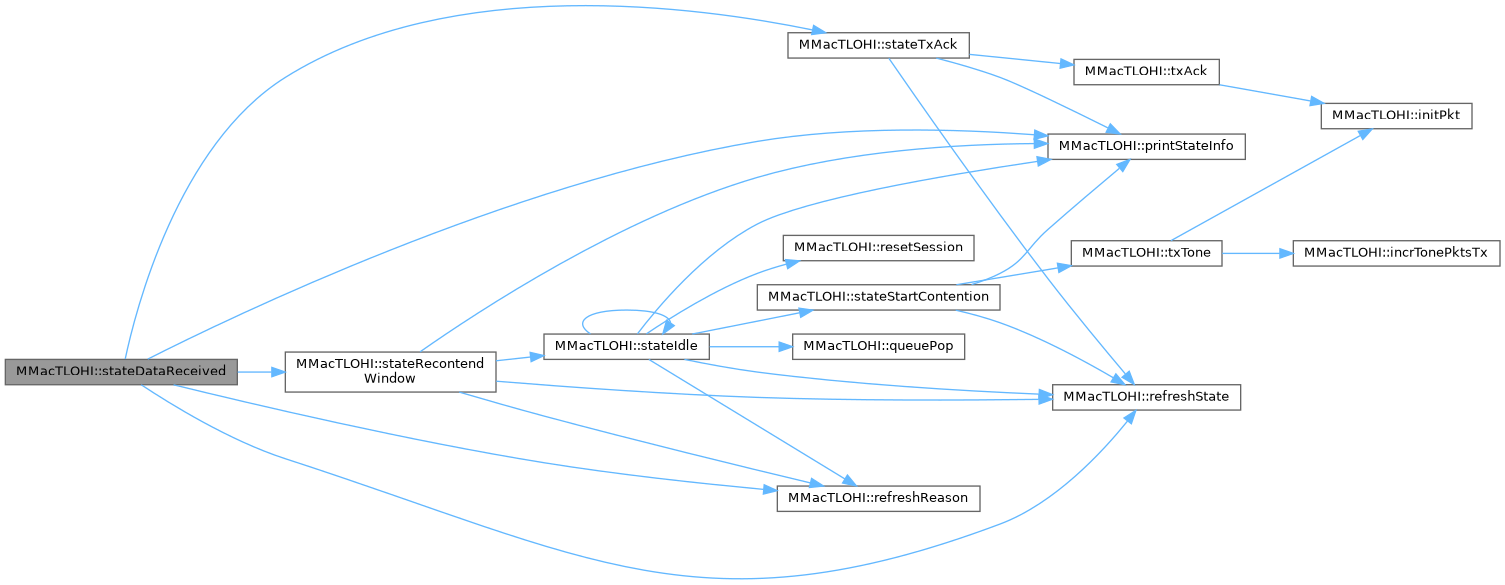

◆ stateDataReceived()

void MMacTLOHI::stateDataReceived ( Packet * data_pkt )

protectedvirtual

A data packet is received

References ACK_MODE, ack_mode, HDR_size, hdr_tlohi::orig_type, print_transitions, printStateInfo(), REASON_DATA_RX, refreshReason(), refreshState(), STATE_DATA_RECEIVED, stateRecontendWindow(), stateTxAck(), and timer.

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ stateIdle()

void MMacTLOHI::stateIdle ( )

protectedvirtual

IDLE state of the protocol

References curr_tx_tries, last_data_id_tx, max_tx_tries, print_transitions, printStateInfo(), Q, queuePop(), REASON_DATA_PENDING, REASON_MAX_TX_TRIES, refreshReason(), refreshState(), resetSession(), session_active, session_distance, SESSION_DISTANCE_NOT_SET, STATE_IDLE, stateIdle(), stateStartContention(), and timer.

Referenced by Phy2MacEndRx(), Phy2MacEndTx(), stateIdle(), and stateRecontendWindow().

Here is the call graph for this function:

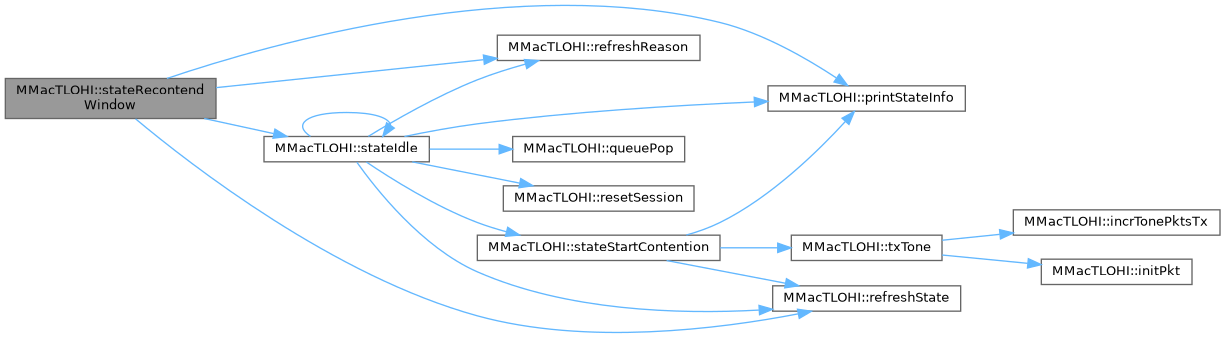

◆ stateRecontendWindow()

void MMacTLOHI::stateRecontendWindow ( )

protectedvirtual

Calculate the duration of the RecontendWindow

References print_transitions, printStateInfo(), Q, REASON_DATA_EMPTY, recontend_time, refreshReason(), refreshState(), STATE_RECONTEND_WINDOW, stateIdle(), and timer.

Referenced by Phy2MacEndRx(), Phy2MacEndTx(), and stateDataReceived().

Here is the call graph for this function:

◆ stateSleep()

void MMacTLOHI::stateSleep ( )

protectedvirtual

Simulate the sleep modality of the PHY layer of the node, while the node is waiting for the DATA

References print_transitions, printStateInfo(), refreshState(), sleep_timeout, STATE_SLEEP, and timer.

Referenced by rxTone().

Here is the call graph for this function:

◆ stateStartContention()

void MMacTLOHI::stateStartContention ( )

protectedvirtual

The node starts the Contention sending a Tone

References curr_data_pkt, curr_dest_addr, print_transitions, printStateInfo(), Q, refreshState(), session_active, STATE_START_CONTENTION, timer, and txTone().

Referenced by recvFromUpperLayers(), and stateIdle().

Here is the call graph for this function:

◆ stateTxAck()

void MMacTLOHI::stateTxAck ( )

protectedvirtual

The node transmit the ACK packet for a received DATA packet (in ACK_MODE modality)

References print_transitions, printStateInfo(), refreshState(), STATE_TX_ACK, timer, tone_transmitted, and txAck().

Referenced by stateDataReceived().

Here is the call graph for this function:

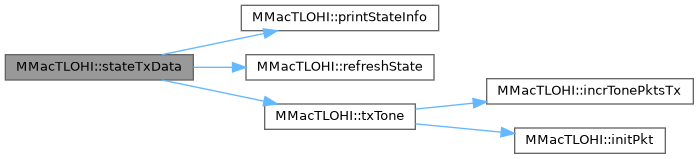

◆ stateTxData()

void MMacTLOHI::stateTxData ( )

protectedvirtual

The node has won the CR. He can now sends a DATA packet

References print_transitions, printStateInfo(), refreshState(), STATE_TX_DATA, timer, and txTone().

Referenced by stateCountContenders().

Here is the call graph for this function:

◆ stateWaitAck()

void MMacTLOHI::stateWaitAck ( )

protectedvirtual

The node has just sent a DATA packet. Now he's waiting for the ACK (in ACK_MODE modality)

References ACK_timeout, print_transitions, printStateInfo(), refreshState(), STATE_WAIT_ACK, timer, and wait_costant.

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

◆ stateWaitCR()

void MMacTLOHI::stateWaitCR ( )

protectedvirtual

Set the duration of the timer of the duration of the Contention Round

References CR_duration, print_transitions, printStateInfo(), refreshState(), STATE_WAIT_END_CR, and timer.

Here is the call graph for this function:

◆ stateWaitEndContention()

void MMacTLOHI::stateWaitEndContention ( )

protectedvirtual

The nodes waits the end of Contention listening the channel for possible contenders

References CR_duration, print_transitions, printStateInfo(), refreshState(), STATE_WAIT_END_CONTENTION, and timer.

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

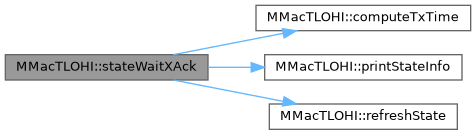

◆ stateWaitXAck()

void MMacTLOHI::stateWaitXAck ( )

protectedvirtual

The node has just received a DATA packet intended for another node. Now he's waiting for the ACK from the receiver of the DATA packet (in ACK_MODE modality)

References ACK_PKT, computeTxTime(), max_prop_delay, print_transitions, printStateInfo(), refreshState(), STATE_WAIT_XACK, timer, TONE_PKT, and wait_costant.

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ txAck()

void MMacTLOHI::txAck ( )

protectedvirtual

Send a ACK packet of the data PHY layer

References ACK_PKT, data_phy_id, initPkt(), and TxActive.

Referenced by Phy2MacEndTx(), and stateTxAck().

Here is the call graph for this function:

◆ txData()

void MMacTLOHI::txData ( )

protectedvirtual

Send a DATA packet to the data PHY layer

References ack_mode, curr_data_pkt, data_phy_id, incrCurrTxRounds(), incrCurrTxTries(), NO_ACK_MODE, queuePop(), and TxActive.

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

◆ txTone()

void MMacTLOHI::txTone ( )

protectedvirtual

Send the Tone to the tone PHY layer

References incrTonePktsTx(), initPkt(), tone_phy_id, TONE_PKT, tone_transmitted, and TxActive.

Referenced by stateStartContention(), and stateTxData().

Here is the call graph for this function:

◆ waitForUser()

void MMacTLOHI::waitForUser ( )

protectedvirtual

Used for debug purposes (permits a step-by-step behaviour of the protocol

Friends And Related Symbol Documentation

◆ DataTimer

friend class DataTimer

friend

DataTimer class

◆ Timer

friend class Timer

friend

Timer class

Member Data Documentation

◆ ack_mode

TLOHI_ACK_MODE MMacTLOHI::ack_mode

protected

ACK mode of the protocol

Referenced by command(), initData(), Phy2MacEndRx(), Phy2MacEndTx(), stateDataReceived(), and txData().

◆ ACK_size

int MMacTLOHI::ACK_size

protected

Size of the ACK packet in bytes

Referenced by computeTxTime(), initPkt(), and MMacTLOHI().

◆ ACK_timeout

double MMacTLOHI::ACK_timeout

protected

Time needed for the reception of a ACK packet

Referenced by initData(), and stateWaitAck().

◆ backoff_duration

double MMacTLOHI::backoff_duration

protected

Duration of the backoff timer

Referenced by exitBackoff(), getBackoffTime(), and stateBackoff().

◆ backoff_pending

bool MMacTLOHI::backoff_pending

protected

Flag that indicates if a backoff timer is pending

Referenced by exitBackoff(), and stateBackoff().

◆ backoff_remaining

double MMacTLOHI::backoff_remaining

protected

Remaining time of the backoff (if the timer has been freezed)

Referenced by exitBackoff().

◆ backoff_start_time

double MMacTLOHI::backoff_start_time

protected

Timestamp of the backoff start time

Referenced by exitBackoff(), and stateBackoff().

◆ backoff_tuner

double MMacTLOHI::backoff_tuner

protected

Multiplier factor in the calculation of the backoff

◆ buffer_pkts

int MMacTLOHI::buffer_pkts

protected

Buffer capacity in number of packets

Referenced by initData(), MMacTLOHI(), and recvFromUpperLayers().

◆ CR_duration

double MMacTLOHI::CR_duration

protected

Contention Round Duration

Referenced by command(), getBackoffTime(), getCRduration(), stateWaitCR(), and stateWaitEndContention().

◆ curr_contenders

int MMacTLOHI::curr_contenders

protected

Number of contenders in current Contention Round

Referenced by getBackoffTime(), resetSession(), rxTone(), and stateCountContenders().

◆ curr_data_pkt

Packet* MMacTLOHI::curr_data_pkt

protected

Pointer to the current data packet

Referenced by stateStartContention(), and txData().

◆ curr_dest_addr

int MMacTLOHI::curr_dest_addr

protected

Current destination MAC address

Referenced by initPkt(), Phy2MacEndRx(), resetSession(), setDestAddr(), and stateStartContention().

◆ curr_state

TLOHI_STATUS MMacTLOHI::curr_state

protected

Current state of the protocol

Referenced by Phy2MacEndRx(), Phy2MacEndTx(), printStateInfo(), recvFromUpperLayers(), refreshState(), and rxTone().

◆ curr_tx_rounds

int MMacTLOHI::curr_tx_rounds

protected

Number of current transmission round

Referenced by incrCurrTxRounds(), and resetSession().

◆ curr_tx_tries

int MMacTLOHI::curr_tx_tries

protected

Number of current transmission tries

Referenced by incrCurrTxTries(), and stateIdle().

◆ DATA_listen_timeout

double MMacTLOHI::DATA_listen_timeout

protected

Time needed for the reception of a DATA packet

Referenced by checkDataPhy(), and initData().

◆ data_phy_id

int MMacTLOHI::data_phy_id

protected

ID of the DATA PHY layer

Referenced by checkDataPhy(), command(), computeTxTime(), initMphyIds(), txAck(), and txData().

◆ data_phy_timer

DataTimer MMacTLOHI::data_phy_timer

protected

Timer that describe the time needed to receive the packet (i.e. the data PHY layer wake up for the duration of the reception, then go to sleep again

Referenced by checkDataPhy(), and Phy2MacStartRx().

◆ fout

ofstream MMacTLOHI::fout

protected

Object that handle the output file for the state transition of the protocol

Referenced by command(), and printStateInfo().

◆ has_buffer_queue

bool MMacTLOHI::has_buffer_queue

protected

Flag that indicates whether the node has a buffer queue

Referenced by initData(), MMacTLOHI(), and recvFromUpperLayers().

◆ HDR_size

int MMacTLOHI::HDR_size

protected

Dimension of the header added by T-LOHI in bytes

Referenced by computeTxTime(), initPkt(), MMacTLOHI(), and stateDataReceived().

◆ initialized

bool MMacTLOHI::initialized = false

staticprotected

Flag that indicates if the protocol is initialized

Referenced by checkPhyInit(), command(), and initInfo().

◆ last_data_id_rx

int MMacTLOHI::last_data_id_rx

protected

Last data packet transmitted ID

◆ last_data_id_tx

int MMacTLOHI::last_data_id_tx

protected

Last data packet received ID

Referenced by stateIdle().

◆ last_reason

TLOHI_REASON_STATUS MMacTLOHI::last_reason

protected

Last reason for state transition of the protocol

Referenced by printStateInfo(), recvFromUpperLayers(), and refreshReason().

◆ max_payload

int MMacTLOHI::max_payload

protected

Maximum Data payload dimension in number of bytes

Referenced by computeTxTime(), and MMacTLOHI().

◆ max_prop_delay

double MMacTLOHI::max_prop_delay

protected

Maximum propagation delay in the network

Referenced by command(), initData(), MMacTLOHI(), and stateWaitXAck().

◆ max_tx_rounds

int MMacTLOHI::max_tx_rounds

protected

Maximum transmission round for one packet

Referenced by MMacTLOHI().

◆ max_tx_tries

double MMacTLOHI::max_tx_tries

protected

Maximum transmission tries for one packet

Referenced by initData(), MMacTLOHI(), and stateIdle().

◆ mphy_ids_initialized

bool MMacTLOHI::mphy_ids_initialized

protected

Flag that indicates if the IDs of the PHY layers is stored

Referenced by checkPhyInit(), and initMphyIds().

◆ op_mode

TLOHI_MODE MMacTLOHI::op_mode

protected

Operational mode of the protocol

Referenced by command().

◆ pkt_type_info

map< TLOHI_PKT_TYPE, string > MMacTLOHI::pkt_type_info

staticprotected

Map between the pkt-type and the description of the packet

Referenced by initInfo(), and Phy2MacEndRx().

◆ prev_state

TLOHI_STATUS MMacTLOHI::prev_state

protected

Previous state of the protocol

Referenced by printStateInfo(), and refreshState().

◆ print_transitions

bool MMacTLOHI::print_transitions

protected

Flat that indicates if the modality in which the protocol write in a file the state transitions is active

Referenced by command(), initInfo(), stateBackoff(), stateCountContenders(), stateDataReceived(), stateIdle(), stateRecontendWindow(), stateSleep(), stateStartContention(), stateTxAck(), stateTxData(), stateWaitAck(), stateWaitCR(), stateWaitEndContention(), and stateWaitXAck().

◆ Q

queue<Packet *> MMacTLOHI::Q

protected

MAC queue used for packet scheduling

Referenced by command(), computeTxTime(), getRemainingPkts(), queuePop(), recvFromUpperLayers(), stateIdle(), stateRecontendWindow(), and stateStartContention().

◆ reason_info

map< TLOHI_REASON_STATUS, string > MMacTLOHI::reason_info

staticprotected

Map between the reason for state transitions and the description of this reason

Referenced by initInfo(), and printStateInfo().

◆ recontend_time

double MMacTLOHI::recontend_time

protected

Time needed for the recontention

Referenced by MMacTLOHI(), and stateRecontendWindow().

◆ session_active

bool MMacTLOHI::session_active

protected

Flag that indicates if a Session is active

Referenced by recvFromUpperLayers(), stateIdle(), and stateStartContention().

◆ session_distance

double MMacTLOHI::session_distance

protected

Distance between transmitter and receiver in this session

Referenced by resetSession(), setSessionDistance(), and stateIdle().

◆ sleep_timeout

double MMacTLOHI::sleep_timeout

protected

Duration of the sleep phase for the PHY layer

Referenced by initData(), and stateSleep().

◆ status_info

map< TLOHI_STATUS, string > MMacTLOHI::status_info

staticprotected

Map between the state and the textual description of the state

Referenced by initInfo(), Phy2MacEndRx(), Phy2MacEndTx(), printStateInfo(), and rxTone().

◆ tcl_modulation

string MMacTLOHI::tcl_modulation

protected

Type of modulation adopted for data PHY layer

Referenced by command(), initMphyIds(), and MMacTLOHI().

◆ timer

Timer MMacTLOHI::timer

protected

timer for Contention Round

Referenced by exitBackoff(), stateBackoff(), stateCountContenders(), stateDataReceived(), stateIdle(), stateRecontendWindow(), stateSleep(), stateStartContention(), stateTxAck(), stateTxData(), stateWaitAck(), stateWaitCR(), stateWaitEndContention(), and stateWaitXAck().

◆ tone_data_delay

double MMacTLOHI::tone_data_delay

protected

Not used anymore

Referenced by MMacTLOHI().

◆ tone_phy_id

int MMacTLOHI::tone_phy_id

protected

ID of the tone PHY layer

Referenced by command(), computeTxTime(), initMphyIds(), and txTone().

◆ tone_pkts_rx

int MMacTLOHI::tone_pkts_rx

protected

Number of tone received

Referenced by getTonePktsRx(), incrTonePktsRx(), and resetStats().

◆ tone_pkts_tx

int MMacTLOHI::tone_pkts_tx

protected

Number of tone transmitted

Referenced by getTonePktsTx(), incrTonePktsTx(), and resetStats().

◆ tone_transmitted

bool MMacTLOHI::tone_transmitted

protected

Flag that indicates if a tone has been transmitted

Referenced by Phy2MacEndTx(), stateTxAck(), and txTone().

◆ TxActive

bool MMacTLOHI::TxActive

protected

Flag that indicates if a transmission is occuring

Referenced by Phy2MacEndTx(), txAck(), txData(), and txTone().

◆ txsn

int MMacTLOHI::txsn

protected

Transmitted data serial number

Referenced by initPkt().

◆ u_data_id

int MMacTLOHI::u_data_id

protected

simulation-unique data packet ID

Referenced by initPkt().

◆ u_pkt_id

int MMacTLOHI::u_pkt_id

staticprotected

simulation-unique packet ID

Referenced by initPkt(), and MMacTLOHI().

◆ wait_costant

double MMacTLOHI::wait_costant

protected

Additive factor in the calculation of ACK timer

Referenced by checkDataPhy(), initData(), MMacTLOHI(), Phy2MacStartRx(), stateWaitAck(), and stateWaitXAck().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uw-t-lohi/uw-mac-TLohi.h
DESERT_Framework/DESERT/data_link/uw-t-lohi/uw-mac-TLohi.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ MMacTLOHI()

◆ ~MMacTLOHI()

Member Function Documentation

◆ checkDataPhy()

◆ checkPhyInit()

◆ command()

◆ computeTxTime()

◆ countContenders()

◆ crLayCommand()

◆ exitBackoff()

◆ getBackoffTime()

◆ getCRduration()

◆ getRemainingPkts()

◆ getTonePktsRx()

◆ getTonePktsTx()

◆ getUpLayersDataPktsRx()

◆ incrCurrTxRounds()

◆ incrCurrTxTries()

◆ incrTonePktsRx()

◆ incrTonePktsTx()

◆ initData()

◆ initInfo()

◆ initMphyIds()

◆ initPkt()

◆ Phy2MacEndRx()

◆ Phy2MacEndTx()

◆ Phy2MacStartRx()

◆ printStateInfo()

◆ queuePop()

◆ recvFromUpperLayers()

◆ refreshReason()

◆ refreshState()

◆ resetSession()

◆ resetStats()

◆ rxAck()

◆ rxElse()

◆ rxTone()

◆ setDestAddr()

◆ setSessionDistance()

◆ stateBackoff()

◆ stateCountContenders()

◆ stateDataReceived()

◆ stateIdle()

◆ stateRecontendWindow()

◆ stateSleep()

◆ stateStartContention()

◆ stateTxAck()

◆ stateTxData()

◆ stateWaitAck()

◆ stateWaitCR()

◆ stateWaitEndContention()

◆ stateWaitXAck()

◆ txAck()

◆ txData()

◆ txTone()

◆ waitForUser()

Friends And Related Symbol Documentation

◆ DataTimer

◆ Timer

Member Data Documentation

◆ ack_mode

◆ ACK_size

◆ ACK_timeout

◆ backoff_duration

◆ backoff_pending

◆ backoff_remaining

◆ backoff_start_time

◆ backoff_tuner

◆ buffer_pkts

◆ CR_duration

◆ curr_contenders

◆ curr_data_pkt

◆ curr_dest_addr
