#include <uwUFetch_NODE.h>

Inheritance diagram for uwUFetch_NODE::uwUFetch_DATA_timer:

[legend]

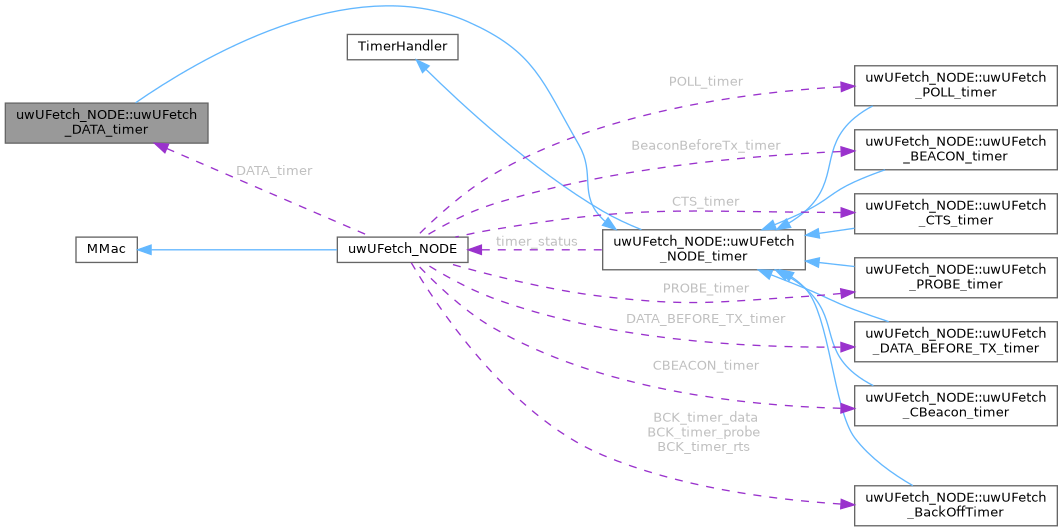

Collaboration diagram for uwUFetch_NODE::uwUFetch_DATA_timer:

[legend]

Public Member Functions
	uwUFetch_DATA_timer (uwUFetch_NODE *m)

virtual	~uwUFetch_DATA_timer ()

Public Member Functions inherited from uwUFetch_NODE::uwUFetch_NODE_timer
	uwUFetch_NODE_timer (uwUFetch_NODE *m)

virtual	~uwUFetch_NODE_timer ()

virtual void	freeze ()

virtual void	unFreeze ()

virtual void	stop ()

virtual void	schedule (double val)

bool	isIdle ()

bool	isRunning ()

bool	isFroozen ()

bool	isExpired ()

bool	isActive ()

void	resetCounter ()

void	incrCounter ()

int	getCounter ()

double	getDuration ()

Protected Member Functions
virtual void	expire (Event *e)

Additional Inherited Members
Protected Attributes inherited from uwUFetch_NODE::uwUFetch_NODE_timer
double	start_time

double	left_duration

int	counter

uwUFetch_NODE *UWUFETCH_TIMER_STATUS	timer_status

Detailed Description

Class inherited the method and variable of uwUFetch_NODE_timer that handle the timer of DATA packets.

HN set up a time interval within It want to receive all DATA packets from a specific SN. After the end of this time interal HN start a new transmission of POLL or CBEACON or wait a TRIGGER packet from AUV.

Definition at line 623 of file uwUFetch_NODE.h.

Constructor & Destructor Documentation

◆ uwUFetch_DATA_timer()

uwUFetch_NODE::uwUFetch_DATA_timer::uwUFetch_DATA_timer ( uwUFetch_NODE * m )

inline

Constructor of uwUFetch_DATA_timer class.

Parameters

m	a pointer to an object of type uwUFetch_NODE

Definition at line 631 of file uwUFetch_NODE.h.

◆ ~uwUFetch_DATA_timer()

virtual uwUFetch_NODE::uwUFetch_DATA_timer::~uwUFetch_DATA_timer ( )

inlinevirtual

Definition at line 639 of file uwUFetch_NODE.h.

Member Function Documentation

◆ expire()

void uwUFetch_NODE::uwUFetch_DATA_timer::expire ( Event * e )

protectedvirtual

Method called when the timer expire.

Parameters

Event* pointer to an object of type Event

Definition at line 3599 of file uwUFetch_NODE_HEADNODE.cpp.

The documentation for this class was generated from the following files:
