uwUFetch_NODE::uwUFetch_NODE_timer Class Reference

#include <uwUFetch_NODE.h>

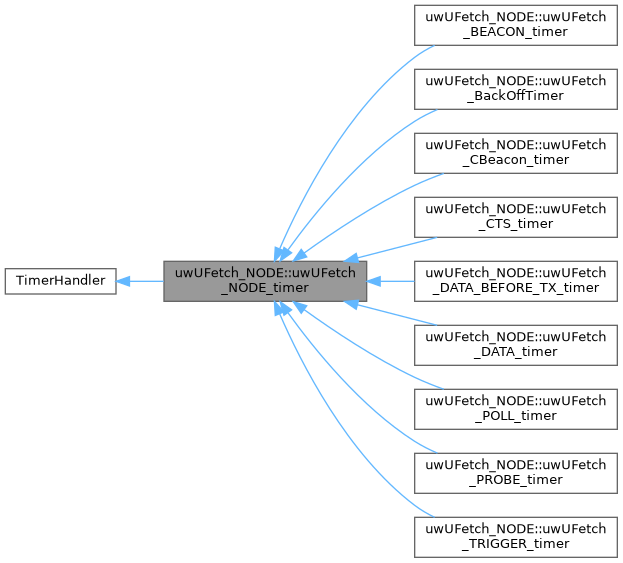

Inheritance diagram for uwUFetch_NODE::uwUFetch_NODE_timer:

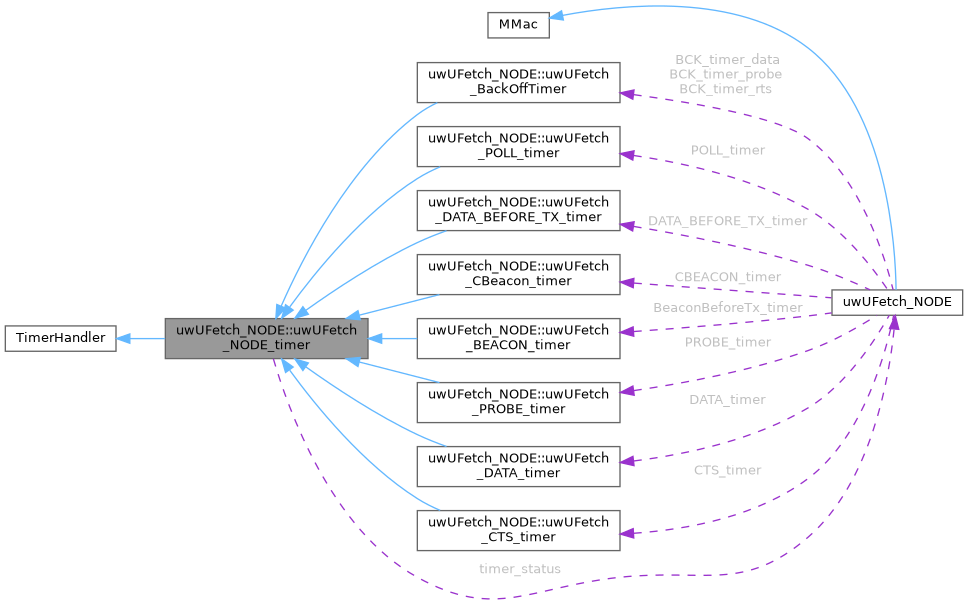

Collaboration diagram for uwUFetch_NODE::uwUFetch_NODE_timer:

Public Member Functions
	uwUFetch_NODE_timer (uwUFetch_NODE *m)
virtual	~uwUFetch_NODE_timer ()
virtual void	freeze ()
virtual void	unFreeze ()
virtual void	stop ()
virtual void	schedule (double val)
bool	isIdle ()
bool	isRunning ()
bool	isFroozen ()
bool	isExpired ()
bool	isActive ()
void	resetCounter ()
void	incrCounter ()
int	getCounter ()
double	getDuration ()

Protected Attributes
double	start_time
double	left_duration
int	counter
uwUFetch_NODE *UWUFETCH_TIMER_STATUS	timer_status

Detailed Description

Class that handle the timers of SN or HN

Constructor & Destructor Documentation

uwUFetch_NODE_timer()

uwUFetch_NODE::uwUFetch_NODE_timer::uwUFetch_NODE_timer ( uwUFetch_NODE *  m )

inline

Constructor of the class uwUFetch_NODE_timer

Parameters

m	pointer to uwUFetch_NODE class

~uwUFetch_NODE_timer()

virtual uwUFetch_NODE::uwUFetch_NODE_timer::~uwUFetch_NODE_timer ( )

inlinevirtual

Destructor of the class uwUFetch_NODE_timer

Member Function Documentation

freeze()

virtual void uwUFetch_NODE::uwUFetch_NODE_timer::freeze ( )

inlinevirtual

Freeze the timer

References left_duration, start_time, timer_status, uwUFetch_NODE::UWUFETCH_TIMER_STATUS_FROZEN, and uwUFetch_NODE::UWUFETCH_TIMER_STATUS_RUNNING.

getCounter()

int uwUFetch_NODE::uwUFetch_NODE_timer::getCounter ( )

inline

value of the counter

Returns

int counter

References counter.

getDuration()

double uwUFetch_NODE::uwUFetch_NODE_timer::getDuration ( )

inline

left duration of the timer

Returns

double left_duration

References left_duration.

incrCounter()

void uwUFetch_NODE::uwUFetch_NODE_timer::incrCounter ( )

inline

increment the counter by one value

References counter.

isActive()

bool uwUFetch_NODE::uwUFetch_NODE_timer::isActive ( )

inline

verify if the timer is ACTIVE

Returns

: bool true ACTIVE

References isFroozen(), isRunning(), and timer_status.

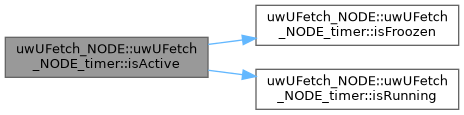

Here is the call graph for this function:

isExpired()

bool uwUFetch_NODE::uwUFetch_NODE_timer::isExpired ( )

inline

verify whether the timer is EXPIRED

Returns

: bool true EXPIRED

References timer_status, and uwUFetch_NODE::UWUFETCH_TIMER_STATUS_EXPIRED.

isFroozen()

bool uwUFetch_NODE::uwUFetch_NODE_timer::isFroozen ( )

inline

verify if the timer is FROZEN

Returns

: bool true FROZEN

References timer_status, and uwUFetch_NODE::UWUFETCH_TIMER_STATUS_FROZEN.

Referenced by isActive().

isIdle()

bool uwUFetch_NODE::uwUFetch_NODE_timer::isIdle ( )

inline

verify whether the timer is IDLE

Returns

: bool true-->IDLE

References timer_status, and uwUFetch_NODE::UWUFETCH_TIMER_STATUS_IDLE.

isRunning()

bool uwUFetch_NODE::uwUFetch_NODE_timer::isRunning ( )

inline

verify if the timer is RUNNING

Returns

: bool true RUNNING

References timer_status, and uwUFetch_NODE::UWUFETCH_TIMER_STATUS_RUNNING.

Referenced by isActive().

resetCounter()

void uwUFetch_NODE::uwUFetch_NODE_timer::resetCounter ( )

inline

reset the counter that scan the timer

schedule()

virtual void uwUFetch_NODE::uwUFetch_NODE_timer::schedule ( double  val )

inlinevirtual

schedule a timer

Parameters

double

the duration of the timer

References left_duration, start_time, timer_status, and uwUFetch_NODE::UWUFETCH_TIMER_STATUS_RUNNING.

Referenced by uwUFetch_NODE::BEACON_rx(), uwUFetch_NODE::CBEACON_rx(), uwUFetch_NODE::Phy2MacEndRx(), uwUFetch_NODE::Phy2MacEndTx(), uwUFetch_NODE::Phy2MacEndTx_HN(), uwUFetch_NODE::state_wait_CBEACON(), uwUFetch_NODE::state_wait_CTS(), uwUFetch_NODE::state_wait_first_DATA(), uwUFetch_NODE::state_wait_POLL(), uwUFetch_NODE::state_wait_PROBE(), uwUFetch_NODE::stateIdle_HN(), uwUFetch_NODE::TRIGGER_rx(), and uwUFetch_NODE::TRIGGER_rx_without().

stop()

virtual void uwUFetch_NODE::uwUFetch_NODE_timer::stop ( )

inlinevirtual

Stop the timer

References timer_status, and uwUFetch_NODE::UWUFETCH_TIMER_STATUS_IDLE.

unFreeze()

virtual void uwUFetch_NODE::uwUFetch_NODE_timer::unFreeze ( )

inlinevirtual

unFreeze are used after a freezing of the timer. In this case the timer restart from the timer where was freezed

check the state of the timer before sheduling the event. If the timer is set, then the call are aborted

References left_duration, start_time, timer_status, uwUFetch_NODE::UWUFETCH_TIMER_STATUS_FROZEN, and uwUFetch_NODE::UWUFETCH_TIMER_STATUS_RUNNING.

Member Data Documentation

counter

int uwUFetch_NODE::uwUFetch_NODE_timer::counter

protected

Counter of the timer

Referenced by getCounter(), and incrCounter().

left_duration

double uwUFetch_NODE::uwUFetch_NODE_timer::left_duration

protected

Left duration of the timer

Referenced by freeze(), getDuration(), schedule(), and unFreeze().

start_time

double uwUFetch_NODE::uwUFetch_NODE_timer::start_time

protected

Time to start the timer

Referenced by freeze(), schedule(), and unFreeze().

timer_status

uwUFetch_NODE* UWUFETCH_TIMER_STATUS uwUFetch_NODE::uwUFetch_NODE_timer::timer_status

protected

< Pointer to an object of type uwUFetch_NODE Timer status

Referenced by uwUFetch_NODE::uwUFetch_BEACON_timer::expire(), uwUFetch_NODE::uwUFetch_BackOffTimer::expire(), freeze(), isActive(), isExpired(), isFroozen(), isIdle(), isRunning(), schedule(), stop(), and unFreeze().

---

The documentation for this class was generated from the following file:

• DESERT_Framework/DESERT/data_link/uwUFetch/uwUFetch_NODE.h
