UwStaticRoutingModule Class Reference

#include <uwstaticrouting.h>

Inheritance diagram for UwStaticRoutingModule:

Collaboration diagram for UwStaticRoutingModule:

Public Member Functions
	UwStaticRoutingModule ()
virtual	~UwStaticRoutingModule ()
virtual void	recv (Packet *)
virtual int	recvSyncClMsg (ClMessage *)
virtual int	command (int, const char *const *)
virtual uint8_t	getNextHop (const Packet *) const
virtual uint8_t	getNextHop (const uint8_t &) const
virtual void	clearRoutes ()
virtual void	addRoute (const uint8_t &, const uint8_t &)
Public Member Functions inherited from UWIPModule
	UWIPModule ()
virtual	~UWIPModule ()
void	printIdsPkts () const

Private Attributes
std::map< uint8_t, uint8_t >	routing_table
uint8_t	default_gateway

Additional Inherited Members
Static Public Member Functions inherited from UWIPModule
static const string	printIP (const nsaddr_t &)
static const string	printIP (const uint8_t &)
Static Protected Member Functions inherited from UWIPModule
static int	getIpHeaderSize ()
Protected Attributes inherited from UWIPModule
uint8_t	ipAddr_
int	debug_
bool	addr_type_inet
Static Protected Attributes inherited from UWIPModule
static uint8_t	lastIP = 0

Detailed Description

UwStaticRoutingModule class implements basic routing functionalities.

Definition at line 58 of file uwstaticrouting.h.

Constructor & Destructor Documentation

UwStaticRoutingModule()

UwStaticRoutingModule::UwStaticRoutingModule

(

)

Constructor of UwStaticRoutingModule class.

Definition at line 62 of file uwstaticrouting.cpp.

~UwStaticRoutingModule()

UwStaticRoutingModule::~UwStaticRoutingModule ( )

virtual

Destructor of UwStaticRoutingModule class.

Definition at line 68 of file uwstaticrouting.cpp.

Member Function Documentation

addRoute()

void UwStaticRoutingModule::addRoute ( const uint8_t &  dst, const uint8_t &  next  )

virtual

Adds a new entry in the routing table.

Parameters

nsaddr_t	Address of the destination.
nsaddr_t	Address of the next hop.

Definition at line 85 of file uwstaticrouting.cpp.

clearRoutes()

void UwStaticRoutingModule::clearRoutes ( )

virtual

Removes all the routing information.

Definition at line 79 of file uwstaticrouting.cpp.

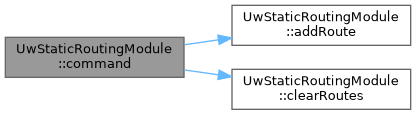

command()

int UwStaticRoutingModule::command ( int  argc, const char *const *  argv  )

virtual

TCL command interpreter.

It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns

TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UWIPModule.

Definition at line 111 of file uwstaticrouting.cpp.

getNextHop() [1/2]

uint8_t UwStaticRoutingModule::getNextHop ( const Packet *  p ) const

virtual

Returns the next hop address of a packet passed as input.

Parameters

Packet*

Packet to process.

Returns

IP of the next hop.

Definition at line 187 of file uwstaticrouting.cpp.

getNextHop() [2/2]

uint8_t UwStaticRoutingModule::getNextHop ( const uint8_t &  dst ) const

virtual

Returns the next hop address of an address passed as input.

Parameters

nsaddr_t

Address to process.

Returns

IP of the next hop.

Definition at line 194 of file uwstaticrouting.cpp.

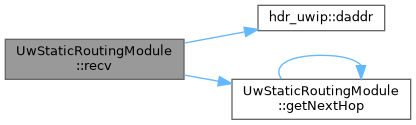

recv()

void UwStaticRoutingModule::recv ( Packet *  p )

virtual

Performs the reception of packets from upper and lower layers.

Parameters

Packet*

Pointer to the packet will be received.

Reimplemented from UWIPModule.

Definition at line 147 of file uwstaticrouting.cpp.

recvSyncClMsg()

int UwStaticRoutingModule::recvSyncClMsg ( ClMessage *  m )

virtual

Cross-Layer messages synchronous interpreter.

Parameters

ClMessage*

an instance of ClMessage that represent the message received

Returns

0 if successful.

Reimplemented from UWIPModule.

Definition at line 73 of file uwstaticrouting.cpp.

Member Data Documentation

default_gateway

uint8_t UwStaticRoutingModule::default_gateway

private

Default gateway.

Definition at line 131 of file uwstaticrouting.h.

routing_table

std::map<uint8_t, uint8_t> UwStaticRoutingModule::routing_table

private

Routing table: destination - next hop.

Definition at line 130 of file uwstaticrouting.h.

---

The documentation for this class was generated from the following files:

• uwstaticrouting.h
• uwstaticrouting.cpp
