UWIPModule Class Reference

#include <uwip-module.h>

Inheritance diagram for UWIPModule:

Collaboration diagram for UWIPModule:

Public Member Functions
	UWIPModule ()
virtual	~UWIPModule ()=default
virtual void	recv (Packet *p)
virtual int	command (int argc, const char *const *argv)
virtual int	recvSyncClMsg (ClMessage *m)
void	printIdsPkts () const

Static Public Member Functions
static const string	printIP (const nsaddr_t &)
static const string	printIP (const uint8_t &)

Static Protected Member Functions
static int	getIpHeaderSize ()

Protected Attributes
uint8_t	ipAddr_
int	debug_
bool	addr_type_inet

Static Protected Attributes
static uint8_t	lastIP = 0

Detailed Description

UWIPModule class is used to define the Internet Protocol (IP) layer of a node.

Constructor & Destructor Documentation

UWIPModule()

UWIPModule::UWIPModule

(

)

Constructor of UWIPModule class.

References debug_, ipAddr_, and lastIP.

~UWIPModule()

virtual UWIPModule::~UWIPModule ( )

virtualdefault

Destructor of UWIPModule class.

Member Function Documentation

command()

int UWIPModule::command ( int  argc, const char *const *  argv  )

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns

TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented in UwStaticRoutingModule.

References addr_type_inet, getIpHeaderSize(), ipAddr_, printIdsPkts(), and printIP().

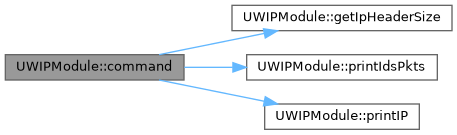

Here is the call graph for this function:

getIpHeaderSize()

static int UWIPModule::getIpHeaderSize ( )

inlinestaticprotected

Returns the size in byte of a hdr_sun_data packet header.

Returns

The size of a hdr_sun_data packet header.

Referenced by command().

printIdsPkts()

void UWIPModule::printIdsPkts ( ) const

inline

Prints the IDs of the packet's headers defined by UWIP.

References PT_UWIP.

Referenced by command().

printIP() [1/2]

const string UWIPModule::printIP ( const nsaddr_t &  ip_ )

static

Returns a string with an IP in the classic form "x.x.x.x" converting an ns2 nsaddr_t address.

Parameters

nsaddr_t&

ns2 address

Returns

String that contains a printable IP in the classic form "x.x.x.x"

Referenced by command().

printIP() [2/2]

const string UWIPModule::printIP ( const uint8_t &  ip_ )

static

Returns a string with an IP in the classic form "x.x.x.x" converting an uint8_t address.

Parameters

uint8_t&

address

Returns

String that contains a printable IP in the classic form "x.x.x.x"

recv()

void UWIPModule::recv ( Packet *  p )

virtual

Performs the reception of packets from upper and lower layers.

Parameters

Packet*

Pointer to the packet received.

Reimplemented in UwStaticRoutingModule.

References addr_type_inet, hdr_uwip::daddr(), ipAddr_, and hdr_uwip::saddr().

Here is the call graph for this function:

recvSyncClMsg()

int UWIPModule::recvSyncClMsg ( ClMessage *  m )

virtual

Cross-Layer messages synchronous interpreter.

Parameters

ClMessage*

an instance of ClMessage that represent the message received

Returns

0 if successful.

References ipAddr_, UWIPClMsgSendAddr::setAddr(), and UWIP_CLMSG_SEND_ADDR.

Here is the call graph for this function:

Member Data Documentation

addr_type_inet

bool UWIPModule::addr_type_inet

protected

true if the addressing type is INET, false if it is ILINK.

Referenced by command(), and recv().

debug_

int UWIPModule::debug_

protected

Flag to enable or disable dirrefent levels of debug.

Referenced by UWIPModule().

ipAddr_

uint8_t UWIPModule::ipAddr_

protected

IP address of the node.

Referenced by command(), recv(), recvSyncClMsg(), and UWIPModule().

lastIP

uint8_t UWIPModule::lastIP = 0

staticprotected

Used to set a default IP address.

Referenced by UWIPModule().

---

The documentation for this class was generated from the following files:

• DESERT_Framework/DESERT/network/uwip/uwip-module.h
• DESERT_Framework/DESERT/network/uwip/uwip-module.cpp
