#include <uwmulti-traffic-range-crt.h>

Inheritance diagram for UwMultiTrafficRangeCtr:

Collaboration diagram for UwMultiTrafficRangeCtr:

Classes
class	UwCheckRangeTimer

Public Member Functions
	UwMultiTrafficRangeCtr ()

virtual	~UwMultiTrafficRangeCtr ()

virtual int	command (int, const char const )

virtual void	recv (Packet *p, int idSrc)

virtual void	sendDown (Packet *p, double delay=0)

virtual void	sendDown (int moduleId, Packet *p, double delay=0)

Public Member Functions inherited from UwMultiTrafficControl
	UwMultiTrafficControl ()

virtual	~UwMultiTrafficControl ()

virtual void	recv (Packet *p)

Protected Member Functions
virtual void	manageBuffer (int traffic)

virtual int	getBestLowerLayer (int traffic, Packet *p=NULL)

virtual void	checkRange (int traffic, int module_id, uint8_t destAdd=UWIP_BROADCAST)

virtual void	manageCheckedLayer (int module_id, uint8_t destAdd, bool in_range, int idSrc=0)

virtual void	initStatus (int traffic)

virtual void	timerExpired (int traffic)

void	incrSignalingCounter (int traffic, CounterMap &map_cnt)

uint	getSignalingCounter (int traffic, const CounterMap &map_cnt) const

Protected Member Functions inherited from UwMultiTrafficControl
virtual void	recvFromUpperLayers (Packet *p)

virtual void	insertInBuffer (Packet *p, int traffic)

virtual Packet *	removeFromBuffer (int traffic)

virtual Packet *	getFromBuffer (int traffic)

void	insertTraffic2UpLayer (int traffic, int upper_layer_id)

void	insertTraffic2LowerLayer (int traffic, int lower_layer_stack, int lower_layer_id, int behavior)

virtual int	getUpperLayer (int traffic)

virtual void	eraseTraffic2LowerLayer (int traffic, int lower_layer_stack)

virtual void	eraseTraffic2Low (int traffic)

virtual void	eraseTraffic2Up (int traffic)

virtual bool	addUpLayerFromTag (int traffic_id, const std::string &tag)

virtual bool	addLowLayerFromTag (int traffic_id, const std::string &tag, int behavior)

void	setBufferFeature (int traffic_id, int max_size, bool is_circular, double send_down_delay=0)

virtual void	incrPktLoss (int traffic_id)

virtual uint	getDiscardedPacket (int traffic_id) const

Protected Attributes
StatusMap	status

double	check_to_period

int	signaling_pktSize

CounterMap	tx_probe_cnt

CounterMap	rx_probe_cnt

CounterMap	tx_probe_ack_cnt

CounterMap	rx_probe_ack_cnt

Protected Attributes inherited from UwMultiTrafficControl
int	debug_

UpTrafficMap	up_map

DownTrafficMap	down_map

DownTrafficBuffer	down_buffer

BufferTrafficFeature	buffer_feature_map

Private Attributes
std::map< int, UwCheckRangeTimer * >	timers

Detailed Description

Class used to represents the UwMultiTrafficRangeCtr layer of a node.

Constructor & Destructor Documentation

◆ UwMultiTrafficRangeCtr()

UwMultiTrafficRangeCtr::UwMultiTrafficRangeCtr ( )

Constructor of UwMultiPhy class.

References check_to_period, and signaling_pktSize.

◆ ~UwMultiTrafficRangeCtr()

virtual UwMultiTrafficRangeCtr::~UwMultiTrafficRangeCtr ( )

inlinevirtual

Destructor of UwMultiPhy class.

Member Function Documentation

◆ checkRange()

void UwMultiTrafficRangeCtr::checkRange	(	int	traffic,
		int	module_id,
		uint8_t	destAdd = `UWIP_BROADCAST`
	)

protectedvirtual

procedure to check if a

Parameters

traffic application traffic id

References check_to_period, hdr_uwip::daddr(), UwMultiTrafficControl::debug_, UWIPClMsgSendAddr::getAddr(), incrSignalingCounter(), initStatus(), UwMultiTrafficRangeCtr::UwCheckRangeTimer::num_expires, hdr_uwcbr::priority(), PT_MULTI_TR_PROBE, RANGE_CNF_WAIT, hdr_uwip::saddr(), sendDown(), signaling_pktSize, status, timers, hdr_uwm_tr::traffic(), and tx_probe_cnt.

Referenced by getBestLowerLayer(), manageCheckedLayer(), and timerExpired().

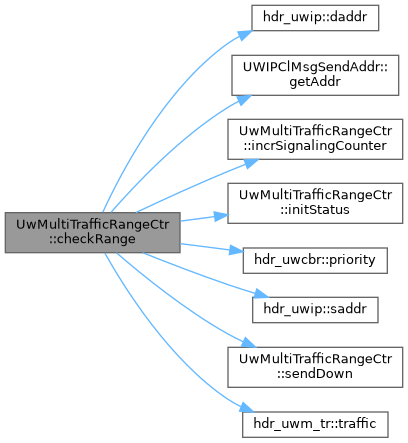

Here is the call graph for this function:

◆ command()

int UwMultiTrafficRangeCtr::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UwMultiTrafficControl.

References UwMultiTrafficControl::addLowLayerFromTag(), CHECK_RANGE, UwMultiTrafficControl::command(), getSignalingCounter(), ROBUST, rx_probe_ack_cnt, rx_probe_cnt, tx_probe_ack_cnt, and tx_probe_cnt.

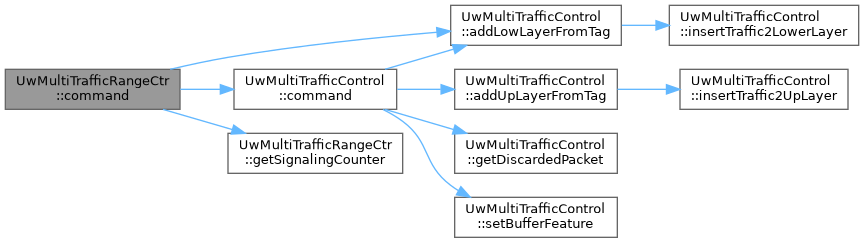

Here is the call graph for this function:

◆ getBestLowerLayer()

int UwMultiTrafficRangeCtr::getBestLowerLayer	(	int	traffic,
		Packet *	p = `NULL`
	)

protectedvirtual

return the Best Lower Layer id where to forward the packet of traffic type

Parameters

traffic application traffic id

Returns: the layer id

Reimplemented from UwMultiTrafficControl.

References CHECK_RANGE, checkRange(), UwMultiTrafficControl::debug_, UwMultiTrafficControl::down_map, IDLE, initStatus(), RANGE_CNF_WAIT, ROBUST, and status.

Referenced by manageBuffer().

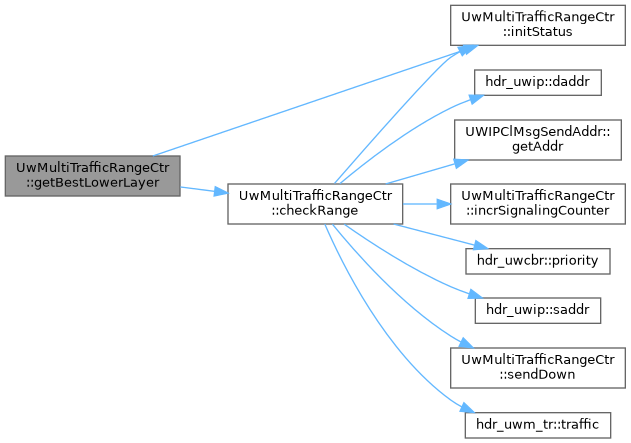

Here is the call graph for this function:

◆ getSignalingCounter()

uint UwMultiTrafficRangeCtr::getSignalingCounter	(	int	traffic,
		const CounterMap &	map_cnt
	)		const

protected

Return the number of signaling pkts sent for the given traffic

Parameters

traffic	application traffic id
map_cnt	map with counter for each traffic

Returns: number of signaling packets sent for the given traffic and 0 if traffic not found

Referenced by command().

◆ incrSignalingCounter()

void UwMultiTrafficRangeCtr::incrSignalingCounter	(	int	traffic,
		CounterMap &	map_cnt
	)

protected

Incement number of signaling pkts sent for the given traffic

Parameters

traffic	application traffic id
map_cnt	map with counter for each traffic

Referenced by checkRange(), and recv().

◆ initStatus()

void UwMultiTrafficRangeCtr::initStatus ( int traffic )

protectedvirtual

default status initialization

Parameters

traffic application traffic id

References IDLE, check_status::module_ids, check_status::robust_id, check_status::status, and status.

Referenced by checkRange(), and getBestLowerLayer().

◆ manageBuffer()

void UwMultiTrafficRangeCtr::manageBuffer ( int traffic )

protectedvirtual

manage to tx a packet of traffic type

Parameters

traffic application traffic id

Reimplemented from UwMultiTrafficControl.

References UwMultiTrafficControl::buffer_feature_map, getBestLowerLayer(), UwMultiTrafficControl::getFromBuffer(), IDLE, UwMultiTrafficControl::removeFromBuffer(), sendDown(), and status.

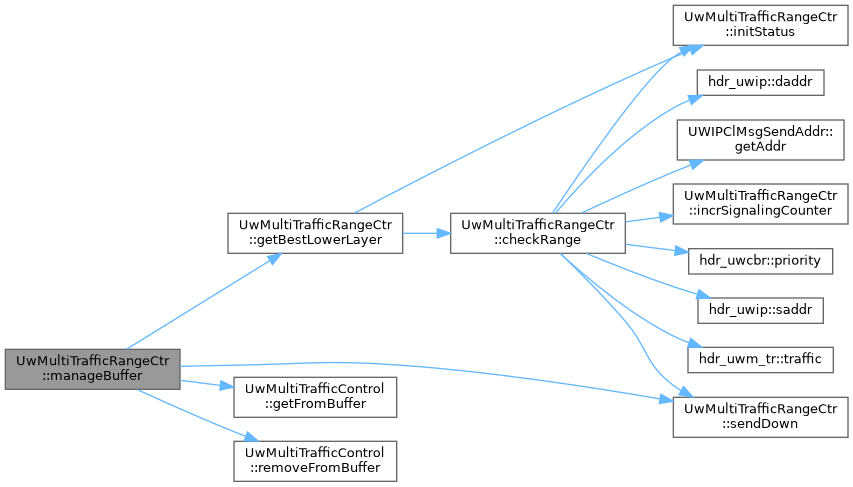

Here is the call graph for this function:

◆ manageCheckedLayer()

void UwMultiTrafficRangeCtr::manageCheckedLayer	(	int	module_id,
		uint8_t	destAdd,
		bool	in_range,
		int	idSrc = `0`
	)

protectedvirtual

procedure when a CHECKED stack is checked

Parameters

module	id
in_range	true if the PHY is in range, false otherwise

References UwMultiTrafficControl::buffer_feature_map, checkRange(), UwMultiTrafficControl::debug_, UwMultiTrafficControl::getFromBuffer(), IDLE, UwMultiTrafficControl::insertInBuffer(), UwMultiTrafficRangeCtr::UwCheckRangeTimer::num_expires, RANGE_CNF_WAIT, UwMultiTrafficControl::removeFromBuffer(), sendDown(), status, and timers.

Referenced by recv(), and timerExpired().

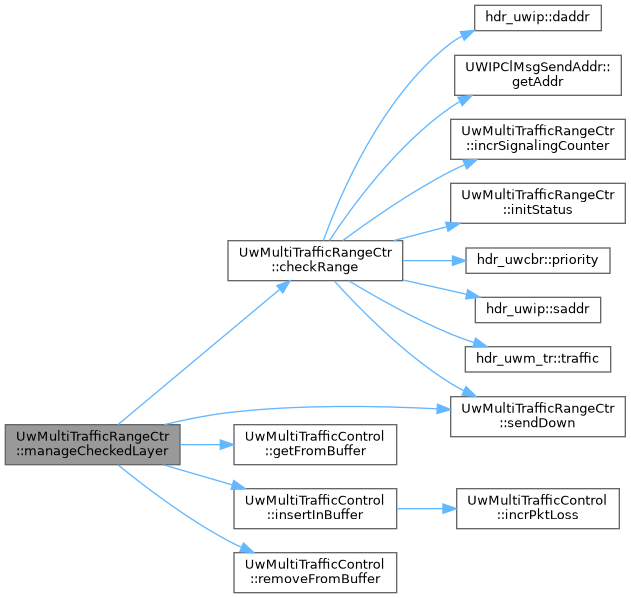

Here is the call graph for this function:

◆ recv()

void UwMultiTrafficRangeCtr::recv	(	Packet *	p,
		int	idSrc
	)

virtual

Handle a packet coming from upper layers

Parameters

p	pointer to the packet

References hdr_uwip::daddr(), UwMultiTrafficControl::debug_, UWIPClMsgSendAddr::getAddr(), incrSignalingCounter(), manageCheckedLayer(), PT_MULTI_TR_PROBE, PT_MULTI_TR_PROBE_ACK, UwMultiTrafficControl::recv(), rx_probe_ack_cnt, rx_probe_cnt, hdr_uwip::saddr(), sendDown(), signaling_pktSize, and tx_probe_ack_cnt.

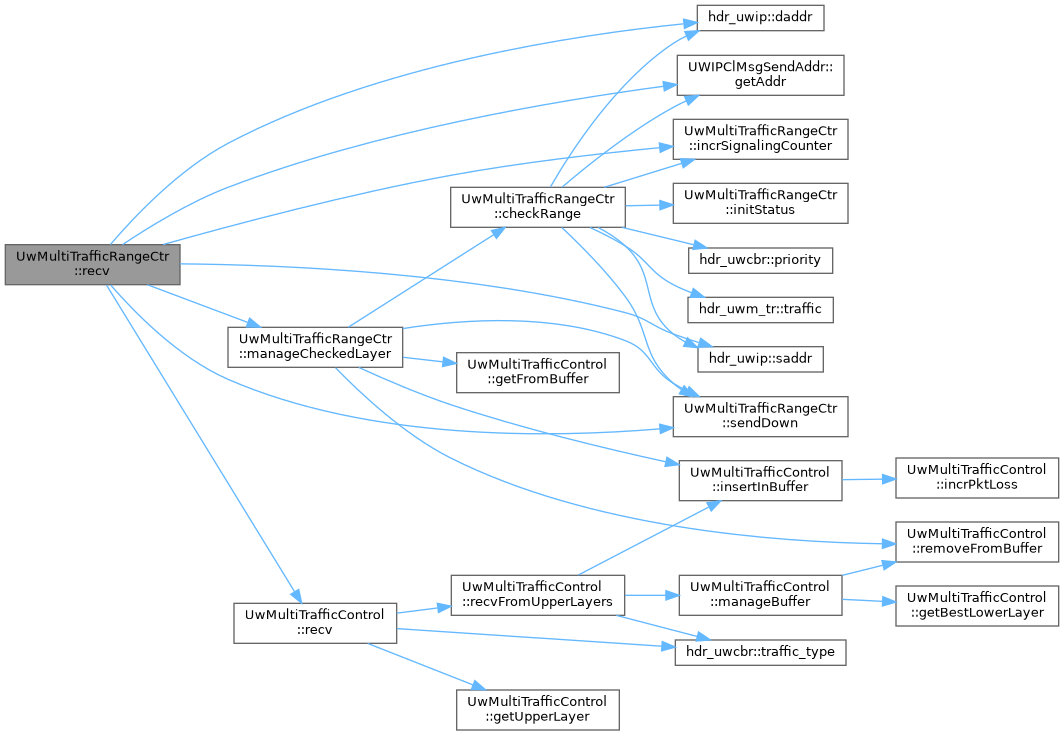

Here is the call graph for this function:

◆ sendDown() [1/2]

virtual void UwMultiTrafficRangeCtr::sendDown	(	int	moduleId,
		Packet *	p,
		double	delay = `0`
	)

inlinevirtual

Send a packet to the requested module of the bottom layer

Parameters

moduleId	ID of the down module at which you would send the packet
p	pointer of the packet which has to be sent
delay	(optional) delay introduced before transmission [sec.]

◆ sendDown() [2/2]

virtual void UwMultiTrafficRangeCtr::sendDown	(	Packet *	p,
		double	delay = `0`
	)

inlinevirtual

Send a packet to the module(s) of the bottom layers

Parameters

p	pointer of the packet which has to be sent
delay	(optional) delay introduced before transmission [sec.]

Referenced by checkRange(), manageBuffer(), manageCheckedLayer(), and recv().

◆ timerExpired()

void UwMultiTrafficRangeCtr::timerExpired ( int traffic )

protectedvirtual

handle when a a timer expires

Parameters

traffic application traffic id

References checkRange(), UwMultiTrafficControl::debug_, UwMultiTrafficControl::getFromBuffer(), IDLE, manageCheckedLayer(), RANGE_CNF_WAIT, status, and timers.

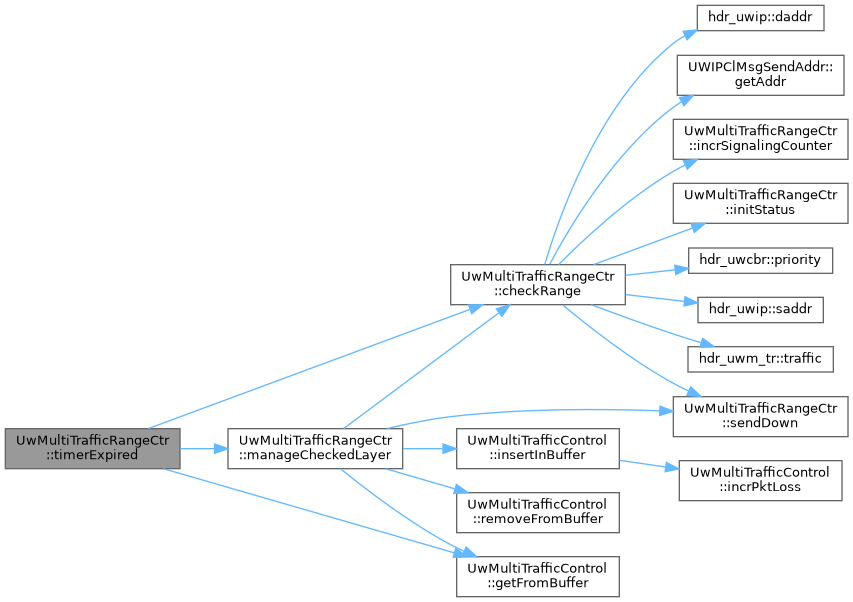

Here is the call graph for this function:

Member Data Documentation

◆ check_to_period

double UwMultiTrafficRangeCtr::check_to_period

protected

Time-Out period

Referenced by checkRange(), and UwMultiTrafficRangeCtr().

◆ rx_probe_ack_cnt

CounterMap UwMultiTrafficRangeCtr::rx_probe_ack_cnt

protected

Number of probe ACK pkts recv for each traffic

Referenced by command(), and recv().

◆ rx_probe_cnt

CounterMap UwMultiTrafficRangeCtr::rx_probe_cnt

protected

Number of probe pkts recv for each traffic

Referenced by command(), and recv().

◆ signaling_pktSize

int UwMultiTrafficRangeCtr::signaling_pktSize

protected

Signaling packet size

Referenced by checkRange(), recv(), and UwMultiTrafficRangeCtr().

◆ status

StatusMap UwMultiTrafficRangeCtr::status

protected

Map of status per traffic types

Referenced by checkRange(), getBestLowerLayer(), initStatus(), manageBuffer(), manageCheckedLayer(), and timerExpired().

◆ timers

std::map<int, UwCheckRangeTimer *> UwMultiTrafficRangeCtr::timers

private

Map of timer per traffic types

Referenced by checkRange(), manageCheckedLayer(), and timerExpired().

◆ tx_probe_ack_cnt

CounterMap UwMultiTrafficRangeCtr::tx_probe_ack_cnt

protected

Number of probe ACK pkts sent for each traffic

Referenced by command(), and recv().

◆ tx_probe_cnt

CounterMap UwMultiTrafficRangeCtr::tx_probe_cnt

protected

Number of probe pkts sent for each traffic

Referenced by checkRange(), and command().

The documentation for this class was generated from the following files:

DESERT_Addons/uwmulti_traffic_control/uwmulti-traffic-range-crt.h
DESERT_Addons/uwmulti_traffic_control/uwmulti-traffic-range-crt.cc
