#include <uwmulti-traffic-control.h>

Inheritance diagram for UwMultiTrafficControl:

Collaboration diagram for UwMultiTrafficControl:

Public Member Functions
	UwMultiTrafficControl ()

virtual	~UwMultiTrafficControl ()

virtual int	command (int, const char const )

virtual void	recv (Packet *p)

Protected Member Functions
virtual void	recvFromUpperLayers (Packet *p)

virtual void	manageBuffer (int traffic)

virtual void	insertInBuffer (Packet *p, int traffic)

virtual Packet *	removeFromBuffer (int traffic)

virtual Packet *	getFromBuffer (int traffic)

void	insertTraffic2UpLayer (int traffic, int upper_layer_id)

void	insertTraffic2LowerLayer (int traffic, int lower_layer_stack, int lower_layer_id, int behavior)

virtual int	getBestLowerLayer (int traffic, Packet *p=NULL)

virtual int	getUpperLayer (int traffic)

virtual void	eraseTraffic2LowerLayer (int traffic, int lower_layer_stack)

virtual void	eraseTraffic2Low (int traffic)

virtual void	eraseTraffic2Up (int traffic)

virtual bool	addUpLayerFromTag (int traffic_id, const std::string &tag)

virtual bool	addLowLayerFromTag (int traffic_id, const std::string &tag, int behavior)

void	setBufferFeature (int traffic_id, int max_size, bool is_circular, double send_down_delay=0)

virtual void	incrPktLoss (int traffic_id)

virtual uint	getDiscardedPacket (int traffic_id) const

Protected Attributes
int	debug_

UpTrafficMap	up_map

DownTrafficMap	down_map

DownTrafficBuffer	down_buffer

BufferTrafficFeature	buffer_feature_map

Detailed Description

Class used to represents the UwMultiTrafficControl layer of a node.

Constructor & Destructor Documentation

◆ UwMultiTrafficControl()

UwMultiTrafficControl::UwMultiTrafficControl ( )

Constructor of UwMultiPhy class.

References debug_.

◆ ~UwMultiTrafficControl()

virtual UwMultiTrafficControl::~UwMultiTrafficControl ( )

inlinevirtual

Destructor of UwMultiPhy class.

Member Function Documentation

◆ addLowLayerFromTag()

bool UwMultiTrafficControl::addLowLayerFromTag	(	int	traffic_id,
		const std::string &	tag,
		int	behavior
	)

protectedvirtual

add a lower layer from the tag name in the map

Parameters

traffic	application traffic id
tag	tag of the lower module
behavior	behavior of the layer

Returns: true if there is a valid layer associated to tag, false otherwise.

References debug_, and insertTraffic2LowerLayer().

Referenced by command(), and UwMultiTrafficRangeCtr::command().

Here is the call graph for this function:

◆ addUpLayerFromTag()

bool UwMultiTrafficControl::addUpLayerFromTag	(	int	traffic_id,
		const std::string &	tag
	)

protectedvirtual

add an upper layer from the tag name in the map

Parameters

traffic	application traffic id
tag	tag of the upper module

Returns: true if there is a valid layer associated to tag, false otherwise.

References debug_, and insertTraffic2UpLayer().

Referenced by command().

Here is the call graph for this function:

◆ command()

int UwMultiTrafficControl::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented in UwMultiTrafficRangeCtr.

References addLowLayerFromTag(), addUpLayerFromTag(), getDiscardedPacket(), and setBufferFeature().

Referenced by UwMultiTrafficRangeCtr::command().

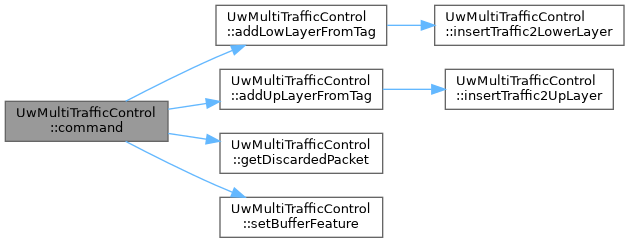

Here is the call graph for this function:

◆ eraseTraffic2Low()

void UwMultiTrafficControl::eraseTraffic2Low ( int traffic )

protectedvirtual

remove the traffic from the lower layers matrix

Parameters

traffic application traffic id

References up_map.

◆ eraseTraffic2LowerLayer()

void UwMultiTrafficControl::eraseTraffic2LowerLayer	(	int	traffic,
		int	lower_layer_stack
	)

protectedvirtual

remove the behavior from the traffic lower layers matrix

Parameters

traffic	application traffic id
lower_layer_stack	lower layer stack id

References down_map.

◆ eraseTraffic2Up()

void UwMultiTrafficControl::eraseTraffic2Up ( int traffic )

protectedvirtual

remove the traffic from the upper layers matrix

Parameters

traffic application traffic id

References up_map.

◆ getBestLowerLayer()

int UwMultiTrafficControl::getBestLowerLayer	(	int	traffic,
		Packet *	p = `NULL`
	)

protectedvirtual

return the Best Lower Layer id where to forward the packet of traffic type

Parameters

traffic application traffic id

Returns: the layer id

Reimplemented in UwMultiTrafficRangeCtr.

References debug_, and down_map.

Referenced by manageBuffer().

◆ getDiscardedPacket()

uint UwMultiTrafficControl::getDiscardedPacket ( int traffic_id ) const

protectedvirtual

get discarded packets

Parameters

traffic_id application traffic id

Returns: number of discarded packets for the given traffic id buffer)

References buffer_feature_map.

Referenced by command().

◆ getFromBuffer()

Packet * UwMultiTrafficControl::getFromBuffer ( int traffic )

protectedvirtual

get a packet of a certain type from the buffer and return it

Parameters

traffic application traffic id

Returns: the pointer of the removed packet

References debug_, and down_buffer.

Referenced by UwMultiTrafficRangeCtr::manageBuffer(), UwMultiTrafficRangeCtr::manageCheckedLayer(), and UwMultiTrafficRangeCtr::timerExpired().

◆ getUpperLayer()

int UwMultiTrafficControl::getUpperLayer ( int traffic )

protectedvirtual

return the Upper Layer id where to forward the received packet of traffic type

Parameters

traffic application traffic id

Returns: the layer id

References debug_, and up_map.

Referenced by recv().

◆ incrPktLoss()

void UwMultiTrafficControl::incrPktLoss ( int traffic_id )

protectedvirtual

Increment by 1 the number of lost packets for the given traffic

Parameters

traffic_id application traffic id

References buffer_feature_map.

Referenced by insertInBuffer().

◆ insertInBuffer()

void UwMultiTrafficControl::insertInBuffer	(	Packet *	p,
		int	traffic
	)

protectedvirtual

insert a packet of a certain type in the buffer

Parameters

p	pointer of the packet
traffic	application traffic id

References buffer_feature_map, BufferType::CIRCULAR, debug_, down_buffer, incrPktLoss(), and q.

Referenced by UwMultiTrafficRangeCtr::manageCheckedLayer(), and recvFromUpperLayers().

Here is the call graph for this function:

◆ insertTraffic2LowerLayer()

void UwMultiTrafficControl::insertTraffic2LowerLayer	(	int	traffic,
		int	lower_layer_stack,
		int	lower_layer_id,
		int	behavior
	)

inlineprotected

Set to which upper layer forward a specific kind of traffic received from the lower layers

Parameters

application	traffic id
lower_layer_stack	unique identifier of the lower layer stack
check_range	if TRUE follows the CHECK_RANGE behavior, else the ROBUST one

References down_map.

Referenced by addLowLayerFromTag().

◆ insertTraffic2UpLayer()

void UwMultiTrafficControl::insertTraffic2UpLayer	(	int	traffic,
		int	upper_layer_id
	)

inlineprotected

Set to which upper layer forward a specific kind of traffic received from the lower layers

Parameters

traffic	application traffic id
upper_layer_id	unique identifier of the upper layer id

References up_map.

Referenced by addUpLayerFromTag().

◆ manageBuffer()

void UwMultiTrafficControl::manageBuffer ( int traffic )

protectedvirtual

manage to tx a packet of traffic type

Parameters

traffic application traffic id

Reimplemented in UwMultiTrafficRangeCtr.

References buffer_feature_map, debug_, down_buffer, getBestLowerLayer(), and removeFromBuffer().

Referenced by recvFromUpperLayers().

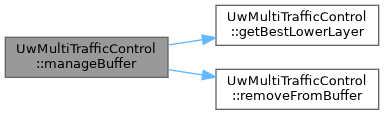

Here is the call graph for this function:

◆ recv()

void UwMultiTrafficControl::recv ( Packet * p )

virtual

recv method. It is called when a packet is received from the other layers

Parameters

Packet* Pointer to the packet that are going to be received

References debug_, getUpperLayer(), recvFromUpperLayers(), and hdr_uwcbr::traffic_type().

Referenced by UwMultiTrafficRangeCtr::recv().

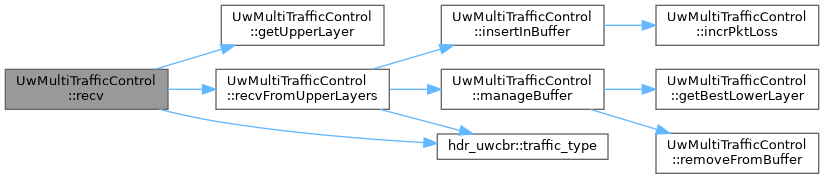

Here is the call graph for this function:

◆ recvFromUpperLayers()

void UwMultiTrafficControl::recvFromUpperLayers ( Packet * p )

protectedvirtual

Handle a packet coming from upper layers

Parameters

p	pointer to the packet

References debug_, insertInBuffer(), manageBuffer(), and hdr_uwcbr::traffic_type().

Referenced by recv().

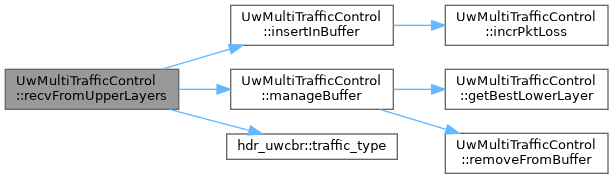

Here is the call graph for this function:

◆ removeFromBuffer()

Packet * UwMultiTrafficControl::removeFromBuffer ( int traffic )

protectedvirtual

remove a packet of a certain type from the buffer and return it

Parameters

traffic application traffic id

Returns: the pointer of the removed packet

References debug_, and down_buffer.

Referenced by manageBuffer(), UwMultiTrafficRangeCtr::manageBuffer(), and UwMultiTrafficRangeCtr::manageCheckedLayer().

◆ setBufferFeature()

void UwMultiTrafficControl::setBufferFeature	(	int	traffic_id,
		int	max_size,
		bool	is_circular,
		double	send_down_delay = `0`
	)

protected

set buffer features for the given traffic type

Parameters

traffic_id	application traffic id
max_size	maximum buffer size
is_circular	true if buffer is circular, false otherwise (discard new) buffer)
send_down_delay	delay used to send down packets

References buffer_feature_map, BufferType::CIRCULAR, debug_, and BufferType::DISCARD_INCOMING.

Referenced by command().

Member Data Documentation

◆ buffer_feature_map

BufferTrafficFeature UwMultiTrafficControl::buffer_feature_map

protected

Map with features of each buffer

Referenced by getDiscardedPacket(), incrPktLoss(), insertInBuffer(), manageBuffer(), UwMultiTrafficRangeCtr::manageBuffer(), UwMultiTrafficRangeCtr::manageCheckedLayer(), and setBufferFeature().

◆ debug_

int UwMultiTrafficControl::debug_

protected

Flag to activate debug verbosity.

Referenced by addLowLayerFromTag(), addUpLayerFromTag(), UwMultiTrafficRangeCtr::checkRange(), getBestLowerLayer(), UwMultiTrafficRangeCtr::getBestLowerLayer(), getFromBuffer(), getUpperLayer(), insertInBuffer(), manageBuffer(), UwMultiTrafficRangeCtr::manageCheckedLayer(), recv(), UwMultiTrafficRangeCtr::recv(), recvFromUpperLayers(), removeFromBuffer(), setBufferFeature(), UwMultiTrafficRangeCtr::timerExpired(), and UwMultiTrafficControl().

◆ down_buffer

DownTrafficBuffer UwMultiTrafficControl::down_buffer

protected

Map of buffer per traffic types

Referenced by getFromBuffer(), insertInBuffer(), manageBuffer(), and removeFromBuffer().

◆ down_map

DownTrafficMap UwMultiTrafficControl::down_map

protected

Map of lower layers.

Referenced by eraseTraffic2LowerLayer(), getBestLowerLayer(), UwMultiTrafficRangeCtr::getBestLowerLayer(), and insertTraffic2LowerLayer().

◆ up_map

UpTrafficMap UwMultiTrafficControl::up_map

protected

Map of upper layers.

Referenced by eraseTraffic2Low(), eraseTraffic2Up(), getUpperLayer(), and insertTraffic2UpLayer().

The documentation for this class was generated from the following files:

DESERT_Addons/uwmulti_traffic_control/uwmulti-traffic-control.h
DESERT_Addons/uwmulti_traffic_control/uwmulti-traffic-control.cc
