#include <uwdriftposition.h>

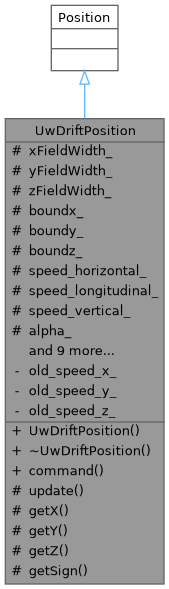

Inheritance diagram for UwDriftPosition:

Collaboration diagram for UwDriftPosition:

Public Member Functions
	UwDriftPosition ()

virtual	~UwDriftPosition ()

virtual int	command (int, const char const )

Protected Member Functions
virtual void	update (const double &)

virtual double	getX ()

virtual double	getY ()

virtual double	getZ ()

virtual short	getSign () const

Protected Attributes
double	xFieldWidth_

double	yFieldWidth_

double	zFieldWidth_

int	boundx_

int	boundy_

int	boundz_

double	speed_horizontal_

double	speed_longitudinal_

double	speed_vertical_

double	alpha_

double	deltax_

double	deltay_

double	deltaz_

double	starting_speed_x_

double	starting_speed_y_

double	starting_speed_z_

double	updateTime_

double	nextUpdateTime_

int	debug_

Private Attributes
double	old_speed_x_

double	old_speed_y_

double	old_speed_z_

Detailed Description

UwDriftPosition class implements the drift mobility model.

Constructor & Destructor Documentation

◆ UwDriftPosition()

UwDriftPosition::UwDriftPosition ( )

Constructor of UwDriftPosition class.

References alpha_, boundx_, boundy_, boundz_, debug_, deltax_, deltay_, deltaz_, old_speed_x_, old_speed_y_, old_speed_z_, speed_horizontal_, speed_longitudinal_, speed_vertical_, starting_speed_x_, starting_speed_y_, starting_speed_z_, updateTime_, xFieldWidth_, yFieldWidth_, and zFieldWidth_.

◆ ~UwDriftPosition()

UwDriftPosition::~UwDriftPosition ( )

virtual

Destructor of UwDriftPosition class.

Member Function Documentation

◆ command()

int UwDriftPosition::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

◆ getSign()

short UwDriftPosition::getSign ( ) const

protectedvirtual

Returns a randomly 1 or -.

Returns

Referenced by update().

◆ getX()

double UwDriftPosition::getX ( )

protectedvirtual

Returns the current projection of the node on the x-axis. If it's necessary (updating time ia expired), update the position values before returns it.

Returns: The new x-axis position value of the node.

References nextUpdateTime_, and update().

Here is the call graph for this function:

◆ getY()

double UwDriftPosition::getY ( )

protectedvirtual

Returns the current projection of the node on the y-axis. If it's necessary (updating time ia expired), update the position values before returns it.

Returns: The new y-axis position value of the node.

References nextUpdateTime_, and update().

Here is the call graph for this function:

◆ getZ()

double UwDriftPosition::getZ ( )

protectedvirtual

Returns the current projection of the node on the z-axis. If it's necessary (updating time ia expired), update the position values before returns it.

Returns: The new z-axis position value of the node.

References nextUpdateTime_, and update().

Here is the call graph for this function:

◆ update()

void UwDriftPosition::update ( const double & now )

protectedvirtual

Updates both the position coordinates as function of the number of states to be evaluated.

Parameters

double Current time.

References alpha_, boundx_, boundy_, boundz_, debug_, deltax_, deltay_, deltaz_, getSign(), nextUpdateTime_, old_speed_x_, old_speed_y_, old_speed_z_, speed_horizontal_, speed_longitudinal_, speed_vertical_, updateTime_, xFieldWidth_, yFieldWidth_, and zFieldWidth_.

Referenced by getX(), getY(), and getZ().

Here is the call graph for this function:

Member Data Documentation

◆ alpha_

double UwDriftPosition::alpha_

protected

Parameter to be used to vary the randomness: 0: totally random values (Brownian motion), 1: linear motion.

Referenced by update(), and UwDriftPosition().

◆ boundx_

int UwDriftPosition::boundx_

protected

1 if the x-axis is bounded, 0 otherwise.

Referenced by update(), and UwDriftPosition().

◆ boundy_

int UwDriftPosition::boundy_

protected

1 if the y-axis is bounded, 0 otherwise.

Referenced by update(), and UwDriftPosition().

◆ boundz_

int UwDriftPosition::boundz_

protected

1 if the z-axis is bounded, 0 otherwise.

Referenced by update(), and UwDriftPosition().

◆ debug_

int UwDriftPosition::debug_

protected

Flag to enable or disable dirrefent levels of debug.

Referenced by update(), and UwDriftPosition().

◆ deltax_

double UwDriftPosition::deltax_

protected

Max value of the Uniform Distribution: Random movement between [0, deltax_).

Referenced by update(), and UwDriftPosition().

◆ deltay_

double UwDriftPosition::deltay_

protected

Max value of the Uniform Distribution: Random movement between [0, deltay_).

Referenced by update(), and UwDriftPosition().

◆ deltaz_

double UwDriftPosition::deltaz_

protected

Max value of the Uniform Distribution: Random movement between [0, deltaz_).

Referenced by update(), and UwDriftPosition().

◆ nextUpdateTime_

double UwDriftPosition::nextUpdateTime_

protected

Internal variable used to evaluate the steps to be computed.

Referenced by getX(), getY(), getZ(), and update().

◆ old_speed_x_

double UwDriftPosition::old_speed_x_

private

Temporary variable.

Referenced by update(), and UwDriftPosition().

◆ old_speed_y_

double UwDriftPosition::old_speed_y_

private

Temporary variable.

Referenced by update(), and UwDriftPosition().

◆ old_speed_z_

double UwDriftPosition::old_speed_z_

private

Temporary variable.

Referenced by update(), and UwDriftPosition().

◆ speed_horizontal_

double UwDriftPosition::speed_horizontal_

protected

Speed of the node in the x-axis, in m/s.

Referenced by update(), and UwDriftPosition().

◆ speed_longitudinal_

double UwDriftPosition::speed_longitudinal_

protected

Speed of the node in the y-axis, in m/s.

Referenced by update(), and UwDriftPosition().

◆ speed_vertical_

double UwDriftPosition::speed_vertical_

protected

Speed of the node in the z-axis, in m/s.

Referenced by update(), and UwDriftPosition().

◆ starting_speed_x_

double UwDriftPosition::starting_speed_x_

protected

Initial speed of the node. x axis in m/s.

Referenced by UwDriftPosition().

◆ starting_speed_y_

double UwDriftPosition::starting_speed_y_

protected

Initial speed of the node. y axis in m/s.

Referenced by UwDriftPosition().

◆ starting_speed_z_

double UwDriftPosition::starting_speed_z_

protected

Initial speed of the node. z axis in m/s.

Referenced by UwDriftPosition().

◆ updateTime_

double UwDriftPosition::updateTime_

protected

Time between two update computation.

Referenced by update(), and UwDriftPosition().

◆ xFieldWidth_

double UwDriftPosition::xFieldWidth_

protected

Range of the x-axis of the field to be simulated, in meters.

Referenced by update(), and UwDriftPosition().

◆ yFieldWidth_

double UwDriftPosition::yFieldWidth_

protected

Range of the y-axis of the field to be simulated, in meters.

Referenced by update(), and UwDriftPosition().

◆ zFieldWidth_

double UwDriftPosition::zFieldWidth_

protected

Range of the z-axis of the field to be simulated, in meters.

Referenced by update(), and UwDriftPosition().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/mobility/uwdriftposition/uwdriftposition.h
DESERT_Framework/DESERT/mobility/uwdriftposition/uwdriftposition.cpp
