uwpolling_cmn_hdr.h File Reference

#include <mmac.h>
#include <module.h>
#include <packet.h>
#include <list>

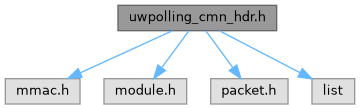

Include dependency graph for uwpolling_cmn_hdr.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	POLL_ID
struct	hdr_TRIGGER
struct	hdr_POLL
struct	hdr_PROBE
struct	hdr_PROBE_SINK
struct	hdr_AUV_MULE
struct	hdr_ACK_SINK

Macros
#define	HDR_PROBE(p)    (hdr_PROBE::access(p))
#define	HDR_TRIGGER(p)    (hdr_TRIGGER::access(p))
#define	HDR_POLL(p)    (hdr_POLL::access(p))
#define	HDR_AUV_MULE(p)    (hdr_AUV_MULE::access(p)
#define	HDR_ACK_SINK(p)    (hdr_ACK_SINK::access(p)
#define	HDR_PROBE_SINK(p)    (hdr_PROBE_SINK::access(p)

Typedefs
typedef struct POLL_ID	id_poll
typedef struct hdr_TRIGGER	hdr_TRIGGER
typedef struct hdr_POLL	hdr_POLL
typedef struct hdr_PROBE	hdr_PROBE
typedef struct hdr_PROBE_SINK	hdr_PROBE_SINK
typedef struct hdr_AUV_MULE	hdr_AUV_MULE
typedef struct hdr_ACK_SINK	hdr_ACK_SINK

Variables
packet_t	PT_TRIGGER
packet_t	PT_POLL
packet_t	PT_PROBE
packet_t	PT_PROBE_SINK
packet_t	PT_AUV_MULE
packet_t	PT_ACK_SINK
static const int	MAX_POLLED_NODE = 4000
static const double	MIN_T_POLL = 5
static const double	MIN_T_DATA = 5
static const int	MAX_BUFFER_SIZE
static const int	prop_speed

Detailed Description

Common structures and variables in the protocol.

Author

Federico Favaro

Version

1.0.0

Definition in file uwpolling_cmn_hdr.h.

Macro Definition Documentation

HDR_ACK_SINK

#define HDR_ACK_SINK

(

p

)

(hdr_ACK_SINK::access(p)

alias defined to access the ACK SINK HEADER

Definition at line 65 of file uwpolling_cmn_hdr.h.

HDR_AUV_MULE

#define HDR_AUV_MULE

(

p

)

(hdr_AUV_MULE::access(p)

alias defined to access the AUV MULE HEADER

Definition at line 61 of file uwpolling_cmn_hdr.h.

HDR_POLL

#define HDR_POLL

(

p

)

(hdr_POLL::access(p))

alias defined to access the POLL HEADER

Definition at line 58 of file uwpolling_cmn_hdr.h.

HDR_PROBE

#define HDR_PROBE

(

p

)

(hdr_PROBE::access(p))

alias defined to access the PROBE HEADER

Definition at line 51 of file uwpolling_cmn_hdr.h.

HDR_PROBE_SINK

#define HDR_PROBE_SINK

(

p

)

(hdr_PROBE_SINK::access(p)

alias defined to access the ACK SINK HEADER

Definition at line 68 of file uwpolling_cmn_hdr.h.

HDR_TRIGGER

#define HDR_TRIGGER

(

p

)

(hdr_TRIGGER::access(p))

alias defined to access the TRIGGER HEADER \

Definition at line 55 of file uwpolling_cmn_hdr.h.

Typedef Documentation

hdr_ACK_SINK

typedef struct hdr_ACK_SINK hdr_ACK_SINK

Header of the ACK sent by the SINK.

hdr_AUV_MULE

typedef struct hdr_AUV_MULE hdr_AUV_MULE

Header of the data sent from AUV MULE to SINK.

hdr_POLL

typedef struct hdr_POLL hdr_POLL

Header of the POLL message.

hdr_PROBE

typedef struct hdr_PROBE hdr_PROBE

Header of the PROBE message.

hdr_PROBE_SINK

typedef struct hdr_PROBE_SINK hdr_PROBE_SINK

Header of the PROBE message.

hdr_TRIGGER

typedef struct hdr_TRIGGER hdr_TRIGGER

Header of the TRIGGER message.

id_poll

typedef struct POLL_ID id_poll

Single location of the POLL vector.

Each POLL_ID represent a polled node

Variable Documentation

MAX_BUFFER_SIZE

const int MAX_BUFFER_SIZE

static

Initial value:

=
        100

Maximum size of the queue in number of packets.

Definition at line 80 of file uwpolling_cmn_hdr.h.

MAX_POLLED_NODE

const int MAX_POLLED_NODE = 4000

static

Maximum number of node to POLL.

Definition at line 77 of file uwpolling_cmn_hdr.h.

MIN_T_DATA

const double MIN_T_DATA = 5

static

Minimum duration of the DATA timer.

Definition at line 79 of file uwpolling_cmn_hdr.h.

MIN_T_POLL

const double MIN_T_POLL = 5

static

Minimum duration of the POLL timer.

Definition at line 78 of file uwpolling_cmn_hdr.h.

prop_speed

const int prop_speed

static

Initial value:

=
        1500

Typical underwater sound propagation speed.

Definition at line 82 of file uwpolling_cmn_hdr.h.

PT_ACK_SINK

packet_t PT_ACK_SINK

extern

Definition at line 58 of file DESERT_Framework/DESERT/data_link/uwpolling/initlib.cpp.

PT_AUV_MULE

packet_t PT_AUV_MULE

extern

Definition at line 57 of file DESERT_Framework/DESERT/data_link/uwpolling/initlib.cpp.

PT_POLL

packet_t PT_POLL

extern

Definition at line 56 of file DESERT_Framework/DESERT/data_link/uwpolling/initlib.cpp.

PT_PROBE

packet_t PT_PROBE

extern

Definition at line 54 of file DESERT_Framework/DESERT/data_link/uwpolling/initlib.cpp.

PT_PROBE_SINK

packet_t PT_PROBE_SINK

extern

Definition at line 55 of file DESERT_Framework/DESERT/data_link/uwpolling/initlib.cpp.

PT_TRIGGER

packet_t PT_TRIGGER

extern

Definition at line 53 of file DESERT_Framework/DESERT/data_link/uwpolling/initlib.cpp.
