mdriverS2C_Evo_lowlev.h File Reference

#include <msocket.h>
#include "minterpreterTEL.h"
#include <uwmdriver.h>
#include <queue>

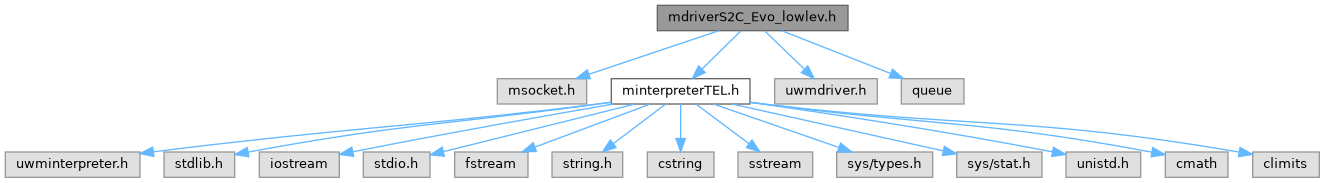

Include dependency graph for mdriverS2C_Evo_lowlev.h:

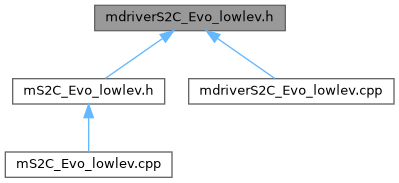

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	MdriverS2C_Evo_lowlev

Typedefs
typedef enum LL_STATE_TX	ll_tx_state_t
typedef enum LL_STATE_RX	ll_rx_state_t

Enumerations
enum	LL_STATE_TX {   TX_STATE_IDLE = 0 , TX_STATE_ON1 , TX_STATE_ON2 , TX_STATE_ON3 ,   TX_STATE_ON4 , TX_STATE_OFF1 , TX_STATE_OFF2 , TX_STATE_OFF3 ,   TX_STATE_DATA , TX_STATE_CTRL , TX_STATE_BITRATE_CFG , TX_STATE_DSP_CFG ,   TX_STATE_ASK_BUSY , TX_STATE_STOP_LISTEN , TX_STATE_CLEAR_TX }
enum	LL_STATE_RX { RX_STATE_IDLE = 0 , RX_STATE_DATA , LISTENING }

Detailed Description

Class derived from UWMdriver to interface ns2/NS-Miracle with the S2C EvoLogics acoustic modems through the low level firmware made available, individually, by EvoLogics, Gmbh (www.evologics.de).

Author

Roberto Francescon

Version

0.0.1

Definition in file mdriverS2C_Evo_lowlev.h.

Typedef Documentation

ll_rx_state_t

typedef enum LL_STATE_RX ll_rx_state_t

Definition at line 68 of file mdriverS2C_Evo_lowlev.h.

ll_tx_state_t

typedef enum LL_STATE_TX ll_tx_state_t

Definition at line 66 of file mdriverS2C_Evo_lowlev.h.

Enumeration Type Documentation

LL_STATE_RX

enum LL_STATE_RX

Enumerator
RX_STATE_IDLE
RX_STATE_DATA
LISTENING

Definition at line 64 of file mdriverS2C_Evo_lowlev.h.

LL_STATE_TX

enum LL_STATE_TX

Enumerator
TX_STATE_IDLE
TX_STATE_ON1
TX_STATE_ON2
TX_STATE_ON3
TX_STATE_ON4
TX_STATE_OFF1
TX_STATE_OFF2
TX_STATE_OFF3
TX_STATE_DATA
TX_STATE_CTRL
TX_STATE_BITRATE_CFG
TX_STATE_DSP_CFG
TX_STATE_ASK_BUSY
TX_STATE_STOP_LISTEN
TX_STATE_CLEAR_TX

Definition at line 46 of file mdriverS2C_Evo_lowlev.h.
