#include <uwinterferenceofdm.h>

Inheritance diagram for uwinterferenceofdm:

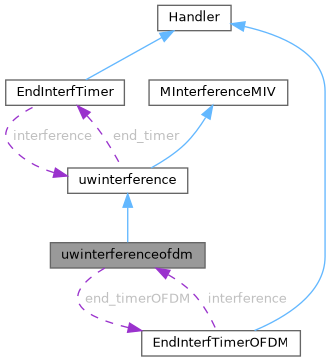

Collaboration diagram for uwinterferenceofdm:

Public Member Functions
virtual int	command (int, const char const )

	uwinterferenceofdm ()

virtual	~uwinterferenceofdm ()

virtual void	addToInterference (Packet *p)

virtual void	addToInterference (double pw, PKT_TYPE tp, int *carriers, int carNum)

virtual void	removeFromInterference (double pw, PKT_TYPE tp, const std::vector< double > &carPwr)

virtual double	getInterferencePower (Packet *p)

virtual double	getInterferencePower (double power, double starttime, double duration, int *carriers, int ncar)

virtual double	getCurrentTotalPower ()

virtual double	getCurrentTotalPowerOnCarrier (int carrier)

virtual double	getTimeOverlap (Packet *p)

virtual double	getTimeOverlap (double starttime, double duration)

virtual counter	getCounters (Packet *p)

virtual counter	getCounters (double starttime, double duration, PKT_TYPE tp)

int	getInterfCarriers ()

void	setInterfCarriers (int sc)

double	getStartRxTime ()

double	getEndRxTime ()

double	getInitialInterferenceTime ()

Public Member Functions inherited from uwinterference
	uwinterference ()

virtual	~uwinterference ()

virtual void	addToInterference (double pw, PKT_TYPE tp)

virtual void	removeFromInterference (double pw, PKT_TYPE tp)

virtual double	getInterferencePower (double power, double starttime, double duration)

double	getStartRxTime ()

double	getEndRxTime ()

double	getInitialInterferenceTime ()

Public Attributes
int	interfSubCarriers_

Protected Attributes
std::list< ListNodeOFDM >	power_list

EndInterfTimerOFDM	end_timerOFDM

int	inodeID

Protected Attributes inherited from uwinterference
std::list< ListNode >	power_list

EndInterfTimer	end_timer

double	use_maxinterval_

double	initial_interference_time

double	start_rx_time

double	end_rx_time

Constructor & Destructor Documentation

◆ uwinterferenceofdm()

uwinterferenceofdm::uwinterferenceofdm ( )

Constructor of the class uwinterference

References inodeID, and uwinterference::use_maxinterval_.

◆ ~uwinterferenceofdm()

uwinterferenceofdm::~uwinterferenceofdm ( )

virtual

Destructor of the class uwinterference

Member Function Documentation

◆ addToInterference() [1/2]

void uwinterferenceofdm::addToInterference	(	double	pw,
		PKT_TYPE	tp,
		int *	carriers,
		int	carNum
	)

virtual

Add a packet to the interference calculation

Parameters

pw	Received power of the current packet
type	type of the packet (DATA or CTRL)
carriers	vector of carriers used in that packet
carNum	explicit number of carriers

References CTRL, power_list, and uwinterference::use_maxinterval_.

◆ addToInterference() [2/2]

void uwinterferenceofdm::addToInterference ( Packet * p )

virtual

Add a packet to the interference calculation

Parameters

p	Pointer to the interferer packet

Reimplemented from uwinterference.

References addToInterference(), hdr_OFDM::carrierNum, hdr_OFDM::carriers, CTRL, DATA, and end_timerOFDM.

Referenced by addToInterference().

Here is the call graph for this function:

◆ command()

int uwinterferenceofdm::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References command(), getInterfCarriers(), and setInterfCarriers().

Referenced by command().

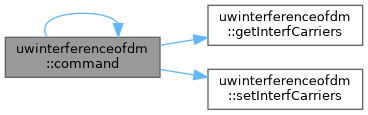

Here is the call graph for this function:

◆ getCounters() [1/2]

counter uwinterferenceofdm::getCounters	(	double	starttime,
		double	duration,
		PKT_TYPE	tp
	)

virtual

Returns the counters of collisions

Parameters

starttime	timestamp of the start of reception phase
duration	duration of the reception phase
type	type of the packet (DATA or CTRL)

Returns: counter variable that represent the counters of the interference

Reimplemented from uwinterference.

References CTRL, and power_list.

◆ getCounters() [2/2]

counter uwinterferenceofdm::getCounters ( Packet * p )

virtual

Returns the counters of collisions

Parameters

p	Pointer of the packet for which the counters are needed

Returns: counter variable that represent the counters of the interference

Reimplemented from uwinterference.

References CTRL, DATA, and getCounters().

Referenced by getCounters().

Here is the call graph for this function:

◆ getCurrentTotalPower()

double uwinterferenceofdm::getCurrentTotalPower ( )

virtual

Reimplemented from uwinterference.

References power_list.

◆ getCurrentTotalPowerOnCarrier()

double uwinterferenceofdm::getCurrentTotalPowerOnCarrier ( int carrier )

virtual

Compute the total power on a carrier

Parameters

carrier Carrier targeted

Returns: the total power on a carrier

References power_list.

◆ getEndRxTime()

double uwinterferenceofdm::getEndRxTime ( )

inline

Get the timestamp of the end of reception phase

Returns: timestamp of the start of reception phase

References uwinterference::end_rx_time.

◆ getInitialInterferenceTime()

double uwinterferenceofdm::getInitialInterferenceTime ( )

inline

Get the timestamp of the begin of reception of the first interferer packet

Returns: timestamp of the begin of reception of the first interferer packet

References uwinterference::initial_interference_time.

◆ getInterfCarriers()

int uwinterferenceofdm::getInterfCarriers ( )

inline

Returns: number of carriers used by the node

References interfSubCarriers_.

Referenced by command().

◆ getInterferencePower() [1/2]

double uwinterferenceofdm::getInterferencePower	(	double	power,
		double	starttime,
		double	duration,
		int *	carriers,
		int	ncar
	)

virtual

Compute the average interference power for the given packet

Parameters

pw	Received power of the current packet
starttime	timestamp of the start of reception phase
duration	duration of the reception phase

Returns: average interference power

References power_list.

◆ getInterferencePower() [2/2]

double uwinterferenceofdm::getInterferencePower ( Packet * p )

virtual

Compute the average interference power for the given packet

Parameters

p	Pointer to the interferer packet

Returns: average interference power

Reimplemented from uwinterference.

References hdr_OFDM::carrierNum, hdr_OFDM::carriers, and getInterferencePower().

Referenced by getInterferencePower().

Here is the call graph for this function:

◆ getStartRxTime()

double uwinterferenceofdm::getStartRxTime ( )

inline

Get the timestamp of the start of reception phase

Returns: timestamp of the start of reception phase

References uwinterference::start_rx_time.

◆ getTimeOverlap() [1/2]

double uwinterferenceofdm::getTimeOverlap	(	double	starttime,
		double	duration
	)

virtual

Returns the percentage of overlap between current packet and interference packets

Parameters

starttime	timestamp of the start of reception phase
duration	duration of the reception phase

Returns: percantage of overlap

Reimplemented from uwinterference.

References power_list.

◆ getTimeOverlap() [2/2]

double uwinterferenceofdm::getTimeOverlap ( Packet * p )

virtual

Returns the percentage of overlap between current packet and interference packets

Parameters

p	Pointer of the packet for which the overlap is needed

Returns: percantage of overlap

Reimplemented from uwinterference.

References getTimeOverlap().

Referenced by getTimeOverlap().

Here is the call graph for this function:

◆ removeFromInterference()

void uwinterferenceofdm::removeFromInterference	(	double	pw,
		PKT_TYPE	tp,
		const std::vector< double > &	carPwr
	)

virtual

Remove a packet to the interference calculation

Parameters

pw	Received power of the current packet
type	type of the packet (DATA or CTRL)

References CTRL, inodeID, power_list, and uwinterference::use_maxinterval_.

Referenced by EndInterfTimerOFDM::handle().

◆ setInterfCarriers()

void uwinterferenceofdm::setInterfCarriers ( int sc )

inline

Sets number of carriers used by the node

Parameters

sc	number of carriers

References interfSubCarriers_.

Referenced by command().

Member Data Documentation

◆ end_timerOFDM

EndInterfTimerOFDM uwinterferenceofdm::end_timerOFDM

protected

Timer for schedules end of interference for a transmission

Referenced by addToInterference().

◆ inodeID

int uwinterferenceofdm::inodeID

protected

Referenced by removeFromInterference(), and uwinterferenceofdm().

◆ interfSubCarriers_

int uwinterferenceofdm::interfSubCarriers_

Referenced by getInterfCarriers(), and setInterfCarriers().

◆ power_list

std::list<ListNodeOFDM> uwinterferenceofdm::power_list

protected

List with power and counters

Referenced by addToInterference(), getCounters(), getCurrentTotalPower(), getCurrentTotalPowerOnCarrier(), getInterferencePower(), getTimeOverlap(), and removeFromInterference().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/interference/uwinterferenceofdm/uwinterferenceofdm.h
DESERT_Framework/DESERT/interference/uwinterferenceofdm/uwinterferenceofdm.cpp
