#include <uwUFetch_AUV.h>

Inheritance diagram for uwUFetch_AUV::uwUFetch_RTS_timer:

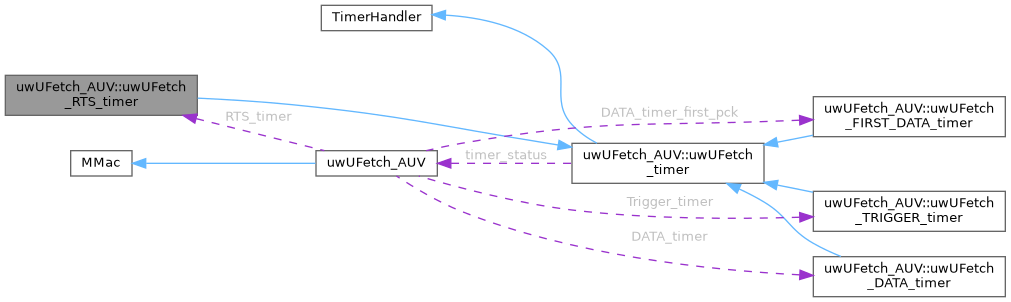

Collaboration diagram for uwUFetch_AUV::uwUFetch_RTS_timer:

Public Member Functions
	uwUFetch_RTS_timer (uwUFetch_AUV *m)

virtual	~uwUFetch_RTS_timer ()

Public Member Functions inherited from uwUFetch_AUV::uwUFetch_timer
	uwUFetch_timer (uwUFetch_AUV *m)

virtual	~uwUFetch_timer ()

virtual void	freeze ()

virtual void	unFreeze ()

virtual void	stop ()

virtual void	schedule (double val)

bool	isIdle ()

bool	isRunning ()

bool	isFroozen ()

bool	isExpired ()

bool	isActive ()

void	resetCounter ()

void	incrCounter ()

int	getCounter ()

double	getDuration ()

Protected Member Functions
virtual void	expire (Event *e)

Additional Inherited Members
Protected Attributes inherited from uwUFetch_AUV::uwUFetch_timer
double	start_time

double	left_duration

int	counter

uwUFetch_AUV *UWUFETCH_TIMER_STATUS	timer_status

Detailed Description

Class inherited the method and variable of uwUFetch_timer that handle the timer of RTS packets. When the TRIGGGER packet is transmitted, the AUV node wait for a finite interval time a RTS packet from the HN. The uwUFetch_RTS_timer handle this waiting interval time.

Constructor & Destructor Documentation

◆ uwUFetch_RTS_timer()

uwUFetch_AUV::uwUFetch_RTS_timer::uwUFetch_RTS_timer ( uwUFetch_AUV * m )

inline

Constructor of uwUFetch_RTS_timer class

Parameters

m	pointer to an object of type UWUFetch_AUV

◆ ~uwUFetch_RTS_timer()

virtual uwUFetch_AUV::uwUFetch_RTS_timer::~uwUFetch_RTS_timer ( )

inlinevirtual

Member Function Documentation

◆ expire()

void uwUFetch_AUV::uwUFetch_RTS_timer::expire ( Event * e )

protectedvirtual

Method called when the timer expire

Parameters

Event* pointer to an object of type Event

References uwUFetch_AUV::UWUFETCH_TIMER_STATUS_EXPIRED.

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uwUFetch/uwUFetch_AUV.h
DESERT_Framework/DESERT/data_link/uwUFetch/uwUFetch_AUV.cpp
DESERT_Framework/DESERT/data_link/uwUFetch/uwUFetch_AUV_mod_1.cpp
