#include <uwApplication_module.h>

Inheritance diagram for uwApplicationModule:

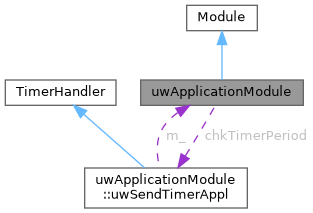

Collaboration diagram for uwApplicationModule:

[legend]

Classes
class	uwSendTimerAppl

Public Member Functions
	uwApplicationModule ()

virtual	~uwApplicationModule ()

virtual int	command (int argc, const char const argv)

virtual int	crLayCommand (ClMessage *m)

virtual void	handleTCPclient (int clnSock)

virtual void	incrPktsPushQueue ()

unsigned long int	getEpoch ()

Public Attributes
int	servSockDescr

int	clnSockDescr

struct sockaddr_in	servAddr

struct sockaddr_in	clnAddr

int	servPort

std::queue< Packet * >	queuePckReadTCP

std::queue< Packet * >	queuePckReadUDP

std::ofstream	out_log

bool	logging

int	node_id

int	exp_id

Static Public Attributes
static uint	MAX_READ_LEN = 64

Protected Member Functions
virtual void	recv (Packet *)

virtual void	statistics (Packet *p)

virtual void	start_generation ()

virtual void	init_Packet ()

virtual int	openConnectionTCP ()

virtual void	init_Packet_TCP ()

virtual int	openConnectionUDP ()

virtual void	init_Packet_UDP ()

virtual void	stop ()

virtual bool	withoutSocket ()

virtual bool	useTCP ()

virtual bool	usePoissonTraffic ()

virtual bool	useDropOutOfOrder ()

virtual void	incrPktSent ()

virtual void	incrPktLost (const int &npkts)

virtual void	incrPktRecv ()

virtual void	incrPktOoseq ()

virtual void	incrPktInvalid ()

virtual int	getPktSent ()

virtual int	getPktLost ()

virtual int	getPktRecv ()

virtual int	getPktsOOSequence ()

virtual int	getPktsInvalidRx ()

virtual int	getPktsPushQueue ()

virtual double	getPeriod ()

virtual int	getpayloadsize ()

virtual double	getTimeBeforeNextPkt ()

virtual double	GetRTT () const

virtual double	GetRTTstd () const

virtual void	updateRTT (const double &rtt)

virtual double	GetFTT () const

virtual double	GetFTTstd () const

virtual double	GetPER () const

virtual double	GetTHR () const

virtual void	updateFTT (const double &ftt)

virtual void	updateThroughput (const int &bytes, const double &dt)

Protected Attributes
int	debug_

double	PERIOD

int	poisson_traffic

int	payloadsize

int	port_num

int	drop_out_of_order

uint8_t	dst_addr

uwSendTimerAppl	chkTimerPeriod

bool	socket_active

string	socket_protocol

int	tcp_udp

bool *	sn_check

int	uidcnt

int	txsn

int	rftt

int	pkts_lost

int	pkts_recv

int	pkts_ooseq

int	pkts_invalid

int	pkts_push_queue

int	pkts_last_reset

double	lrtime

double	sumrtt

double	sumrtt2

int	rttsamples

double	sumftt

double	sumftt2

int	fttsamples

uint32_t	esn

double	sumbytes

double	sumdt

int	hrsn

Detailed Description

Definition at line 91 of file uwApplication_module.h.

Constructor & Destructor Documentation

◆ uwApplicationModule()

uwApplicationModule::uwApplicationModule ( )

Constructor of uwApplicationModule class.

Definition at line 70 of file uwApplication_module.cpp.

◆ ~uwApplicationModule()

uwApplicationModule::~uwApplicationModule ( )

virtual

Destructor of uwApplicationModule class.

Definition at line 133 of file uwApplication_module.cpp.

Member Function Documentation

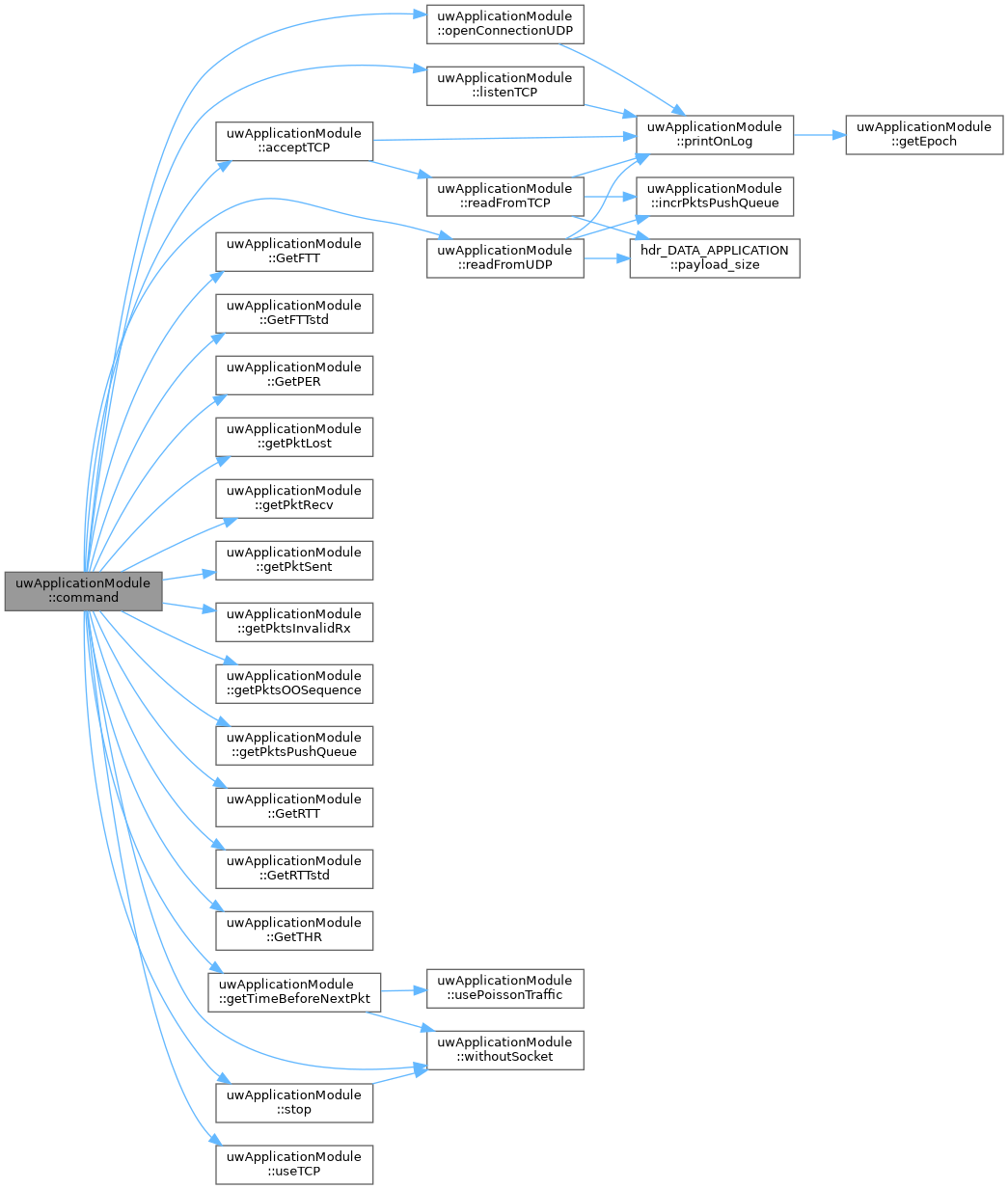

◆ command()

int uwApplicationModule::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter.

It implements the following OTCL methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Definition at line 138 of file uwApplication_module.cpp.

◆ crLayCommand()

int uwApplicationModule::crLayCommand ( ClMessage * m )

virtual

Cross-Layer messages interpreter.

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

Definition at line 227 of file uwApplication_module.cpp.

◆ getEpoch()

unsigned long int uwApplicationModule::getEpoch ( )

inline

Calculate the epoch of the event.

Used in sea-trial mode

Returns: the epoch of the system

Definition at line 149 of file uwApplication_module.h.

◆ GetFTT()

double uwApplicationModule::GetFTT ( ) const

protectedvirtual

Returns the average Forward Trip Time.

Returns: the average Forward Trip Time

Definition at line 600 of file uwApplication_module.cpp.

◆ GetFTTstd()

double uwApplicationModule::GetFTTstd ( ) const

protectedvirtual

Return the standard deviation of the Forward Trip Time calculated.

Returns: the standard deviation of the Forward Trip Time calculated

Definition at line 606 of file uwApplication_module.cpp.

◆ getpayloadsize()

virtual int uwApplicationModule::getpayloadsize ( )

inlineprotectedvirtual

return the size of DATA packet payload

Returns: payloadsize

Definition at line 450 of file uwApplication_module.h.

◆ GetPER()

double uwApplicationModule::GetPER ( ) const

protectedvirtual

Rerturn the Packet Error Rate calculated.

Returns: the Packet Error Rate calculated

Definition at line 621 of file uwApplication_module.cpp.

◆ getPeriod()

virtual double uwApplicationModule::getPeriod ( )

inlineprotectedvirtual

return period generation time

Returns: PERIOD

Definition at line 440 of file uwApplication_module.h.

◆ getPktLost()

virtual int uwApplicationModule::getPktLost ( )

inlineprotectedvirtual

return the number of DATA packets lost by the server

Returns: pkts_lost

Definition at line 390 of file uwApplication_module.h.

◆ getPktRecv()

virtual int uwApplicationModule::getPktRecv ( )

inlineprotectedvirtual

return the number of DATA packet correctly received by the server

Returns: pkts_recv

Definition at line 400 of file uwApplication_module.h.

◆ getPktSent()

virtual int uwApplicationModule::getPktSent ( )

inlineprotectedvirtual

return the number of packets sent by the server

Returns: txsn

Definition at line 380 of file uwApplication_module.h.

◆ getPktsInvalidRx()

virtual int uwApplicationModule::getPktsInvalidRx ( )

inlineprotectedvirtual

return the number of DATA packets received with error by the server

Returns: pkts_invalid

Definition at line 420 of file uwApplication_module.h.

◆ getPktsOOSequence()

virtual int uwApplicationModule::getPktsOOSequence ( )

inlineprotectedvirtual

return the number of DATA packets received out of order by the server

Returns: pkts_ooseq

Definition at line 410 of file uwApplication_module.h.

◆ getPktsPushQueue()

virtual int uwApplicationModule::getPktsPushQueue ( )

inlineprotectedvirtual

return the number of DATA packets sotred in the server queue

Returns: pkts_push_queue

Definition at line 430 of file uwApplication_module.h.

◆ GetRTT()

double uwApplicationModule::GetRTT ( ) const

protectedvirtual

Returns the average Round Trip Time.

Returns: the average Round Trip Time

Definition at line 575 of file uwApplication_module.cpp.

◆ GetRTTstd()

double uwApplicationModule::GetRTTstd ( ) const

protectedvirtual

Return the standard deviation of the Round Trip Time calculated.

Returns: the standard deviation of the Round Trip Time calculated

Definition at line 581 of file uwApplication_module.cpp.

◆ GetTHR()

double uwApplicationModule::GetTHR ( ) const

protectedvirtual

Return the Throughput calculated [bps].

Returns: Throughput [bps]

Definition at line 638 of file uwApplication_module.cpp.

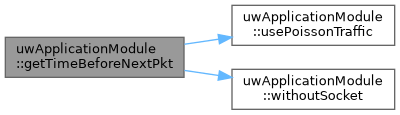

◆ getTimeBeforeNextPkt()

double uwApplicationModule::getTimeBeforeNextPkt ( )

protectedvirtual

Compute the DATA generation rate, that can be constant and equal to the PERIOD established by the user, or can occur with a Poisson process.

Returns: generation period for DATA packets

Definition at line 537 of file uwApplication_module.cpp.

◆ handleTCPclient()

void uwApplicationModule::handleTCPclient ( int clnSock )

virtual

Handle the communication between server and client.

Parameters

clnSock socket obtained after the accept function and use for the communication between server and client

Definition at line 174 of file uwApplication_TCP_socket.cpp.

◆ incrPktInvalid()

virtual void uwApplicationModule::incrPktInvalid ( )

inlineprotectedvirtual

Increse the number of DATA packets received with error by the server.

Definition at line 370 of file uwApplication_module.h.

◆ incrPktLost()

virtual void uwApplicationModule::incrPktLost ( const int & npkts )

inlineprotectedvirtual

Increase the number of DATA packets lost by the server.

Definition at line 346 of file uwApplication_module.h.

◆ incrPktOoseq()

virtual void uwApplicationModule::incrPktOoseq ( )

inlineprotectedvirtual

Increase the number of DATA packets received out of order by the server.

Definition at line 362 of file uwApplication_module.h.

◆ incrPktRecv()

virtual void uwApplicationModule::incrPktRecv ( )

inlineprotectedvirtual

Increase the number of DATA packet correctly received by the server.

Definition at line 354 of file uwApplication_module.h.

◆ incrPktSent()

virtual void uwApplicationModule::incrPktSent ( )

inlineprotectedvirtual

Increase the sequence number and so the number of packets sent by the server.

Definition at line 338 of file uwApplication_module.h.

◆ incrPktsPushQueue()

virtual void uwApplicationModule::incrPktsPushQueue ( )

inlinevirtual

Increase the number of DATA packets stored in the Server queue.

This DATA packets will be sent to the below levels of ISO/OSI stack protocol.

Definition at line 139 of file uwApplication_module.h.

◆ init_Packet()

void uwApplicationModule::init_Packet ( )

protectedvirtual

Set all the field of the DATA packet that must be send down after the creation to the below level.

In this case the payload of DATA packet are generated in a random way.

Definition at line 424 of file uwApplication_module.cpp.

◆ init_Packet_TCP()

void uwApplicationModule::init_Packet_TCP ( )

protectedvirtual

Set all the field of DATA packet and take from the specific queue the payload of DATA packet that will be transmitted.

After that put down to the layer below

Definition at line 237 of file uwApplication_TCP_socket.cpp.

◆ init_Packet_UDP()

void uwApplicationModule::init_Packet_UDP ( )

protectedvirtual

Set all the field of DATA packet and take from the specific queue the payload of DATA packet that will be transmitted.

After that put down to the layer below

Definition at line 200 of file uwApplication_UDP_socket.cpp.

◆ openConnectionTCP()

int uwApplicationModule::openConnectionTCP ( )

protectedvirtual

When socket communication is used, this method establish a connection between client and server.

This is required because a TCP protocol is used.

Definition at line 50 of file uwApplication_TCP_socket.cpp.

◆ openConnectionUDP()

int uwApplicationModule::openConnectionUDP ( )

protectedvirtual

When socket communication is used, this method establish a connection between client and server.

This is required because a UDP protocol is used.

Definition at line 50 of file uwApplication_UDP_socket.cpp.

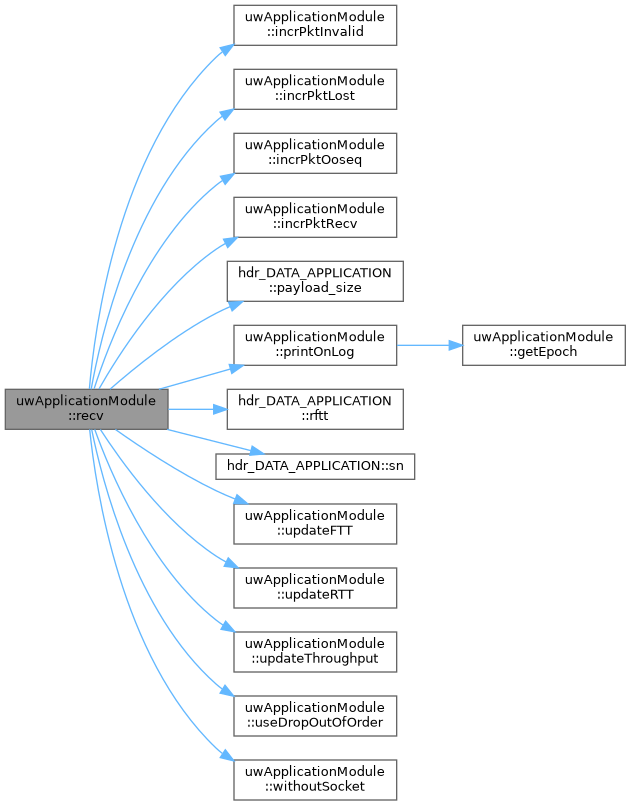

◆ recv()

void uwApplicationModule::recv ( Packet * p )

protectedvirtual

Handle the transmission of DATA packets between CBR layer and the below level.

Definition at line 236 of file uwApplication_module.cpp.

◆ start_generation()

void uwApplicationModule::start_generation ( )

protectedvirtual

Start the process to generate DATA packets without sockets.

In this case the payload of DATA packets are filled with a randomly sequence or with a pattern sequence.

Definition at line 412 of file uwApplication_module.cpp.

◆ statistics()

void uwApplicationModule::statistics ( Packet * p )

protectedvirtual

Comupte some statistics as the number of packets sent and receive between two layer, or control if the packet received is out of sequence.

Definition at line 271 of file uwApplication_module.cpp.

◆ stop()

void uwApplicationModule::stop ( )

protectedvirtual

Close the socket connection in the case the communication take place with socket, otherwise stop the execution of the process, so force the cancellation of period time generation.

Definition at line 523 of file uwApplication_module.cpp.

◆ updateFTT()

void uwApplicationModule::updateFTT ( const double & ftt )

protectedvirtual

Update the FTT after the reception of a new packet.

Parameters

FTT	of the current packet received

Definition at line 644 of file uwApplication_module.cpp.

◆ updateRTT()

void uwApplicationModule::updateRTT ( const double & rtt )

protectedvirtual

Update the RTT after the reception of a new packet.

Parameters

RTT	of the current packet received

Definition at line 592 of file uwApplication_module.cpp.

◆ updateThroughput()

void uwApplicationModule::updateThroughput	(	const int &	bytes,
		const double &	dt
	)

protectedvirtual

Update the Throughput after the reception of a new packet.

Parameters

Throughput of the current packet received

Definition at line 652 of file uwApplication_module.cpp.

◆ useDropOutOfOrder()

virtual bool uwApplicationModule::useDropOutOfOrder ( )

inlineprotectedvirtual

If the communication take place without sockets verify if the data packets received by the server is out of order or not.

In the first case discard the data packet

Returns: true enable drop out of order false not enabled drop out of order

Definition at line 323 of file uwApplication_module.h.

◆ usePoissonTraffic()

virtual bool uwApplicationModule::usePoissonTraffic ( )

inlineprotectedvirtual

If the communication take place without sockets verify if the data generation period is constant or is choiche in according to a poisson process.

Returns: true use a Poisson process to generate data false use a constant period data generation

Definition at line 306 of file uwApplication_module.h.

◆ useTCP()

virtual bool uwApplicationModule::useTCP ( )

inlineprotectedvirtual

If the communication take place using sockets verify if the protocol used is TCP or UDP.

Returns: true socket use TCP protocol false socket use UDP protocol

Definition at line 291 of file uwApplication_module.h.

◆ withoutSocket()

virtual bool uwApplicationModule::withoutSocket ( )

inlineprotectedvirtual

Verify if the communication take place with socket or the data payload is generated in a randomly way.

Returns: true communication without socket false communication with socket

Definition at line 275 of file uwApplication_module.h.

Member Data Documentation

◆ chkTimerPeriod

uwSendTimerAppl uwApplicationModule::chkTimerPeriod

protected

Timer that schedule the period between two successive generation of DATA packets.

Definition at line 543 of file uwApplication_module.h.

◆ clnAddr

struct sockaddr_in uwApplicationModule::clnAddr

Client address.

Definition at line 160 of file uwApplication_module.h.

◆ clnSockDescr

int uwApplicationModule::clnSockDescr

*socket descriptor for client

Definition at line 158 of file uwApplication_module.h.

◆ debug_

int uwApplicationModule::debug_

protected

Used for debug purposes 1 debug activated 0 debug not activated.

Definition at line 523 of file uwApplication_module.h.

◆ drop_out_of_order

int uwApplicationModule::drop_out_of_order

protected

Enable or not the ordering of data packet received 1 enabled 0 not enabled.

Definition at line 535 of file uwApplication_module.h.

◆ dst_addr

uint8_t uwApplicationModule::dst_addr

protected

IP destination address.

Definition at line 539 of file uwApplication_module.h.

◆ esn

uint32_t uwApplicationModule::esn

protected

Expected serial number.

Definition at line 575 of file uwApplication_module.h.

◆ exp_id

int uwApplicationModule::exp_id

Definition at line 174 of file uwApplication_module.h.

◆ fttsamples

int uwApplicationModule::fttsamples

protected

Number of FTT samples.

Definition at line 574 of file uwApplication_module.h.

◆ hrsn

int uwApplicationModule::hrsn

protected

Highest received sequence number.

Definition at line 578 of file uwApplication_module.h.

◆ logging

bool uwApplicationModule::logging

Definition at line 172 of file uwApplication_module.h.

◆ lrtime

double uwApplicationModule::lrtime

protected

Time of last packet reception.

Definition at line 568 of file uwApplication_module.h.

◆ MAX_READ_LEN

uint uwApplicationModule::MAX_READ_LEN = 64

static

Maximum size (bytes) of a single read of the socket.

Definition at line 177 of file uwApplication_module.h.

◆ node_id

int uwApplicationModule::node_id

Definition at line 173 of file uwApplication_module.h.

◆ out_log

std::ofstream uwApplicationModule::out_log

Variable that handle the file in which the protocol write the statistics.

Definition at line 170 of file uwApplication_module.h.

◆ payloadsize

int uwApplicationModule::payloadsize

protected

Size of each data packet payaload generated.

Definition at line 532 of file uwApplication_module.h.

◆ PERIOD

double uwApplicationModule::PERIOD

protected

Interval time between two successive generation data packets.

Definition at line 525 of file uwApplication_module.h.

◆ pkts_invalid

int uwApplicationModule::pkts_invalid

protected

Counter of the packets received with errors by the server.

Definition at line 560 of file uwApplication_module.h.

◆ pkts_last_reset

int uwApplicationModule::pkts_last_reset

protected

Used for error checking after stats are reset.

Set to pkts_lost+pkts_recv each time resetStats is called.

Definition at line 565 of file uwApplication_module.h.

◆ pkts_lost

int uwApplicationModule::pkts_lost

protected

Counter of the packet lost during the transmission.

Definition at line 555 of file uwApplication_module.h.

◆ pkts_ooseq

int uwApplicationModule::pkts_ooseq

protected

Counter of the packets received out of order by the server.

Definition at line 558 of file uwApplication_module.h.

◆ pkts_push_queue

int uwApplicationModule::pkts_push_queue

protected

Counter of DATA packets received by server and not yet passed to the below levels of ISO/OSI stack protocol.

Definition at line 562 of file uwApplication_module.h.

◆ pkts_recv

int uwApplicationModule::pkts_recv

protected

Counter of the packets correctly received by the server.

Definition at line 556 of file uwApplication_module.h.

◆ poisson_traffic

int uwApplicationModule::poisson_traffic

protected

Enable or not the Poisson process for generation of data packets 1 enabled 0 not enabled.

Definition at line 529 of file uwApplication_module.h.

◆ port_num

int uwApplicationModule::port_num

protected

Number of the port in which the server provide the service.

Definition at line 533 of file uwApplication_module.h.

◆ queuePckReadTCP

std::queue<Packet *> uwApplicationModule::queuePckReadTCP

Queue that store the DATA packets recevied from the client by the server using a TCP protocol.

Definition at line 163 of file uwApplication_module.h.

◆ queuePckReadUDP

std::queue<Packet *> uwApplicationModule::queuePckReadUDP

Queue that store the DATA packets recevied from the client by the server using a UDP protocol.

Definition at line 167 of file uwApplication_module.h.

◆ rftt

int uwApplicationModule::rftt

protected

Forward trip time.

Definition at line 554 of file uwApplication_module.h.

◆ rttsamples

int uwApplicationModule::rttsamples

protected

Number of RTT samples.

Definition at line 571 of file uwApplication_module.h.

◆ servAddr

struct sockaddr_in uwApplicationModule::servAddr

Server address.

Definition at line 159 of file uwApplication_module.h.

◆ servPort

int uwApplicationModule::servPort

Server port.

Definition at line 161 of file uwApplication_module.h.

◆ servSockDescr

int uwApplicationModule::servSockDescr

socket descriptor for server

Definition at line 157 of file uwApplication_module.h.

◆ sn_check

bool* uwApplicationModule::sn_check

protected

Used to keep track of the packets already received.

Definition at line 550 of file uwApplication_module.h.

◆ socket_active

bool uwApplicationModule::socket_active

protected

Definition at line 547 of file uwApplication_module.h.

◆ socket_protocol

string uwApplicationModule::socket_protocol

protected

Definition at line 548 of file uwApplication_module.h.

◆ sumbytes

double uwApplicationModule::sumbytes

protected

Sum of bytes received.

Definition at line 576 of file uwApplication_module.h.

◆ sumdt

double uwApplicationModule::sumdt

protected

Sum of the delays.

Definition at line 577 of file uwApplication_module.h.

◆ sumftt

double uwApplicationModule::sumftt

protected

Sum of FTT samples.

Definition at line 572 of file uwApplication_module.h.

◆ sumftt2

double uwApplicationModule::sumftt2

protected

Sum of (FTT^2).

Definition at line 573 of file uwApplication_module.h.

◆ sumrtt

double uwApplicationModule::sumrtt

protected

Sum of RTT samples.

Definition at line 569 of file uwApplication_module.h.

◆ sumrtt2

double uwApplicationModule::sumrtt2

protected

Sum of (RTT^2).

Definition at line 570 of file uwApplication_module.h.

◆ tcp_udp

int uwApplicationModule::tcp_udp

protected

Definition at line 549 of file uwApplication_module.h.

◆ txsn

int uwApplicationModule::txsn

protected

Transmission sequence number of DATA packet.

Definition at line 553 of file uwApplication_module.h.

◆ uidcnt

int uwApplicationModule::uidcnt

protected

Identifier counter that identify uniquely the DATA packet generated.

Definition at line 551 of file uwApplication_module.h.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ uwApplicationModule()

◆ ~uwApplicationModule()

Member Function Documentation

◆ command()

◆ crLayCommand()

◆ getEpoch()

◆ GetFTT()

◆ GetFTTstd()

◆ getpayloadsize()

◆ GetPER()

◆ getPeriod()

◆ getPktLost()

◆ getPktRecv()

◆ getPktSent()

◆ getPktsInvalidRx()

◆ getPktsOOSequence()

◆ getPktsPushQueue()

◆ GetRTT()

◆ GetRTTstd()

◆ GetTHR()

◆ getTimeBeforeNextPkt()

◆ handleTCPclient()

◆ incrPktInvalid()

◆ incrPktLost()

◆ incrPktOoseq()

◆ incrPktRecv()

◆ incrPktSent()

◆ incrPktsPushQueue()

◆ init_Packet()

◆ init_Packet_TCP()

◆ init_Packet_UDP()

◆ openConnectionTCP()

◆ openConnectionUDP()

◆ recv()

◆ start_generation()

◆ statistics()

◆ stop()

◆ updateFTT()

◆ updateRTT()

◆ updateThroughput()

◆ useDropOutOfOrder()

◆ usePoissonTraffic()

◆ useTCP()

◆ withoutSocket()

Member Data Documentation

◆ chkTimerPeriod

◆ clnAddr

◆ clnSockDescr

◆ debug_

◆ drop_out_of_order

◆ dst_addr

◆ esn

◆ exp_id

◆ fttsamples

◆ hrsn

◆ logging

◆ lrtime

◆ MAX_READ_LEN

◆ node_id

◆ out_log

◆ payloadsize

◆ PERIOD

◆ pkts_invalid

◆ pkts_last_reset

◆ pkts_lost

◆ pkts_ooseq

◆ pkts_push_queue

◆ pkts_recv

◆ poisson_traffic

◆ port_num

◆ queuePckReadTCP

◆ queuePckReadUDP
