#include <uwpolling_SINK.h>

Inheritance diagram for Uwpolling_SINK:

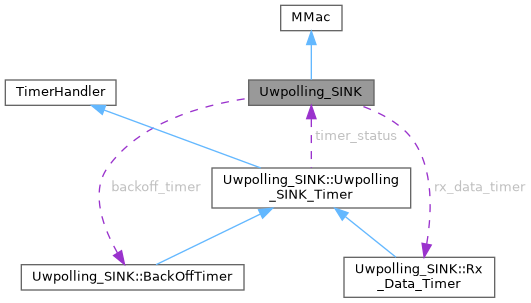

Collaboration diagram for Uwpolling_SINK:

Classes
class	BackOffTimer

class	Rx_Data_Timer

class	Uwpolling_SINK_Timer

Public Member Functions
	Uwpolling_SINK ()

virtual	~Uwpolling_SINK ()

virtual int	command (int argc, const char const argv)

virtual int	crLayCommand (ClMessage *m)

Protected Types
enum	UWPOLLING_SINK_STATUS { UWPOLLING_SINK_STATUS_IDLE = 1 , UWPOLLING_SINK_STATUS_RX_TRIGGER , UWPOLLING_SINK_STATUS_TX_PROBE , UWPOLLING_SINK_STATUS_WAIT_DATA , UWPOLLING_SINK_STATUS_RX_DATA , UWPOLLING_SINK_STATUS_TX_ACK }

enum	UWPOLLING_PKT_TYPE { UWPOLLING_DATA_PKT = 1 , UWPOLLING_POLL_PKT , UWPOLLING_TRIGGER_PKT , UWPOLLING_PROBE_PKT , UWPOLLING_ACK_PKT }

enum	UWPOLLING_SINK_REASON { UWPOLLING_SINK_REASON_RX_DATA , UWPOLLING_SINK_REASON_RX_TRIGGER , UWPOLLING_SINK_REASON_PKT_ERROR , UWPOLLING_SINK_REASON_TX_PROBE , UWPOLLING_SINK_REASON_TX_ACK , UWPOLLING_SINK_REASON_BACKOFF_TIMER_EXPIRED , UWPOLLING_SINK_REASON_RX_DATA_TIMER_EXPIRED , UWPOLLING_SINK_REASON_NOT_SET , UWPOLLING_SINK_REASON_MAX_DATA_RECEIVED , UWPOLLING_SINK_REASON_WRONG_TYPE , UWPOLLING_SINK_REASON_WRONG_RECEIVER , UWPOLLING_SINK_REASON_WRONG_STATE }

enum	UWPOLLING_TIMER_STATUS { UWPOLLING_IDLE = 1 , UWPOLLING_RUNNING , UWPOLLING_FROZEN , UWPOLLING_EXPIRED }

Protected Member Functions
virtual void	Mac2PhyStartTx (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p)

virtual void	Phy2MacStartRx (const Packet *p)

virtual void	Phy2MacEndRx (Packet *p)

virtual void	initPkt (UWPOLLING_PKT_TYPE pkt_type)

virtual void	initInfo ()

virtual void	refreshReason (UWPOLLING_SINK_REASON reason)

virtual void	refreshState (UWPOLLING_SINK_STATUS state)

virtual void	incrProbeSent ()

virtual void	incrAckSent ()

void	incrTriggerReceived ()

void	incrTriggerDropped ()

int	getProbeSent ()

int	getAckSent ()

int	getTriggerReceived ()

int	getTriggerDropped ()

uint	getDuplicatedPkt ()

void	incrDuplicatedPkt ()

virtual void	waitForUser ()

virtual void	stateIdle ()

virtual void	stateRxTrigger ()

virtual void	stateTxProbe ()

virtual void	BackOffTimerExpired ()

virtual void	RxDataTimerExpired ()

virtual double	getBackOffTime ()

virtual void	txAck ()

virtual void	TxProbe ()

virtual void	stateWaitData ()

virtual void	stateRxData ()

virtual void	addMissPkt2List (uint16_t n_pkts)

virtual void	stateTxAck ()

unsigned long int	getEpoch ()

Protected Attributes
double	T_data

double	T_data_gurad

double	backoff_tuner

uint	sink_id

bool	RxDataEnabled

bool	Triggered

bool	triggerEnabled

double	T_in

double	T_fin

double	BOffTime

int	AUV_mac_addr

int	n_probe_sent

int	n_trigger_received

int	n_trigger_dropped

int	n_ack_sent

uint	n_curr_rx_pkts

uint16_t	expected_id

uint16_t	last_rx

bool	send_ACK

std::list< uint16_t >	missing_id_list

uint16_t	expected_last_id

uint16_t	prev_expect_last_id

uint	duplicate_pkts

bool	first_rx_pkt

uint	PROBE_uid

Packet *	curr_data_pkt

Packet *	curr_probe_pkt

Packet *	curr_trigger_pkt

Packet *	curr_ack_pkt

UWPOLLING_SINK_REASON	last_reason

UWPOLLING_SINK_STATUS	curr_state

UWPOLLING_SINK_STATUS	prev_state

BackOffTimer	backoff_timer

Rx_Data_Timer	rx_data_timer

std::ofstream	fout

std::ofstream	out_file_stats

int	sea_trial

int	print_stats

int	n_run

int	useAdaptiveTdata

int	ack_enabled

uint	max_n_ack

double	T_guard

int	max_payload

int	modem_data_bit_rate

Static Protected Attributes
static bool	initialized = false

static map< Uwpolling_SINK::UWPOLLING_SINK_STATUS, string >	status_info

static map< Uwpolling_SINK::UWPOLLING_SINK_REASON, string >	reason_info

static map< Uwpolling_SINK::UWPOLLING_PKT_TYPE, string >	pkt_type_info

Detailed Description

Class used to represents the UWPOLLING MAC layer of a node.

Member Enumeration Documentation

◆ UWPOLLING_PKT_TYPE

enum Uwpolling_SINK::UWPOLLING_PKT_TYPE

protected

Enumerator
UWPOLLING_DATA_PKT
UWPOLLING_POLL_PKT
UWPOLLING_TRIGGER_PKT
UWPOLLING_PROBE_PKT
UWPOLLING_ACK_PKT

◆ UWPOLLING_SINK_REASON

enum Uwpolling_SINK::UWPOLLING_SINK_REASON

protected

Enumerator
UWPOLLING_SINK_REASON_RX_DATA
UWPOLLING_SINK_REASON_RX_TRIGGER
UWPOLLING_SINK_REASON_PKT_ERROR
UWPOLLING_SINK_REASON_TX_PROBE
UWPOLLING_SINK_REASON_TX_ACK
UWPOLLING_SINK_REASON_BACKOFF_TIMER_EXPIRED
UWPOLLING_SINK_REASON_RX_DATA_TIMER_EXPIRED
UWPOLLING_SINK_REASON_NOT_SET
UWPOLLING_SINK_REASON_MAX_DATA_RECEIVED
UWPOLLING_SINK_REASON_WRONG_TYPE
UWPOLLING_SINK_REASON_WRONG_RECEIVER
UWPOLLING_SINK_REASON_WRONG_STATE

◆ UWPOLLING_SINK_STATUS

enum Uwpolling_SINK::UWPOLLING_SINK_STATUS

protected

< Variable that rapresents the status of the protocol machine state

Enumerator
UWPOLLING_SINK_STATUS_IDLE
UWPOLLING_SINK_STATUS_RX_TRIGGER
UWPOLLING_SINK_STATUS_TX_PROBE
UWPOLLING_SINK_STATUS_WAIT_DATA
UWPOLLING_SINK_STATUS_RX_DATA
UWPOLLING_SINK_STATUS_TX_ACK

◆ UWPOLLING_TIMER_STATUS

enum Uwpolling_SINK::UWPOLLING_TIMER_STATUS

protected

Enumerator
UWPOLLING_IDLE
UWPOLLING_RUNNING
UWPOLLING_FROZEN
UWPOLLING_EXPIRED

Constructor & Destructor Documentation

◆ Uwpolling_SINK()

Uwpolling_SINK::Uwpolling_SINK ( )

Constructor of the Uwpolling_SINK class

References ack_enabled, backoff_tuner, max_n_ack, max_payload, modem_data_bit_rate, n_run, print_stats, sea_trial, sink_id, T_data_gurad, T_guard, and useAdaptiveTdata.

◆ ~Uwpolling_SINK()

Uwpolling_SINK::~Uwpolling_SINK ( )

virtual

Destructor of the Uwpolling_SINK class

Member Function Documentation

◆ addMissPkt2List()

void Uwpolling_SINK::addMissPkt2List ( uint16_t n_pkts )

protectedvirtual

Add packet uids in the missing packet list

Parameters

number of missing packets to insert inthe list

References last_rx, and missing_id_list.

Referenced by RxDataTimerExpired(), and stateRxData().

◆ BackOffTimerExpired()

void Uwpolling_SINK::BackOffTimerExpired ( )

protectedvirtual

Method called by the Expire event of the timer. Here we call the stateTxProbe method

References refreshReason(), stateTxProbe(), Triggered, and UWPOLLING_SINK_REASON_BACKOFF_TIMER_EXPIRED.

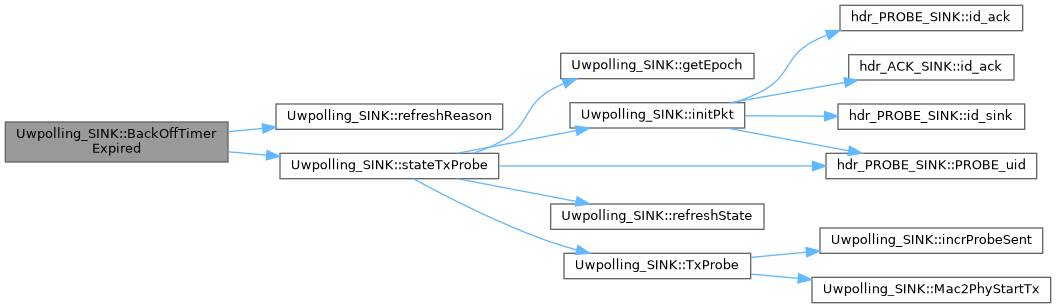

Here is the call graph for this function:

◆ command()

int Uwpolling_SINK::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References getAckSent(), getDuplicatedPkt(), getProbeSent(), getTriggerDropped(), getTriggerReceived(), initialized, and initInfo().

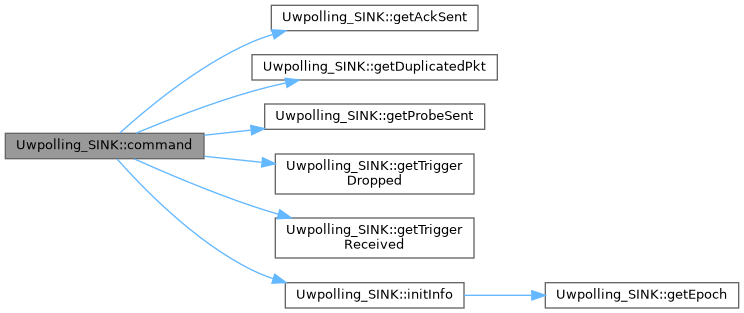

Here is the call graph for this function:

◆ crLayCommand()

int Uwpolling_SINK::crLayCommand ( ClMessage * m )

virtual

Cross-Layer messages interpreter

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

◆ getAckSent()

int Uwpolling_SINK::getAckSent ( )

inlineprotected

Returns the number of ACK packets sent during the simulation

Returns: int n_ack_sent the number of ACK packets sent

References n_ack_sent.

Referenced by command().

◆ getBackOffTime()

double Uwpolling_SINK::getBackOffTime ( )

protectedvirtual

The backoff timer is calculated choosing randomly using a Uniform random variable and multiplying it by a backoff_tuner chosen by the user via tcl

References backoff_tuner, T_fin, and T_in.

Referenced by stateRxTrigger().

◆ getDuplicatedPkt()

uint Uwpolling_SINK::getDuplicatedPkt ( )

inlineprotected

References duplicate_pkts.

Referenced by command().

◆ getEpoch()

unsigned long int Uwpolling_SINK::getEpoch ( )

inlineprotected

Calculate the epoch of the event. Used in sea-trial mode

Returns: the epoch of the system

Referenced by initInfo(), Phy2MacEndRx(), stateRxData(), and stateTxProbe().

◆ getProbeSent()

int Uwpolling_SINK::getProbeSent ( )

inlineprotected

Returns the number of PROBE packets sent during the simulation

Returns: int n_probe_sent the number of PROBE packets sent

References n_probe_sent.

Referenced by command().

◆ getTriggerDropped()

int Uwpolling_SINK::getTriggerDropped ( )

inlineprotected

Return the number of TRIGGER dropped by the node because of erroneous CRC

Returns: int n_trigger_dropped number of TRIGGER dropped by the AUV

References n_trigger_dropped.

Referenced by command().

◆ getTriggerReceived()

int Uwpolling_SINK::getTriggerReceived ( )

inlineprotected

Return the number of TRIGGER packets received by the NODE

Returns: int n_trigger_received number of TRIGGER packets received

References n_trigger_received.

Referenced by command().

◆ incrAckSent()

virtual void Uwpolling_SINK::incrAckSent ( )

inlineprotectedvirtual

Increment the number of sent PROBE packets

References n_ack_sent.

Referenced by txAck().

◆ incrDuplicatedPkt()

void Uwpolling_SINK::incrDuplicatedPkt ( )

inlineprotected

References duplicate_pkts.

Referenced by stateRxData().

◆ incrProbeSent()

virtual void Uwpolling_SINK::incrProbeSent ( )

inlineprotectedvirtual

Increment the number of sent PROBE packets

References n_probe_sent.

Referenced by TxProbe().

◆ incrTriggerDropped()

void Uwpolling_SINK::incrTriggerDropped ( )

inlineprotected

Increments the number of TRIGGER packets dropped because of erroneous CRC

References n_trigger_dropped.

Referenced by Phy2MacEndRx().

◆ incrTriggerReceived()

void Uwpolling_SINK::incrTriggerReceived ( )

inlineprotected

Increments the number of TRIGGER packets received

References n_trigger_received.

Referenced by stateRxTrigger().

◆ initInfo()

void Uwpolling_SINK::initInfo ( )

protectedvirtual

Initializes the protocol at the beginning of the simulation. This method is called by a command in tcl.

Parameters

double delay

See also: command method

Referenced by command().

Here is the call graph for this function:

◆ initPkt()

void Uwpolling_SINK::initPkt ( UWPOLLING_PKT_TYPE pkt_type )

protectedvirtual

Inits the packet with the MAC address of the receiver and the sender, the size of the packet and the type

Parameters

UWPOLLING_PKT_TYPE the type of the packet

References AUV_mac_addr, curr_ack_pkt, curr_probe_pkt, hdr_PROBE_SINK::id_ack(), hdr_ACK_SINK::id_ack(), hdr_PROBE_SINK::id_sink(), last_rx, max_n_ack, missing_id_list, hdr_PROBE_SINK::PROBE_uid(), PROBE_uid, PT_ACK_SINK, PT_PROBE_SINK, sink_id, UWPOLLING_ACK_PKT, and UWPOLLING_PROBE_PKT.

Referenced by stateTxAck(), and stateTxProbe().

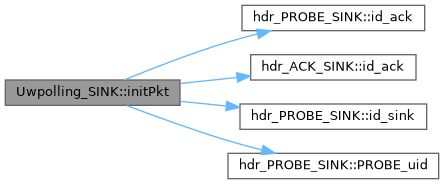

Here is the call graph for this function:

◆ Mac2PhyStartTx()

void Uwpolling_SINK::Mac2PhyStartTx ( Packet * p )

protectedvirtual

Pass the packet to the PHY layer

Parameters

Packet* Pointer to an object of type Packet that rapresent the Packet to transmit

Referenced by txAck(), and TxProbe().

◆ Phy2MacEndRx()

void Uwpolling_SINK::Phy2MacEndRx ( Packet * p )

protectedvirtual

Method called when the Phy Layer finish to receive a Packet

Parameters

const Packet* Pointer to an object of type Packet that rapresent the packet received

References curr_data_pkt, curr_trigger_pkt, getEpoch(), incrTriggerDropped(), out_file_stats, hdr_POLL::POLL_time(), print_stats, PT_ACK_SINK, PT_POLL, PT_PROBE, PT_TRIGGER, refreshReason(), rx_data_timer, RxDataEnabled, Uwpolling_SINK::Uwpolling_SINK_Timer::schedule(), sea_trial, stateRxData(), stateRxTrigger(), useAdaptiveTdata, UWPOLLING_SINK_REASON_PKT_ERROR, UWPOLLING_SINK_REASON_RX_DATA, and UWPOLLING_SINK_REASON_RX_TRIGGER.

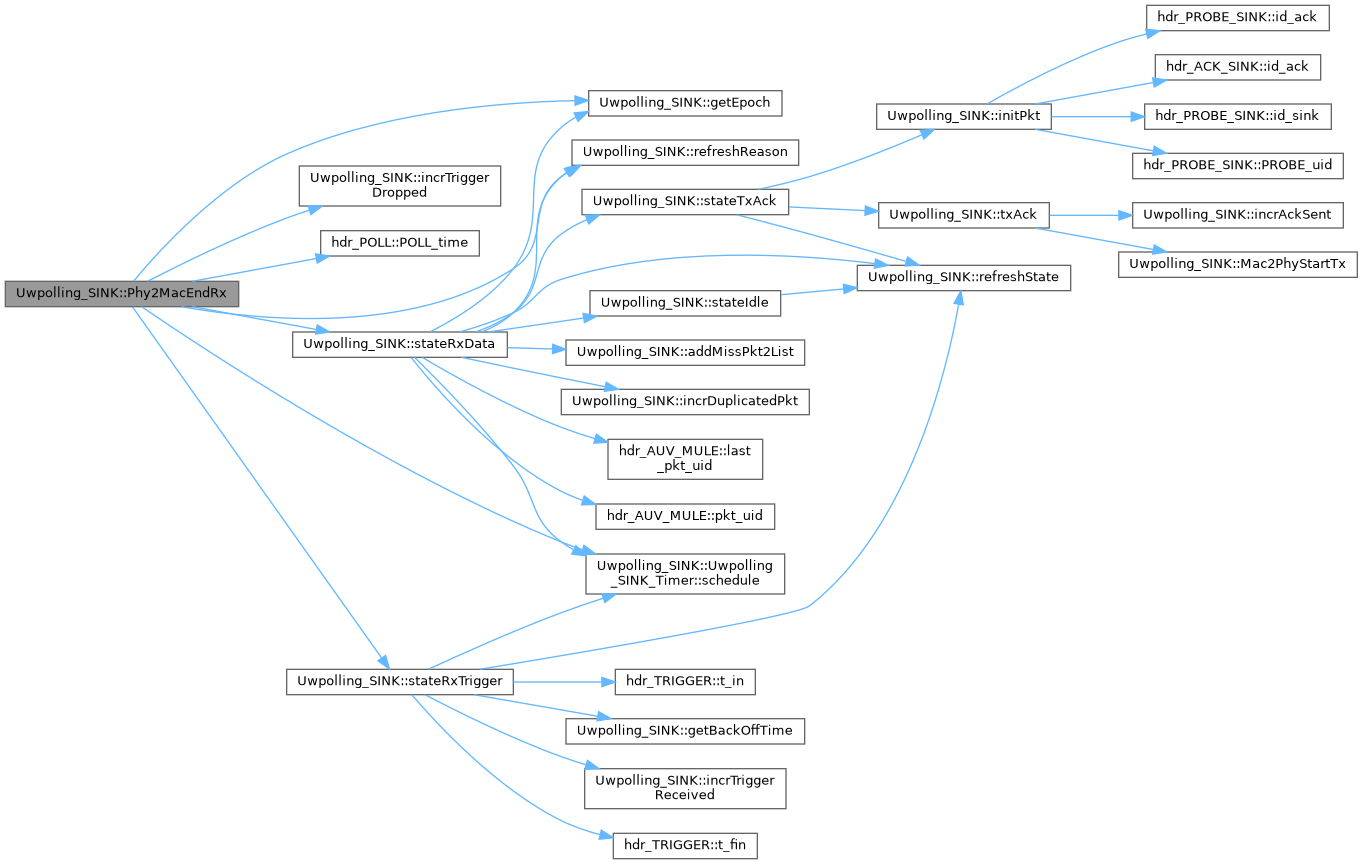

Here is the call graph for this function:

◆ Phy2MacEndTx()

void Uwpolling_SINK::Phy2MacEndTx ( const Packet * p )

protectedvirtual

Method called when the PHY layer finish to transmit the packet.

Parameters

Packet* Pointer to an object of type Packet that rapresent the Packet transmitted

References PT_ACK_SINK, PT_PROBE_SINK, refreshReason(), stateIdle(), stateWaitData(), UWPOLLING_SINK_REASON_TX_ACK, and UWPOLLING_SINK_REASON_TX_PROBE.

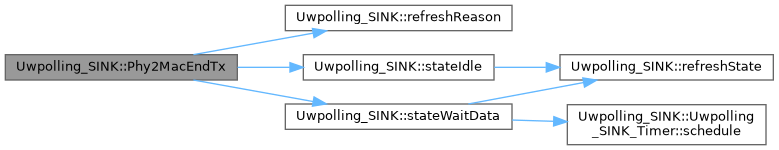

Here is the call graph for this function:

◆ Phy2MacStartRx()

virtual void Uwpolling_SINK::Phy2MacStartRx ( const Packet * p )

inlineprotectedvirtual

Method called when the Phy Layer start to receive a Packet

Parameters

const Packet* Pointer to an object of type Packet that rapresent the Packet that is in reception

◆ refreshReason()

virtual void Uwpolling_SINK::refreshReason ( UWPOLLING_SINK_REASON reason )

inlineprotectedvirtual

Refresh the reason for the changing of the state

Parameters

UWPOLLING_SINK_REASON The reason of the change of the state

References last_reason.

Referenced by BackOffTimerExpired(), Phy2MacEndRx(), Phy2MacEndTx(), RxDataTimerExpired(), and stateRxData().

◆ refreshState()

virtual void Uwpolling_SINK::refreshState ( UWPOLLING_SINK_STATUS state )

inlineprotectedvirtual

Refresh the state of the protocol

Parameters

UWPOLLING_AUV_STATUS current state of the protcol

References curr_state, and prev_state.

Referenced by stateIdle(), stateRxData(), stateRxTrigger(), stateTxAck(), stateTxProbe(), and stateWaitData().

◆ RxDataTimerExpired()

void Uwpolling_SINK::RxDataTimerExpired ( )

protectedvirtual

Methods called by the Expire event of the timer. Here we disable the possibility of the node to receive DATA packets.

References ack_enabled, addMissPkt2List(), expected_last_id, first_rx_pkt, last_rx, n_curr_rx_pkts, refreshReason(), RxDataEnabled, send_ACK, stateIdle(), stateTxAck(), and UWPOLLING_SINK_REASON_RX_DATA_TIMER_EXPIRED.

Here is the call graph for this function:

◆ stateIdle()

void Uwpolling_SINK::stateIdle ( )

protectedvirtual

IDLE state. Each variable is resetted

References backoff_timer, first_rx_pkt, n_curr_rx_pkts, refreshState(), rx_data_timer, RxDataEnabled, send_ACK, Triggered, triggerEnabled, and UWPOLLING_SINK_STATUS_IDLE.

Referenced by Phy2MacEndTx(), RxDataTimerExpired(), and stateRxData().

Here is the call graph for this function:

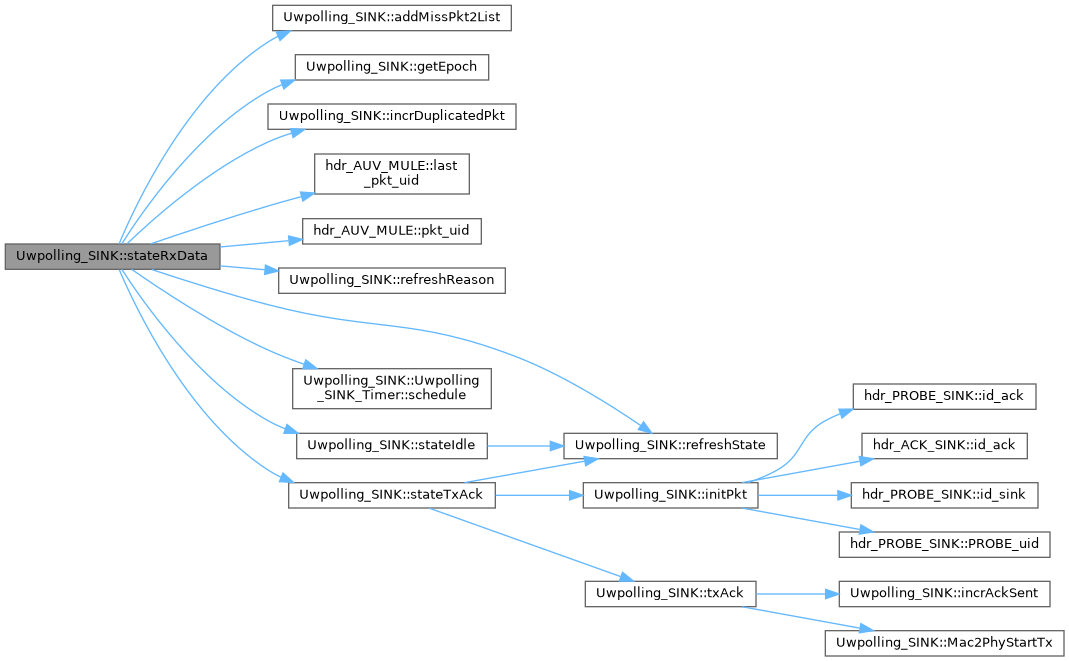

◆ stateRxData()

void Uwpolling_SINK::stateRxData ( )

protectedvirtual

State in which the DATA packet is received

References ack_enabled, addMissPkt2List(), curr_data_pkt, expected_last_id, first_rx_pkt, getEpoch(), incrDuplicatedPkt(), hdr_AUV_MULE::last_pkt_uid(), last_rx, max_payload, missing_id_list, modem_data_bit_rate, n_curr_rx_pkts, out_file_stats, hdr_AUV_MULE::pkt_uid(), prev_expect_last_id, print_stats, refreshReason(), refreshState(), rx_data_timer, RxDataEnabled, Uwpolling_SINK::Uwpolling_SINK_Timer::schedule(), sea_trial, send_ACK, hdr_uwcbr::sn_, stateIdle(), stateTxAck(), T_guard, triggerEnabled, UWPOLLING_SINK_REASON_MAX_DATA_RECEIVED, and UWPOLLING_SINK_STATUS_RX_DATA.

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

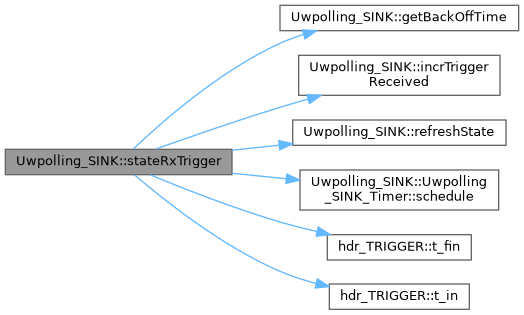

◆ stateRxTrigger()

void Uwpolling_SINK::stateRxTrigger ( )

protectedvirtual

State of the protocol in which a TRIGGER packet is received. Here we check the header of the TRIGGER and we store the information into it (i.e. the range of values into which choose randomly the backoff time

References AUV_mac_addr, backoff_timer, BOffTime, curr_trigger_pkt, getBackOffTime(), incrTriggerReceived(), refreshState(), rx_data_timer, RxDataEnabled, Uwpolling_SINK::Uwpolling_SINK_Timer::schedule(), send_ACK, T_data, T_data_gurad, hdr_TRIGGER::t_fin(), T_fin, hdr_TRIGGER::t_in(), T_in, Triggered, triggerEnabled, and UWPOLLING_SINK_STATUS_RX_TRIGGER.

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

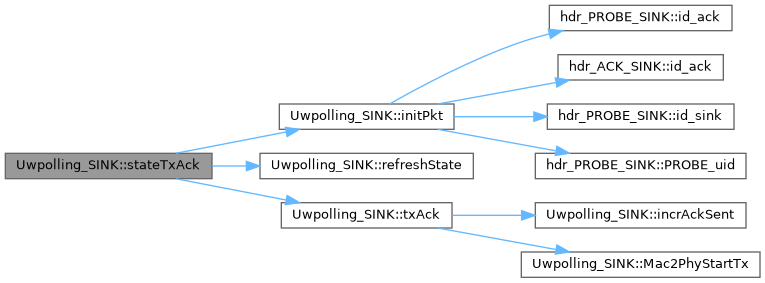

◆ stateTxAck()

void Uwpolling_SINK::stateTxAck ( )

protectedvirtual

State in which the ACK is sent

References initPkt(), refreshState(), send_ACK, txAck(), UWPOLLING_ACK_PKT, and UWPOLLING_SINK_STATUS_TX_ACK.

Referenced by RxDataTimerExpired(), and stateRxData().

Here is the call graph for this function:

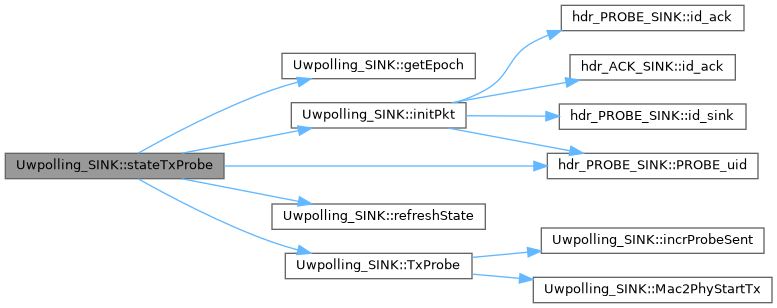

◆ stateTxProbe()

void Uwpolling_SINK::stateTxProbe ( )

protectedvirtual

State of the protocol in which a PROBE packet is sent. Here we store into the PROBE header all the information needed, such as the timestamp of the most recent data packet, the number of the packets that the node wish to transmit

References curr_probe_pkt, getEpoch(), initPkt(), out_file_stats, print_stats, hdr_PROBE_SINK::PROBE_uid(), refreshState(), sea_trial, Triggered, TxProbe(), UWPOLLING_PROBE_PKT, and UWPOLLING_SINK_STATUS_TX_PROBE.

Referenced by BackOffTimerExpired().

Here is the call graph for this function:

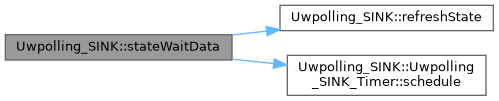

◆ stateWaitData()

void Uwpolling_SINK::stateWaitData ( )

protectedvirtual

State in which the protocol set up the timer to wait the reception of the DATA packet

References n_curr_rx_pkts, refreshState(), rx_data_timer, RxDataEnabled, Uwpolling_SINK::Uwpolling_SINK_Timer::schedule(), T_data, and UWPOLLING_SINK_STATUS_WAIT_DATA.

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

◆ txAck()

void Uwpolling_SINK::txAck ( )

protectedvirtual

The ACK Packet is sent down to the PHY layer

References curr_ack_pkt, incrAckSent(), Mac2PhyStartTx(), and send_ACK.

Referenced by stateTxAck().

Here is the call graph for this function:

◆ TxProbe()

void Uwpolling_SINK::TxProbe ( )

protectedvirtual

The PROBE Packet is sended down to the PHY layer

References curr_probe_pkt, incrProbeSent(), and Mac2PhyStartTx().

Referenced by stateTxProbe().

Here is the call graph for this function:

◆ waitForUser()

void Uwpolling_SINK::waitForUser ( )

protectedvirtual

Used for debug purposes. (Permit to have a "step by step" behaviour of the protocol)

Member Data Documentation

◆ ack_enabled

int Uwpolling_SINK::ack_enabled

protected

True if ack is enabled, false if disabled, default true

Referenced by RxDataTimerExpired(), stateRxData(), and Uwpolling_SINK().

◆ AUV_mac_addr

int Uwpolling_SINK::AUV_mac_addr

protected

MAC address of the AUV from which it receives data

Referenced by initPkt(), and stateRxTrigger().

◆ backoff_timer

BackOffTimer Uwpolling_SINK::backoff_timer

protected

Backoff timer

Referenced by stateIdle(), and stateRxTrigger().

◆ backoff_tuner

double Uwpolling_SINK::backoff_tuner

protected

Multiplying value to the backoff value

Referenced by getBackOffTime(), and Uwpolling_SINK().

◆ BOffTime

double Uwpolling_SINK::BOffTime

protected

Backoff time chosen

Referenced by stateRxTrigger().

◆ curr_ack_pkt

Packet* Uwpolling_SINK::curr_ack_pkt

protected

Pointer to the current ACK packet

Referenced by initPkt(), and txAck().

◆ curr_data_pkt

Packet* Uwpolling_SINK::curr_data_pkt

protected

Pointer to the current DATA packet

Referenced by Phy2MacEndRx(), and stateRxData().

◆ curr_probe_pkt

Packet* Uwpolling_SINK::curr_probe_pkt

protected

Pointer to the current PROBE packet

Referenced by initPkt(), stateTxProbe(), and TxProbe().

◆ curr_state

UWPOLLING_SINK_STATUS Uwpolling_SINK::curr_state

protected

Current state of the protocol

Referenced by refreshState().

◆ curr_trigger_pkt

Packet* Uwpolling_SINK::curr_trigger_pkt

protected

Pointer to the current TRIGGER packet

Referenced by Phy2MacEndRx(), and stateRxTrigger().

◆ duplicate_pkts

uint Uwpolling_SINK::duplicate_pkts

protected

Referenced by getDuplicatedPkt(), and incrDuplicatedPkt().

◆ expected_id

uint16_t Uwpolling_SINK::expected_id

protected

Expected ID of the next data packet received

◆ expected_last_id

uint16_t Uwpolling_SINK::expected_last_id

protected

Referenced by RxDataTimerExpired(), and stateRxData().

◆ first_rx_pkt

bool Uwpolling_SINK::first_rx_pkt

protected

Number ot duplicated packets received.

Referenced by RxDataTimerExpired(), stateIdle(), and stateRxData().

◆ fout

std::ofstream Uwpolling_SINK::fout

protected

Output stream for the textual file of debug

◆ initialized

bool Uwpolling_SINK::initialized = false

staticprotected

true if the protocol is initialized, false otherwise

Referenced by command(), and initInfo().

◆ last_reason

UWPOLLING_SINK_REASON Uwpolling_SINK::last_reason

protected

Last reason to the change of state

Referenced by refreshReason().

◆ last_rx

uint16_t Uwpolling_SINK::last_rx

protected

ID of the last received packet

Referenced by addMissPkt2List(), initPkt(), RxDataTimerExpired(), and stateRxData().

◆ max_n_ack

uint Uwpolling_SINK::max_n_ack

protected

Max number of ACK that can be sent in a single round. The same value has to be used in packer, if needed.

Referenced by initPkt(), and Uwpolling_SINK().

◆ max_payload

int Uwpolling_SINK::max_payload

protected

Dimension of the DATA payload

Referenced by stateRxData(), and Uwpolling_SINK().

◆ missing_id_list

std::list<uint16_t> Uwpolling_SINK::missing_id_list

protected

List with missing packet ID

Referenced by addMissPkt2List(), initPkt(), and stateRxData().

◆ modem_data_bit_rate

int Uwpolling_SINK::modem_data_bit_rate

protected

Bit rate of the modem used

Referenced by stateRxData(), and Uwpolling_SINK().

◆ n_ack_sent

int Uwpolling_SINK::n_ack_sent

protected

Referenced by getAckSent(), and incrAckSent().

◆ n_curr_rx_pkts

uint Uwpolling_SINK::n_curr_rx_pkts

protected

Number of current received packets after the probe transmission.

Referenced by RxDataTimerExpired(), stateIdle(), stateRxData(), and stateWaitData().

◆ n_probe_sent

int Uwpolling_SINK::n_probe_sent

protected

Number of PROBE packets sent to the AUV

Referenced by getProbeSent(), and incrProbeSent().

◆ n_run

int Uwpolling_SINK::n_run

protected

Referenced by initInfo(), and Uwpolling_SINK().

◆ n_trigger_dropped

int Uwpolling_SINK::n_trigger_dropped

protected

Number of TRIGGER packet dropped

Referenced by getTriggerDropped(), and incrTriggerDropped().

◆ n_trigger_received

int Uwpolling_SINK::n_trigger_received

protected

Number of TRIGGER packets received

Referenced by getTriggerReceived(), and incrTriggerReceived().

◆ out_file_stats

std::ofstream Uwpolling_SINK::out_file_stats

protected

Referenced by initInfo(), Phy2MacEndRx(), stateRxData(), and stateTxProbe().

◆ pkt_type_info

map< Uwpolling_SINK::UWPOLLING_PKT_TYPE, string > Uwpolling_SINK::pkt_type_info

staticprotected

Textual info of the type of the packet

Referenced by initInfo().

◆ prev_expect_last_id

uint16_t Uwpolling_SINK::prev_expect_last_id

protected

Expected Unique ID of the last packet in the round

Referenced by stateRxData().

◆ prev_state

UWPOLLING_SINK_STATUS Uwpolling_SINK::prev_state

protected

Previous state of the protocol

Referenced by refreshState().

◆ print_stats

int Uwpolling_SINK::print_stats

protected

Print protocol's statistics of the protocol

Referenced by initInfo(), Phy2MacEndRx(), stateRxData(), stateTxProbe(), and Uwpolling_SINK().

◆ PROBE_uid

uint Uwpolling_SINK::PROBE_uid

protected

True if the packet received is the first packet in the round PROBE Unique ID

Referenced by initPkt().

◆ reason_info

map< Uwpolling_SINK::UWPOLLING_SINK_REASON, string > Uwpolling_SINK::reason_info

staticprotected

Textual info of the reason

Referenced by initInfo().

◆ rx_data_timer

Rx_Data_Timer Uwpolling_SINK::rx_data_timer

protected

Receiving DATA Timer

Referenced by Phy2MacEndRx(), stateIdle(), stateRxData(), stateRxTrigger(), and stateWaitData().

◆ RxDataEnabled

bool Uwpolling_SINK::RxDataEnabled

protected

true if the node is enabled to receive the DATA, false otherwise

Referenced by Phy2MacEndRx(), RxDataTimerExpired(), stateIdle(), stateRxData(), stateRxTrigger(), and stateWaitData().

◆ sea_trial

int Uwpolling_SINK::sea_trial

protected

Sea Trial flag: To activate if the protocol is going to be tested at the sea

Referenced by initInfo(), Phy2MacEndRx(), stateRxData(), stateTxProbe(), and Uwpolling_SINK().

◆ send_ACK

bool Uwpolling_SINK::send_ACK

protected

True if an ACK has to be sent, false otherwise

Referenced by RxDataTimerExpired(), stateIdle(), stateRxData(), stateRxTrigger(), stateTxAck(), and txAck().

◆ sink_id

uint Uwpolling_SINK::sink_id

protected

Unique Node ID

Referenced by initPkt(), and Uwpolling_SINK().

◆ status_info

map< Uwpolling_SINK::UWPOLLING_SINK_STATUS, string > Uwpolling_SINK::status_info

staticprotected

Textual info of the state

Referenced by initInfo().

◆ T_data

double Uwpolling_SINK::T_data

protected

Duration of RxDataTimer

Referenced by stateRxTrigger(), and stateWaitData().

◆ T_data_gurad

double Uwpolling_SINK::T_data_gurad

protected

Guard time for RxDataTimer

Referenced by stateRxTrigger(), and Uwpolling_SINK().

◆ T_fin

double Uwpolling_SINK::T_fin

protected

Upper bound of the range in which choose randomly the backoff time (sent by the AUV in the TRIGGER message)

Referenced by getBackOffTime(), and stateRxTrigger().

◆ T_guard

double Uwpolling_SINK::T_guard

protected

Guard time added to the calculation of the data TO

Referenced by stateRxData(), and Uwpolling_SINK().

◆ T_in

double Uwpolling_SINK::T_in

protected

True if rx trigger is enabled. Lower bound of the range in which choose randomly the backoff time (sent by the AUV in the TRIGGER message)

Referenced by getBackOffTime(), and stateRxTrigger().

◆ Triggered

bool Uwpolling_SINK::Triggered

protected

true if the node has correctly received a TRIGGER, false otherwise

Referenced by BackOffTimerExpired(), stateIdle(), stateRxTrigger(), and stateTxProbe().

◆ triggerEnabled

bool Uwpolling_SINK::triggerEnabled

protected

Referenced by stateIdle(), stateRxData(), and stateRxTrigger().

◆ useAdaptiveTdata

int Uwpolling_SINK::useAdaptiveTdata

protected

True if an adaptive T_poll is used

Referenced by Phy2MacEndRx(), and Uwpolling_SINK().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uwpolling/uwpolling_SINK.h
DESERT_Framework/DESERT/data_link/uwpolling/uwpolling_SINK.cpp

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ UWPOLLING_PKT_TYPE

◆ UWPOLLING_SINK_REASON

◆ UWPOLLING_SINK_STATUS

◆ UWPOLLING_TIMER_STATUS

Constructor & Destructor Documentation

◆ Uwpolling_SINK()

◆ ~Uwpolling_SINK()

Member Function Documentation

◆ addMissPkt2List()

◆ BackOffTimerExpired()

◆ command()

◆ crLayCommand()

◆ getAckSent()

◆ getBackOffTime()

◆ getDuplicatedPkt()

◆ getEpoch()

◆ getProbeSent()

◆ getTriggerDropped()

◆ getTriggerReceived()

◆ incrAckSent()

◆ incrDuplicatedPkt()

◆ incrProbeSent()

◆ incrTriggerDropped()

◆ incrTriggerReceived()

◆ initInfo()

◆ initPkt()

◆ Mac2PhyStartTx()

◆ Phy2MacEndRx()

◆ Phy2MacEndTx()

◆ Phy2MacStartRx()

◆ refreshReason()

◆ refreshState()

◆ RxDataTimerExpired()

◆ stateIdle()

◆ stateRxData()

◆ stateRxTrigger()

◆ stateTxAck()

◆ stateTxProbe()

◆ stateWaitData()

◆ txAck()

◆ TxProbe()

◆ waitForUser()

Member Data Documentation

◆ ack_enabled

◆ AUV_mac_addr

◆ backoff_timer

◆ backoff_tuner

◆ BOffTime

◆ curr_ack_pkt

◆ curr_data_pkt

◆ curr_probe_pkt

◆ curr_state

◆ curr_trigger_pkt

◆ duplicate_pkts

◆ expected_id

◆ expected_last_id

◆ first_rx_pkt

◆ fout

◆ initialized

◆ last_reason

◆ last_rx

◆ max_n_ack

◆ max_payload

◆ missing_id_list

◆ modem_data_bit_rate

◆ n_ack_sent

◆ n_curr_rx_pkts

◆ n_probe_sent

◆ n_run

◆ n_trigger_dropped

◆ n_trigger_received

◆ out_file_stats
