#include <uwpolling_AUV.h>

Inheritance diagram for Uwpolling_AUV::ProbeTimer:

[legend]

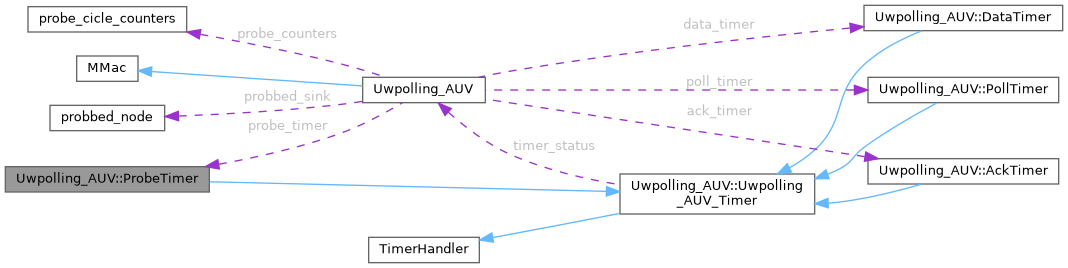

Collaboration diagram for Uwpolling_AUV::ProbeTimer:

[legend]

Public Member Functions
	ProbeTimer (Uwpolling_AUV *m)

virtual	~ProbeTimer ()

Public Member Functions inherited from Uwpolling_AUV::Uwpolling_AUV_Timer
	Uwpolling_AUV_Timer (Uwpolling_AUV *m)

virtual	~Uwpolling_AUV_Timer ()

virtual void	freeze ()

virtual void	unFreeze ()

virtual void	stop ()

virtual void	schedule (double val)

bool	isIdle ()

bool	isRunning ()

bool	isExpired ()

bool	isFrozen ()

bool	isActive ()

void	resetCounter ()

void	incrCounter ()

int	getCounter ()

double	getDuration ()

Protected Member Functions
virtual void	expire (Event *e)

Additional Inherited Members
Protected Attributes inherited from Uwpolling_AUV::Uwpolling_AUV_Timer
double	start_time

double	left_duration

int	counter

Uwpolling_AUV *UWPOLLING_TIMER_STATUS	timer_status

Detailed Description

Class (inherited from Uwpolling_AUV_Timer) used to handle the Probe Timer.

The duration of this timer is the time in which the nodes can transmit their PROBE packets to "book" the possibility to transmit data packets to the AUV

Definition at line 482 of file uwpolling_AUV.h.

Constructor & Destructor Documentation

◆ ProbeTimer()

Uwpolling_AUV::ProbeTimer::ProbeTimer ( Uwpolling_AUV * m )

inline

Conscructor of ProbeTimer class.

Definition at line 488 of file uwpolling_AUV.h.

◆ ~ProbeTimer()

virtual Uwpolling_AUV::ProbeTimer::~ProbeTimer ( )

inlinevirtual

Destructor of ProbeTimer class.

Parameters

Uwpolling_AUV* Pointer of an object of type Uwpolling_AUV

Definition at line 497 of file uwpolling_AUV.h.

Member Function Documentation

◆ expire()

void Uwpolling_AUV::ProbeTimer::expire ( Event * e )

protectedvirtual

Method call when the timer expire.

Parameters

Event* pointer to an object of type Event

Definition at line 370 of file uwpolling_AUV.cpp.

The documentation for this class was generated from the following files:
