#include <uwpolling_AUV.h>

Inheritance diagram for Uwpolling_AUV::DataTimer:

[legend]

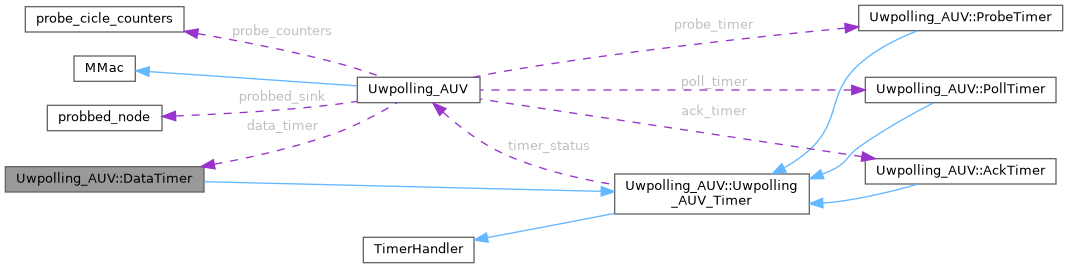

Collaboration diagram for Uwpolling_AUV::DataTimer:

[legend]

Public Member Functions
	DataTimer (Uwpolling_AUV *m)

virtual	~DataTimer ()

Public Member Functions inherited from Uwpolling_AUV::Uwpolling_AUV_Timer
	Uwpolling_AUV_Timer (Uwpolling_AUV *m)

virtual	~Uwpolling_AUV_Timer ()

virtual void	freeze ()

virtual void	unFreeze ()

virtual void	stop ()

virtual void	schedule (double val)

bool	isIdle ()

bool	isRunning ()

bool	isExpired ()

bool	isFrozen ()

bool	isActive ()

void	resetCounter ()

void	incrCounter ()

int	getCounter ()

double	getDuration ()

Protected Member Functions
virtual void	expire (Event *e)

Additional Inherited Members
Protected Attributes inherited from Uwpolling_AUV::Uwpolling_AUV_Timer
double	start_time

double	left_duration

int	counter

Uwpolling_AUV *UWPOLLING_TIMER_STATUS	timer_status

Detailed Description

Class (inherited from Uwpolling_AUV_Timer) used to handle the timer of data packets When the AUV give the POLL packet to a node, he set up the timer in which the node has to transmit his packets.

The duration of the timer is calculated based on the RTT between the AUV and the node and the duration of the transmission of a packet

Definition at line 449 of file uwpolling_AUV.h.

Constructor & Destructor Documentation

◆ DataTimer()

Uwpolling_AUV::DataTimer::DataTimer ( Uwpolling_AUV * m )

inline

Conscructor of DataTimer class.

Parameters

Uwpolling_AUV* pointer to an object of type Uwpolling_AUV

Definition at line 456 of file uwpolling_AUV.h.

◆ ~DataTimer()

virtual Uwpolling_AUV::DataTimer::~DataTimer ( )

inlinevirtual

Destructor of DataTimer class.

Definition at line 464 of file uwpolling_AUV.h.

Member Function Documentation

◆ expire()

void Uwpolling_AUV::DataTimer::expire ( Event * e )

protectedvirtual

Method called when the timer expire.

Parameters

Event* pointer to an object of type Event

Definition at line 357 of file uwpolling_AUV.cpp.

The documentation for this class was generated from the following files:
