#include <uwjammer.h>

Inheritance diagram for Uwjammer:

Collaboration diagram for Uwjammer:

Public Member Functions
	Uwjammer ()

virtual	~Uwjammer ()=default

virtual int	command (int argc, const char const argv) override

virtual int	crLayCommand (ClMessage *m) override

Protected Types
enum class	JammerStatus { IDLE = 1 , BUSY }

Protected Member Functions
virtual void	recvFromUpperLayers (Packet *p) override

virtual void	txJam ()

virtual void	Mac2PhyStartTx (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p) override

virtual void	stateIdle ()

virtual void	Phy2MacEndRx (Packet *p) override

int	getJamSent () const

int	getJamDiscarded () const

int	getDataDiscarded () const

virtual void	refreshState (JammerStatus state)

Protected Attributes
int	buffer_data_pkts

uint	node_id

uint	JAMMER_uid

size_t	n_jam_sent

size_t	n_jam_discarded

size_t	n_data_discarded

Packet *	curr_data_pkt

std::queue< Packet * >	Q_data

JammerStatus	curr_state

Static Protected Attributes
static const std::map< JammerStatus, std::string >	status_info

static constexpr const int	MAX_BUFFER_SIZE

Detailed Description

Class that describes a Uwjammer module

Member Enumeration Documentation

◆ JammerStatus

enum class Uwjammer::JammerStatus

strongprotected

Enum that rapresents the status of the protocol machine state.

Enumerator
IDLE
BUSY

Constructor & Destructor Documentation

◆ Uwjammer()

Uwjammer::Uwjammer ( )

Constructor of the class

References buffer_data_pkts, curr_state, IDLE, and MAX_BUFFER_SIZE.

◆ ~Uwjammer()

virtual Uwjammer::~Uwjammer ( )

virtualdefault

Destructor of the class

Member Function Documentation

◆ command()

int Uwjammer::command	(	int	argc,
		const char const	argv
	)

overridevirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

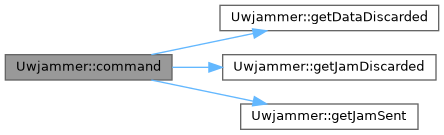

References getDataDiscarded(), getJamDiscarded(), getJamSent(), and Q_data.

Here is the call graph for this function:

◆ crLayCommand()

int Uwjammer::crLayCommand ( ClMessage * m )

overridevirtual

Cross-Layer messages interpreter

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

◆ getDataDiscarded()

int Uwjammer::getDataDiscarded ( ) const

inlineprotected

Returns the number of packets received and discarded during the simulation.

Returns: int n_data_discarded the number of packets sent

References n_data_discarded.

Referenced by command().

◆ getJamDiscarded()

int Uwjammer::getJamDiscarded ( ) const

inlineprotected

Returns the number of packets discarded during the simulation because the buffer is full.

Returns: int n_jam_discarded the number of packets discarded

References n_jam_discarded.

Referenced by command().

◆ getJamSent()

int Uwjammer::getJamSent ( ) const

inlineprotected

Returns the number of packets sent during the simulation.

Returns: int n_jam_sent the number of packets sent

References n_jam_sent.

Referenced by command().

◆ Mac2PhyStartTx()

void Uwjammer::Mac2PhyStartTx ( Packet * p )

protectedvirtual

Pass the packet to the PHY layer

Parameters

Packet* Pointer to an object of type Packet that represent the Packet to transmit

References BUSY, and refreshState().

Referenced by txJam().

Here is the call graph for this function:

◆ Phy2MacEndRx()

void Uwjammer::Phy2MacEndRx ( Packet * p )

overrideprotectedvirtual

Method called when the Phy Layer finish to receive a Packet.

Parameters

Packet* Pointer to an object of type Packet that represent the Packet received

References n_data_discarded.

◆ Phy2MacEndTx()

void Uwjammer::Phy2MacEndTx ( const Packet * p )

overrideprotectedvirtual

Method called when the PHY layer finish to transmit the packet.

Parameters

Packet* Pointer to an object of type Packet that represent the Packet transmitted

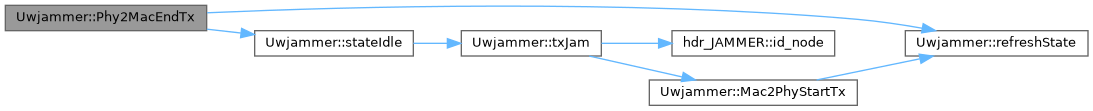

References IDLE, refreshState(), and stateIdle().

Here is the call graph for this function:

◆ recvFromUpperLayers()

void Uwjammer::recvFromUpperLayers ( Packet * p )

overrideprotectedvirtual

Receives the packet from the upper layer (e.g. IP)

Parameters

Packet* pointer to the packet received

References buffer_data_pkts, curr_state, IDLE, n_jam_discarded, Q_data, and txJam().

Here is the call graph for this function:

◆ refreshState()

virtual void Uwjammer::refreshState ( JammerStatus state )

inlineprotectedvirtual

Refresh the state of the protocol.

Parameters

JammerStatus current state of the protcol

References curr_state.

Referenced by Mac2PhyStartTx(), and Phy2MacEndTx().

◆ stateIdle()

void Uwjammer::stateIdle ( )

protectedvirtual

IDLE state, check if there is at least one more packet to transmit.

References Q_data, and txJam().

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

◆ txJam()

void Uwjammer::txJam ( )

protectedvirtual

Transmits the jam packet (calling Mac2PhyStartTx) and increment the counter of transmitted jam packets.

References curr_data_pkt, hdr_JAMMER::id_node(), Mac2PhyStartTx(), n_jam_sent, node_id, PT_JAMMER, and Q_data.

Referenced by recvFromUpperLayers(), and stateIdle().

Here is the call graph for this function:

Member Data Documentation

◆ buffer_data_pkts

int Uwjammer::buffer_data_pkts

protected

Size of the buffer in number of packets.

Referenced by recvFromUpperLayers(), and Uwjammer().

◆ curr_data_pkt

Packet* Uwjammer::curr_data_pkt

protected

Pointer to the current DATA packet.

Referenced by txJam().

◆ curr_state

JammerStatus Uwjammer::curr_state

protected

Current state of the protocol.

Referenced by recvFromUpperLayers(), refreshState(), and Uwjammer().

◆ JAMMER_uid

uint Uwjammer::JAMMER_uid

protected

JAMMER Unique ID.

◆ MAX_BUFFER_SIZE

constexpr const int Uwjammer::MAX_BUFFER_SIZE

staticconstexprprotected

Initial value:

=

100

Maximum size of the queue in number of packets.

Referenced by Uwjammer().

◆ n_data_discarded

size_t Uwjammer::n_data_discarded

protected

Number of packets received and discarded.

Referenced by getDataDiscarded(), and Phy2MacEndRx().

◆ n_jam_discarded

size_t Uwjammer::n_jam_discarded

protected

Number of packets discarded because the buffer is full.

Referenced by getJamDiscarded(), and recvFromUpperLayers().

◆ n_jam_sent

size_t Uwjammer::n_jam_sent

protected

Number of packets sent.

Referenced by getJamSent(), and txJam().

◆ node_id

uint Uwjammer::node_id

protected

Unique Node ID.

Referenced by txJam().

◆ Q_data

std::queue<Packet *> Uwjammer::Q_data

protected

Queue of DATA in number of packets.

Referenced by command(), recvFromUpperLayers(), stateIdle(), and txJam().

◆ status_info

const std::map< Uwjammer::JammerStatus, std::string > Uwjammer::status_info

staticprotected

Initial value:

{
        {JammerStatus::IDLE, "Idle State"},
        {JammerStatus::BUSY, "PHY is transmitting"}}

Textual info of the state.

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uwjammer/uwjammer.h
DESERT_Framework/DESERT/data_link/uwjammer/uwjammer.cpp
