#include <uwvbr-module.h>

Inheritance diagram for UwVbrModule:

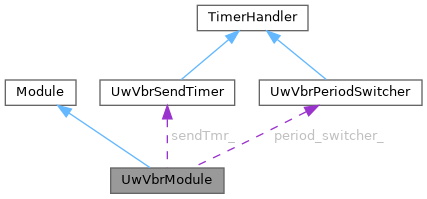

Collaboration diagram for UwVbrModule:

Public Member Functions
	UwVbrModule ()

virtual	~UwVbrModule ()

virtual void	recv (Packet *)

virtual void	recv (Packet p, Handler h)

virtual int	command (int argc, const char const argv)

virtual int	crLayCommand (ClMessage *m)

virtual double	GetRTT () const

virtual double	GetFTT () const

virtual double	GetPER () const

virtual double	GetTHR () const

virtual double	GetRTTstd () const

virtual double	GetFTTstd () const

virtual void	resetStats ()

Protected Member Functions
virtual void	initPkt (Packet *p)

virtual void	sendPkt ()

virtual void	transmit ()

virtual void	start ()

virtual void	stop ()

virtual void	updateRTT (const double &)

virtual void	updateFTT (const double &)

virtual void	updateThroughput (const int &, const double &)

virtual void	incrPktLost (const int &)

virtual void	incrPktRecv ()

virtual void	incrPktOoseq ()

virtual void	incrPktInvalid ()

virtual double	getTimeBeforeNextPkt ()

virtual void	switchPeriod ()

Static Protected Member Functions
static const int	getVbrHeaderSize ()

Protected Attributes
u_int16_t	dstPort_

nsaddr_t	dstAddr_

bool *	sn_check

int	PoissonTraffic_

int	debug_

int	drop_out_of_order_

int	txsn

int	hrsn

int	pkts_recv

int	pkts_ooseq

int	pkts_lost

int	pkts_invalid

int	pkts_last_reset

double	rftt

double	srtt

double	sftt

double	lrtime

double	sthr

int	period_identifier_

double	period1_

double	period2_

double	timer_switch_1_

double	timer_switch_2_

UwVbrSendTimer	sendTmr_

UwVbrPeriodSwitcher	period_switcher_

int	pktSize_

double	sumrtt

double	sumrtt2

int	rttsamples

double	sumftt

double	sumftt2

int	fttsamples

double	sumbytes

double	sumdt

uint32_t	esn

Static Protected Attributes
static int	uidcnt_ = 0

Friends
class	UwVbrSendTimer

class	UwVbrPeriodSwitcher

Detailed Description

UwVbrModule class is used to manage UWVBR packets, and to collect statistics about them.

Constructor & Destructor Documentation

◆ UwVbrModule()

UwVbrModule::UwVbrModule ( )

Constructor of UwVbrModule class.

References debug_, drop_out_of_order_, dstAddr_, dstPort_, period1_, period2_, pktSize_, PoissonTraffic_, sn_check, timer_switch_1_, and timer_switch_2_.

◆ ~UwVbrModule()

UwVbrModule::~UwVbrModule ( )

virtual

Destructor of UwVbrModule class.

Member Function Documentation

◆ command()

int UwVbrModule::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References GetFTT(), GetFTTstd(), GetPER(), GetRTT(), GetRTTstd(), GetTHR(), getVbrHeaderSize(), hrsn, pkts_last_reset, pkts_recv, resetStats(), sendPkt(), start(), stop(), and txsn.

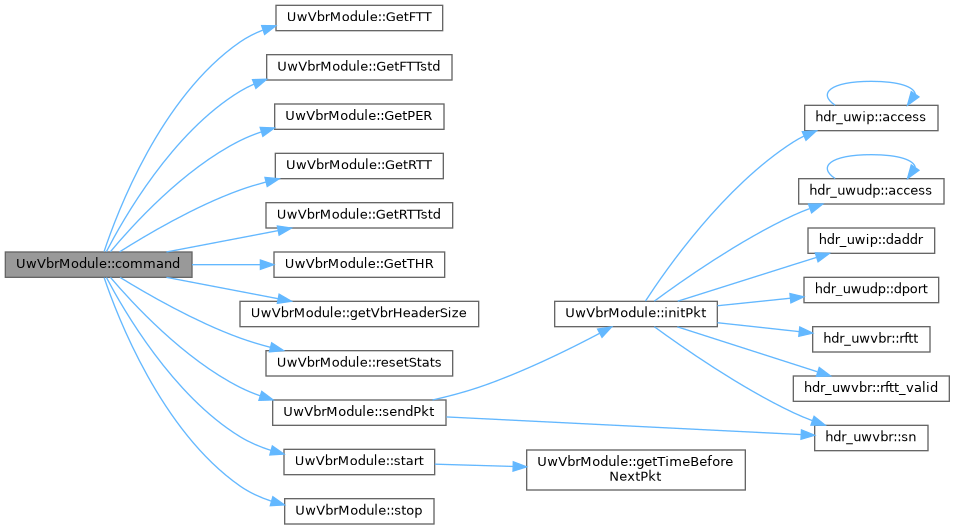

Here is the call graph for this function:

◆ crLayCommand()

int UwVbrModule::crLayCommand ( ClMessage * m )

virtual

◆ GetFTT()

double UwVbrModule::GetFTT ( ) const

virtual

Returns the mean Forward Trip Time.

Returns: Forward Trip Time.

References fttsamples, and sumftt.

Referenced by command().

◆ GetFTTstd()

double UwVbrModule::GetFTTstd ( ) const

virtual

Returns the mean Forward Trip Time Standard Deviation.

Returns: Forward Trip Time Standard Deviation.

References fttsamples, sumftt, and sumftt2.

Referenced by command().

◆ GetPER()

double UwVbrModule::GetPER ( ) const

virtual

Returns the mean Packet Error Rate.

Returns: Packet Error Rate.

References drop_out_of_order_, esn, pkts_lost, and pkts_recv.

Referenced by command().

◆ GetRTT()

double UwVbrModule::GetRTT ( ) const

virtual

Returns the mean Round Trip Time.

Returns: Round Trip Time.

References rttsamples, and sumrtt.

Referenced by command().

◆ GetRTTstd()

double UwVbrModule::GetRTTstd ( ) const

virtual

Returns the Round Trip Time Standard Deviation.

Returns: Round Trip Time Standard Deviation.

References rttsamples, sumrtt, and sumrtt2.

Referenced by command().

◆ GetTHR()

double UwVbrModule::GetTHR ( ) const

virtual

Returns the mean Throughput.

Returns: Throughput.

References sumbytes, and sumdt.

Referenced by command().

◆ getTimeBeforeNextPkt()

double UwVbrModule::getTimeBeforeNextPkt ( )

protectedvirtual

Returns the amount of time to wait before the next transmission. It depends on the PoissonTraffic_ flag.

Returns: double Value to use as delay for the next transmission.

See also: PoissonTraffic_

References period1_, period2_, period_identifier_, and PoissonTraffic_.

Referenced by start(), and transmit().

◆ getVbrHeaderSize()

static const int UwVbrModule::getVbrHeaderSize ( )

inlinestaticprotected

Returns the size in byte of a hdr_uwvbr packet header.

Returns: The size of a hdr_uwvbr packet header.

Referenced by command().

◆ incrPktInvalid()

void UwVbrModule::incrPktInvalid ( )

protectedvirtual

Increases by one the number of invalid packets.

References pkts_invalid.

Referenced by recv().

◆ incrPktLost()

void UwVbrModule::incrPktLost ( const int & npkts )

protectedvirtual

Increases the number of packets lost.

Parameters

int	Number of packets lost.

References pkts_lost.

Referenced by recv().

◆ incrPktOoseq()

void UwVbrModule::incrPktOoseq ( )

protectedvirtual

Increases by one the number of out of sequence packets received.

References pkts_ooseq.

Referenced by recv().

◆ incrPktRecv()

void UwVbrModule::incrPktRecv ( )

protectedvirtual

Increases by one the number of received packets.

References pkts_recv.

Referenced by recv().

◆ initPkt()

void UwVbrModule::initPkt ( Packet * p )

protectedvirtual

Initializes a data packet passed as argument with the default values.

Parameters

Packet* Pointer to a packet already allocated to fill with the right values.

References hdr_uwip::access(), hdr_uwudp::access(), hdr_uwip::daddr(), hdr_uwudp::dport(), dstAddr_, dstPort_, pktSize_, PT_UWVBR, hdr_uwvbr::rftt(), rftt, hdr_uwvbr::rftt_valid(), hdr_uwvbr::sn(), txsn, and uidcnt_.

Referenced by sendPkt().

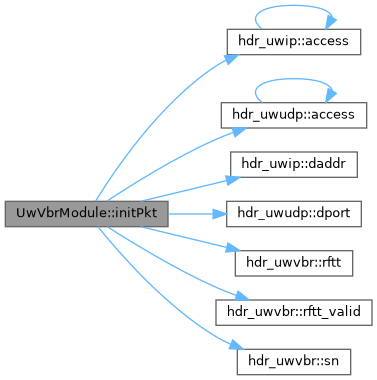

Here is the call graph for this function:

◆ recv() [1/2]

void UwVbrModule::recv ( Packet * p )

virtual

Performs the reception of packets from upper and lower layers.

Parameters

Packet* Pointer to the packet will be received.

References debug_, drop_out_of_order_, esn, hrsn, incrPktInvalid(), incrPktLost(), incrPktOoseq(), incrPktRecv(), lrtime, pkts_last_reset, pkts_lost, pkts_recv, PT_UWVBR, hdr_uwvbr::rftt(), rftt, hdr_uwvbr::rftt_valid(), hdr_uwvbr::sn(), sn_check, updateFTT(), updateRTT(), and updateThroughput().

Referenced by recv().

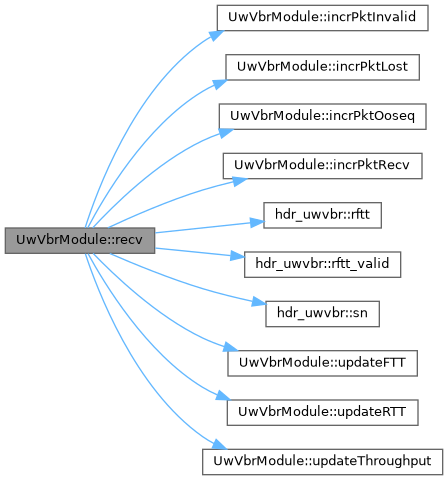

Here is the call graph for this function:

◆ recv() [2/2]

void UwVbrModule::recv	(	Packet *	p,
		Handler *	h
	)

virtual

Performs the reception of packets from upper and lower layers.

Parameters

Packet*	Pointer to the packet will be received.
Handler*	Handler.

References recv().

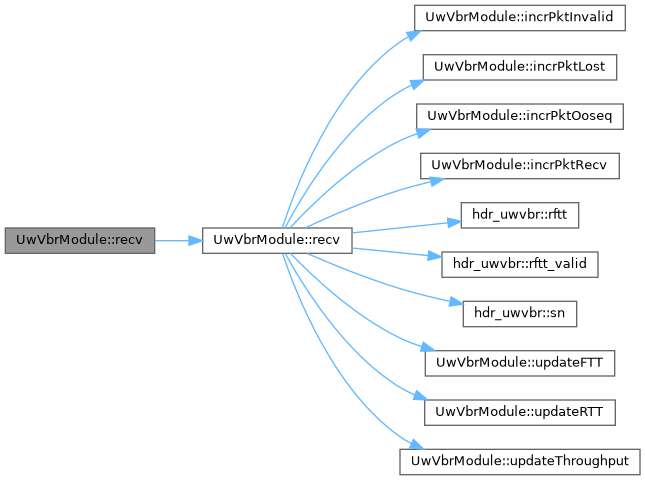

Here is the call graph for this function:

◆ resetStats()

void UwVbrModule::resetStats ( )

virtual

Resets all the statistics of the UWVBR module.

References fttsamples, pkts_last_reset, pkts_lost, pkts_ooseq, pkts_recv, rftt, rttsamples, sftt, srtt, sthr, sumbytes, sumdt, sumftt, sumftt2, sumrtt, and sumrtt2.

Referenced by command().

◆ sendPkt()

void UwVbrModule::sendPkt ( )

protectedvirtual

Allocates, initialize and sends a packet.

See also: UwVbrModule::initPkt()

References debug_, initPkt(), and hdr_uwvbr::sn().

Referenced by command(), and transmit().

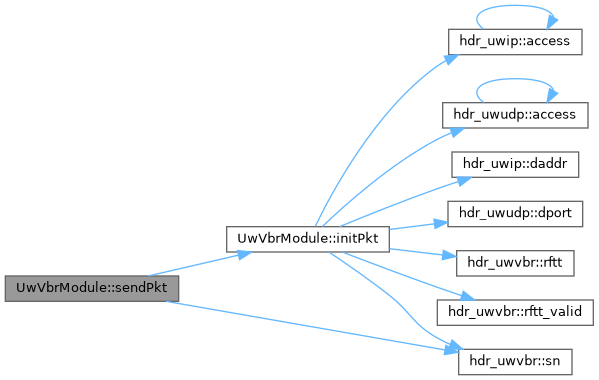

Here is the call graph for this function:

◆ start()

void UwVbrModule::start ( )

protectedvirtual

Start to send packets.

References getTimeBeforeNextPkt(), period_switcher_, sendTmr_, and timer_switch_1_.

Referenced by command().

Here is the call graph for this function:

◆ stop()

void UwVbrModule::stop ( )

protectedvirtual

Stop to send packets.

References sendTmr_.

Referenced by command().

◆ switchPeriod()

void UwVbrModule::switchPeriod ( )

protectedvirtual

Switches between the two different states in which UWVBR can operate.

References period_identifier_, period_switcher_, timer_switch_1_, and timer_switch_2_.

◆ transmit()

void UwVbrModule::transmit ( )

protectedvirtual

Creates and transmits a packet and schedules a new transmission.

See also: UwVbrModule::sendPkt()

References getTimeBeforeNextPkt(), sendPkt(), and sendTmr_.

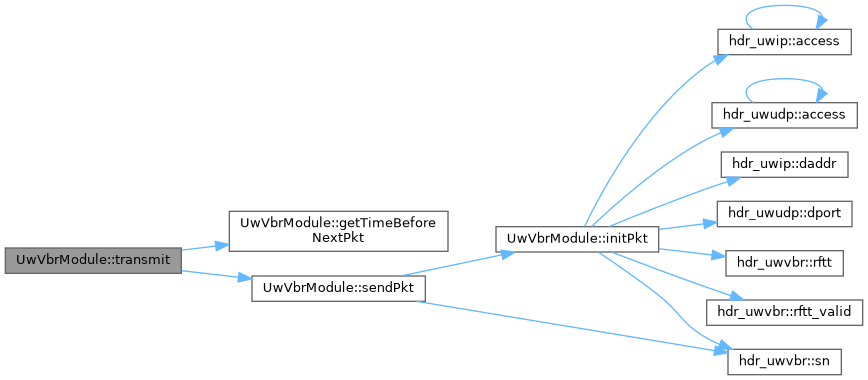

Here is the call graph for this function:

◆ updateFTT()

void UwVbrModule::updateFTT ( const double & ftt )

protectedvirtual

Updates the Forward Trip Time.

Parameters

double New Forward Trip Time entry.

References fttsamples, sumftt, and sumftt2.

Referenced by recv().

◆ updateRTT()

void UwVbrModule::updateRTT ( const double & rtt )

protectedvirtual

Updates the Round Trip Time.

Parameters

double New Round Trip Time entry.

References rttsamples, sumrtt, and sumrtt2.

Referenced by recv().

◆ updateThroughput()

void UwVbrModule::updateThroughput	(	const int &	bytes,
		const double &	dt
	)

protectedvirtual

Updates the Throughput.

Parameters

int	Bytes of the payload of the last packet received.
double	Delay Time between the last two receipts.

References debug_, sumbytes, and sumdt.

Referenced by recv().

Friends And Related Symbol Documentation

◆ UwVbrPeriodSwitcher

friend class UwVbrPeriodSwitcher

friend

◆ UwVbrSendTimer

friend class UwVbrSendTimer

friend

Member Data Documentation

◆ debug_

int UwVbrModule::debug_

protected

Flag to enable or disable dirrefent levels of debug.

Referenced by recv(), sendPkt(), updateThroughput(), and UwVbrModule().

◆ drop_out_of_order_

int UwVbrModule::drop_out_of_order_

protected

Flag to enable or disable the check for out of order packets.

Referenced by GetPER(), recv(), and UwVbrModule().

◆ dstAddr_

nsaddr_t UwVbrModule::dstAddr_

protected

IP of the destination.

Referenced by initPkt(), and UwVbrModule().

◆ dstPort_

u_int16_t UwVbrModule::dstPort_

protected

Destination port.

Referenced by initPkt(), and UwVbrModule().

◆ esn

uint32_t UwVbrModule::esn

protected

Expected serial number.

Referenced by GetPER(), and recv().

◆ fttsamples

int UwVbrModule::fttsamples

protected

Number of FTT samples.

Referenced by GetFTT(), GetFTTstd(), resetStats(), and updateFTT().

◆ hrsn

int UwVbrModule::hrsn

protected

Highest received sequence number.

Referenced by command(), and recv().

◆ lrtime

double UwVbrModule::lrtime

protected

Time of last packet reception.

Referenced by recv().

◆ period1_

double UwVbrModule::period1_

protected

period between two consecutive packet transmissions (mode 1).

Referenced by getTimeBeforeNextPkt(), and UwVbrModule().

◆ period2_

double UwVbrModule::period2_

protected

period between two consecutive packet transmissions (mode 2).

Referenced by getTimeBeforeNextPkt(), and UwVbrModule().

◆ period_identifier_

int UwVbrModule::period_identifier_

protected

Flag used to identify in which one of the period the vbr module is.

Referenced by getTimeBeforeNextPkt(), and switchPeriod().

◆ period_switcher_

UwVbrPeriodSwitcher UwVbrModule::period_switcher_

protected

Timer which schedules the switch between different sending periods.

Referenced by start(), and switchPeriod().

◆ pkts_invalid

int UwVbrModule::pkts_invalid

protected

Total number of invalid packets received.

Referenced by incrPktInvalid().

◆ pkts_last_reset

int UwVbrModule::pkts_last_reset

protected

for error checking after stats are reset. Set to pkts_lost+pkts_recv each time resetStats is called.

Referenced by command(), recv(), and resetStats().

◆ pkts_lost

int UwVbrModule::pkts_lost

protected

Total number of lost packets, including packets received out of sequence.

Referenced by GetPER(), incrPktLost(), recv(), and resetStats().

◆ pkts_ooseq

int UwVbrModule::pkts_ooseq

protected

Total number of packets received out of sequence.

Referenced by incrPktOoseq(), and resetStats().

◆ pkts_recv

int UwVbrModule::pkts_recv

protected

Total number of received packets. Packet out of sequence are not counted here.

Referenced by command(), GetPER(), incrPktRecv(), recv(), and resetStats().

◆ pktSize_

int UwVbrModule::pktSize_

protected

Packet size.

Referenced by initPkt(), and UwVbrModule().

◆ PoissonTraffic_

int UwVbrModule::PoissonTraffic_

protected

1 if the traffic is generated according to a poissonian distribution.

Referenced by getTimeBeforeNextPkt(), and UwVbrModule().

◆ rftt

double UwVbrModule::rftt

protected

Forward Trip Time seen for last received packet.

Referenced by initPkt(), recv(), and resetStats().

◆ rttsamples

int UwVbrModule::rttsamples

protected

Number of RTT samples.

Referenced by GetRTT(), GetRTTstd(), resetStats(), and updateRTT().

◆ sendTmr_

UwVbrSendTimer UwVbrModule::sendTmr_

protected

Timer which schedules packet transmissions.

Referenced by start(), stop(), and transmit().

◆ sftt

double UwVbrModule::sftt

protected

Smoothed Forward Trip Time, calculated as srtt.

Referenced by resetStats().

◆ sn_check

bool* UwVbrModule::sn_check

protected

Used to keep track of the packets already received.

Referenced by recv(), and UwVbrModule().

◆ srtt

double UwVbrModule::srtt

protected

Smoothed Round Trip Time, calculated as for TCP.

Referenced by resetStats().

◆ sthr

double UwVbrModule::sthr

protected

Smoothed throughput calculation.

Referenced by resetStats().

◆ sumbytes

double UwVbrModule::sumbytes

protected

Sum of bytes received.

Referenced by GetTHR(), resetStats(), and updateThroughput().

◆ sumdt

double UwVbrModule::sumdt

protected

Sum of the delays.

Referenced by GetTHR(), resetStats(), and updateThroughput().

◆ sumftt

double UwVbrModule::sumftt

protected

Sum of FTT samples.

Referenced by GetFTT(), GetFTTstd(), resetStats(), and updateFTT().

◆ sumftt2

double UwVbrModule::sumftt2

protected

Sum of (FTT^2).

Referenced by GetFTTstd(), resetStats(), and updateFTT().

◆ sumrtt

double UwVbrModule::sumrtt

protected

Sum of RTT samples.

Referenced by GetRTT(), GetRTTstd(), resetStats(), and updateRTT().

◆ sumrtt2

double UwVbrModule::sumrtt2

protected

Sum of (RTT^2).

Referenced by GetRTTstd(), resetStats(), and updateRTT().

◆ timer_switch_1_

double UwVbrModule::timer_switch_1_

protected

Period in witch the node tramsmits with a packet every period1_ seconds.

Referenced by start(), switchPeriod(), and UwVbrModule().

◆ timer_switch_2_

double UwVbrModule::timer_switch_2_

protected

Period in witch the node tramsmits with a packet every period2_ seconds.

Referenced by switchPeriod(), and UwVbrModule().

◆ txsn

int UwVbrModule::txsn

protected

Sequence number of next new packet to be transmitted.

Referenced by command(), and initPkt().

◆ uidcnt_

int UwVbrModule::uidcnt_ = 0

staticprotected

Unique id of the packet generated.

Referenced by initPkt().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/application/uwvbr/uwvbr-module.h
DESERT_Framework/DESERT/application/uwvbr/uwvbr-module.cpp

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ UwVbrModule()

◆ ~UwVbrModule()

Member Function Documentation

◆ command()

◆ crLayCommand()

◆ GetFTT()

◆ GetFTTstd()

◆ GetPER()

◆ GetRTT()

◆ GetRTTstd()

◆ GetTHR()

◆ getTimeBeforeNextPkt()

◆ getVbrHeaderSize()

◆ incrPktInvalid()

◆ incrPktLost()

◆ incrPktOoseq()

◆ incrPktRecv()

◆ initPkt()

◆ recv() [1/2]

◆ recv() [2/2]

◆ resetStats()

◆ sendPkt()

◆ start()

◆ stop()

◆ switchPeriod()

◆ transmit()

◆ updateFTT()

◆ updateRTT()

◆ updateThroughput()

Friends And Related Symbol Documentation

◆ UwVbrPeriodSwitcher

◆ UwVbrSendTimer

Member Data Documentation

◆ debug_

◆ drop_out_of_order_

◆ dstAddr_

◆ dstPort_

◆ esn

◆ fttsamples

◆ hrsn

◆ lrtime

◆ period1_

◆ period2_

◆ period_identifier_

◆ period_switcher_

◆ pkts_invalid

◆ pkts_last_reset

◆ pkts_lost

◆ pkts_ooseq

◆ pkts_recv

◆ pktSize_

◆ PoissonTraffic_

◆ rftt

◆ rttsamples

◆ sendTmr_

◆ sftt

◆ sn_check

◆ srtt

◆ sthr

◆ sumbytes

◆ sumdt

◆ sumftt

◆ sumftt2

◆ sumrtt

◆ sumrtt2

◆ timer_switch_1_

◆ timer_switch_2_

◆ txsn

◆ uidcnt_
