#include <uwoptical-mpropagation.h>

Inheritance diagram for UwOpticalMPropagation:

Collaboration diagram for UwOpticalMPropagation:

Public Member Functions
	UwOpticalMPropagation ()

virtual	~UwOpticalMPropagation ()

virtual int	command (int, const char const )

virtual double	getGain (Packet *p)

virtual void	setWoss (bool flag)

double	getTemperature (double depth)

double	getBeta (Packet *p)

double	getC (Packet *p=NULL)

bool	isOmnidirectional ()

Public Attributes
int	debug_

Protected Member Functions
virtual double	getLambertBeerGain (double d, double beta_)

virtual void	initializeLUT ()

double	getWossOrientation (Position src, Position dest)

double	linearInterpolator (double x, double x1, double x2, double y1, double y2)

void	updateC (double d)

double	getLambertBeerGain_variableC (double beta_, double min_depth_, double max_depth_)

Protected Attributes
double	Ar_

double	At_

double	c_

double	theta_

bool	omnidirectional_

bool	variable_c_

bool	use_woss_

LUT_c	lut_c_

string	lut_file_name_

char	lut_token_separator_

Detailed Description

Class used to represents the UWOPTICAL_MPROPAGATION.

Constructor & Destructor Documentation

◆ UwOpticalMPropagation()

UwOpticalMPropagation::UwOpticalMPropagation ( )

Constructor of the UwOpticalMPropagation class

References Ar_, At_, c_, debug_, and theta_.

◆ ~UwOpticalMPropagation()

virtual UwOpticalMPropagation::~UwOpticalMPropagation ( )

inlinevirtual

Destructor of the UwOpticalMPropagation class

Member Function Documentation

◆ command()

int UwOpticalMPropagation::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References Ar_, At_, c_, initializeLUT(), lut_file_name_, lut_token_separator_, omnidirectional_, theta_, and variable_c_.

Here is the call graph for this function:

◆ getBeta()

double UwOpticalMPropagation::getBeta ( Packet * p )

Provide angle between transmitter and receiver.

Parameters

Packet* Pointer to the packet that has to be received.

Returns: the angle between transmitter and receiver.

References getWossOrientation(), and use_woss_.

Referenced by getGain().

Here is the call graph for this function:

◆ getC()

double UwOpticalMPropagation::getC ( Packet * p = NULL )

Provide the attenuation coefficient.

Returns: c.

References c_, lut_c_, use_woss_, and variable_c_.

◆ getGain()

double UwOpticalMPropagation::getGain ( Packet * p )

virtual

Calculate the gain following the Lambert and Beer's law

Parameters

Packet* Pointer to the packet that has to be received.

Returns: the gain due to the optical propagation.

References debug_, getBeta(), getLambertBeerGain(), getLambertBeerGain_variableC(), updateC(), use_woss_, and variable_c_.

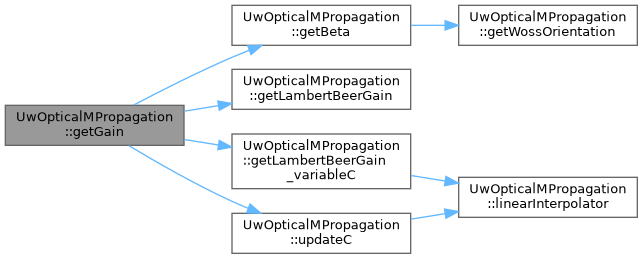

Here is the call graph for this function:

◆ getLambertBeerGain()

double UwOpticalMPropagation::getLambertBeerGain	(	double	d,
		double	beta_
	)

protectedvirtual

Calculate the gain following the Lambert and Beer's law

Parameters

d	Distance between transmitter and receiver.
beta	inclination angle between the transmitter and the receiver.

Returns: the gain due to the optical propagation.

References Ar_, At_, c_, omnidirectional_, and theta_.

Referenced by getGain().

◆ getLambertBeerGain_variableC()

double UwOpticalMPropagation::getLambertBeerGain_variableC	(	double	beta_,
		double	min_depth_,
		double	max_depth_
	)

protected

Calculate the gain following the Lambert and Beer's law in the case of variable c model

Parameters

beta_
min_depth_	the max between depth of rx and depth of tx.
max_depth_	the min between depth of rx and depth of tx.

Returns: the gain due to the optical propagation in the case of variable c model.

References Ar_, At_, debug_, linearInterpolator(), lut_c_, omnidirectional_, and theta_.

Referenced by getGain().

Here is the call graph for this function:

◆ getTemperature()

double UwOpticalMPropagation::getTemperature ( double depth )

Provide the temperature from LUT

Parameters

depth depth of the receiver.

Returns: the temperature at certain depth.

References linearInterpolator(), lut_c_, and variable_c_.

Here is the call graph for this function:

◆ getWossOrientation()

double UwOpticalMPropagation::getWossOrientation	(	Position *	src,
		Position *	dest
	)

protected

Calculate the inclination angle between the transmitter and the receiver

Parameters

src	pointer to the transmitter position.
dest	pointer to the receiver position.

Returns: the inclination angle between the transmitter and the receiver

References debug_.

Referenced by getBeta().

◆ initializeLUT()

void UwOpticalMPropagation::initializeLUT ( )

protectedvirtual

Inizialize LUT of c_variable values

References lut_c_, lut_file_name_, and lut_token_separator_.

Referenced by command().

◆ isOmnidirectional()

bool UwOpticalMPropagation::isOmnidirectional ( )

Provide if we are assuming omnidirectional tx and rx or not.

Returns: if it is omnidirectional or not.

References omnidirectional_.

◆ linearInterpolator()

double UwOpticalMPropagation::linearInterpolator	(	double	x,
		double	x1,
		double	x2,
		double	y1,
		double	y2
	)

protected

Calculate the linear interpolation between two 2-D points

Parameters

x	x-coordinate of which we need to finde the value.
x1	x-coordinate of the first point
x2	x-coordinate of the second point
y1	y-coordinate of the first point
y2	y-coordinate of the second point

Returns: the value assumed by y obtained by linear interpolation

References q.

Referenced by getLambertBeerGain_variableC(), getTemperature(), and updateC().

◆ setWoss()

void UwOpticalMPropagation::setWoss ( bool flag )

virtual

References use_woss_.

◆ updateC()

void UwOpticalMPropagation::updateC ( double d )

protected

Set the attenuation coefficient from lookup table when both the nodes are alligned and at the same depth

Parameters

d	depth of the nodes.

References c_, linearInterpolator(), and lut_c_.

Referenced by getGain().

Here is the call graph for this function:

Member Data Documentation

◆ Ar_

double UwOpticalMPropagation::Ar_

protected

Receiver area [m^2]

Referenced by command(), getLambertBeerGain(), getLambertBeerGain_variableC(), and UwOpticalMPropagation().

◆ At_

double UwOpticalMPropagation::At_

protected

Transmitter size [m^2]

Referenced by command(), getLambertBeerGain(), getLambertBeerGain_variableC(), and UwOpticalMPropagation().

◆ c_

double UwOpticalMPropagation::c_

protected

Beam light attenuation coefficient c = a + b [m^-1]

Referenced by command(), getC(), getLambertBeerGain(), updateC(), and UwOpticalMPropagation().

◆ debug_

int UwOpticalMPropagation::debug_

Referenced by getGain(), getLambertBeerGain_variableC(), getWossOrientation(), and UwOpticalMPropagation().

◆ lut_c_

LUT_c UwOpticalMPropagation::lut_c_

protected

Lookup table map of the attenuation coefficient and the temperature versus the depth

Referenced by getC(), getLambertBeerGain_variableC(), getTemperature(), initializeLUT(), and updateC().

◆ lut_file_name_

string UwOpticalMPropagation::lut_file_name_

protected

LUT file name

Referenced by command(), and initializeLUT().

◆ lut_token_separator_

char UwOpticalMPropagation::lut_token_separator_

protected

LUT token separator

Referenced by command(), and initializeLUT().

◆ omnidirectional_

bool UwOpticalMPropagation::omnidirectional_

protected

Flag to set whether the system is omnidirectional or not. By default it is false

Referenced by command(), getLambertBeerGain(), getLambertBeerGain_variableC(), and isOmnidirectional().

◆ theta_

double UwOpticalMPropagation::theta_

protected

Transmitting beam diverge angle [rad]

Referenced by command(), getLambertBeerGain(), getLambertBeerGain_variableC(), and UwOpticalMPropagation().

◆ use_woss_

bool UwOpticalMPropagation::use_woss_

protected

Flag to set the woss. By default it is false

Referenced by getBeta(), getC(), getGain(), and setWoss().

◆ variable_c_

bool UwOpticalMPropagation::variable_c_

protected

Flag to set whether the attenuation is constant or not. By default it is false

Referenced by command(), getC(), getGain(), and getTemperature().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/propagation/uwoptical_propagation/uwoptical-mpropagation.h
DESERT_Framework/DESERT/propagation/uwoptical_propagation/uwoptical-mpropagation.cpp
