#include <uwopticalbeampattern.h>

Inheritance diagram for UwOpticalBeamPattern:

Collaboration diagram for UwOpticalBeamPattern:

Public Member Functions
	UwOpticalBeamPattern ()

virtual	~UwOpticalBeamPattern ()

virtual int	command (int, const char const )

virtual void	startRx (Packet *p)

virtual void	startTx (Packet *p)

Public Member Functions inherited from UwOpticalPhy
	UwOpticalPhy ()

virtual	~UwOpticalPhy ()

virtual double	getSNRdB (Packet *p)

virtual void	endRx (Packet *p)

virtual double	getNoisePower (Packet *p)

Protected Member Functions
void	initializeLUT ()

void	initializeBeamLUT (BeamPattern &beam_lut_, string beam_pattern_path_)

void	initializeMaxRangeLUT ()

double	getMaxTxRange (Packet *p)

double	getLutMaxDist (double c, double na)

double	getLutBeamFactor (BeamPattern &beam_lut_, double beta)

double	getBetaRx (Packet *p)

double	getBetaXY (Packet *p, double rotation_angle)

double	getBetaXYRx (Packet *p)

double	getBetaXYTx (Packet *p)

double	getBetaTx (Packet *p)

Protected Member Functions inherited from UwOpticalPhy
virtual double	lookUpLightNoiseE (double depth)

virtual double	linearInterpolator (double x, double x1, double y1, double x2, double y2)

double	getVarTemperature (Packet *p)

Private Member Functions
void	checkInclinationAngle ()

Private Attributes
string	beam_pattern_path_rx_

string	beam_pattern_path_tx_

string	max_dist_path_

char	beam_pattern_separator_

char	max_dist_separator_

CMaxDist	dist_lut_

BeamPattern	beam_lut_rx_

BeamPattern	beam_lut_tx_

double	back_noise_threshold_

double	inclination_angle_

bool	sameBeam

Additional Inherited Members
Protected Attributes inherited from UwOpticalPhy
bool	use_woss_

Constructor & Destructor Documentation

◆ UwOpticalBeamPattern()

UwOpticalBeamPattern::UwOpticalBeamPattern ( )

Constructor of UwMultiPhy class.

References back_noise_threshold_, checkInclinationAngle(), and inclination_angle_.

Here is the call graph for this function:

◆ ~UwOpticalBeamPattern()

virtual UwOpticalBeamPattern::~UwOpticalBeamPattern ( )

inlinevirtual

Destructor of UwMultiPhy class.

Member Function Documentation

◆ checkInclinationAngle()

void UwOpticalBeamPattern::checkInclinationAngle ( )

private

References inclination_angle_.

Referenced by command(), and UwOpticalBeamPattern().

◆ command()

int UwOpticalBeamPattern::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

Reimplemented from UwOpticalPhy.

References beam_pattern_path_rx_, beam_pattern_path_tx_, beam_pattern_separator_, checkInclinationAngle(), UwOpticalPhy::command(), inclination_angle_, max_dist_path_, max_dist_separator_, and sameBeam.

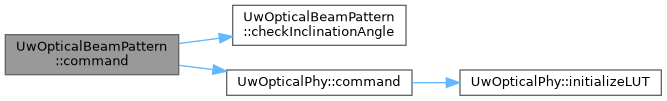

Here is the call graph for this function:

◆ getBetaRx()

double UwOpticalBeamPattern::getBetaRx ( Packet * p )

protected

References inclination_angle_, and UwOpticalPhy::use_woss_.

Referenced by getMaxTxRange().

◆ getBetaTx()

double UwOpticalBeamPattern::getBetaTx ( Packet * p )

protected

References hdr_uwopticalbeampattern::get_inclination_angle(), and UwOpticalPhy::use_woss_.

Referenced by getMaxTxRange().

Here is the call graph for this function:

◆ getBetaXY()

double UwOpticalBeamPattern::getBetaXY	(	Packet *	p,
		double	rotation_angle
	)

protected

◆ getBetaXYRx()

double UwOpticalBeamPattern::getBetaXYRx ( Packet * p )

protected

References inclination_angle_, and UwOpticalPhy::use_woss_.

Referenced by getMaxTxRange().

◆ getBetaXYTx()

double UwOpticalBeamPattern::getBetaXYTx ( Packet * p )

protected

References hdr_uwopticalbeampattern::get_inclination_angle(), and UwOpticalPhy::use_woss_.

Referenced by getMaxTxRange().

Here is the call graph for this function:

◆ getLutBeamFactor()

double UwOpticalBeamPattern::getLutBeamFactor	(	BeamPattern &	beam_lut_,
		double	beta
	)

protected

References UwOpticalPhy::linearInterpolator().

Referenced by getMaxTxRange().

Here is the call graph for this function:

◆ getLutMaxDist()

double UwOpticalBeamPattern::getLutMaxDist	(	double	c,
		double	na
	)

protected

Get the maximum transmission range for these water properties.

References back_noise_threshold_, dist_lut_, and UwOpticalPhy::linearInterpolator().

Referenced by getMaxTxRange().

Here is the call graph for this function:

◆ getMaxTxRange()

double UwOpticalBeamPattern::getMaxTxRange ( Packet * p )

protected

Get the transmission range in the current conditions.

References beam_lut_rx_, beam_lut_tx_, dist_lut_, getBetaRx(), getBetaTx(), getBetaXYRx(), getBetaXYTx(), getLutBeamFactor(), getLutMaxDist(), UwOpticalPhy::lookUpLightNoiseE(), and UwOpticalPhy::use_woss_.

Referenced by startRx().

Here is the call graph for this function:

◆ initializeBeamLUT()

void UwOpticalBeamPattern::initializeBeamLUT	(	BeamPattern &	beam_lut_,
		string	beam_pattern_path_
	)

protected

Inizialize beam pattern LUT

References beam_pattern_separator_.

Referenced by initializeLUT().

◆ initializeLUT()

void UwOpticalBeamPattern::initializeLUT ( )

protectedvirtual

Inizialize all the LUTs

Reimplemented from UwOpticalPhy.

References beam_lut_rx_, beam_lut_tx_, beam_pattern_path_rx_, beam_pattern_path_tx_, initializeBeamLUT(), UwOpticalPhy::initializeLUT(), and initializeMaxRangeLUT().

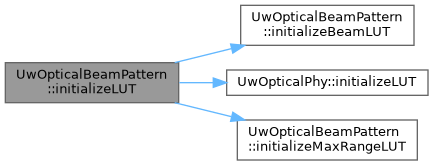

Here is the call graph for this function:

◆ initializeMaxRangeLUT()

void UwOpticalBeamPattern::initializeMaxRangeLUT ( )

protected

Inizialize max range LUT

References dist_lut_, max_dist_path_, max_dist_separator_, MaxDist::max_range, and MaxDist::max_range_with_noise.

Referenced by initializeLUT().

◆ startRx()

void UwOpticalBeamPattern::startRx ( Packet * p )

virtual

Reimplemented from UwOpticalPhy.

References getMaxTxRange().

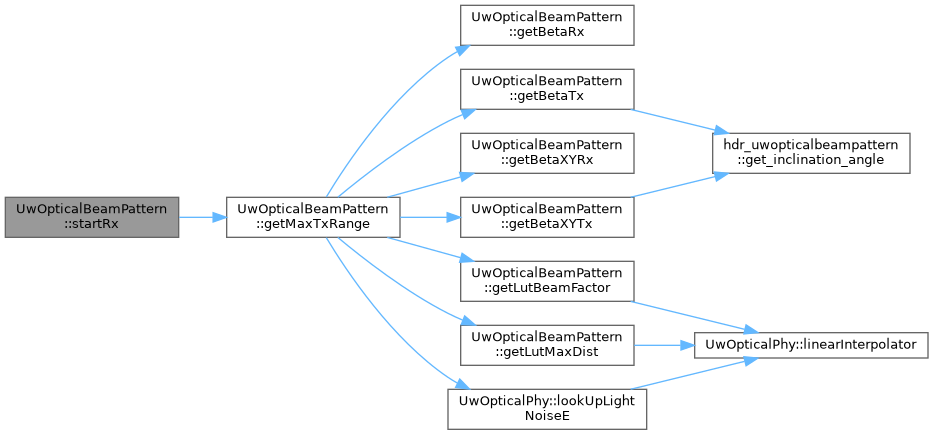

Here is the call graph for this function:

◆ startTx()

void UwOpticalBeamPattern::startTx ( Packet * p )

virtual

References hdr_uwopticalbeampattern::get_inclination_angle(), and inclination_angle_.

Here is the call graph for this function:

Member Data Documentation

◆ back_noise_threshold_

double UwOpticalBeamPattern::back_noise_threshold_

private

Referenced by getLutMaxDist(), and UwOpticalBeamPattern().

◆ beam_lut_rx_

BeamPattern UwOpticalBeamPattern::beam_lut_rx_

private

Referenced by getMaxTxRange(), and initializeLUT().

◆ beam_lut_tx_

BeamPattern UwOpticalBeamPattern::beam_lut_tx_

private

Referenced by getMaxTxRange(), and initializeLUT().

◆ beam_pattern_path_rx_

string UwOpticalBeamPattern::beam_pattern_path_rx_

private

Referenced by command(), and initializeLUT().

◆ beam_pattern_path_tx_

string UwOpticalBeamPattern::beam_pattern_path_tx_

private

Referenced by command(), and initializeLUT().

◆ beam_pattern_separator_

char UwOpticalBeamPattern::beam_pattern_separator_

private

Referenced by command(), and initializeBeamLUT().

◆ dist_lut_

CMaxDist UwOpticalBeamPattern::dist_lut_

private

Referenced by getLutMaxDist(), getMaxTxRange(), and initializeMaxRangeLUT().

◆ inclination_angle_

double UwOpticalBeamPattern::inclination_angle_

private

Angle of inclination from the 0 Zenith

Referenced by checkInclinationAngle(), command(), getBetaRx(), getBetaXYRx(), startTx(), and UwOpticalBeamPattern().

◆ max_dist_path_

string UwOpticalBeamPattern::max_dist_path_

private

Referenced by command(), and initializeMaxRangeLUT().

◆ max_dist_separator_

char UwOpticalBeamPattern::max_dist_separator_

private

Referenced by command(), and initializeMaxRangeLUT().

◆ sameBeam

bool UwOpticalBeamPattern::sameBeam

private

Referenced by command().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/physical/uwopticalbeampattern/uwopticalbeampattern.h
DESERT_Framework/DESERT/physical/uwopticalbeampattern/uwopticalbeampattern.cpp
